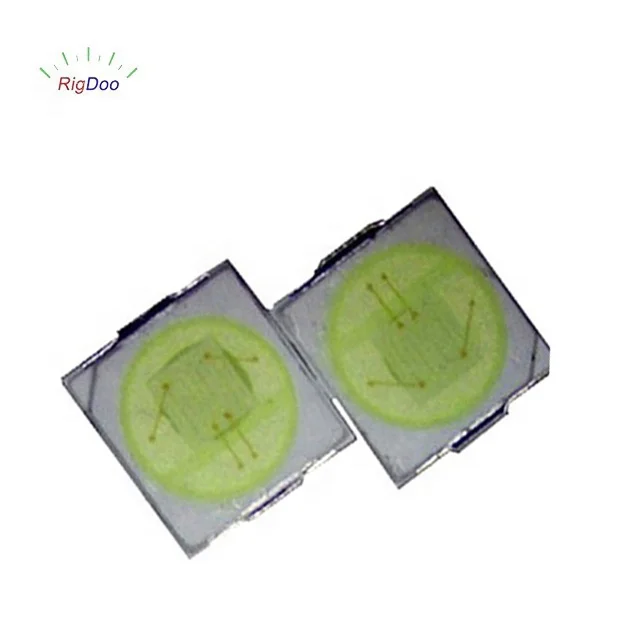

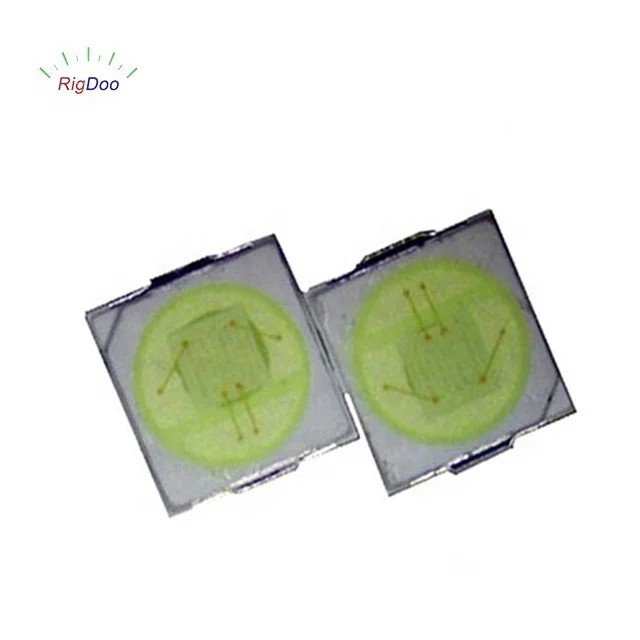

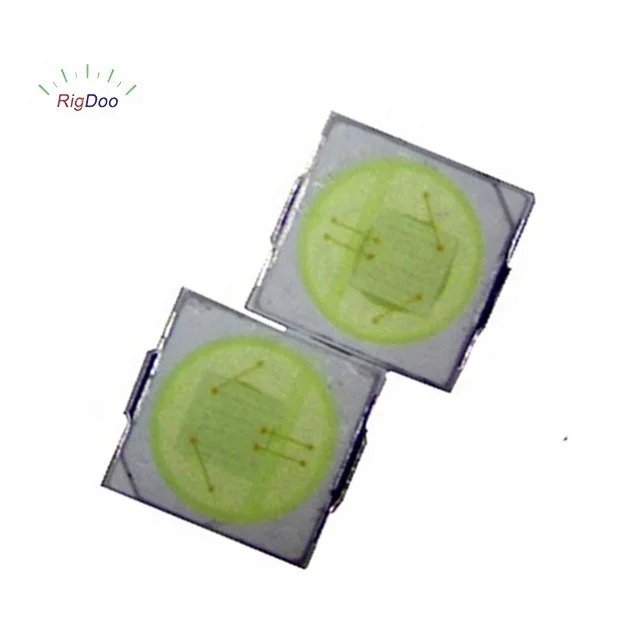

Free Sample 3.0x3.0x0.52 mm size 100000K color temperature 3030 3535 crees led chip
Product Description
Features
Package ( L/W/H ) : 3.0×3.0×0.52 mm Color : Ultra High Bright Ice Blue Lens: Yellow Clear Flat Mold EIA STD Package Meet ROHS, Green Product Compatible With SMT Automatic Equipment Compatible With Infrared Reflow Solder Process

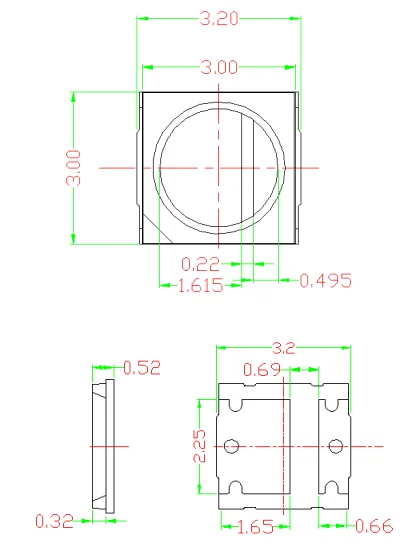

Package Profile & Soldering PAD Suggested
Absolute Maximum Ratings At Ta=25℃
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
1000
mW
Peak Forward Current
IFP
450
mA
(1/10 Duty Cycle, 0.1ms Pulse Width)
DC Forward Current
IF
350
mA
Reverse Voltage
VR
10
v
Operating Temperature Range
Topr
-40C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 100C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds
Electrical Optical Characteristics At Ta=25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Lumens
Φ
70
80
lm
IF = 350mA
Color Rendering Index
Ra
80
IF = 350mA
Viewing Angle
2θ1/2
---
120
---
deg
IF = 350mA
Color Temperature
CCT
---
100000
---
K
IF=350mA
Forward Voltage
VF
1.8
---
2.6
V
IF=350mA
Reverse Current
IR
---
---
5
uA
VR=5V
Packing
Product Categorie
Certificates
Application
Company Information
Company Profile
Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry. RigDoo specially R&D, manufacture and sales LED, SMD LED, Through Hole LED and High Power COB integrated LED.
We have hundreds of machines of Crystal Bonders (ASM), Wire Bonders (ASM, K&S), Dispensing Machines (Musashi), Molding Machines (Single Well), Slicing Machines (DISCO), Sorting Machines (Ka Large, Single Well, Tripod) and Tape Loading Machines (Mason, Ka Large, Single Well and Tripod) etc..
For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB, RGBW, RGBWW etc..
For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..
For High Power COB integrated LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
Our factory are with certificates of ISO9001 and ISO14000. Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
FAQ
Q1. Can I have samples order for LED? Yes, if quantity is small, we can supply samples free of charges. Just you need pay for shipping cost. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the samples via DHL, TNT, UPS, FedEx or Aramex.
Q2. What about the lead time? If we have the products in our stock, lead time is 3-5 days. If we need special production, lead time is around 15 days.
Q3. Do you have any MOQ limit for LED order? Yes, normally, MOQ is SPQ, Standard Packing Quantity.
Q4. How do you ship the goods and how long does it take to arrive? Normally we ship the goods via international express. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the products via DHL, TNT, UPS, FedEx or Aramex. It takes around 2-6 days to arrive. And we can also ship the goods to your agent in China Mainland or HongKong.
