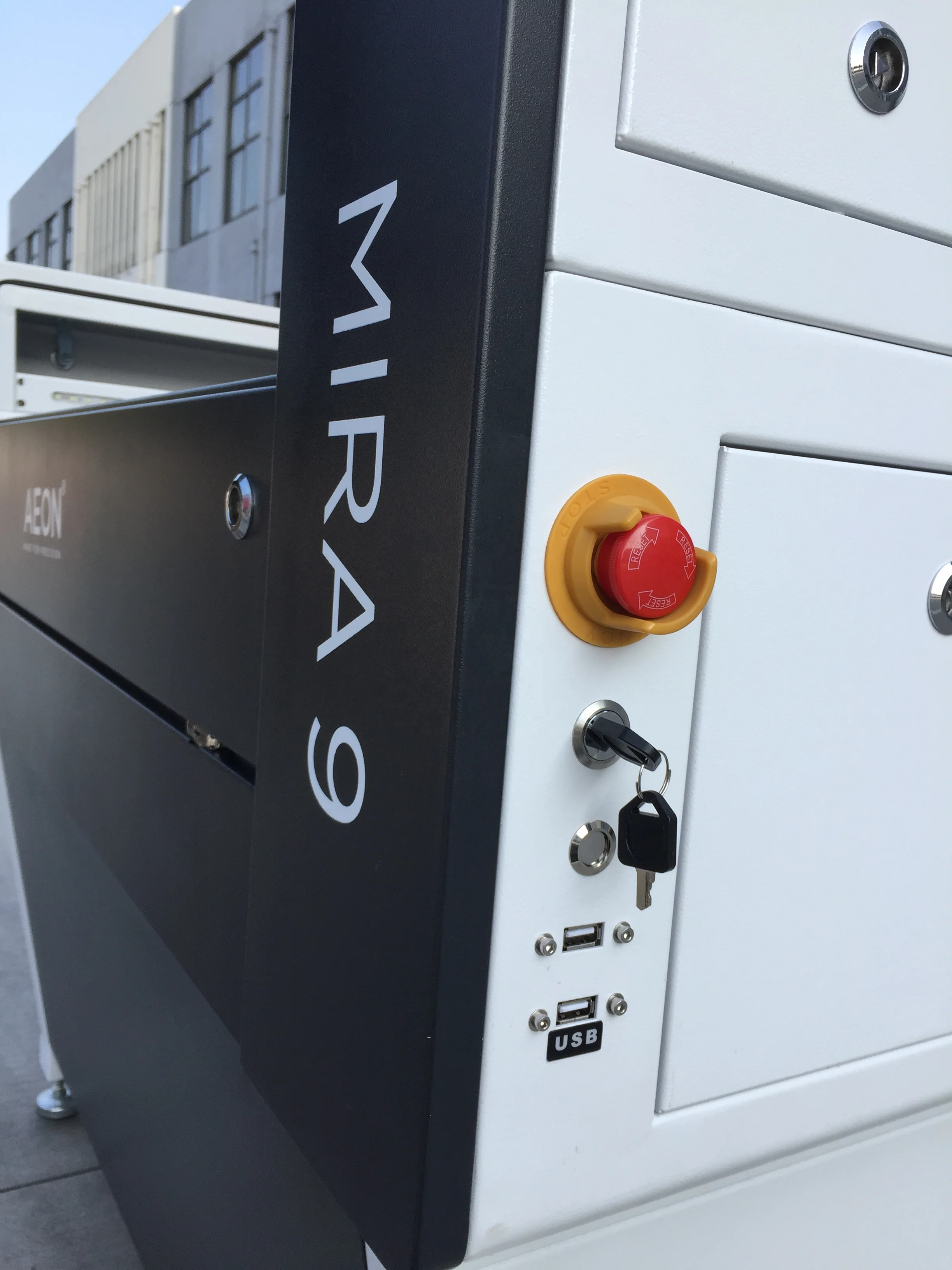

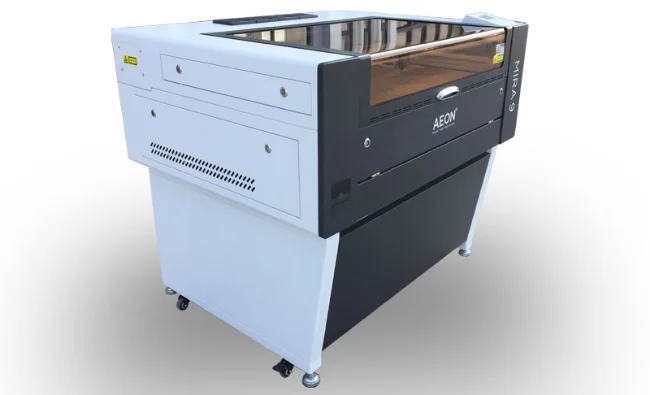

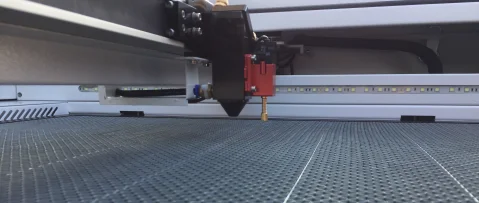

Class 1 Laser Aeon Mira 9 Double Color Board Cutting And Engraving Machine

Product Overview

Description

shanghai Aeon  Class 1 laser Mira 9 Double color board cutting and engraving machine

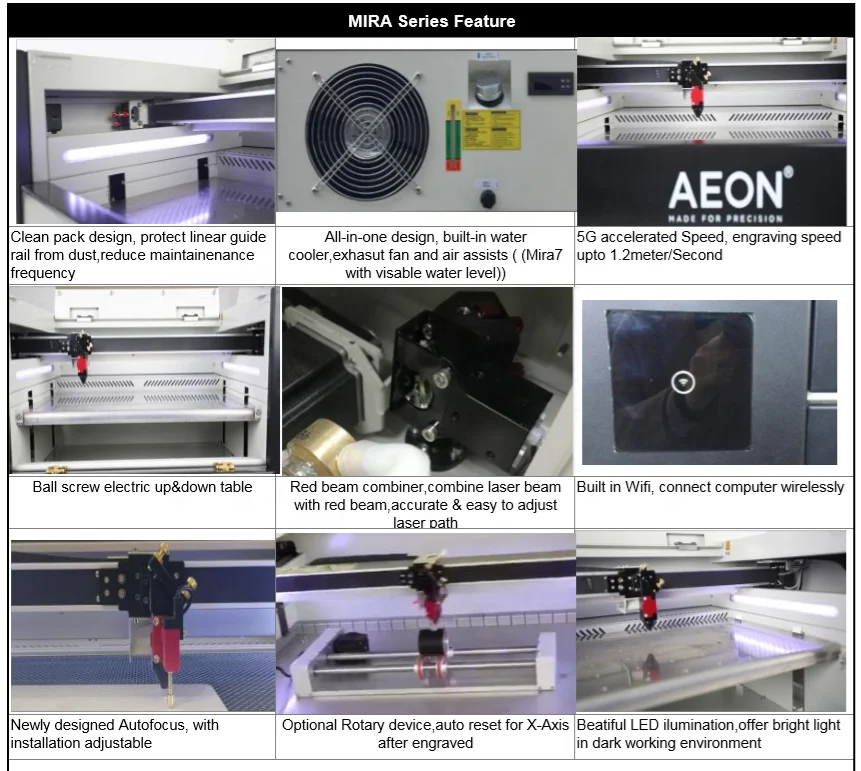

MIRA SERIES:    MIRA5030 / MIRA7045/ MIRA9060

NOVA SERIES  : NOVA7/  NOVA10 / NOVA14  with ball screw motorized up down platform 200mm

VEGA SERIES:   VEGA10/VEGA15 /VEGA16X2 double laserhead/VEGA18x2 Feeder  NO up down

FLAT SERIES:    FLAT 13/ FLAT 15













IV.Technical Specification



Model	MIRA	NOVA7	NOVA10	NOVA14	VEGA10	VEGA15	VEGA16X2   Doublehead	VEGA18X2Feeder doublehead	FLAT13	FLAT15
Laser   Type	CO2 glass sealed laser tube or RF metal sealed laser tube optional
Laser Power	50w / 60w / 80w				80W/100W/120W/150W/240w/400w
Work platform  Size	50x30cm	100x70cm	140x80cm	100x70cm	150x80cm	160x100cm	160x120cm	180x120cm	130x250cm	150x300
CO2 Laser Engraving Speed	0~120000mm/min	0~90000mm/min
Co2 Laser Cutting Speed	0~70000mm/min
Co2 Laser Cutting Thickness	0-30mm (depends on different materials)
Worktable	honey-comb	honey-comb + Alumnium Knife Slatted platform						Rolling feeding table	Alumnium Knife Slatted platform
motorized up down table	120mm	200mm	200mm	200mm	None
Precision positioning	≤±0.025mm
Graphic format	The Files which CorelDraw, Photoshop, AutoCAD can identif,(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT, CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)
Working temperature	0 - 45°C
Motor type	Stepper Motor
Working voltage	AC110- 220V±10%, 50-60Hz

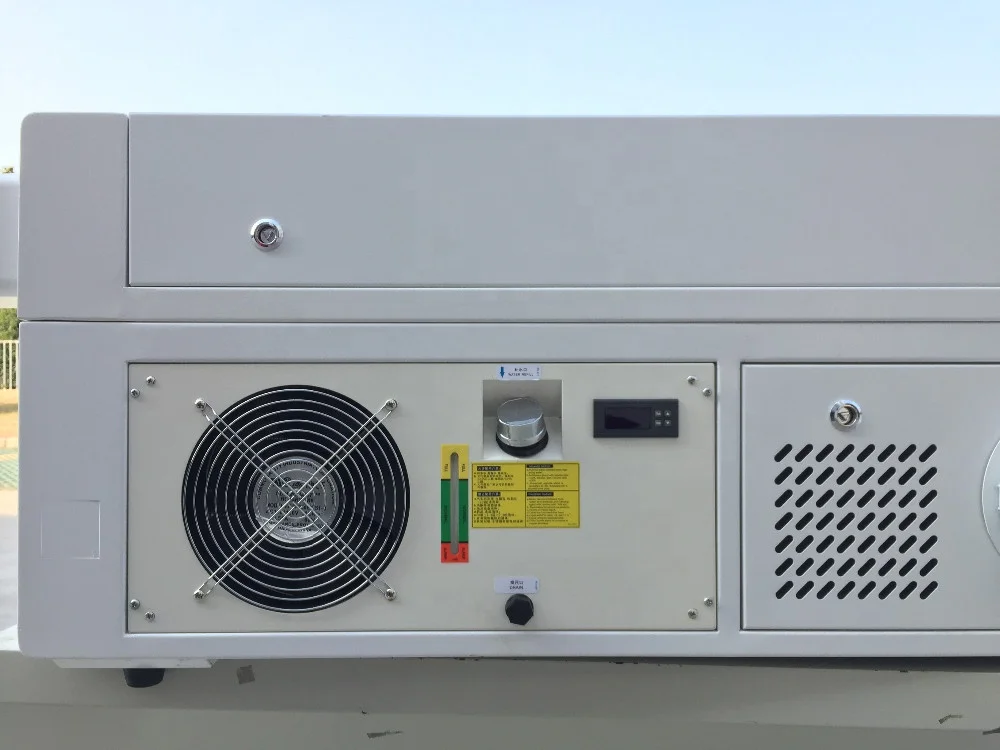

Water Cooling	built-in water cooling and blower	Industry Water chiller
System Environment	Windows 2000 | Windows XP | Windows Vista | Windows 7| Windows 8
G.W	30kgs	280kgs	380kgs	420kgs	380kgs	450kgs	480kgs	550kgs	800kgs	800kgs



Youtube Channel Link: https://www.youtube.com/channel/UCH4ZCffagnAgR11tazqga4A/



V.Standard Accessories/Packing List



♦ 1×  Class 1 laser aeon Mira 9 cutting and engraving machine price

♦ 1× Honeycomb table + Aluminum knife blades worktable (Double work table)

♦ 1× Ordinary 80w Co2 Sealed Laser Tube For SpanLife 4000hrs

♦  Red Dot Pointer Function (free)

♦ 1×  Air compressor + 1× Exhaust blower +  1×Smoke pipe + 1× Water pump + 1× Water pipe

♦ 1× USB cable (Connecting pc and machine)

♦ 1× CD (Including PHCAD operating software, user-friendly instruction manual, some guiding videos.)

♦ 1× Power cable

♦ 1× Tool box (Wrench)

♦ 1× Aeon Laser User Manual for Class 1 laser aeon Mira 9 cutting and engraving machine



VI.Optional Accessories



Optional accessory for Class 1 laser aeon Mira 9 cutting and engraving machine price



Ultrasonic Auto Focusing for optional -- adjust the working platform and workpiece to a suitable space automatically
Z axis-(up down working table)-suitable for thickness of workpiece 's processing

Rolling feeding table --(For long fabric or leather rolls, Suit for fabric/leather/ Flexible material )

Industrial CCD Camera-- ( for automatic fabric/logo cutting)

Water Chiller--- (make laser tube longer lifetime)



♦Ultrasonic Auto Focusing

♦Industry CCD Camera

♦Ball Screw Motorized up and down platform

♦Rotary device

♦Water Chiller CW3000/CW5000/CW5200

♦ Servo Motor

♦ 10000hrs Reci Longlife Co2 laser Tube for 100w/130w/150w

♦ 5000hrs Ordinary Co2 Laser Tube for 100w/130w/150w

♦ RF metal tube

♦ Rolling Feeding Table  (For long fabric or leather rolls)



  We always pay more attention to the working quality of our Class 1 laser aeon Mira 9 Double color board cutting and engraving machine price, if you want samples,welcome to send to us to test,and  welcome to visit our factory in Shanghai China.

  We're looking for distributors all over the world honestly, Come and Join AEON Laser !!!
