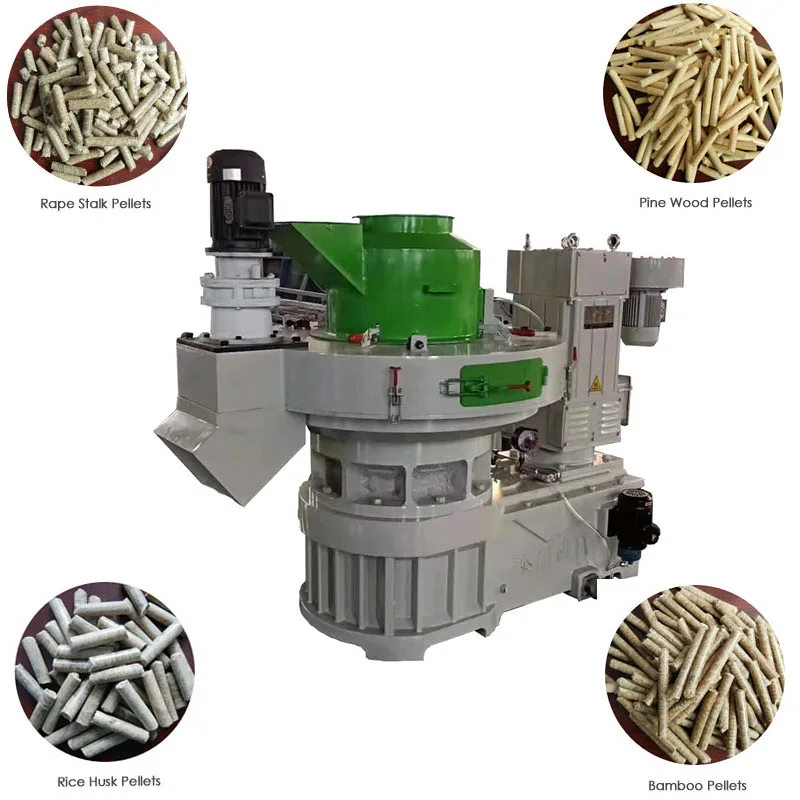

Introduction of wood pellet machine: LKJ560 series is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill, wood processing plants, fuel plants, fertilizer plants, chemical plants etc.
Advantage points of wood pellet machine
1.Ring die, vertical structure, conducive to the pelletizing room cooling 2.Die static, rollers rotating, materials centrifugal, evenly distributed around 3.Wood pellet mill can press 6-12mm pellets diameter,if you need different pellets diameter,just change the different ring die is ok. 4.Pellet mill power supply is 380v,50hz,3phases,we also can design the special motor for you,like 220v,415v,60hz,3phases.
Type
Power(kw)
Pellets(mm)
Modelφ(mm)
Output(t/h)
Dimension(mm)
Weight(t)
LKJ560
90/132+1.1+1.5+0.55+2.2
φ6-12
φ548
1-2
1600*1210*1700
4.5
LKJ700
132/160+1.+1.5+0.55+2.2
φ6-12
φ700
2-3
1650*1261*1783
5.5
LKJ850
185+1.1+1.5+0.55+3
φ6-12
φ850
3-3.5
1800*1450*1850
7

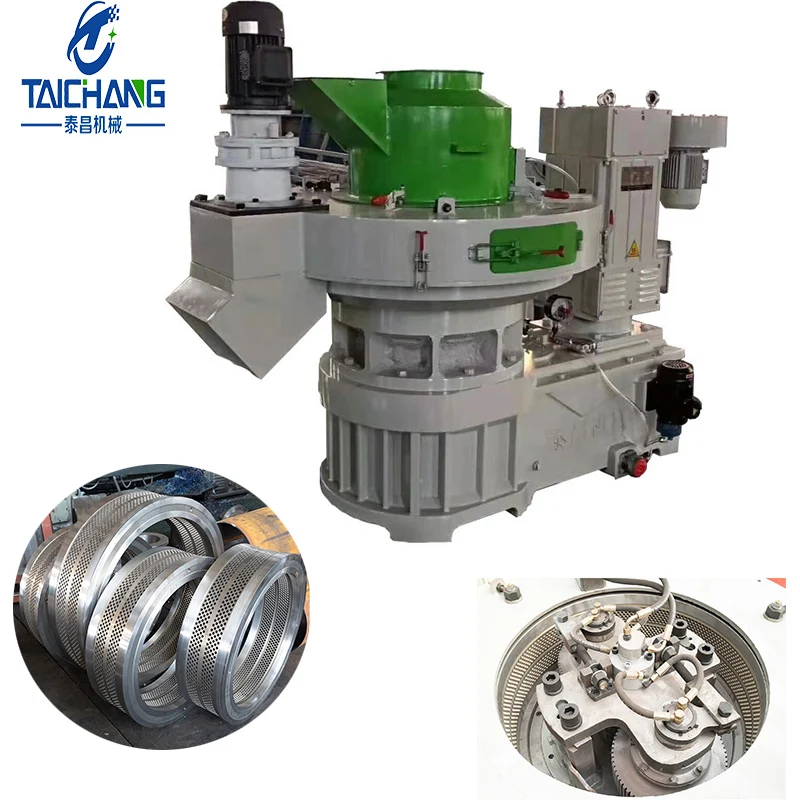

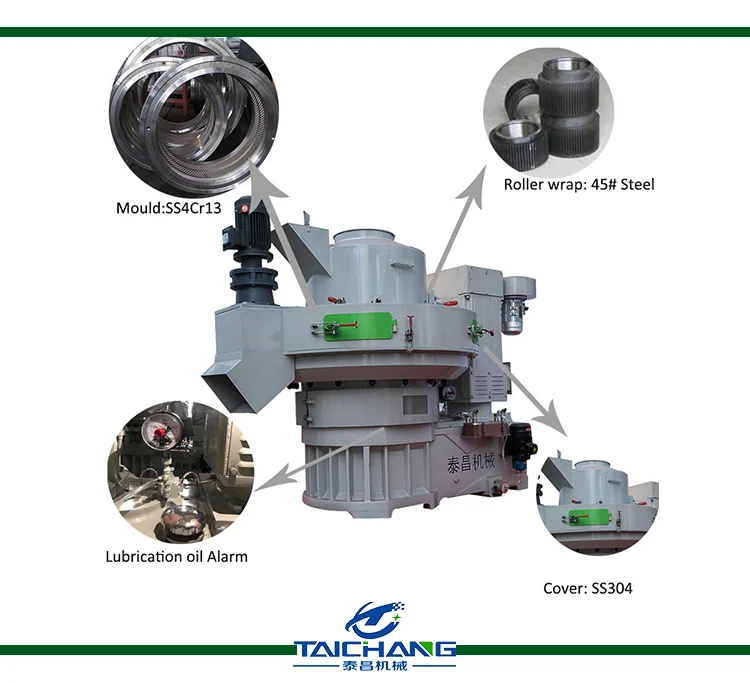

Details Images:
Special motor and reducer for wood pelleting machine
Product Application
Application:

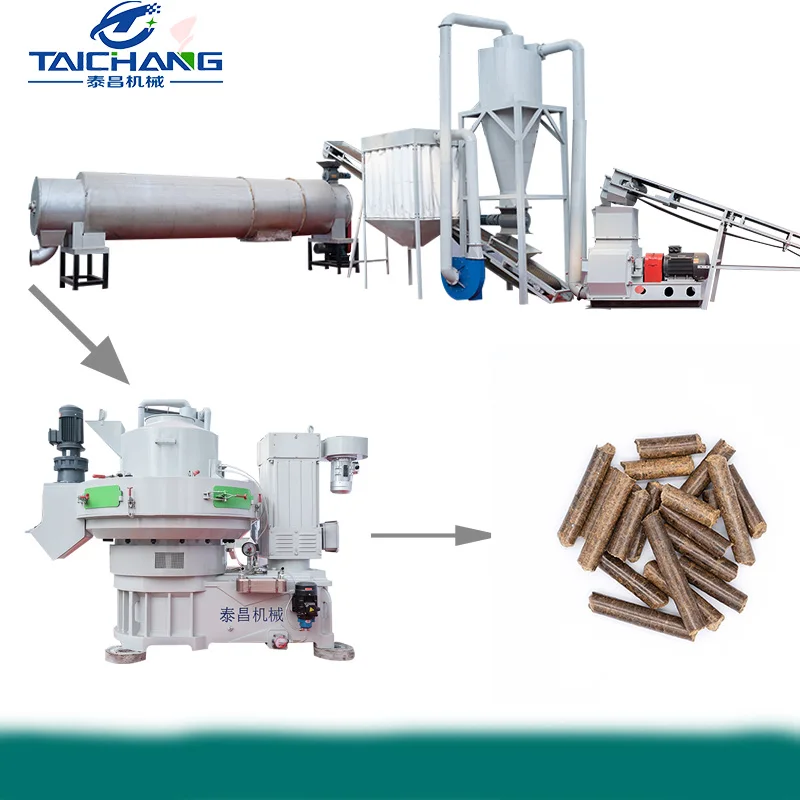

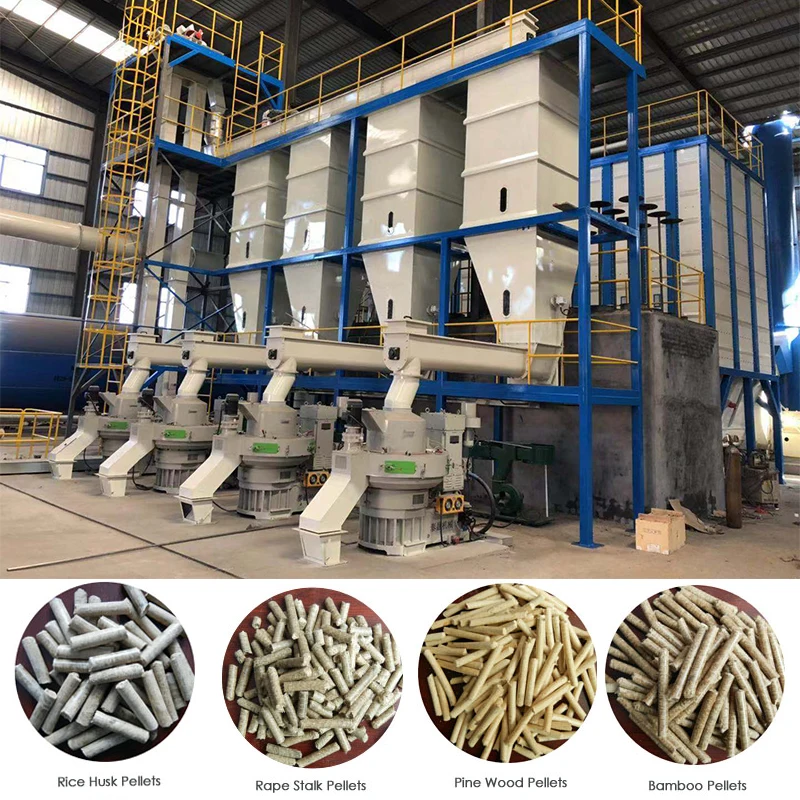

Widely used for crude fiber granulator, such as sawdust, rice husk, cotton stalks, cottonseed skins, weeds,other crops straw and plant waste,widely used in large-scale complete pellet production lines.
Company Profile
Company Information:
Jinan Taichang Transmission Machinery Co., Ltd. was established in 2004. The company's products have passed ISO9001-2000 international quality management system certification,SGS certificate, CE certificate etc.Wood pellet machine, palm pellet machine, straw pellet machine, the latest butter-free pellet machine, has absorbed the experience of granulators at China and abroad, is the company's main product.
Why Choose Us
Our customers
Our products exported to Europe, North America, South America, Southeast Asia and Africa markets, received unanimous praise from foreign customers.
