Series 200 ASIA standard Type Pneumatic Quick Couplings

Product Overview

Description

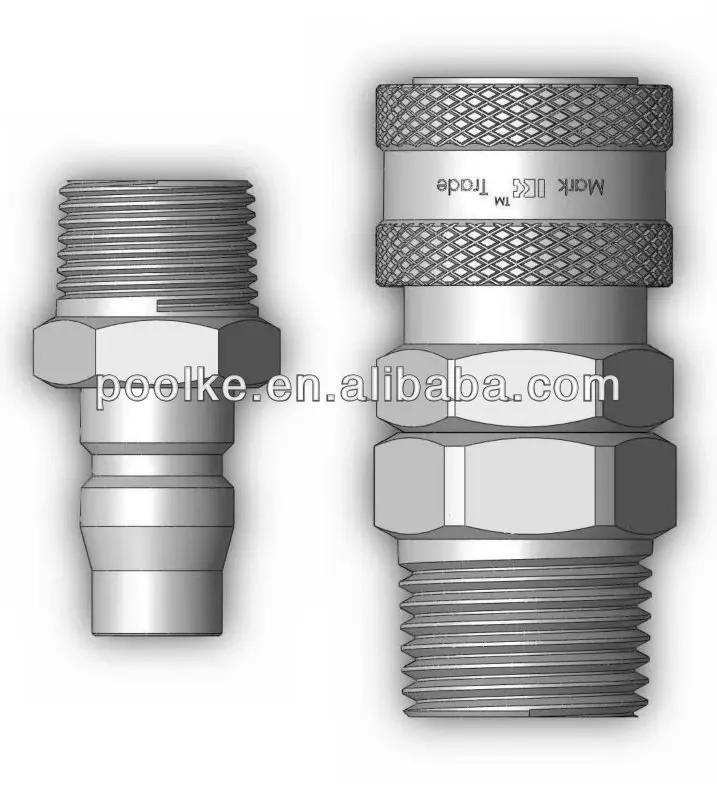

Asia standard Type Pneumatic Quick Couplings



Features:



Flow Capacity:   1950 L/Min                           Material:

Nominal flow dia: 7.5 mm                                                1, Chrome-platedsteel

Temperature range(NBR): -20°C ~ 80°C                          2,Nickel-plated brass

 Max.working pressure: 35 Bar                                        3,Stainless steel



Standard and Compatibility:                                    Feature:

           ASIA                                                                                   Two-hand operated

      Rectus 03ka,13ka, Legris series LQAC                               Optional One-hand operated

           Nitto Kohki 200 series

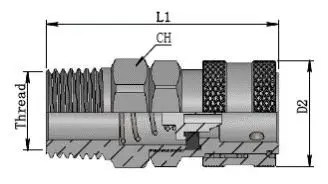

SM Type--Male	PART NO.		D2	L1	CH
	Info	Thread
	200-SM	R1/4	26	43	22
		R3/8	26	43	22
		R1/2	26	46	22

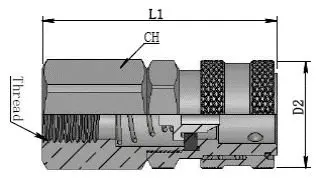

SF Type--Female	PART NO.		D2	L1	CH
	Info	Thread
	200-SF	G1/4	26	43	22
		G3/8	26	43	22
		G1/2	26	46	22

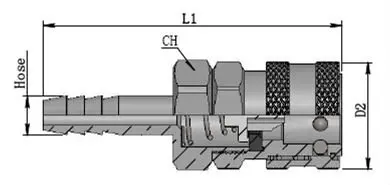

SH Type--Hose Barb	PART NO.		D2	L1	CH
	Info	Hose
	200-SH	6	26	60	22
		8	26	60	22
		10	26	60	22
		13	26	60	22

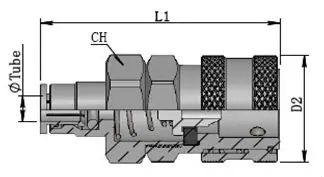

SP Type--Push-in	PART NO.		D2	L1	CH
	Info	Tube
	200-SP	6	27	45	22
		8	27	45	22
		10	27	47	22
		12	27	47	22

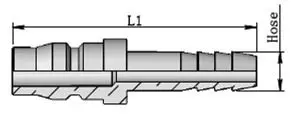

PH Type--Hose Barb	PART   NO.		L1		PM Type--Male	PART   NO.		L1	CH
	Info	Hose				Info	Thread
	200-PH	6	49			200-PM	R1/4	41	14
		8	49				R3/8	41	17
		10	49				R1/2	46	22
		13	49
PP Type--Push-in	PART   NO.		L1		PF Type--Female	PART   NO.		L1	CH
	Info	Tube				Info	Thread
	200-PP	6	35			200-PF	G1/4	35	17
		8	35				G3/8	35	19
		10	37				G1/2	38	24
		12	37
