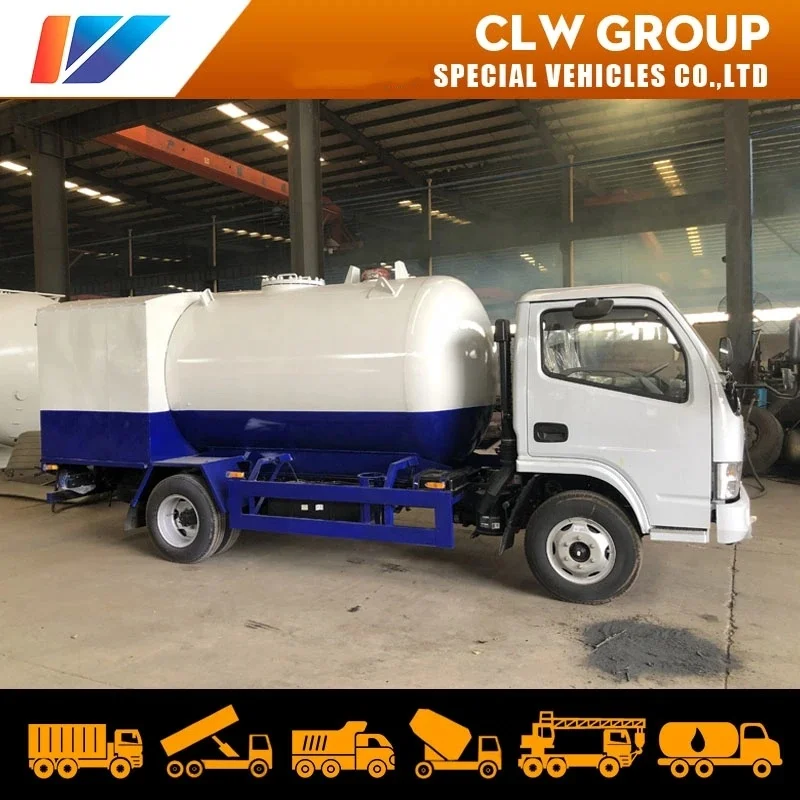

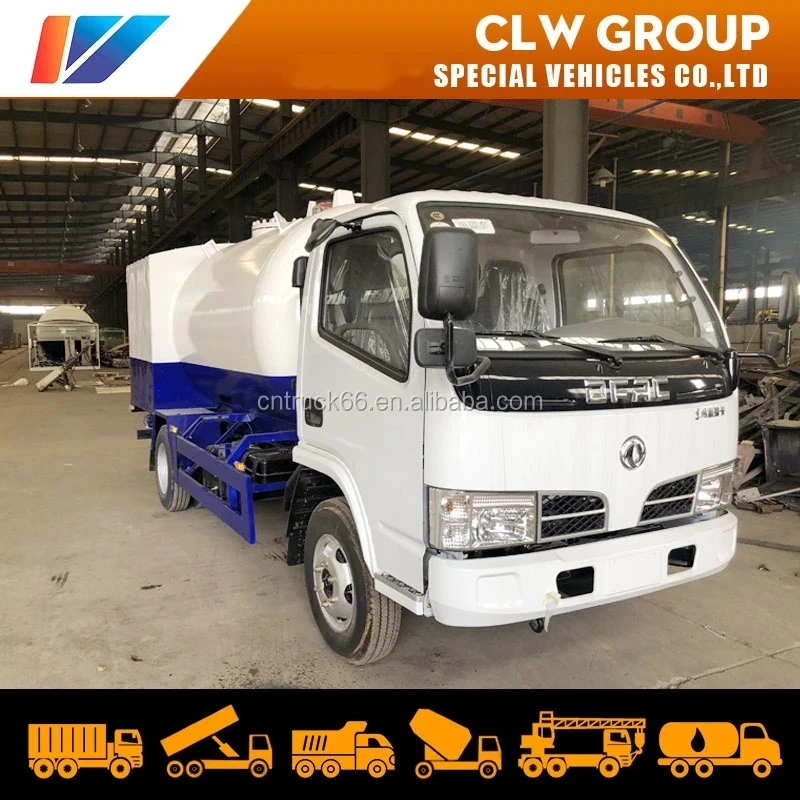

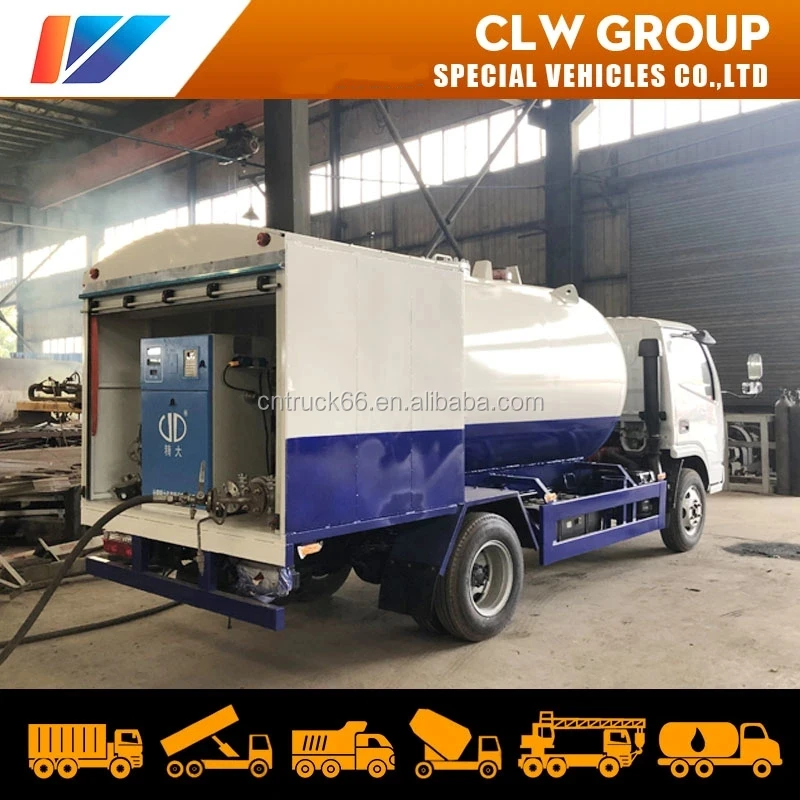

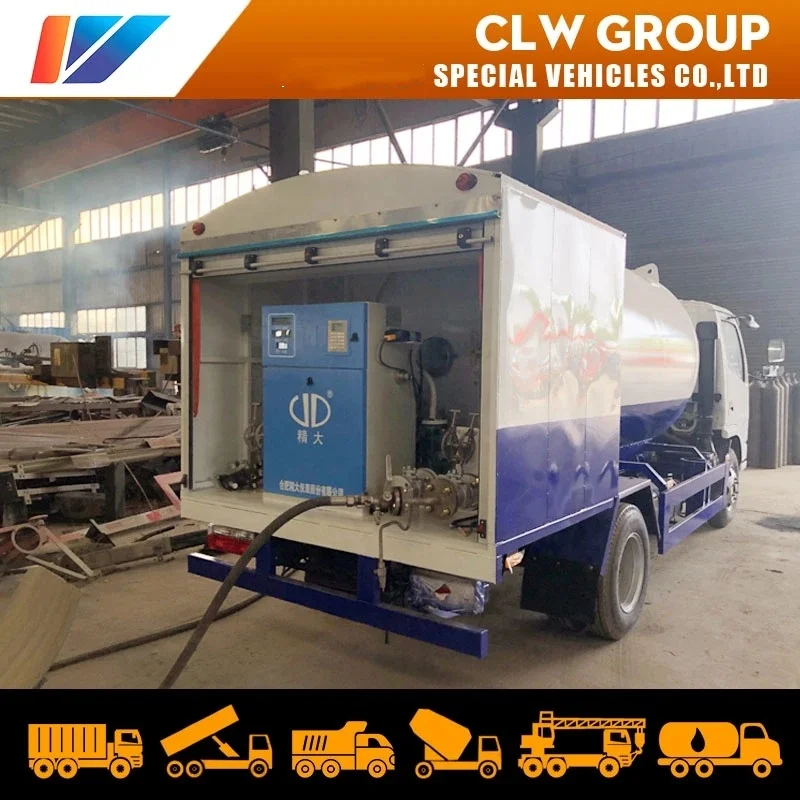

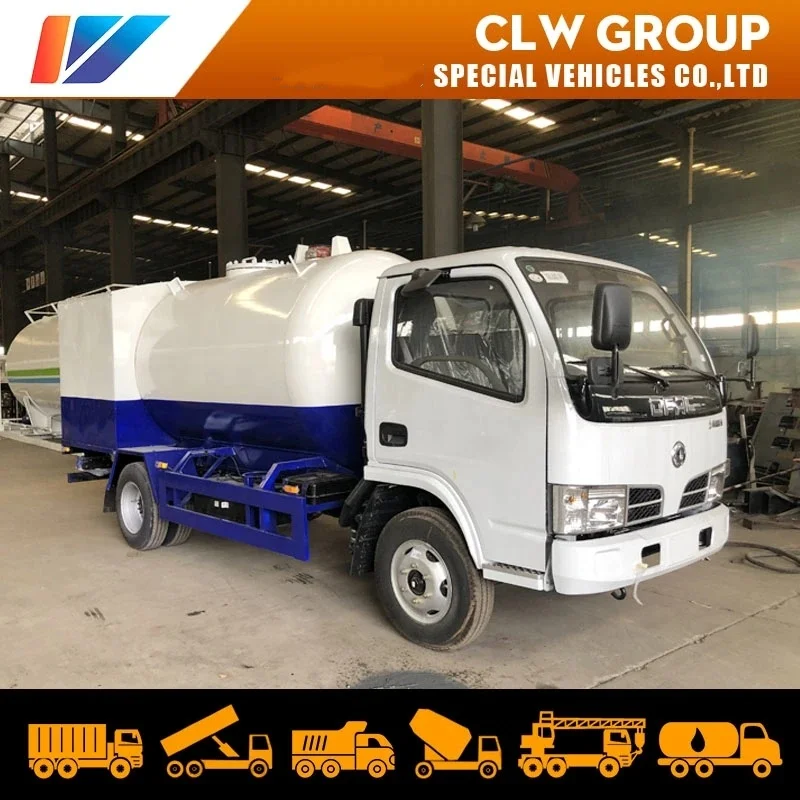

5000L LPG Gas Bobtail Tank Truck Small 2ton 3tons Home Cylinder Filling Tanker Truck with LPG Dispenser for Nigeria
Product Description
We produce the LPG tank , LPG tank trailer, LPG trucks, LPG skid station, which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
Currently we produce the LPG tank, LPG gas storage tank from 5000 liter to 200000 liter.
LPG tank trailer, LPG mobile trailer, from 30000 liter to 60000 liter.
LPG truck, LPG mobile dispener truck, from 5000 liter to 35000 liter.
1)lpg bobtail capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2)lpg bobtail material
Q345R Q370R SA516
3)lpg bobtail production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4)Main parts of lpg bobtail
pump, motor, flow meter, lpg dispenser
| 5000l LPG truck | |||||||
| Filling gas | LPG (propane) | ||||||
| Design Specific Gravity | 0.42 Kg/L | ||||||
| capacity | 5000l | ||||||
| External Dimensions (length*width*height) | 5995x2150x2450 | ||||||
| Tank dimension (length*diameter) | L3866*D1600mm | ||||||
| tank weight (nominal) | 2030kg | ||||||
| max payload weight | 1995kg | ||||||
| tank material | Q345R | ||||||
| Tank body design thickness | 8mm | ||||||
| End cover design thickness | 8mm | ||||||
| design temperature | 50 0C | ||||||
| working temperature | -20~50 0C | ||||||
| Corrosion allowance | 1.0 mm | ||||||
| design pressure | 1.77 MPa | ||||||
| Hydraulic test pressure | 2.22 MPa | ||||||
| leak test pressure | 1.77 MPa | ||||||
| Heat treatment type | Wholly get rid of tress | ||||||
| Main parts specification | |||||||
| Lpg gas pump (YQB15-5) | Flow (m³/h) | 15.5 | |||||
| Inlet pressure (MPa) | ≤2.0 | ||||||
| outlet pressure difference (Mpa | 0.5 | ||||||
| Pump rotate speed (r/min) | 780 | ||||||
| motor power (KW) | 5.5 | ||||||
| Inlet aperture (mm) | 50 | ||||||
| Outlet aperture (mm) | 50 | ||||||
| Temperature rangeºC | -40~40 | ||||||
| Weight(kg) | 108 | ||||||
| Explosive-proof motor | 7.5HP(5.5KW), Explosive Proof, | ||||||
| Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | |||||||
| LPG cylinder filling machine | Model | BSC-150 | |||||
| Electricity voltage V | AC220 | ||||||
| Power(w) | 40 | ||||||
| Weighting scale | Can fill 0.5kg to 150kg LPG cylinde | ||||||
| Measurement Precision | ±0.5% | ||||||
| Rated Working Pressure | 1.6Mpa | ||||||
| Temperature range ºC | -40~40 | ||||||
| Anti-explosion Rate | Exhibit II BT4 | ||||||
Product Images
Detailed Images
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Model: we have sewage suction truck and sewage suction cleaning truck;
6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;
7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;
9. Crane tonnage: 5m3 to 200m3;
10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
