Low voltage Distribution Panels/ Switch Cabinets/LV Electric Switchgear Distribution Panel
- Category: >>>
- Supplier: Worldwide Electric Stock Co. Ltd.
Share on (62391540236):
Product Overview
Description

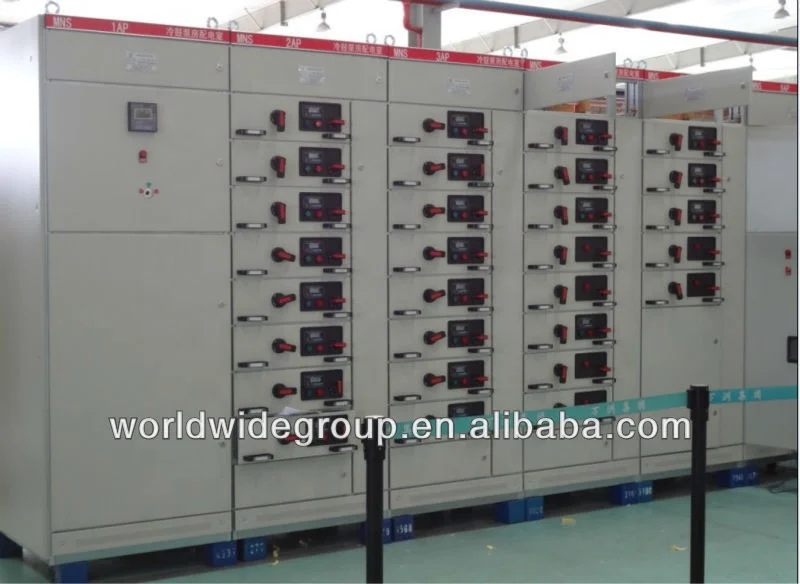

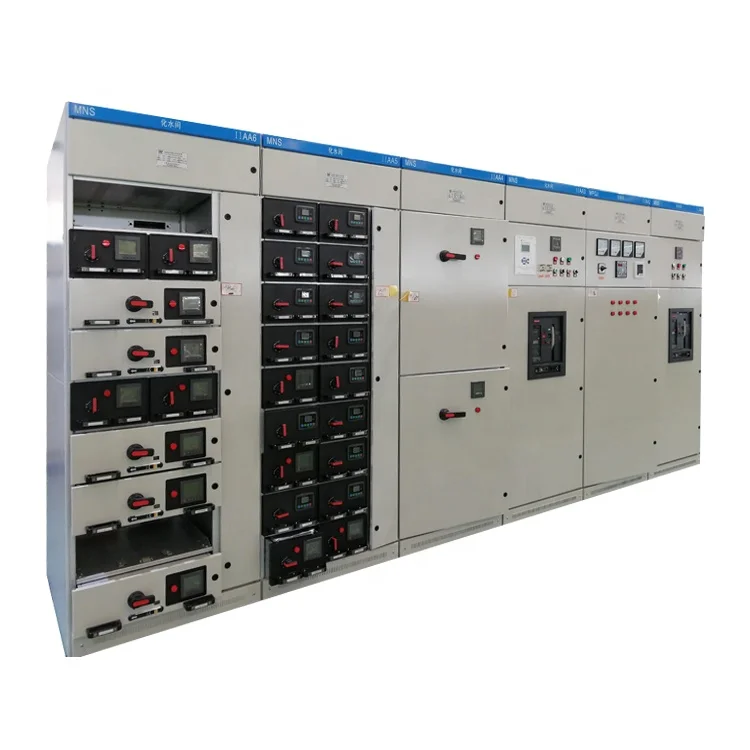

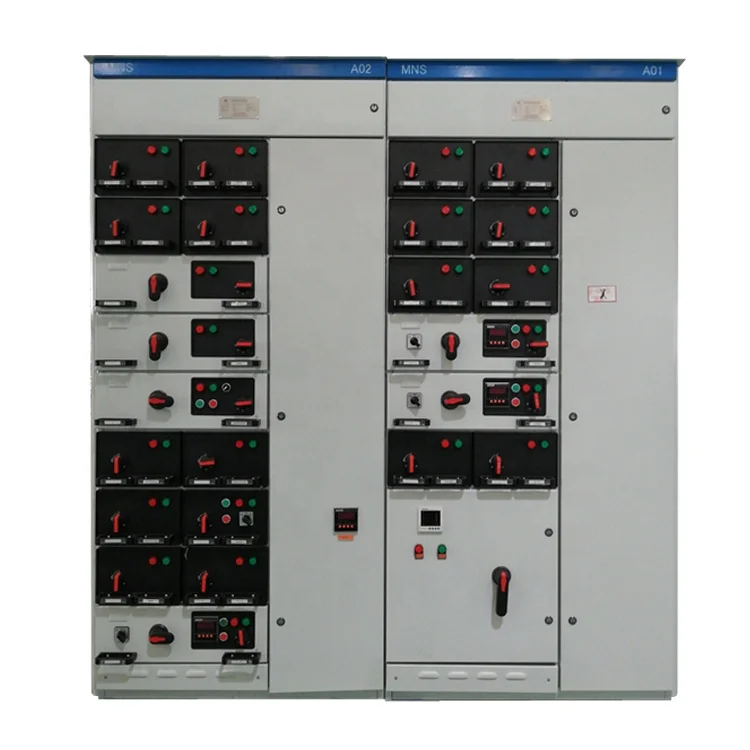

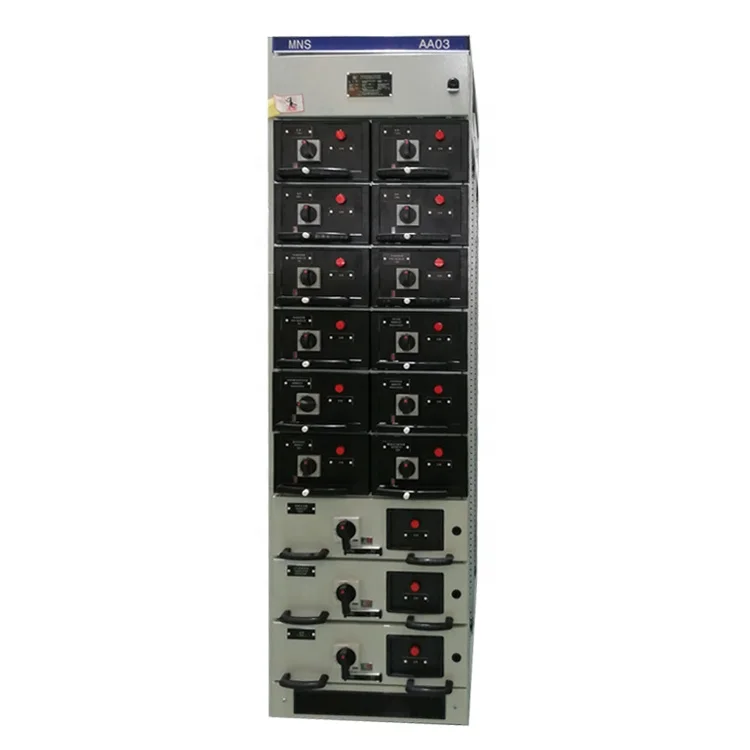

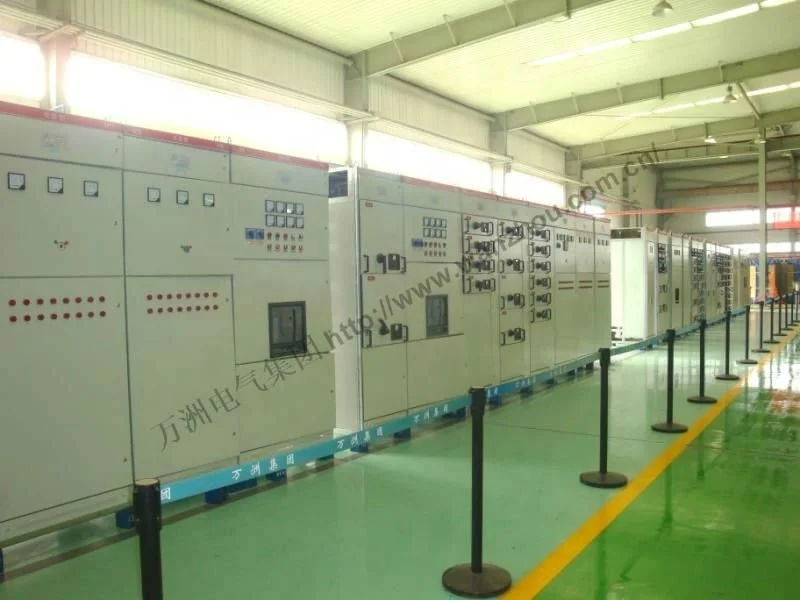

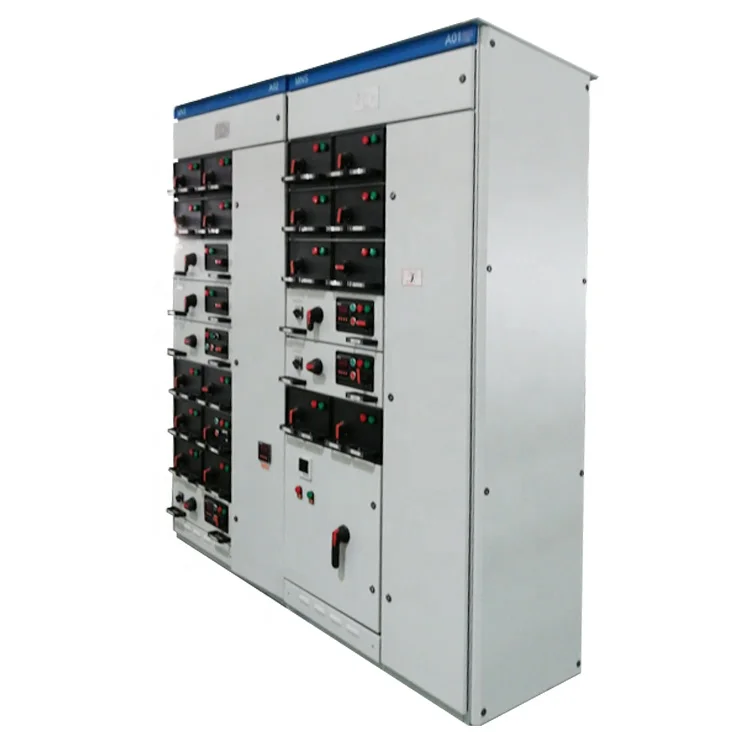

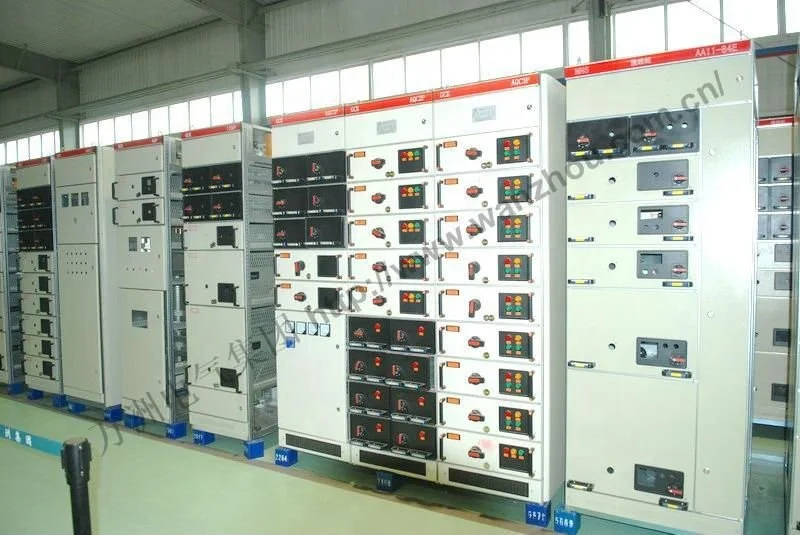

Low-voltage Distribution Panels/ Switch Cabinets/LV Electric Switchgear Distribution Panel
Product Description
| Electric date | |
| rated voltage | to 660V |
| ratd voltage impacte indurance | 8KV |
| rated frequency | 50/60hz |
| grounding system | TT,IT, TN-S,TN-C-S |
| ratd voltage of auxiliary circuit | AC380,220v/ DC220v |
| maximum coil in and out broken circuit | 4000A |
| pollution degree | 3 |
| rated current | 4000A |
| horizontal busbar rated current | 4000A |
| vertical busbar rated current | 2000A,1000A |
| horizontal busbar ratd shorttime withstand current | 50/80KA |
| horizontal busbar rated peak value withstand current | 105/176KA |
| vertical busbar rated short time withstand current | 50KA |
1)main function:
1:power distribution control cabinet for power generation and supply system
2:centralized control of motor
3:reactive power compensation at same time
2)suitable place
1: all places where required high reliability and safe power distribution and motor control.
2 :for rated working voltage380V- 660V electric system
3:successfully widely used by national engineering designing institute, mining company, cement mill, stell mill,sugar factory,wood industry, chemical industry, city planning, high building, light industry, commucial center,etc
3)cabinet characteristic
It is top world level technique ,high intelligent assemble way, easy operation and maintenance
1:all component are standard type, conveninet for project planning
2:drawer can be built up into different modes freely
3:The frame of the cabinet selects tee bend connection of 25mm modulus special C section bar, which is assembled by locking screws and high strength screws.
4:The cabinet body is made of cold rolled steel or imported A-zinc alloy plates
5:the equipment is with function :Anti electric arc ,earthquick resistance, oscillation reistance, shock reistance
6:The cabinet body is free of maintenance to most extent
4)drawer function:
1:each drawer is independent, and seperated entirely, and each one can exchange internally
2:the drawer is contained of several engine function parts, it has place with CONNECTION/ TEST/ SEPERATE/ MOVE OUT ., and can locked seperately. the display/ control/ human-machine face to face panel are centralized in front board
3:through hand shank and interlock, can accurately fix postion in CONNECTION/ TEST/ SEPERATE/ MOVE OUT . each position will show directly on front panel
Packaging & Shipping
Company Information

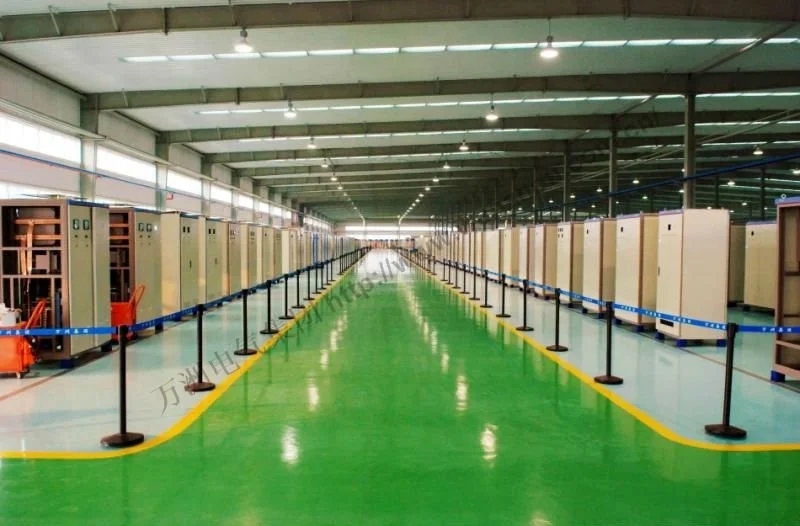

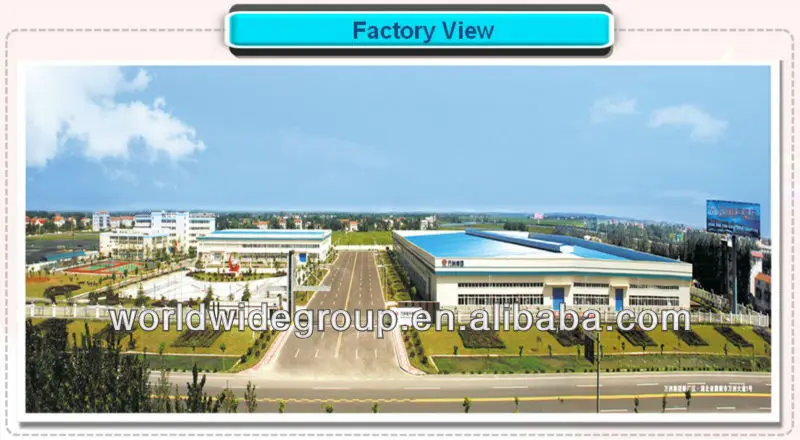

Worldwide Electric Stock Co.,Ltd is located in Xiangyang City Hubei Province China. It was established in March.2000. It owns province class enterprise technology center, academician work station and post-doctoral industrial base at present. The employees are more than 900, products exported to over 50 countries.
Certifications
FAQ
Q 1: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q 2: How long is your delivery time?
A: Generally it spends 5-7 days if the goods are in the stock. Or it takes 15-20 days if the goods are not in the stock, it is depending on quantity.
Q 3: What are your terms of payment?
A: We accept T/T, L/C, Western Union, and cash.
Q 4: What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q 5. Is there any discount?
A. The discount will depend on the quantity that you purchase.
Q 6. What is your supply capacity?
A. The month output of the factory exceeds 1000 PCS.
Q 7. Do you provide warranty for the goods?
A. Yes, we provide 12 months of warranty.
Q 8. Do you provide technical support?
A. Yes, feel free to contact us if you have a technical problem.
