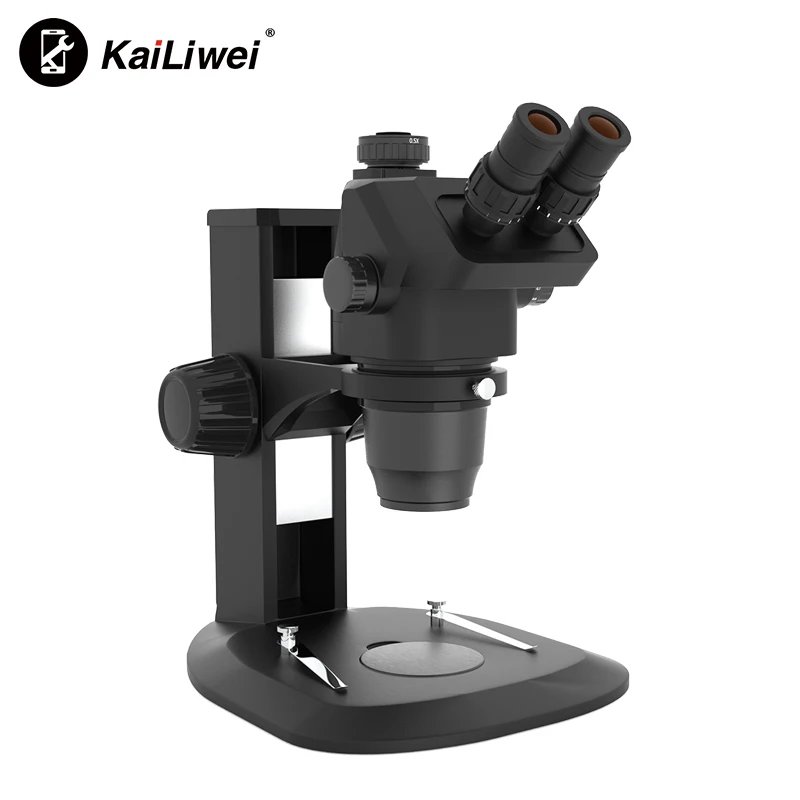

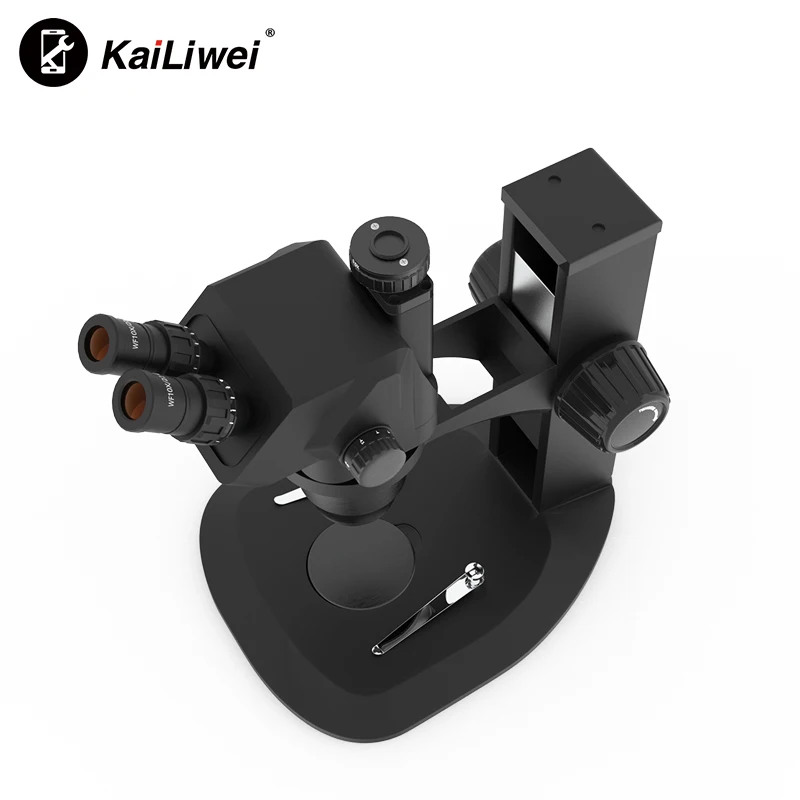

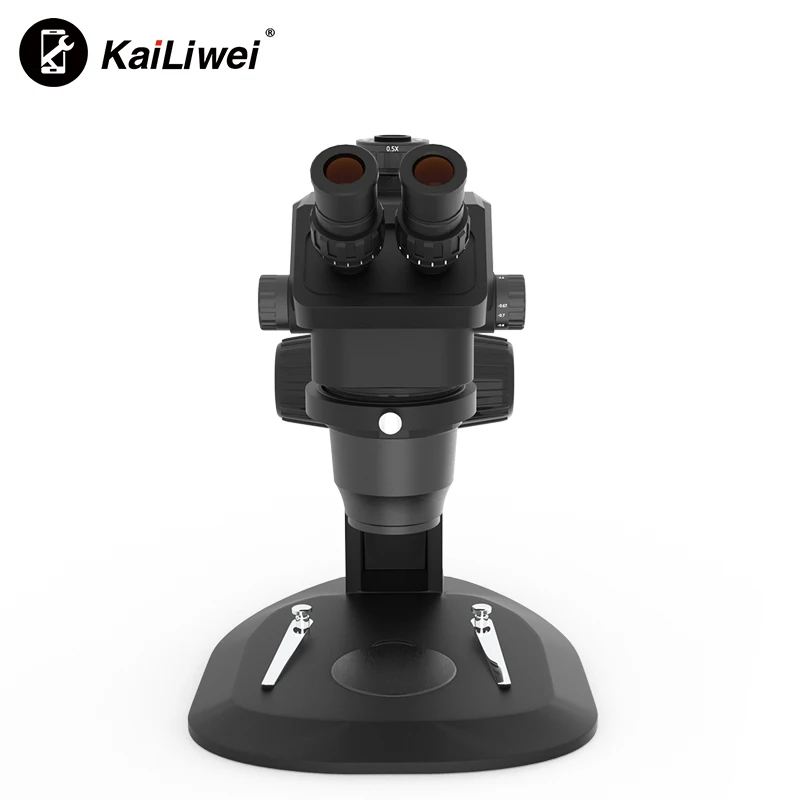

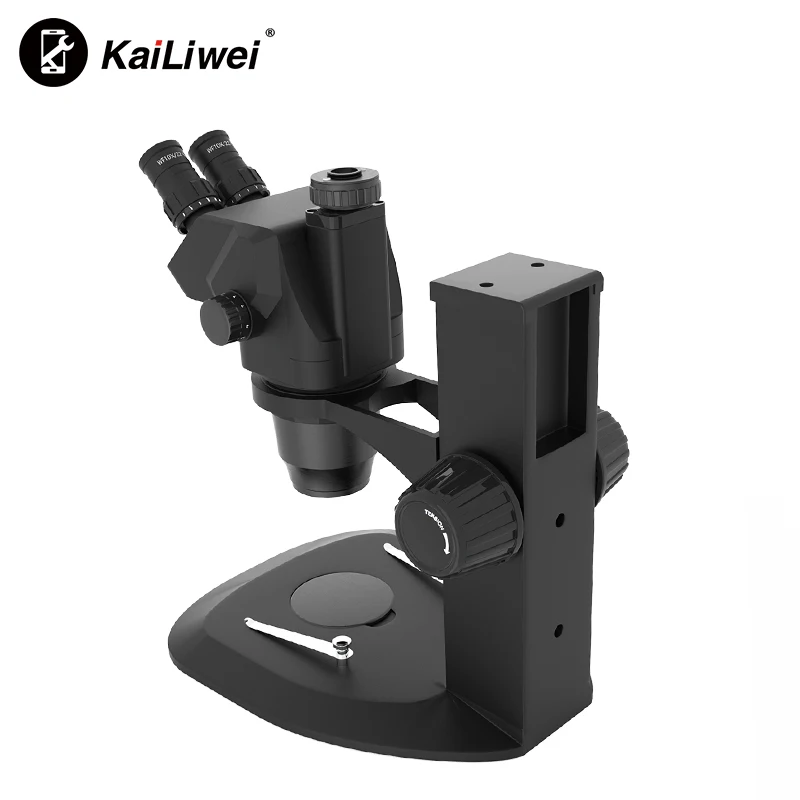

kailiwei TS 81 SZm 6745T 6.7X 45X Large Working Distance View Stereo Zoom Trinocular Microscope
- Category: >>>
- Supplier: Guangzhou KSL Electronic Equipment Co. Ltd.
Share on (62391655706):
Product Overview
Description
Specification
item | value |
Warranty | 1 year |
Certification | IECEE |
Customized support | OEM |
Place of Origin | China |
Guangdong | |
Brand Name | kailiwei |
Model Number | 6745 |
Theory | Stereo Microscope |
Drawtube | Trinocular |
Magnification | 6.7X to 45X |
Application | :Industrial , repair , jewelry |
Product name | Large Working Distance View Stereo Zoom Trinocular Microscope |
Eyepiece | WF10X/22mm large view |
Function | INdustrial/ Electronic inspection etc |
C-Mount | 1x/ 0.5X large adapter |
Light source | 56 led ring light |
Color | black |
Objective | 0.67X-4.5X |
Drawtube | Trinocular |
Product Description
Product Features:
All optical components are specially treated and coated with a special film. A flat image
with good contrast is formed in an ultra-wide field of view, especially at the edge of the field of view.
Continuous zoom objective 0.67X~4.5X (variation ratio 6.7:1), standard magnification 6.7X ~45X (using 10X eyepiece). With optional
eyepieces and auxiliary objectives, the magnification can be extended to 2X~225X for system amplification.
Effective standard working distance reaches 100mm. Optional auxiliary objective lens, the working distance can be extended to
26mm~287mm.
Observing head 45° tilt, eye point height, ergonomic design features, long-term use does not feel tired.
Adopt new eyesight adjustable eyepieces to ensure clear and satisfactory images for users with different visions.
with good contrast is formed in an ultra-wide field of view, especially at the edge of the field of view.
Continuous zoom objective 0.67X~4.5X (variation ratio 6.7:1), standard magnification 6.7X ~45X (using 10X eyepiece). With optional
eyepieces and auxiliary objectives, the magnification can be extended to 2X~225X for system amplification.
Effective standard working distance reaches 100mm. Optional auxiliary objective lens, the working distance can be extended to
26mm~287mm.
Observing head 45° tilt, eye point height, ergonomic design features, long-term use does not feel tired.
Adopt new eyesight adjustable eyepieces to ensure clear and satisfactory images for users with different visions.

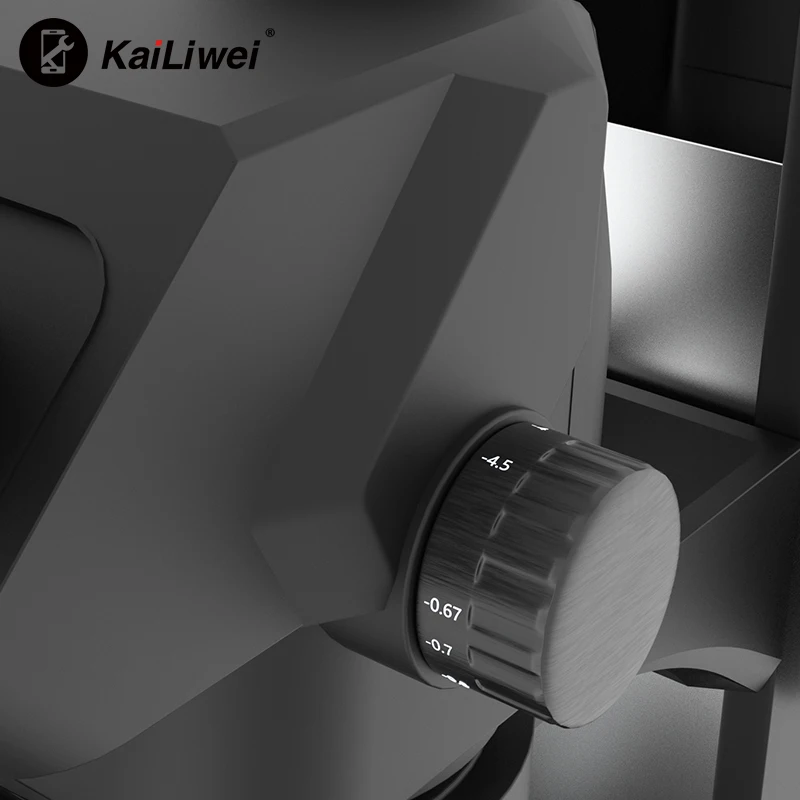

Bilaterally set horizontal zoom handwheel, high zoom repeat precision, to ensure operator comfort
New LED lighting source and frame integrated design, better stability.
Built-in adaptive wide voltage 110V ~ 240V, upper and lower LED light source, uniform illumination, independent switch.
Brightness can be adjusted independently, providing the same color temperature illumination for a long time at any brightness.
The brightness is stable, low voltage safety, low power consumption, low heat generation and long life.
Built-in adaptive wide voltage 110V ~ 240V, upper and lower LED light source, uniform illumination, independent switch.
Brightness can be adjusted independently, providing the same color temperature illumination for a long time at any brightness.
The brightness is stable, low voltage safety, low power consumption, low heat generation and long life.
Eyepiece | Wide field high eyepiont diopter adjustment eyepiece WF10X/22mm(can mount micrometer) |
Wide field high eyepiont diopter adjustment eyepiece WF15X/16mm(can mount micrometer) | |
Wide field high eyepiont diopter adjustment eyepiece WF20X/12mm(can mount micrometer) | |
Viewing Head | Binocular head, 45° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 100mm. interpupillary range 54~76mm, both two tube diopter adjustment(±5), built-in interlocking device, fixed eyepiece tube |
Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 100mm. interpupillary range 54~76mm, both two tube diopter adjustment(±5), built-in interlocking device, fixed eyepiece tube | |
Binocular head, 60° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 100mm. interpupillary range 54~76mm, both two tube diopter adjustment(±5), built-in interlocking device, fixed eyepiece tube | |
Auxiliary Lens | 0.3X/ 287mm |
0.4X/217mm | |
0.5X/177mm | |
0.75X/117mm | |
1.5X/47mm | |
2X/26mm | |
Focus | focus arm, two focusing knobs are with tension adjustable, adjust range 50mm |
industry bound focus arm 1 (industry exclusive use) | |
industry bound focus arm 2 (industry exclusive use) | |
Stand | pillar type sector plain stand |
pillar type large plain stand (no hole) | |
arm type large sector plain stand | |
arm type stand, LED top & bottom illuminator, brightness adjustment | |
pillar type large sector LED stand (brightness adjustment) (used with ST70A1). | |
single arm universal stand | |
double arm universal stand | |
transmitted light base, be used with SZ-ST1 | |
Other light source | Ring light/LED/Fiber |
Photo device | Photo tube(with PK mount),4X photo eyepiece |
TV device | 0.35X/0.5X/1.0X C-mount adapter |
Others | Precision measurement platform, dark field condenser, jewelry clip |
