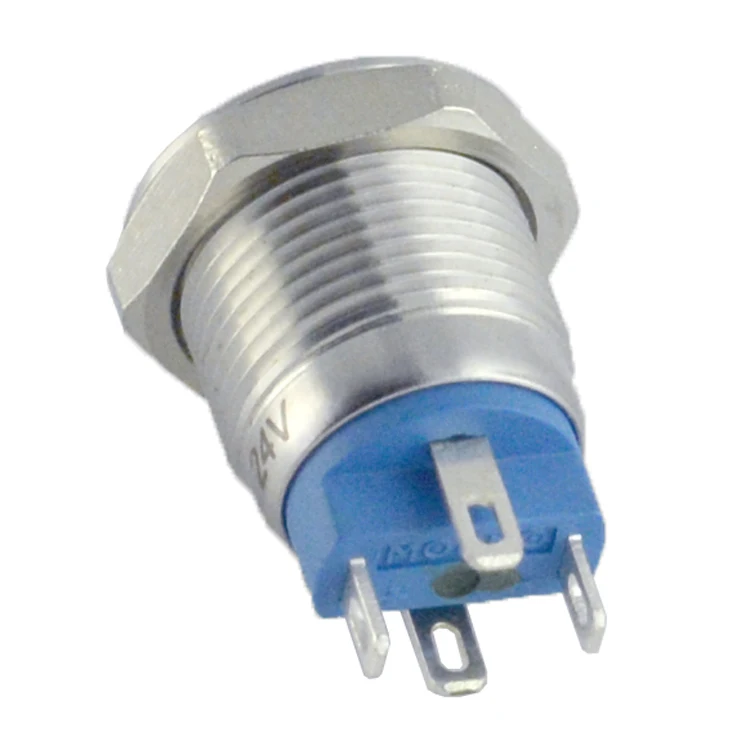

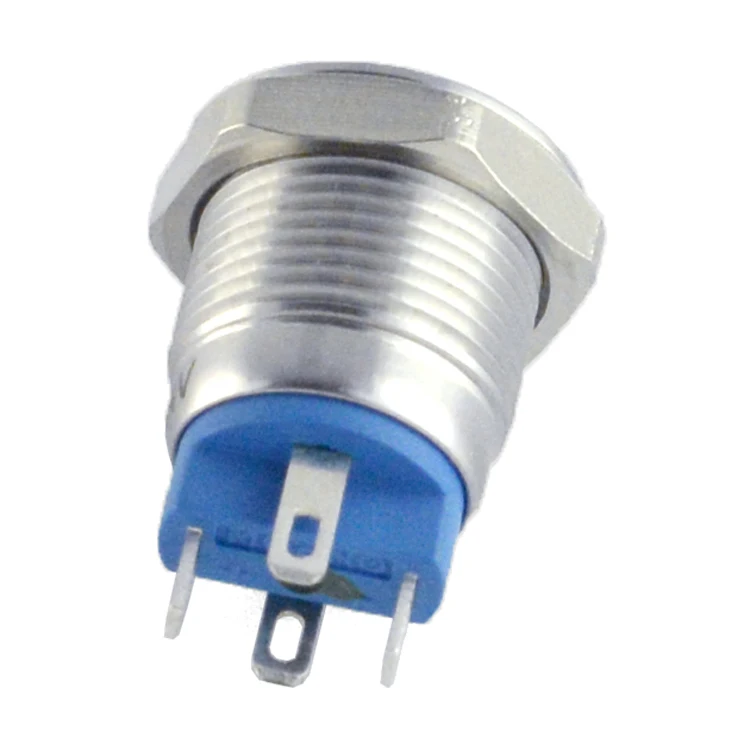

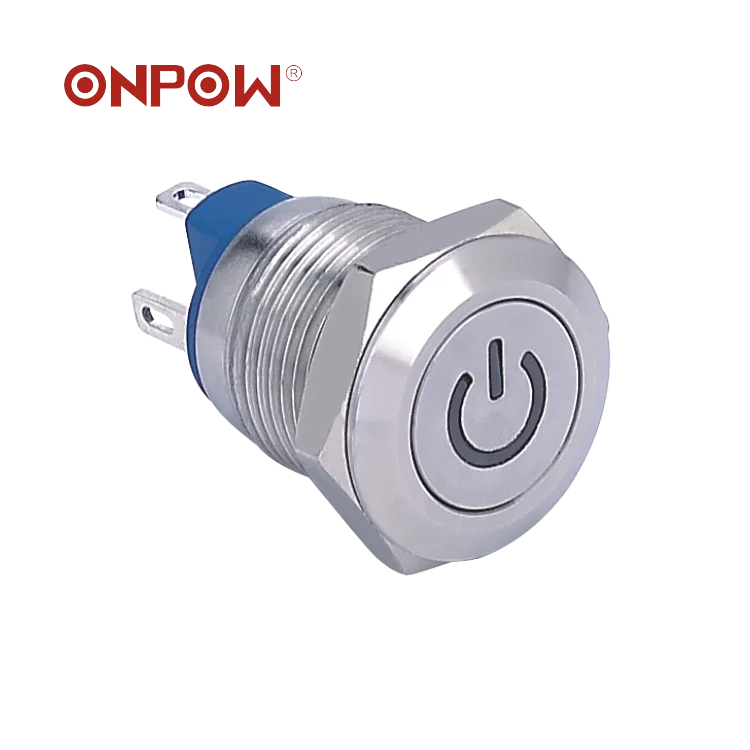

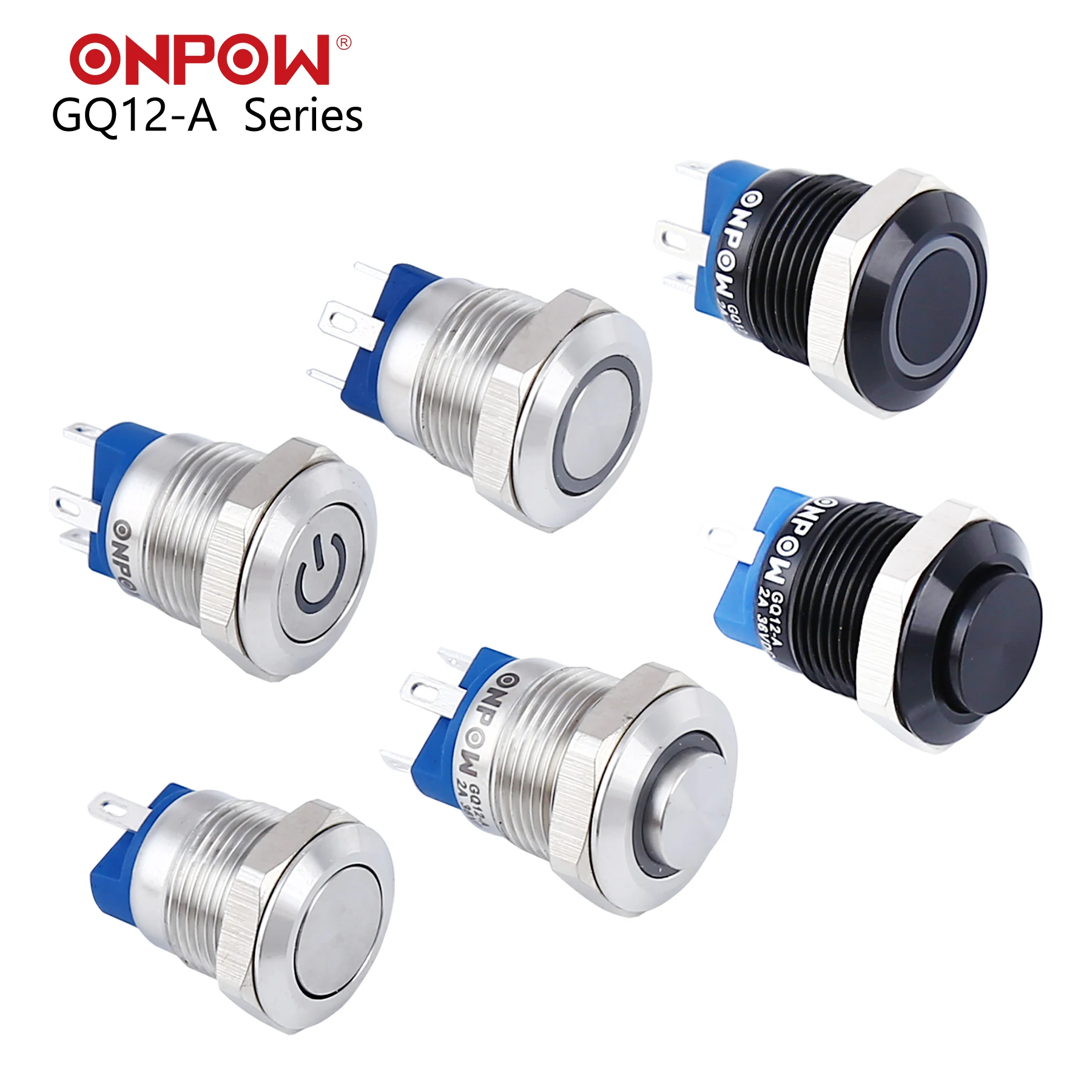

ONPOW 12mm mini push button switch Meeta CE,ROHS,REACH,IP67 push on start button switch

Share on (62391763397):


Price:$3.25 - $3.80

Quantity:


Product Overview

Description


























































brandONPOW
part numberGQ12-AF-10DT/J/S
switch ratings2A/36VDC;0.5A/220V

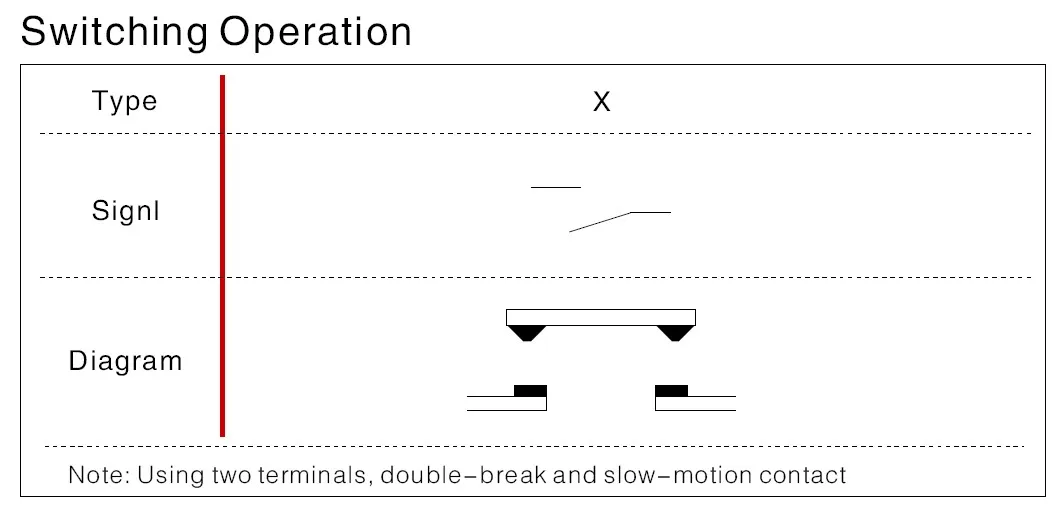

contact1NO
operation typemomentary

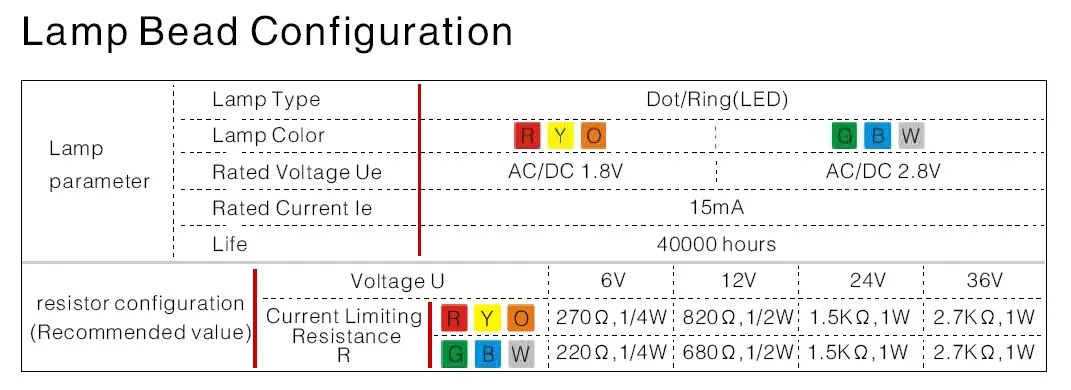

LED colorred,yellow,green,white,blue
LED Voltage6V,12V,24V other voltage could be customized

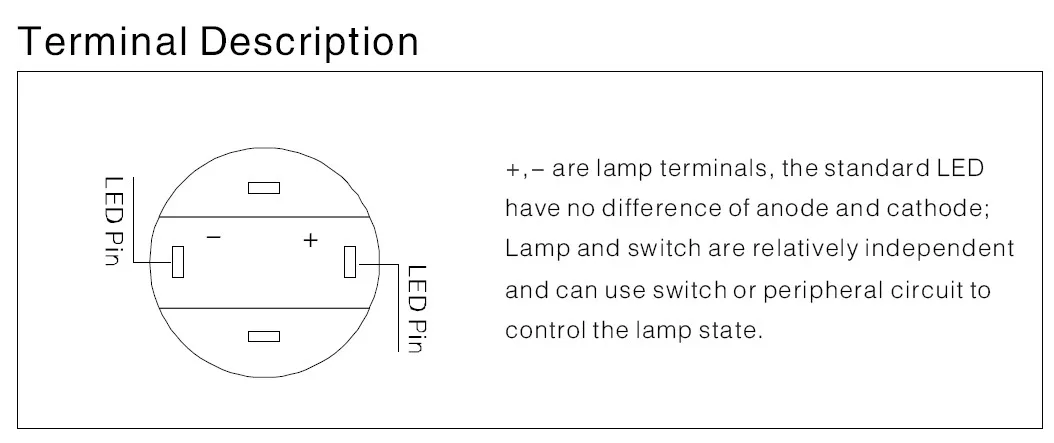

terminal typepin terminal
housing materialstainless steel
button materialstainless steel
electronical life200,000 cycles(36VDC);50,000 cycles(220V)
Protection levelIP65(IP67 could be customized), IK08

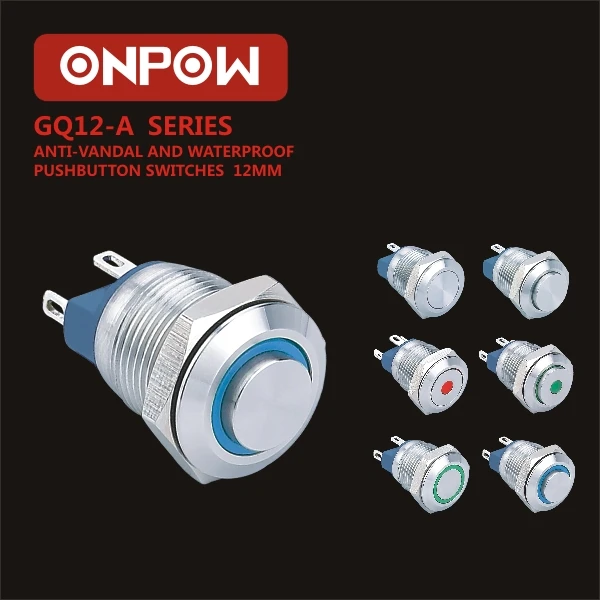

12mm GQ12-A series.jpg












Contact


Pls contact me to confirm the product details before ordering.


For large qty,we could give you more discount!
































3
















FAQ


1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.





2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to
mark all of their price on a list.And the price are always changing because of the producing cost.If you
want to check any price of our products, please feel free to contact us.We will send offer to you soon!





3. Q: I can’t find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,
and how many do you want.If we do not have it,we can also design and make a new mould to produce
it.For your reference,making a ordinary mould will take about 35-45days.





4. Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.
And we made many moulds for our customers alread.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.Just have to point out that ,it will cause some additional cost.





5. Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.But you have to pay for the shipping cos.
If you need many items, or need more qty for each item,we will charge for the samples.





6. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union and Paypal. Please be sure that we can receive the
same amount of the Invoice. And you can pay money In RMB. No problem.





7. Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.





8. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT,EMS.That’s a
Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure
the safety.We will be responsible to any product damage caused on delivery.





9. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year.





10. Q: Can I become an Agent / Dealer of LIANGU products?
A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then
talk about this.If you want any other kind of cooperation,do not hesitate to contact us.



Any requirements or question,welcome to "Send" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
