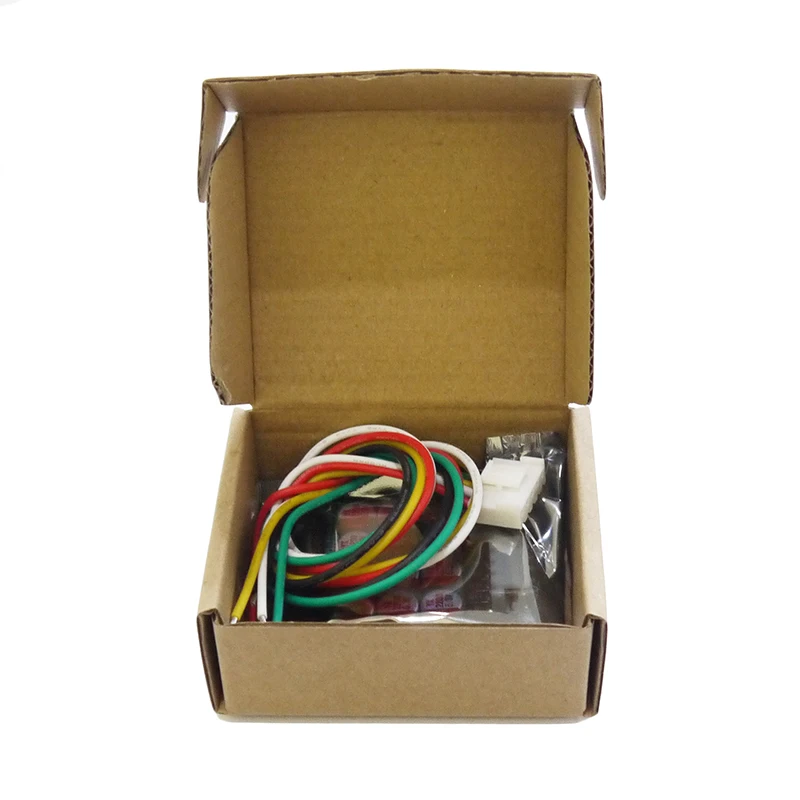

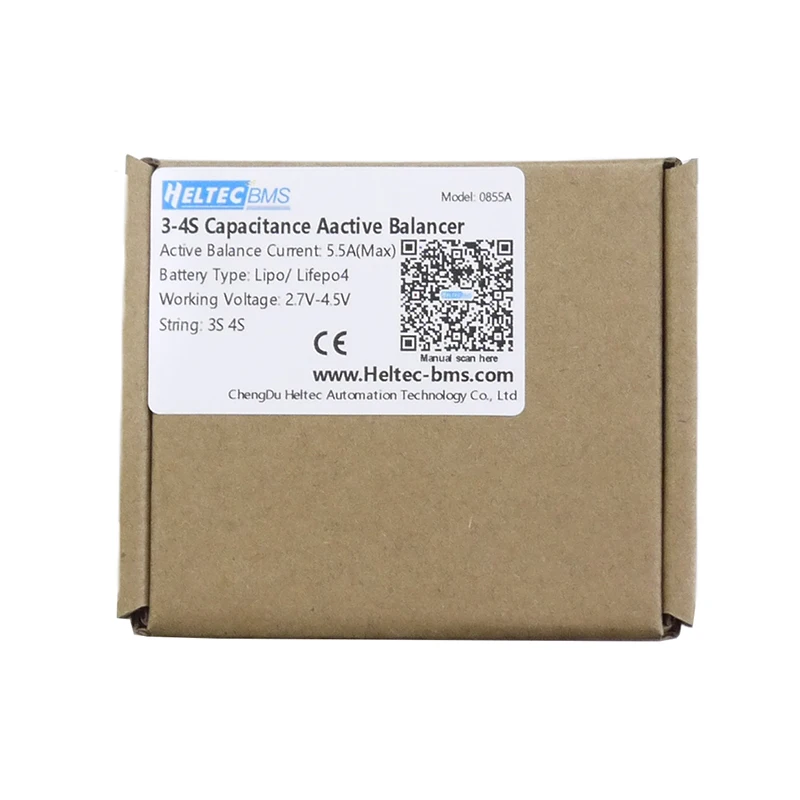

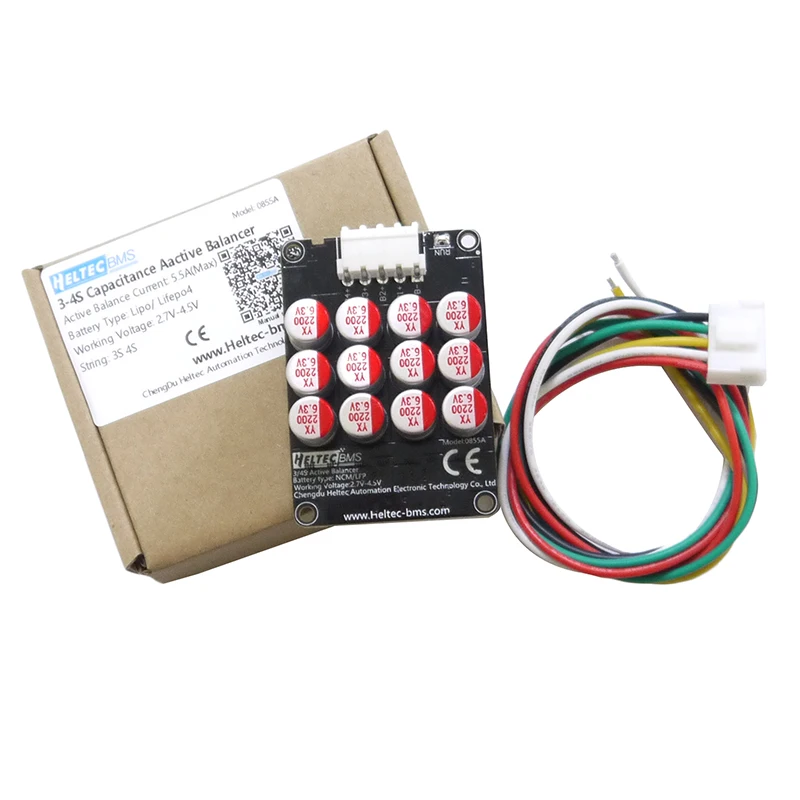

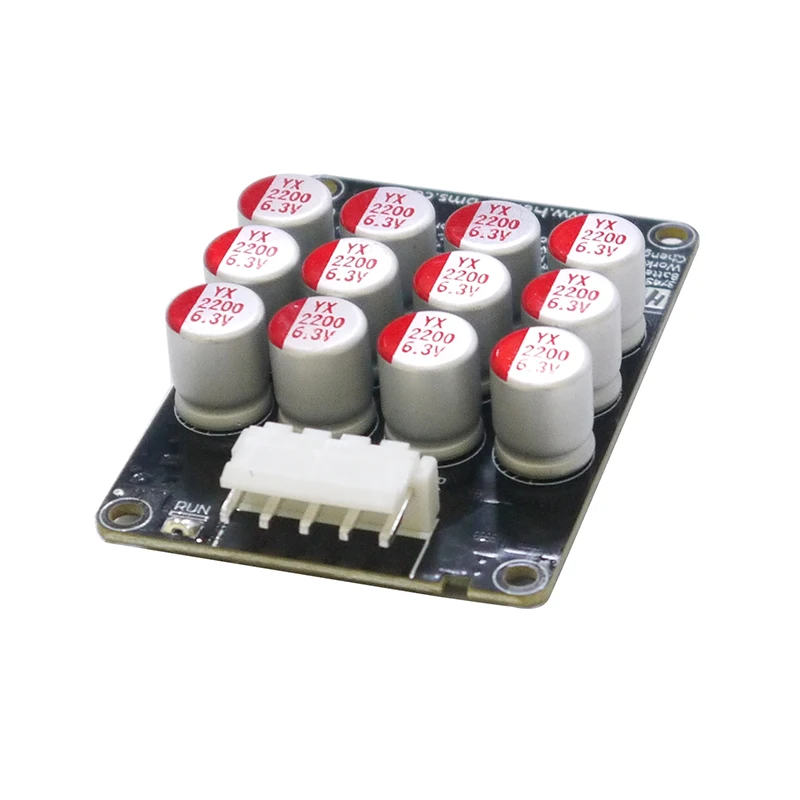

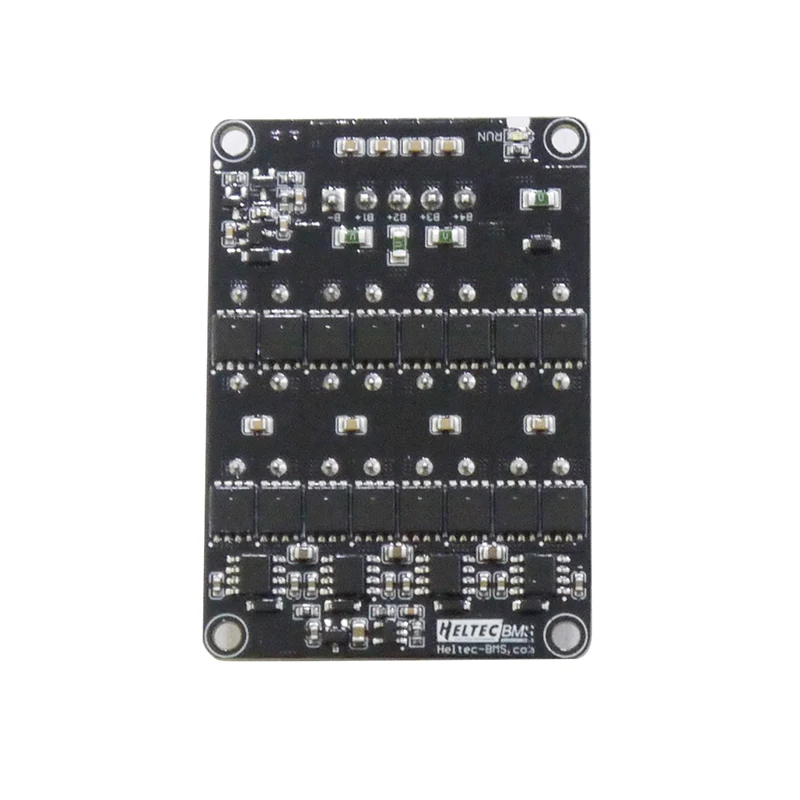

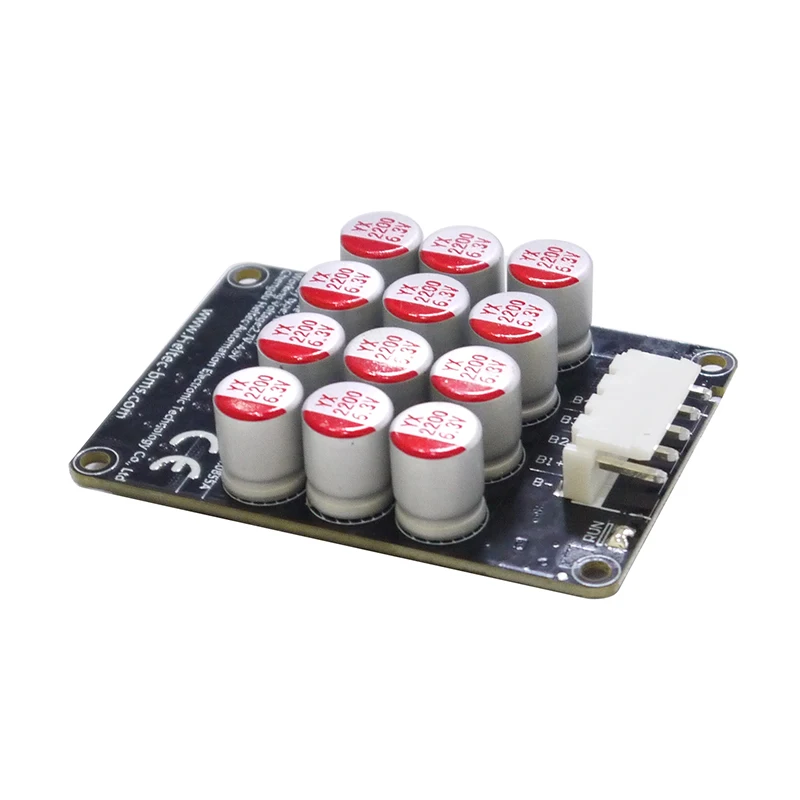

3s 4S Lifepo4 Lithium Lipo Battery Energy active equalizer balancer for solar battery pack
- Category: >>>
- Supplier: Chengdu Heltec Automation Technology Co. Ltd.
Share on (62391766072):
Product Overview
Description
Products Catalog
Product description
Balance mode: Fit capacitor
Balance Working voltage: 2.0-4.2V
Undervoltage sleep value: Sleep voltage can be selected from 2.0V,3.0V 3.7V, supporting ternary lithium, lithium iron phosphate, lithium titanate.
Balance accuracy: less than 5mv
Equilibrium current: 0.1V 1A 0.2V2A, the greater the voltage difference, the larger the current
Balanced static power consumption: 12mA
Suitable for battery capacity: 30Ah-300Ah
The board can use on LI-ion and LiFePO4.（Cannot be used for LTO）
Working Conditions | Lithium titanate special equalization plate parameters | ||||||
Balanced starting voltage | 2.0V-2.8V | ||||||
Balanced termination voltage | 1.9V(into undervoltage sleep state) | ||||||
Balance accuracy | 5mv | ||||||
Maximum balance current | The whole group error is 0.1V1A;0.5V3.5A;1.0V5.5A(18awg 30CMcable test) | ||||||
5S-LTO quiescent current | Full power state(2.8v*5cell)14v 12mA | ||||||
6S-LTO quiescent current | Full power state(2.8v*6cell)16.8v 12mA | ||||||
Whether external power supply is required | No external power supply is required, and the internal energy balance of the battery is used to transfer the entire set of equalization. | ||||||
Working environment temperature | 0-60° | ||||||
