Cheap Price With Nice Quality Small Wood Chips Briquette Machine
US $786.00-$5986
Agriculture Waste And Wood Sawdust Briquette Machine
- Category: Biomass Briquette Machines >>>
- Supplier: Gongyi Xiaoyi Mingyang Machinery Plant
Share on (62391878520):
Product Overview
Description
Product Description
This machine is the main equipment to make stick solid fuel with such wood materials as bits of wood, rice shells or peanuts shell not contain any additives etc. The raw material ( contain 8~12%) water dried by the dryer will be formed into fuel under high temperature and pressure.
Working Principle
compress and extrude loose biomass into high density and small volume wood briquettes.
Woring Principle is use screw propeller's high pressure and heating ring's high temperature,
compress and extrude loose biomass into high density and small volume wood briquettes.
Model | Power | Capacity(h/t) | Weight(t) | Appearance size (mm) |
ZBJ50-9 | 11-15kw | 0.12-0.22t/h | 0.55t | 2200*600*1300 |
ZBJ50-C | 22kw | 0.35-0.42t/h | 0.75t | 2700*700*1550 |
ZBJ60-9 | 15-18.5kw | 0.22-0.25t/h | 0.65t | 2400*700*1350 |
ZBJ70-9 | 18.5-22kw | 0.28-0.34t/h | 0.78t | 2400*700*1400 |
ZBJ80-9 | 22kw | 0.32-0.36t/h | 0.85t | 2400*700*1400 |
ZBJ-90-9 | 30kw | 0.38-0.45t/h | 0.98t | 2600*800*1500 |
Features of Wood Briquette Machine
1.Stick shape with different diameter.
2.The density, strength and hardness of products are very high.
3.Our briquette machine with higher capacity and lower energy consumption.
4.Production moisture is 8-12% ,raw material size below 3-5mm.
5.This series of briquette machine is a new type of wood briquette machine,the finished products are more solid.
6.This Wood Briquette Machine with automatic temperature control system is designed to produce high density wood briquette stick
from biomass.
1.Stick shape with different diameter.
2.The density, strength and hardness of products are very high.
3.Our briquette machine with higher capacity and lower energy consumption.
4.Production moisture is 8-12% ,raw material size below 3-5mm.
5.This series of briquette machine is a new type of wood briquette machine,the finished products are more solid.
6.This Wood Briquette Machine with automatic temperature control system is designed to produce high density wood briquette stick
from biomass.
The Main Parts of Wood Briquette Machine
Forming cylinder: special casting steel, inner barrel boron treatment,can use for more than 5 months.
Accessories: with a large factory of welding rod joint development of this special mechanism of carbon electrode welding process simple ,hardness up to more than 75 degrees ,and solved the crack resistance, don’t need preheat and weld directly.

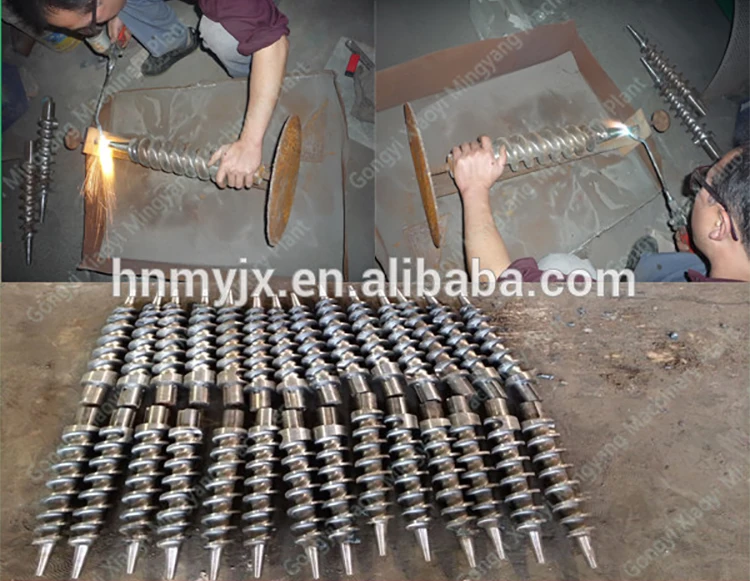

Propeller: advanced design,high speed of producing rod ,high density,high resistance to wear,one welding time can work
continuously for more than 30 hours.
Forming cylinder: special casting steel, inner barrel boron treatment,can use for more than 5 months.
Accessories: with a large factory of welding rod joint development of this special mechanism of carbon electrode welding process simple ,hardness up to more than 75 degrees ,and solved the crack resistance, don’t need preheat and weld directly.
Propeller: advanced design,high speed of producing rod ,high density,high resistance to wear,one welding time can work
continuously for more than 30 hours.
Raw Material
Almost any biomass can be briquetted,then carbonized Briquetting plants set so far are using Saw Dust, Bamboo dust, Bagasse,Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses &Shrubs and Sander dust.These material can also be briquetted individually or in combination without using any binder.

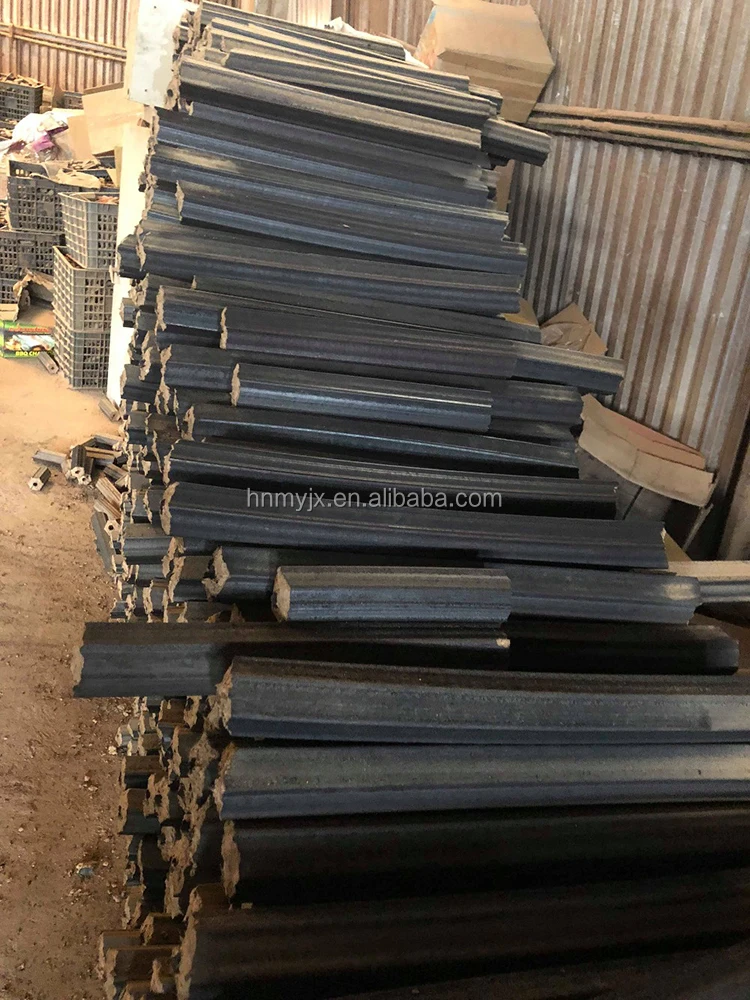

Final Product
1.Final shape:hexagon, pentagon, square, round
2.Final length: 20-40 cm adjustable, according to per your needing
3.Final size: Dia. 50mm, 60mm,70mm,80mm
2.Final length: 20-40 cm adjustable, according to per your needing
3.Final size: Dia. 50mm, 60mm,70mm,80mm

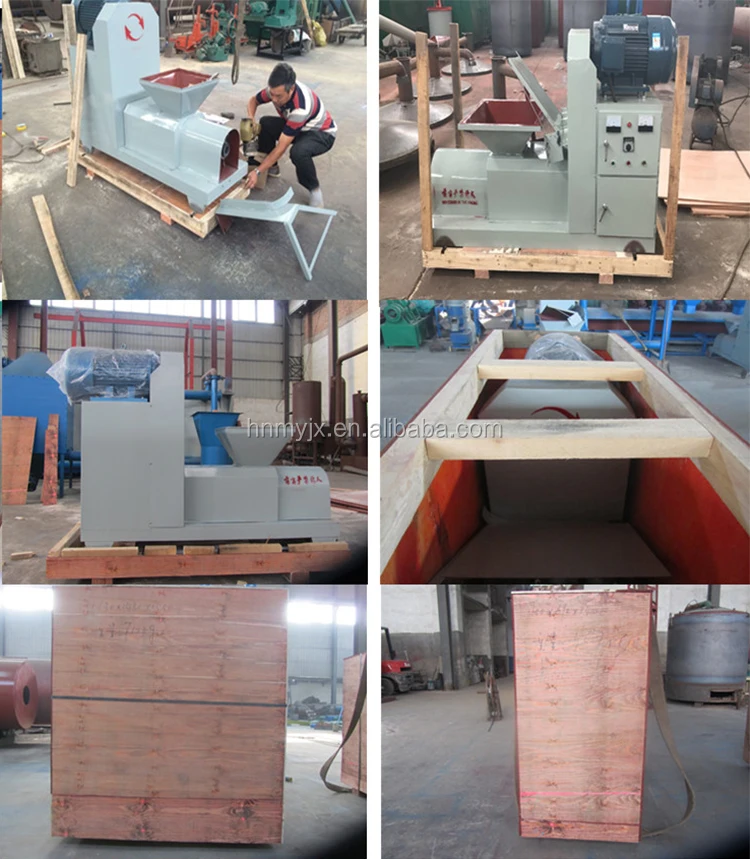

Packing &Shipping
Best Selling
Company Introduction
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment (coconu shell charcoal briquette machine, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
