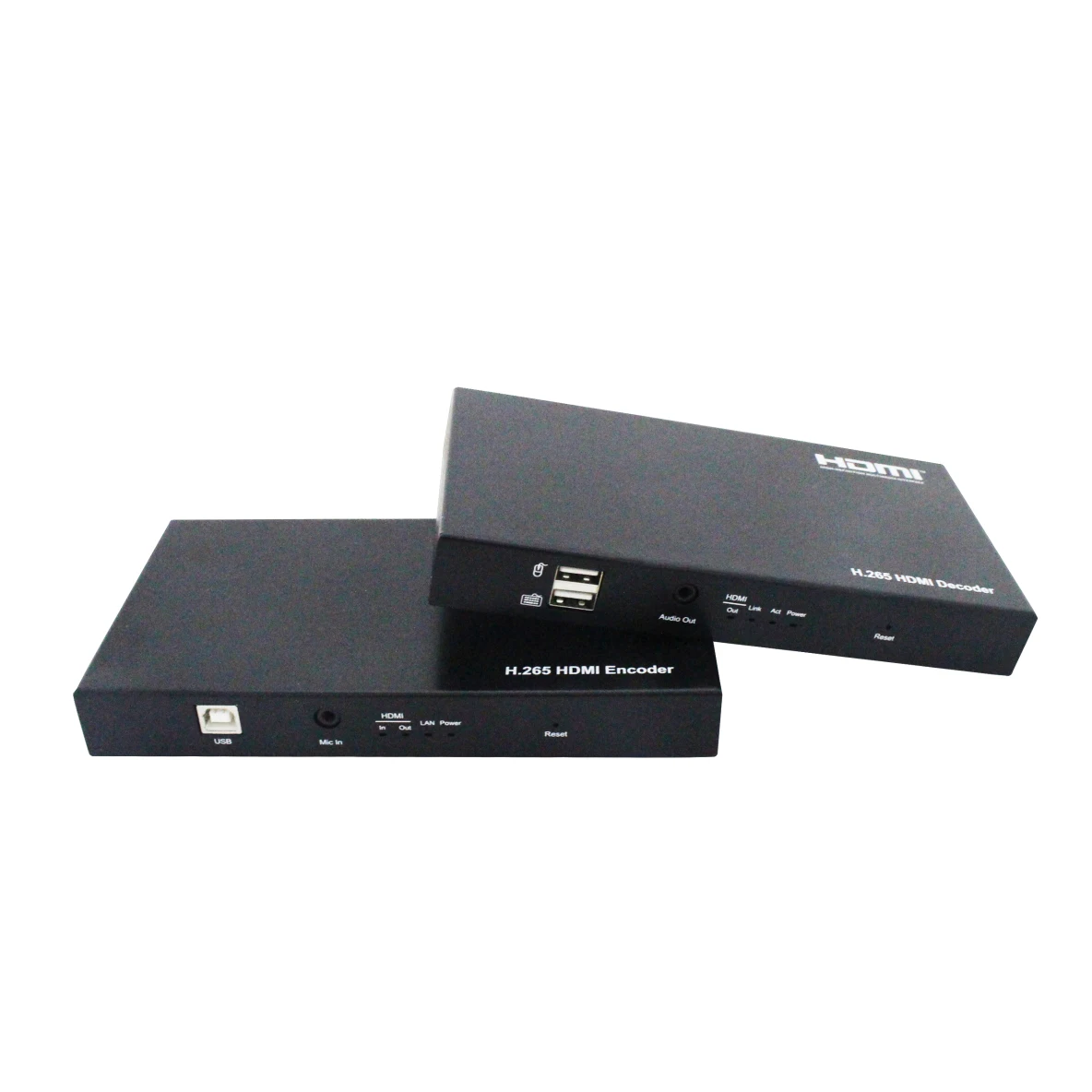

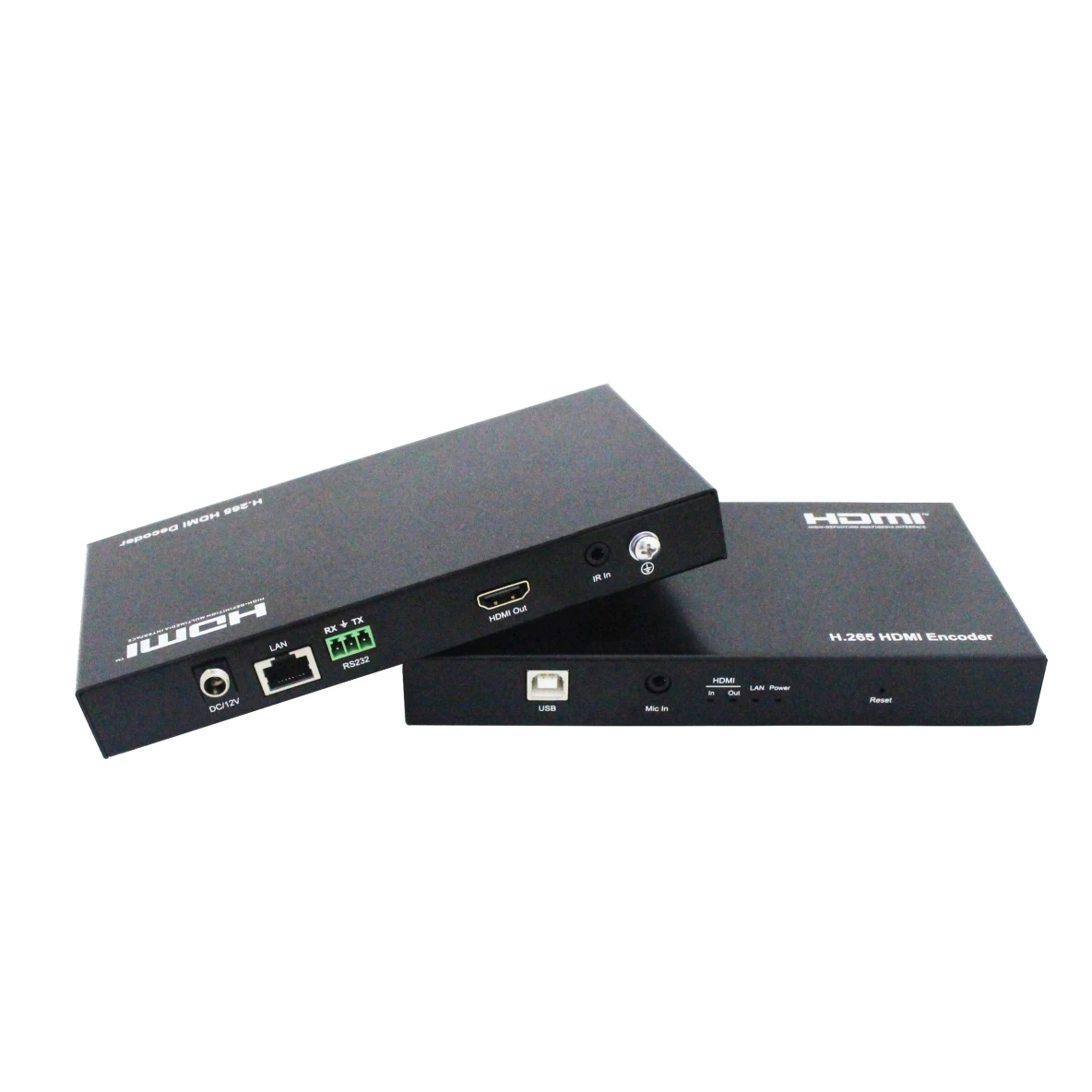

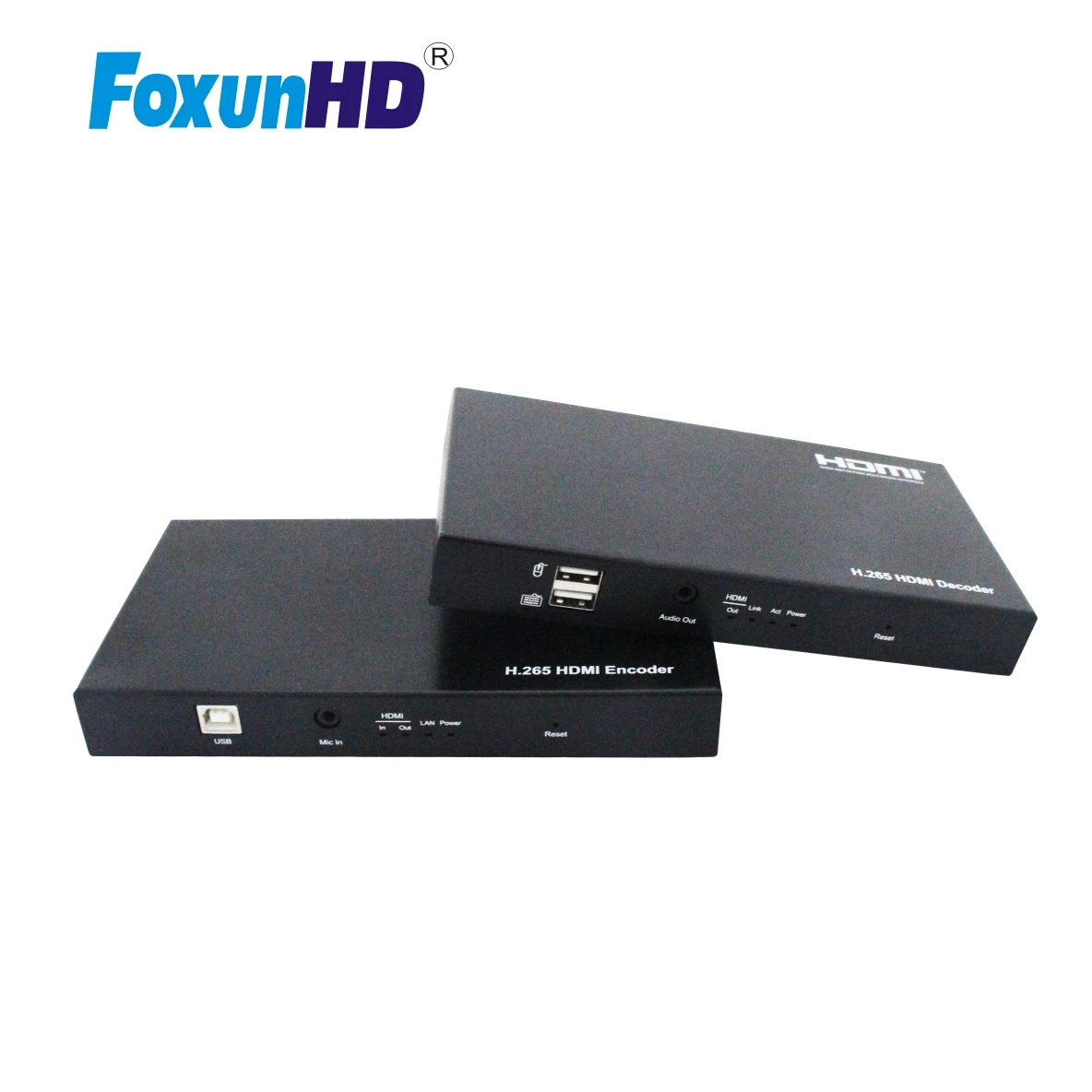

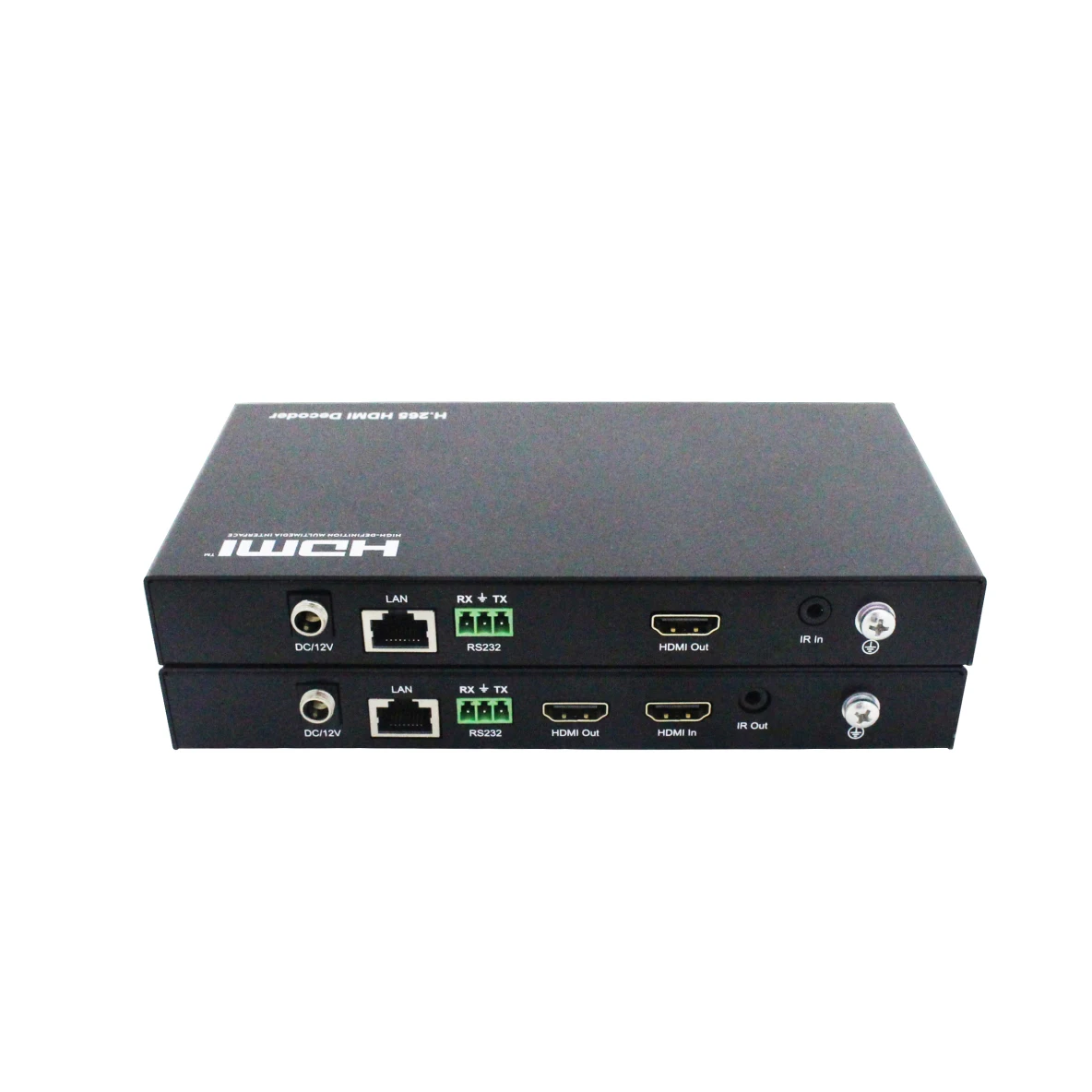

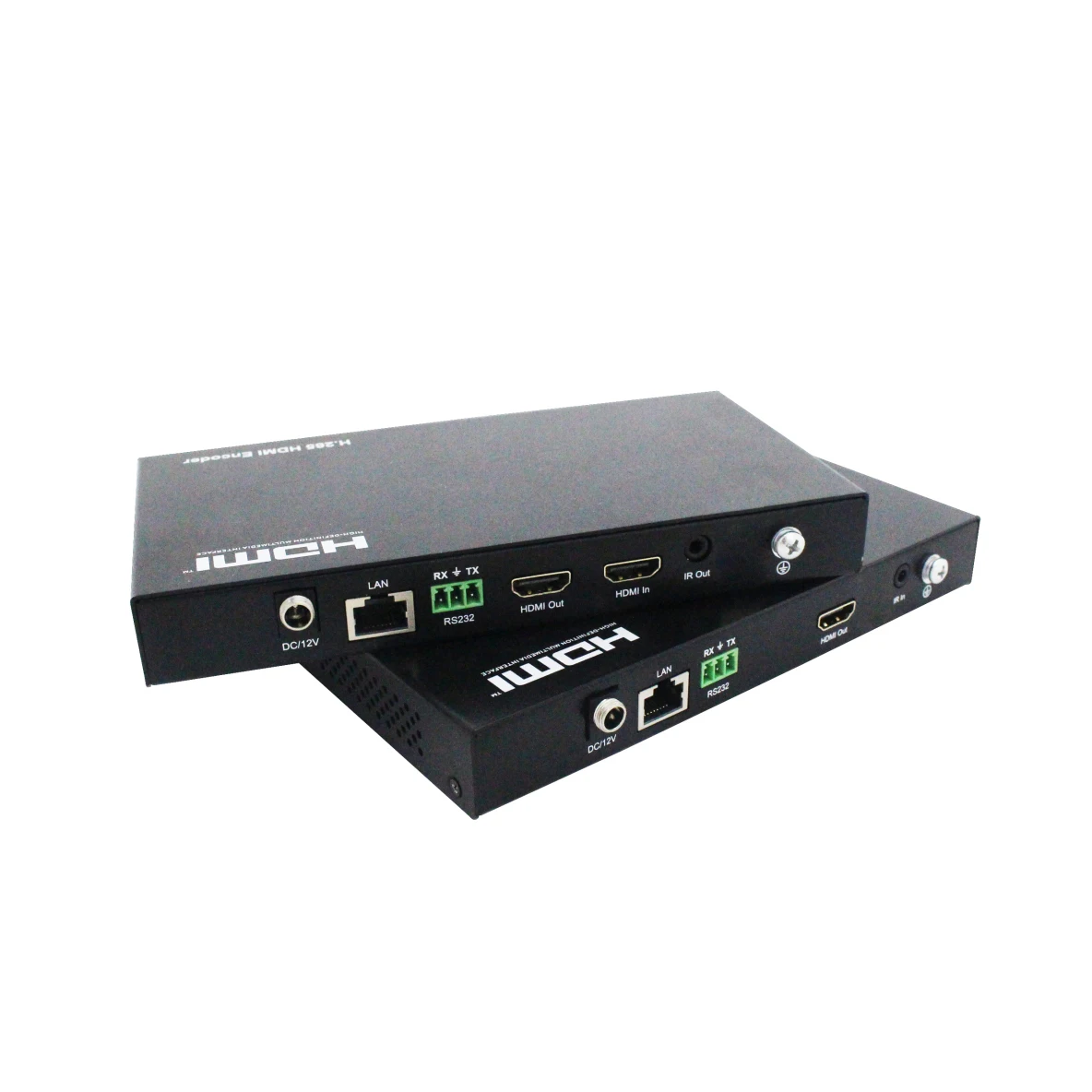

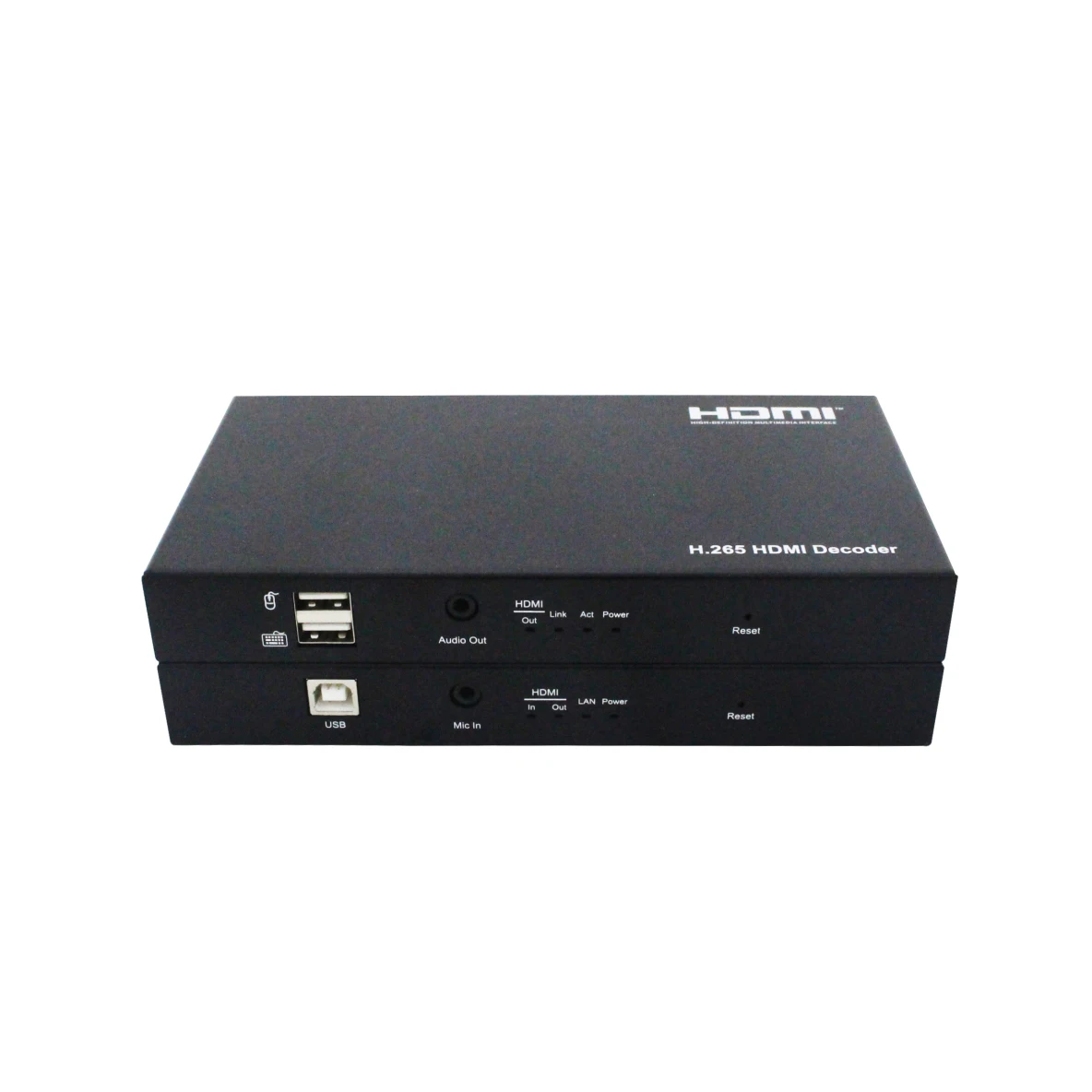

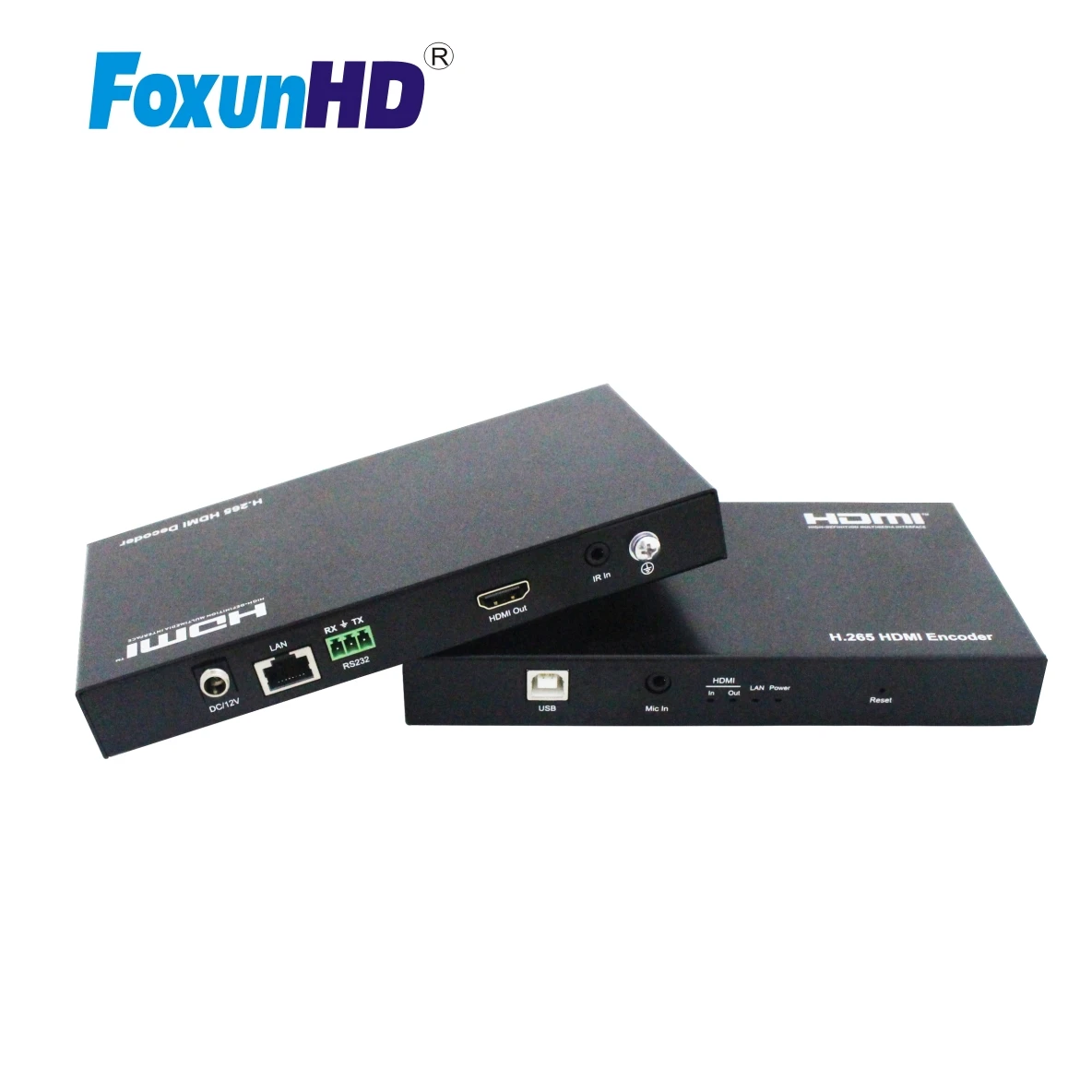

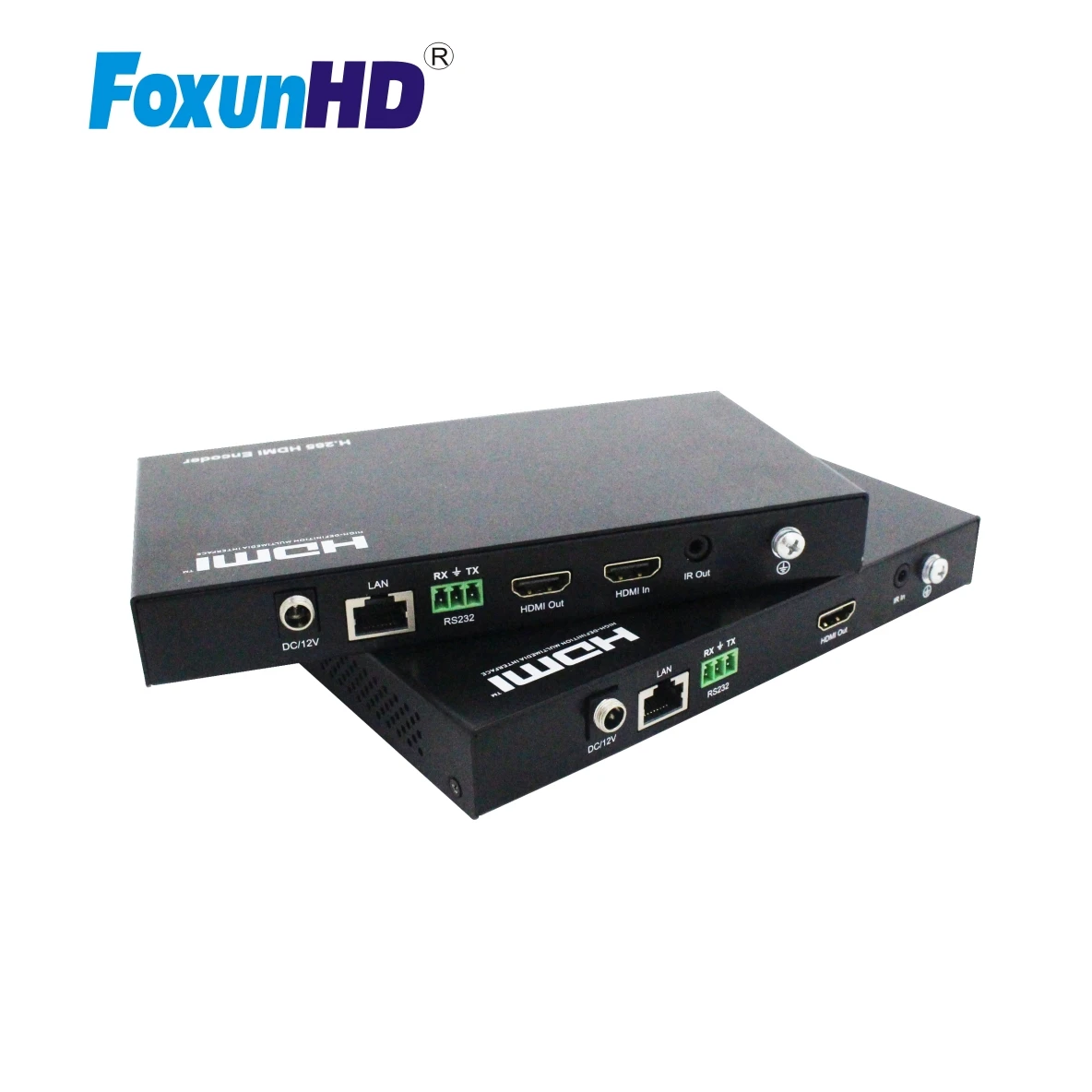

4K H.265 Video Encoder & Decoder Transmitter and receiver extender 120m, support Video Wall, Multi Viewer Matrix
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (62391897702):
Product Overview
Description
Product Description
H.265 Video Encoder & Decoder, support Video Wall, Multi Viewer Matrix under resolution 4K@30Hz(4:4:4)
1 Compression Technology: H.265 2 Max resolution 4K@30HZ YUV 4:4:4
3 Latency Time (from TX to RX) 30-80 millisecond
4 Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
5 Request for (many to many mode) IGMP Switch
6 Support IP/ICMP/IGMP/TCP/UDP Control (PC Tool)
7 Support KVM RS232, IR, Local HDMI output on TX
8 Additional Features VLC / Looping HDMI output
9 Support RTSP/RTMP protocol

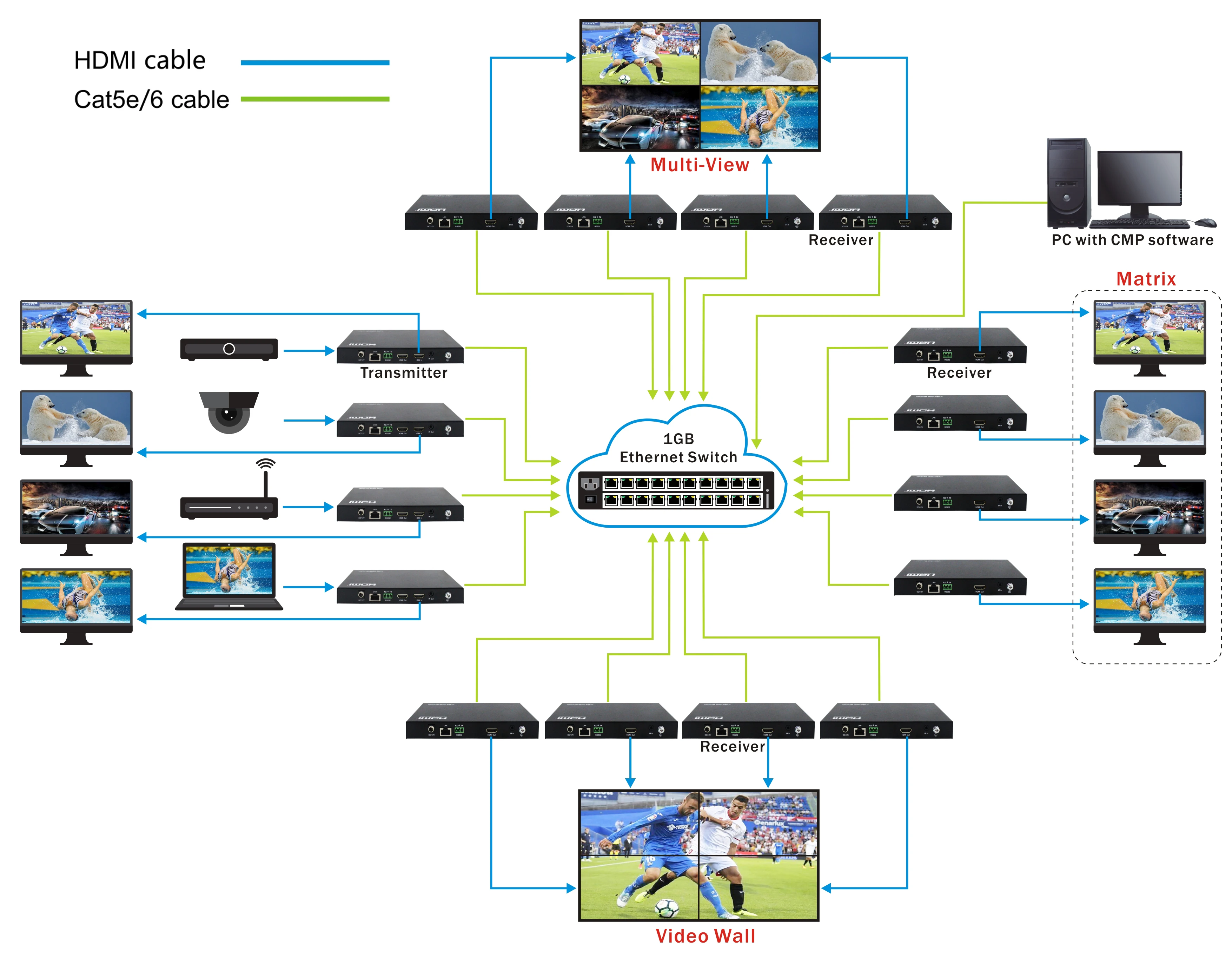

10 Support Video Wall, Multi Viewer, Matrix work with CMP system supports real-time switch OSD; Displaying firmware version, IP address, MAC address, etc
11 Support Multicast(one to many, many to many), Unicast (one to one)
12 DC12V Power supply
3 Latency Time (from TX to RX) 30-80 millisecond
4 Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
5 Request for (many to many mode) IGMP Switch
6 Support IP/ICMP/IGMP/TCP/UDP Control (PC Tool)
7 Support KVM RS232, IR, Local HDMI output on TX
8 Additional Features VLC / Looping HDMI output
9 Support RTSP/RTMP protocol
10 Support Video Wall, Multi Viewer, Matrix work with CMP system supports real-time switch OSD; Displaying firmware version, IP address, MAC address, etc
11 Support Multicast(one to many, many to many), Unicast (one to one)
12 DC12V Power supply
Detailed Images
Product Paramenters
Protocol | H.265 Encoder over TCP/IP |
Support Video format | 480P/720P/1080P/4K2K/800*600/1280*1024@60hz etc |
Streaming Bit Rate | 0-100Mbps Default: 20Mbps |
Support Audio format | Analog Embedded and Analog Extractor |
RS232 Baud rate | Default 115200 |
IR Frequency | 38 -56 KHZ |
Distance | 4K 120m(Maximum) over single CAT5E/6 /24AWG/Solid |
Default IP | DHCP On |
Request for Switch/Router | Support IGMP, support DHCP |
Power supply | DC12V |
Dimensions(WxHxD) | TX&RX: 184*95*24mm |
Net Weight | TX: 0.5KG ; RX:0.5KG |
Power consumption | TX: 4.68W; RX: 3.36W |
