B.H 15 35 Вт Светодиодный драйвер постоянного тока 240 мА Светодиодный источник питания для светодиодного светильника светодиодный Трековый светильник светодиодный светильник без мерцания 3 года
- Category: >>>
- Supplier: Shenzhen Bilateral Honesty Technology Co. Ltd.
Share on (62391945821):
Product Overview
Description
Product Parameters

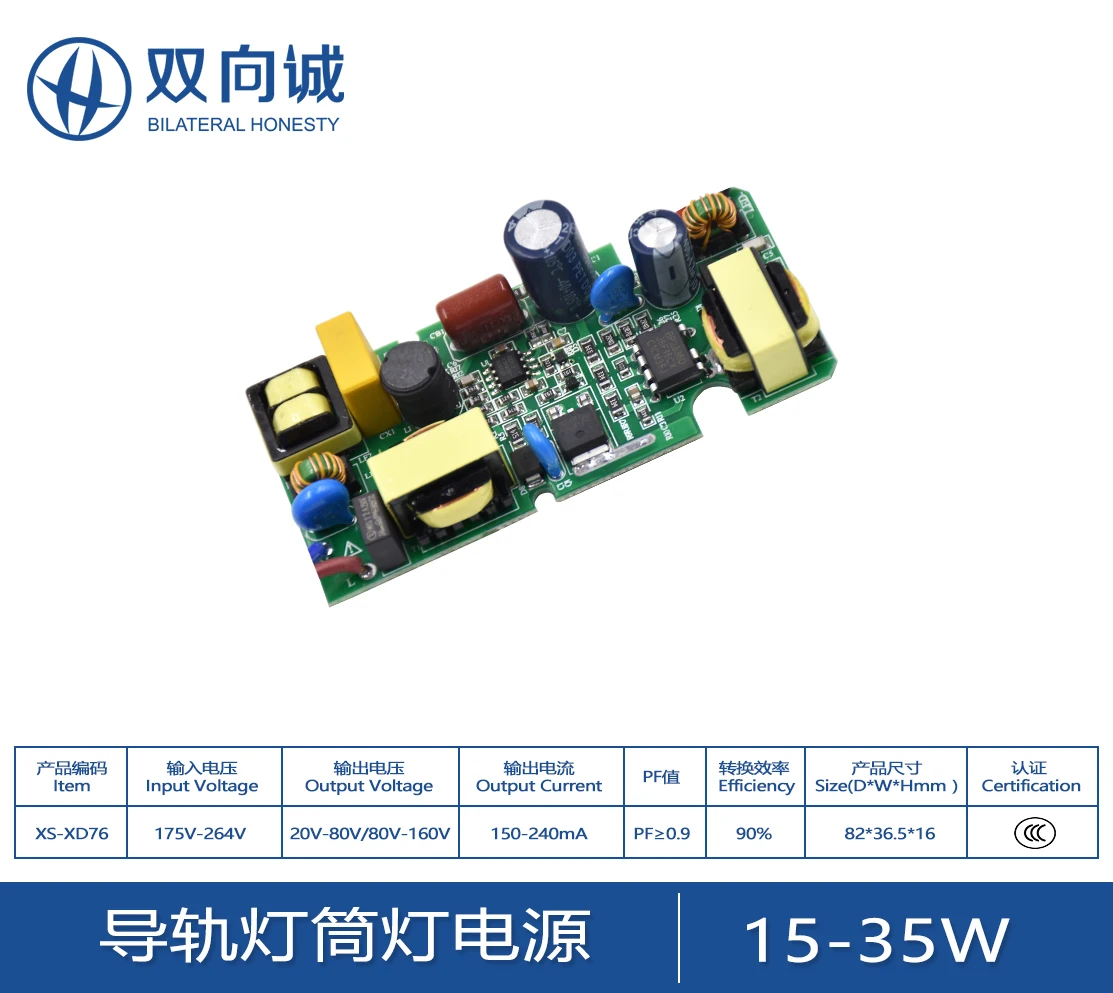

XS-XD76 (Pass CCC CE) | ||
Output Power: | 15~35W | |
Voltage Input: | 175~264V | |
Output Voltage: | 20~80V / 80~160V | |
Output Current: | 150~240mA (adjustable) | |
Efficiency: | 90% | |
Flicker | Flicker Free | |
Certificate | Pass CCC CE | |
PFC : | PF≥0.9 | |
Size(L*W*H): | 82*36.5*16mm | |
Warranty | 3Years | |
P/N | Typical Power | Input Voltage | Output Voltage | Output Current | Conversion Efficiency | Power Factor | THD |
XS-XD76 | 15W | 175~264V | 20~80V/ 80V~160V | 150~240mA | 90% | ≥0.9 | ≤10 |
XS-XD76 | 20W | 175~264V | 20~80V/ 80V~160V | 150~240mA | 90% | ≥0.9 | ≤10 |
XS-XD76 | 25W | 175~264V | 20~80V/ 80V~160V | 150~240mA | 90% | ≥0.9 | ≤10 |
XS-XD76 | 30W | 175~264V | 20~80V/ 80V~160V | 150~240mA | 90% | ≥0.9 | ≤10 |
XS-XD76 | 35W | 175~264V | 20~80V/ 80V~160V | 150~240mA | 90% | ≥0.9 | ≤10 |
Product Description

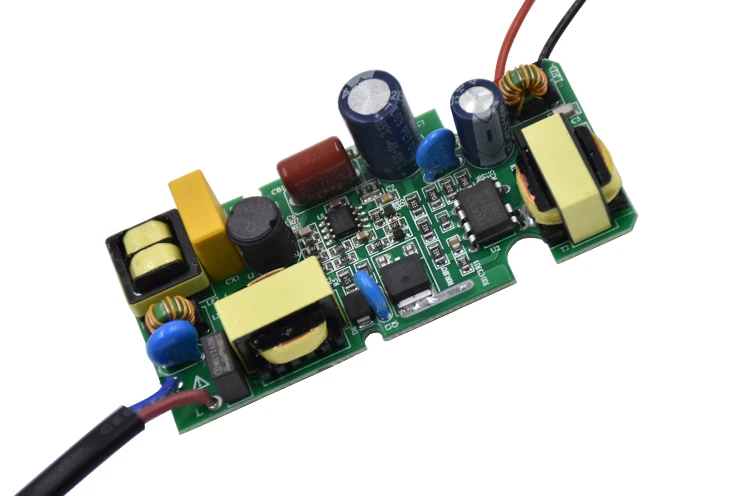

This is a Non-isolated driver. Wide input voltage VAC175-264V, Current range 150-240mA adjustable , High efficiency , High PF ≥0.9.
Application: Inside or outside LED Track Light . Used in business premises, usually on the ceiling. It can be moved on the track to change the direction of illumination. Suitable for exhibition halls, museums, shopping malls, art galleries, etc.
Application: Inside or outside LED Track Light . Used in business premises, usually on the ceiling. It can be moved on the track to change the direction of illumination. Suitable for exhibition halls, museums, shopping malls, art galleries, etc.
Details Description

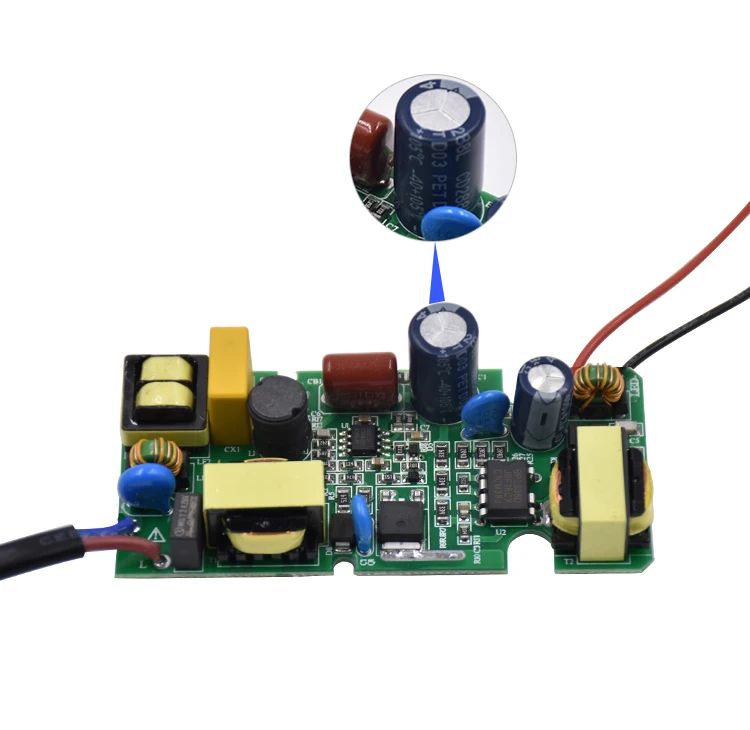

Low impedance, high ripple current, Long life Lifetime
+ 105°C , 4, 000 to 10, 000 hours , Superior quality

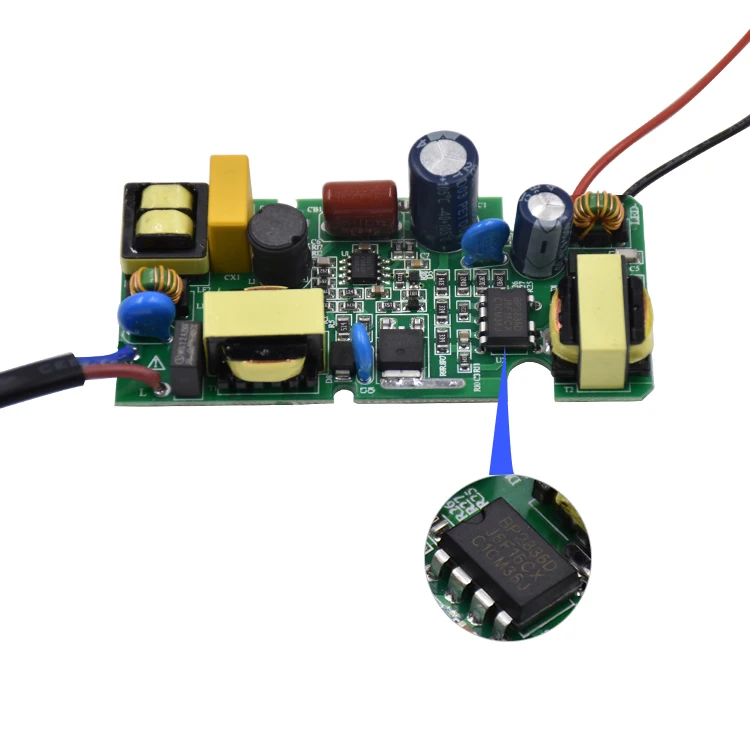

Plug-in BP IC
Taking energy saving and consumption as the leading factor, relying on
smart chip technology

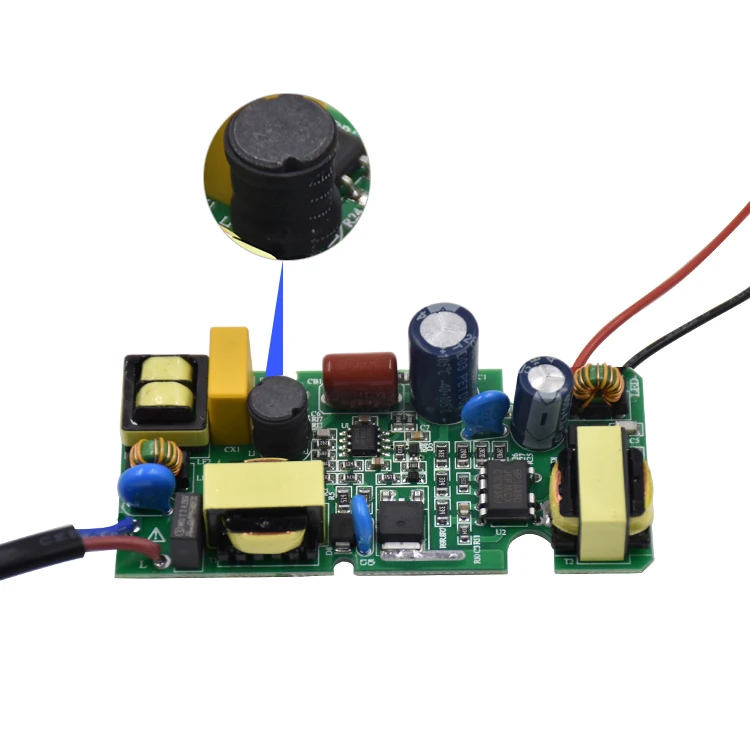

Word Inductance
Pass CCC CE

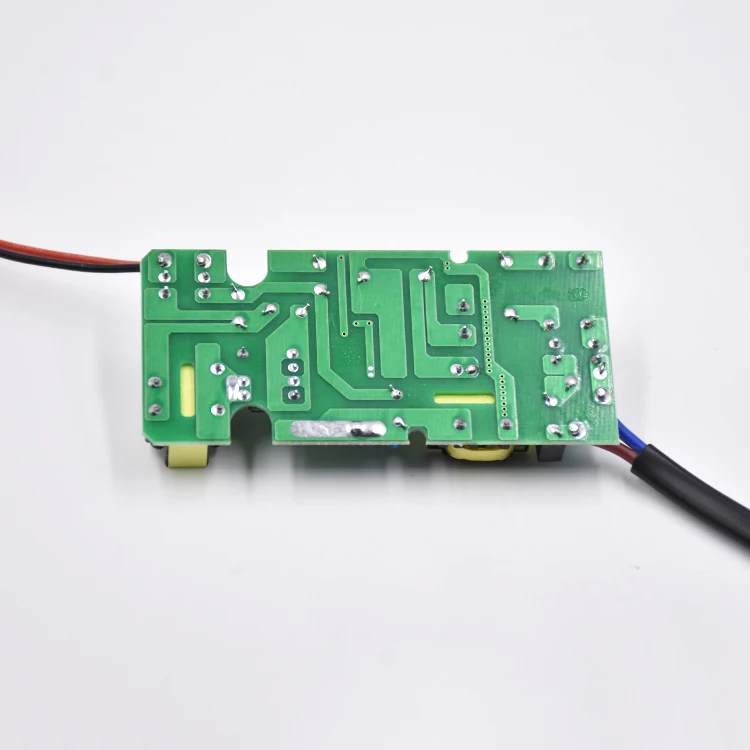

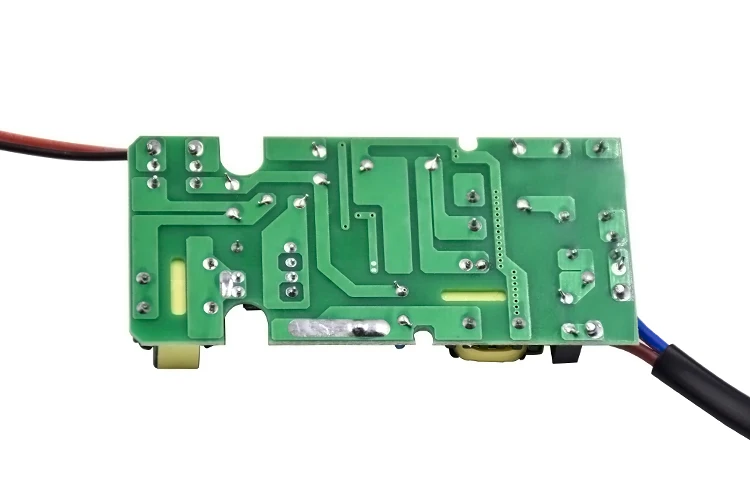

Use high-insulation FR4 PCB , high-conductivity copper foil lines, and reasonable design of the circuit to ensure efficient driving;
Driver Features
Flicker Free
Short circuit protection, open circuit protection, over voltage protection, overheat protection, making it more stable and safer when working .
Application Scenarios
Track Light
For Art Galleries
For Shopping Malls
