Fixed UVIS under car surveillance inspection vehicle security camera system

Share on:

Price:$7,500.00 - $8,000.00
Price in USD:Details


Product Overview


 Fixed UVIS under car surveillance inspection vehicle security camera system

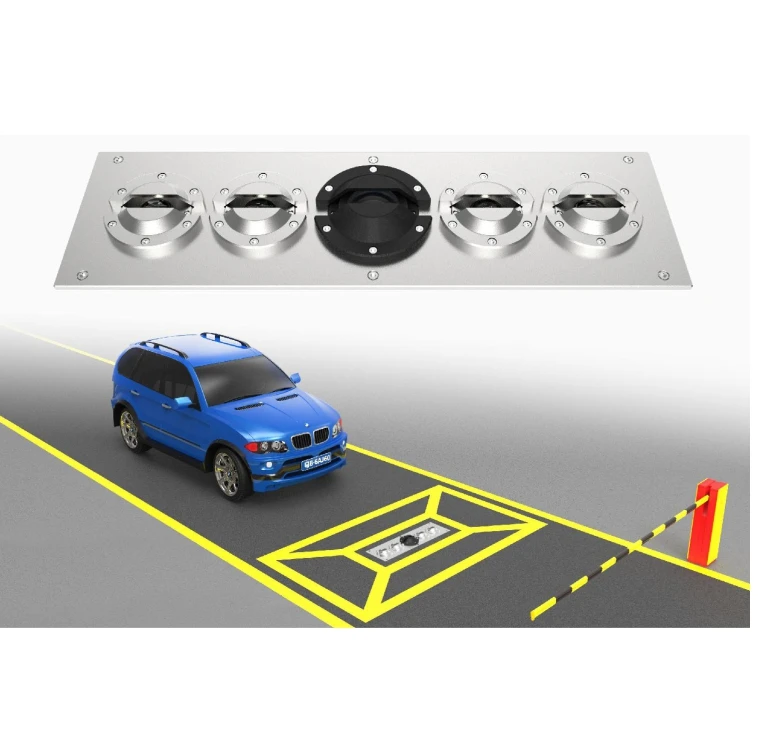

Under Vehicle Inspection System is the fixed solution for the fully identification of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning units while Safeagle’s systems compile high-resolution images of a vehicle’s undercarriage to create the vehicle’s “fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the high-resolution monitor .


Advantage of UVSS:


1,Linear CCD scanning technology dynamic imaging; Scanning Mode: linear scan, ground coil trigger

2, No need to park vehicle, can bear speed below 30km/h

3, Time of image display after scan <1s

4, Image automatic save and automatic delete when hard disk is full

5, Time of image saving or loading:<1s



Technical data:



stainless steel

Dimension1200mm x 350mm
Water-proof grade


Load bearing Weight 50T
 Image resolution
12000 *6144

CCD Line Scan Camera :

 The maximum scanning rate 18kHz

B/W image


5000* 2048 pixels


 Black/white (color optional)

 Power Supply 24VDC, 3A
Transfer interface/distance Gigabit Ethernet/100m
 Operating Temperature Range

-25 ℃ to +60 ℃

 Scanning directionOne-way scanning /Double-way scanning



System Host

BrandGrantech (SYM76941 VGGA)
CPU Intel (R) Core Processor, 2.6GHz/2.59GHz
Memory2G( optional 4G)


 Hard Disk

 SATA2 Hard Disk 500G

 Dual LAN At least one Intel Gigabit

USB2.0 (Up to 2 pieces)


22inch LCD, resolution up to 1920*1080

 Scene Video Record4 channels, Compression algorithm of scene video: H264



LED Illumination:


1)          Power Supply: 24VDC, 320W


2)          LED light service life: 50,000 hours


3)          Operating Temperature Range: -25 to +60

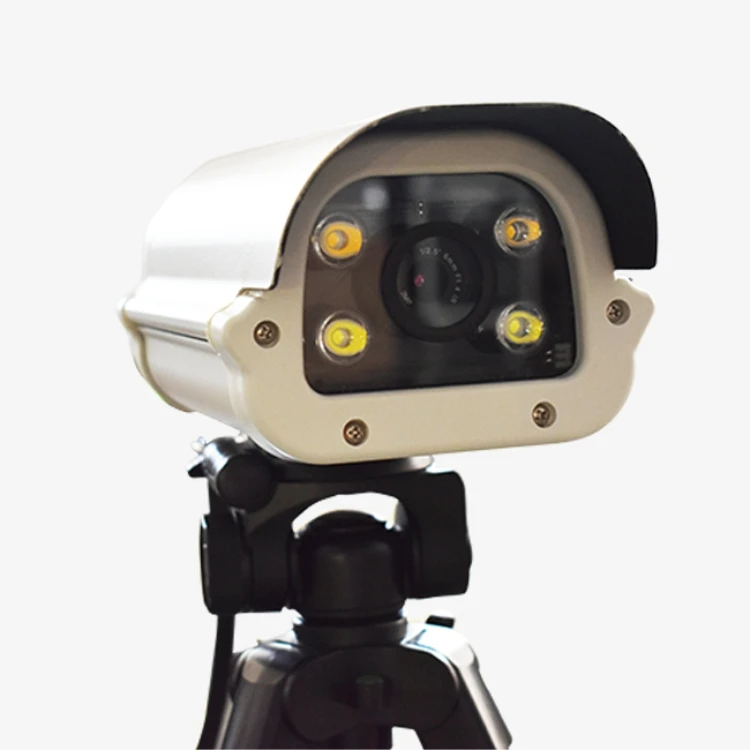

Vehicle Plate Number Capture Camera : Nigh vision, water proof and antifogging function.


1.         The imaging element,1/3″SONY ICX673 CCD


2.         Resolution: 752(H)*582(V) & Horizontal resolution: 700TVL3.         Signal to Noise Ratio: >48dB


4.         Electrical shutter: 1/50—1/10,0000/s


5.         White balance: Auto & Size: 8inch (292*140*102)



Distribution box :


1, Input: 2 channels induction coil


2, Output: 1 Channel switch type 12VDC


3, Communication port: RS485, 1000M Ethernet (Optional)


4, Operating Temperature: -25 to 60



Detailed images
