Product Overview

Description

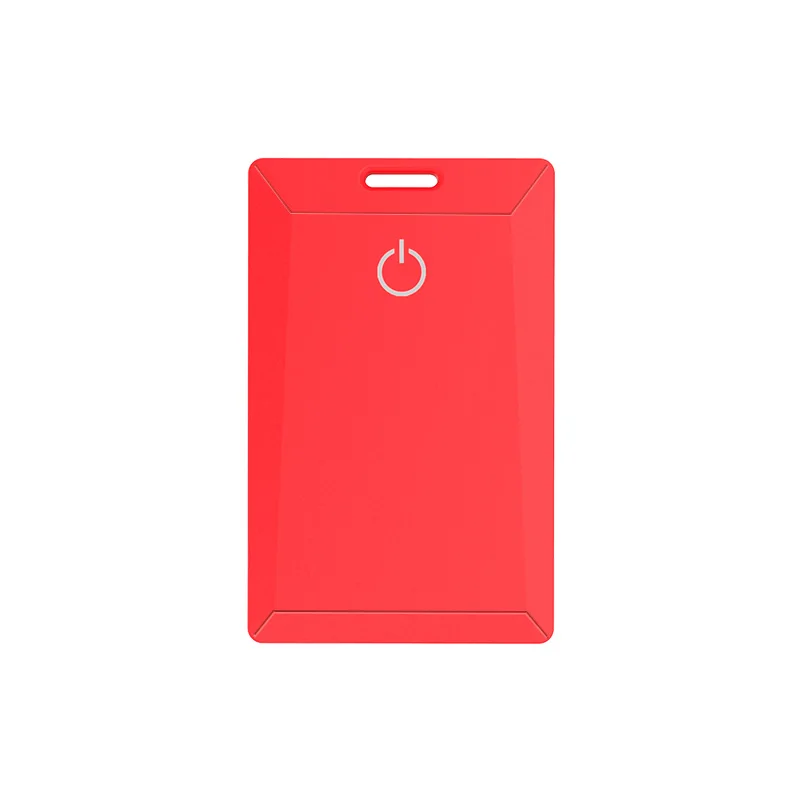

IOT Eddystone Beacon Waterproof for Person Tracking
Product Description

Moko Ble Bluetooth iBeacon Eddystone Beacon Configuration APP with Proximity Sensor


IP67 Waterproof with 100m Longer range.
H2 cost efficient and reliable, the main keys for your beacon deployments .
Additional temperature&humidity sensors SHT30 available.
Compatible with iBeacon™ and Eddystone™ (UID, URL, TLM) at the same time.

All the parameters of this product can be modified via configure APP.

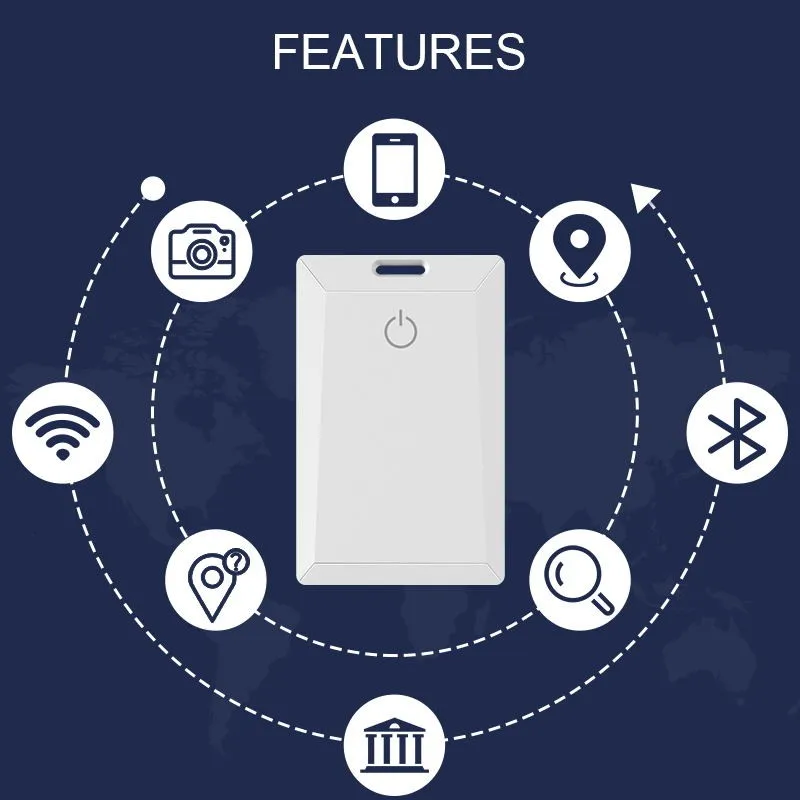

Features

Advertising Beacon Device
Ultra-low power consumption chipset nRF52832
Support 5url broadcasting
Firmware update Over The Air (OTA)

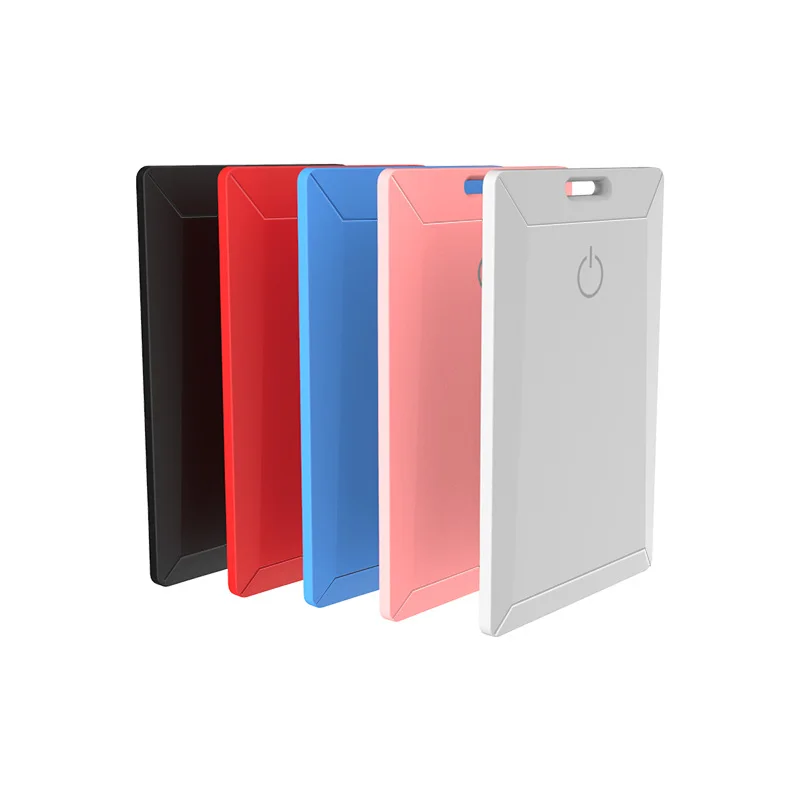

Logo and color customizable (MOQ)
Provided with your own configuration (MOQ 50 units)
100% Configurable Parameters via app (Android & iOS)
Details Images
                                                                     Parameters for H3 beacon
Size(H*W*L)
85.59x54.13x4.20mm
Battery Model
CP224248
Battery Capacity (mha)
850mAh
Default battery Life
2 years
Battery replaceable
Yes
Transmission Range
100m (+4dbm)
Waterproof
IP67
Protocols
iBeacon& Eddystone: UID, URL, TLM
Eddystone Configuration GATT Service
Firmware updating
OTA
Attachment method
Wearable, 3M double sided sticker
Built-in Sensor
Motion Sensor LIS3DH
Addition Tech
RFID, RGB
Certification
CE&FCC
Product Usage
TURN ON/OFF
Turn on
1.1Press the BUTTON and keep holding 5 seconds, the Red LED will Light on 5 seconds and then off;
Turn off
2.Press the BUTTON and keep holding 5 seconds, the Red LED will flash 5 times and then off;
 How to use it?
Load the URL onto beacon
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open MokobeaconX, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
Related Products

The customer feedback
Company Introduction
Certifications
FAQ
Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.

Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1.Android&IOS SDK 2. Configuration APP 3. SDK description

Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.

Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.

Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.

Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.

Q7: What's the warranty of the product?
A7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.

Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.

For more questions, Welcome to contact us.
