450/750V Single core PVC Insulated and Sheathed fire retardant Cable

Product Overview

Description

Housing using power cable



APPLICATION:

These cables are intended for drawing into trunking and conduit and are suitable for use in electrical installations such as power, lighting, appliances and switchgear wiring



HARMONISED CODE:

• 0.75mm² & 1.0mm² solid conductor wire H05V-U
• 1.5mm² & 2.5mm² solid conductor wire H07V-U
• 1.5mm² to 120mm² stranded conductor wire H07V-R



CONSTRUCTION:

• Reference: 6491X or 6491X HR*
• Conductor: Solid / stranded plain copper class 1 or 2 to BS6360/IEC60228-1
• Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655

STANDARD COLOURS:



Red, Yellow, Blue, Black, Green, Yellow/Green, Brown, Grey Other colours available on request



PACKAGING:

• Sizes 0.75mm² to 35mm² in reels/coils of 100yards and 100m
• All sizes can be supplied in non-returnable wooden reels of 500m and 1000m
• Customised lengths available on request

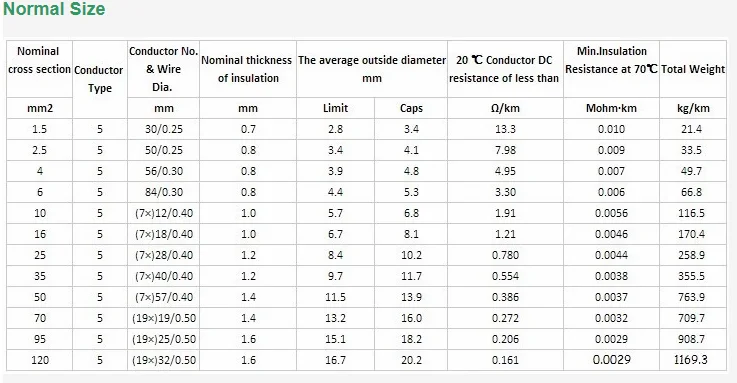

TECHNICAL DATA:

• Max. Operating Temperature: 70^OC / *105^OC
• Rated Voltage: 450/750V (300/500V for 0.75mm² & 1.0mm²)
• Standards: Generally to BS6004
