mini hydraulic l portable borehole water well drilling machine SLY100

Product Overview

Description

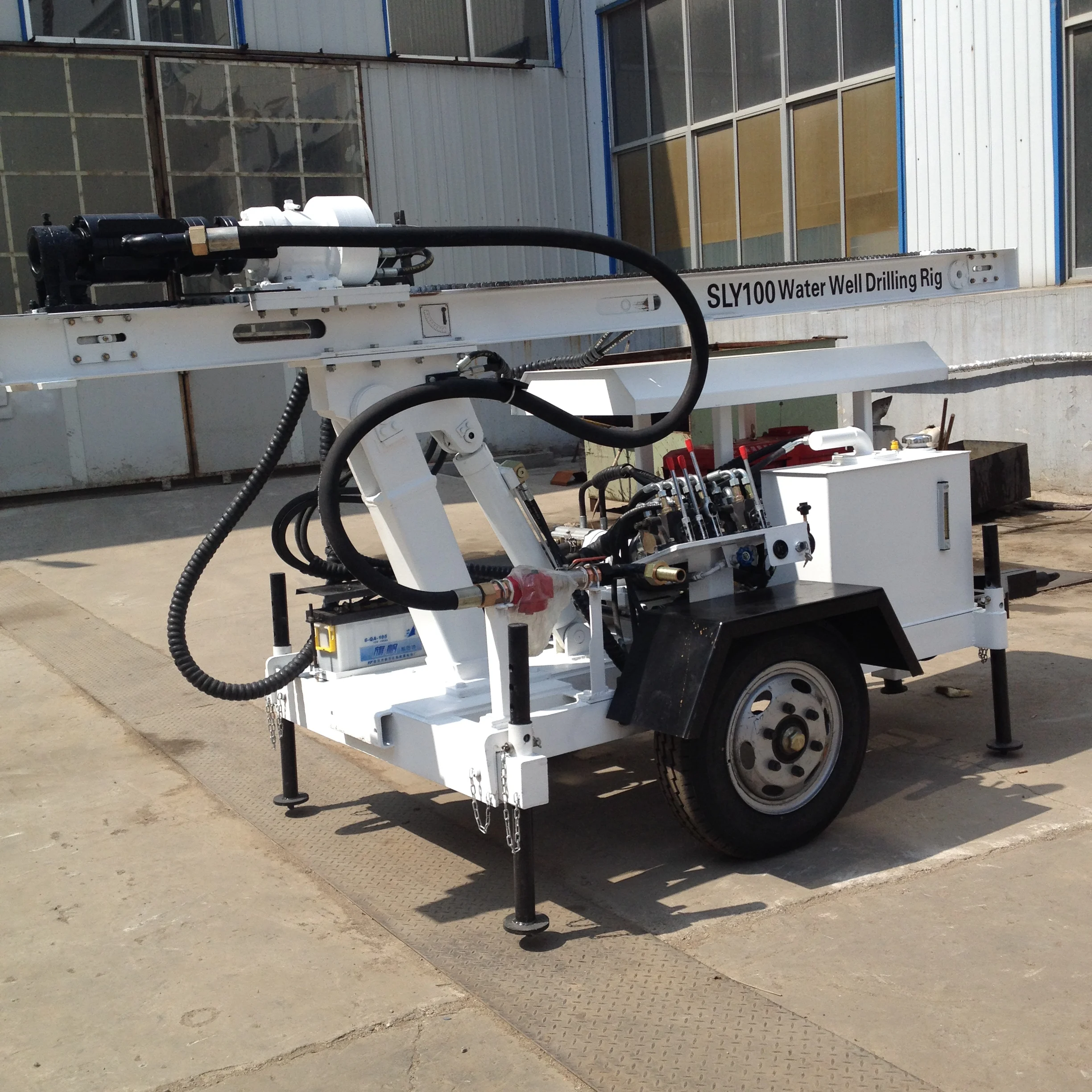

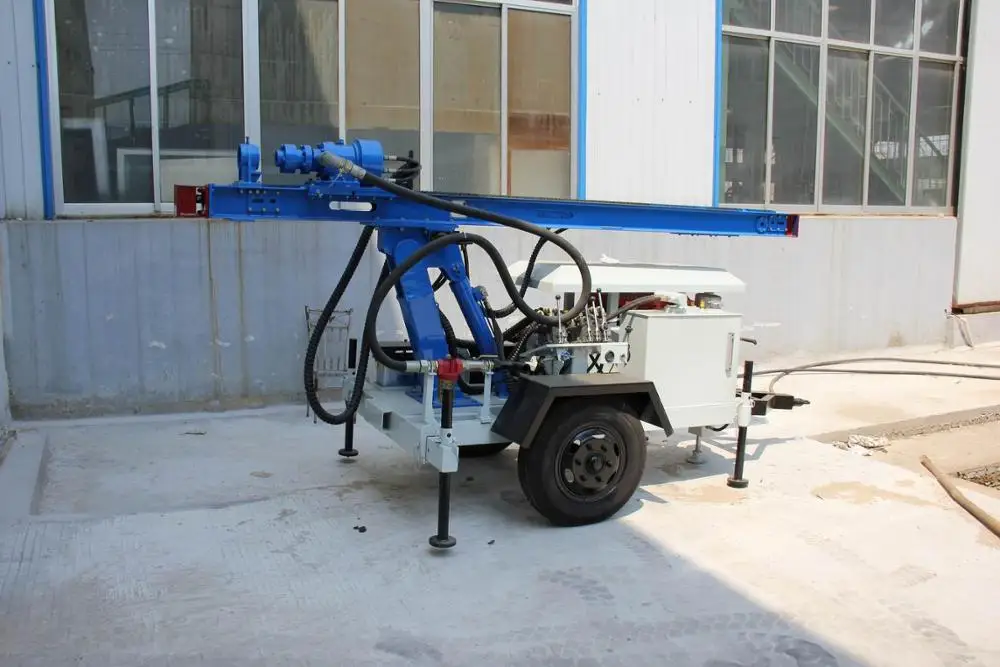

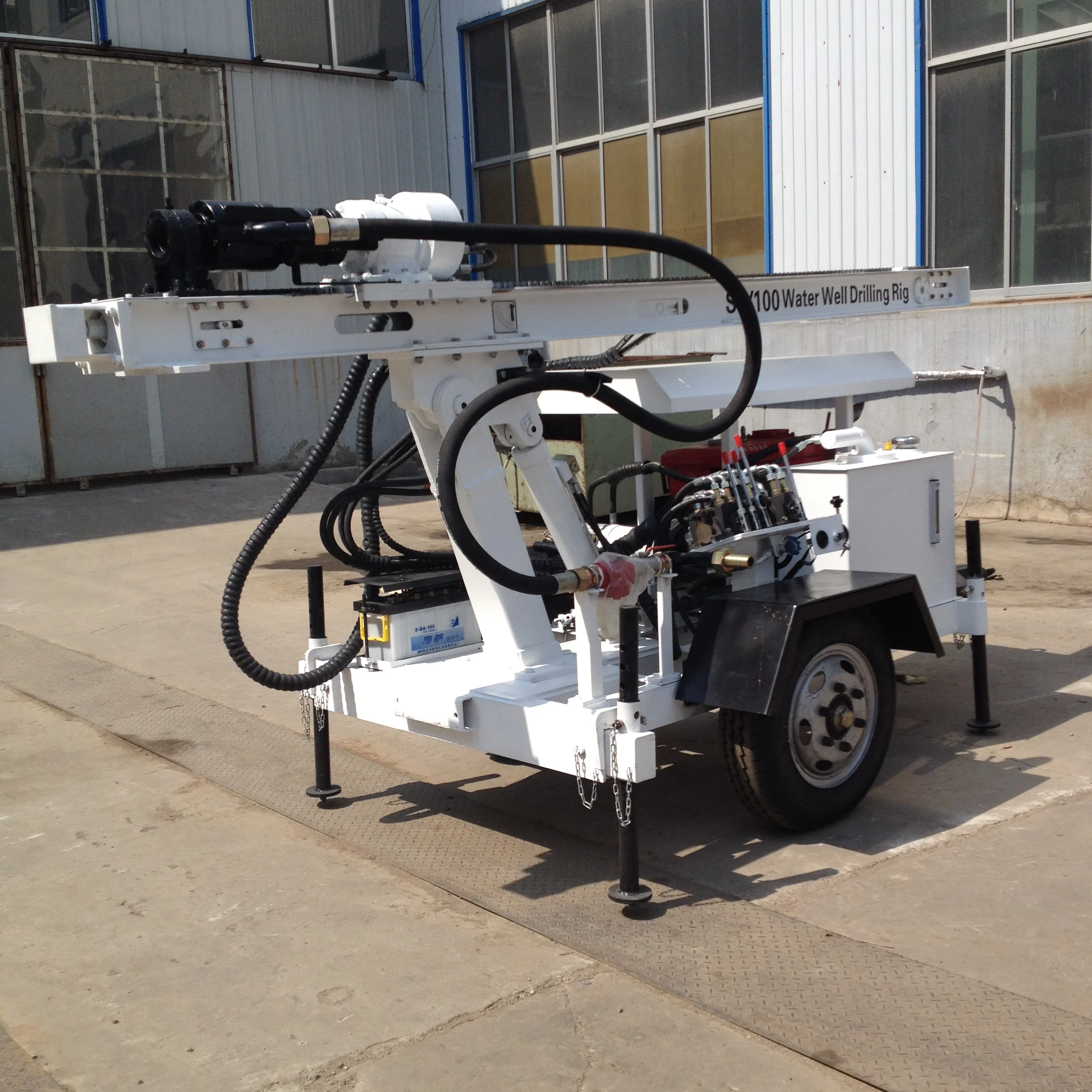

 mini hydraulic l portable borehole water well drilling machine SLY100

water well drilling machine  have the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.

Application:it is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration borehole.which especially used for drilling geothermal heating stove.

 Technical parameter;

Main technical parameters

Total Weight (kg)	800
Drilling diameter (mm)	90---130
Dimension (L * W * H)	3200*1400*1500
Drilling depth (m)	80
Once promotion distance (mm)	1500
Working pressure (Mpa)	0.7---1.0
Air consumption (m³/min)	7.2---12
Host Power (Kw)	16.2
For rock (f)	6----20
Impact frequency (r/min)	800



Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
