1 1000 m3/h lorentz solar submersible pump price with high head for agricultural irrigation system
- Category: >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (62392620589):
Product Overview
Description
1-1000 m3/h lorentz solar submersible pump price with high head for agricultural irrigation system
Solar water pump
Pump Introduction
solar power water pump
The water pumps used in the solar pump system is mainly deep well pump, submersible pump, horizontal or vertical multi-stage centrifugal pump, etc., which pump water from deep well, river and lake, etc., into a reservoir or tank, or directly used for domestic water supply, agricultural irrigation and other systems. No matter to build new solar pump systems or transform the old utility (or diesel generator) into solar, the SINCREA solar pump inverter can be applied to drive those water pump with solar.
Pump Features
Material: stainless steel 304, 316, iron casting, etc.
Type: deep well pump, submersible pump, surface pump, horizontal centrifugal pump, vertical multistage centrifugal pump, etc.
Voltage: single phase 110V/220V, three phase 220V/380V.
Frequency: 50/60HZ.
Maximum depth: 70m.
Application: Domestic water supply, Agricultural irrigation, Desert greening, fountains and various industrial use.
Head & Flow Curve
Model Definition
solar power water pump
Note: 1 m³=1,000 litres
4SP series Head & Flow performance curve
Solar Pump Systemn
System Features
solar power water pump
- Solar energy drives the pump to work directly, no need battery,used for agricultural irrigation and domestic water, low cost and maintenance-free.
- High-efficiency monocrystalline silicon and polycrystalline silicon solar modules with conversion efficiency up to 19.58%, 10-year material process warranty, and 25-year line warranty.
- Pump power: 0.75KW~110KW; water flow: 1-800 m3/h; lift head: 5-500m; stainless steel material, service life of more than five years.
- Deep well pump can be used for pumping water from 10-500m deep well, high lift head and large water flow, long distance water delivery.
- According to the sunshine and water demand in different regions, the system can pump water with 6-10 hours per day, and the maximum daily pumping capacity can reach 5000 cubic meters per day.
- Deep well water shortage protection, water tower full of water protection, light weak sleep, light intensity wake up, can achieve unattended, fully automatic operation, no manual operation.

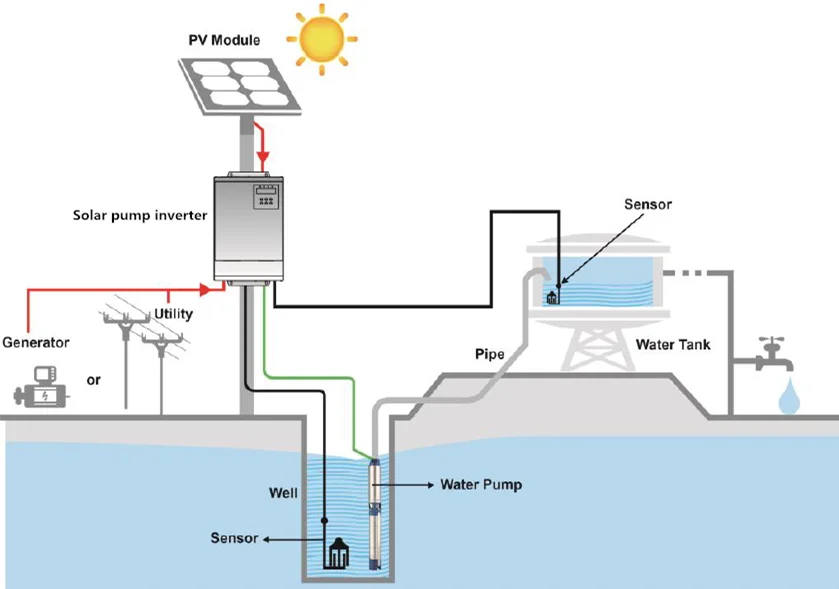

Wiring Diagram
solar power water pump
Product Application

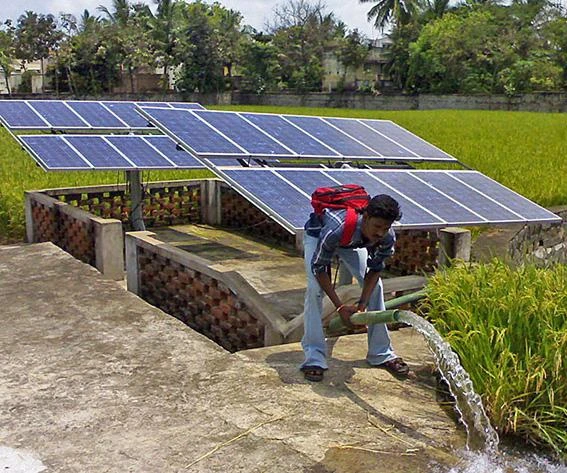

Pakistan 3KW solar agriculture irrigation system solar power water pump
| Location | Sindh-Pakistan | |
| Purpose | Agriculture irrigation | |
| Water source | River. water depth 8-10m, 2m from river to tank | |
| Requiredments | Pakistan is a large country with traditional agricultural production. Due to the shortage of electricity, when agricultural irrigation requires water, it often loses power, which will have a great impact and loss on the cultivation of local farmers. In order to solve the actual pumping difficulties, SINCREA solar pump irrigation system was introduced to meet the needs of agricultural irrigation. | |
| Solutions | Water pump | 3KW AISI304 submersible pump,3phase,380V Rated water flow:20 m³/h;Rated lift head:10m |
| Solar panel | 4.8KW,15pcs 320W Mono solar panel in series | |
| Solar pump inverter | SINCREA,Model:SV500-004-4TB 4KW Solar pump inverter,3phase 380V | |
| Mounting bracket | Ground fixed Q235 hot galvanizing steel mounting bracket | |
| Accessoires | DC/AC cables,MC4 connector,water level sensor,DC/AC multi-meter,installation tool.etc | |
| Benefits | Adopting SINREA 3KW solar pump system, the 4.8KW solar panel drive the 3KW pump by the 4KW solar pump inverter. The system pump water from the 8m depth river to the tank, and then flows to each farmland through the channel, working 6-8 hours a day, 100~150 cubic meters of water can be pumped for farmland irrigation, solving the water shortage due to power outage and water shortage, fully automatic operation, and no manual operation. | |
Company Information
Company Introduction
Shenzhen SINCREA Electrical Technology Co., Ltd. is a professional enterprise on frequency inverter technology development and application . Our company is located in Shenzhen, which is the best innovation city in China. We integrate research, production and sales, with independent intellectual property rights and proprietary trademarks. Take cohesion, innovation and competitiveness as our core, advanced technology, excellent management concept and high-quality products make us popular with our customers.
Company Honor
- Full Cetificate Patents
- ISO9001 & ISO14001
FAQ
Q 1: Are you trading company or manufacturer ?
A. We are factory.
Q 2: How long is your lead time?
A. Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q 3: Is there any discount ?
A. The discount will depend on the quanlity you purchase.
Q 4: What is your supply capacity?
A. The week output of the factory exceeds 800 PCS.
Q 5: Do you provide warranty for the goods?
A. Yes, we provide more than 2years of warranty for all the goods from us.
Q 6: Could SINCR provide technical support?
A.We' have more than 15 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
