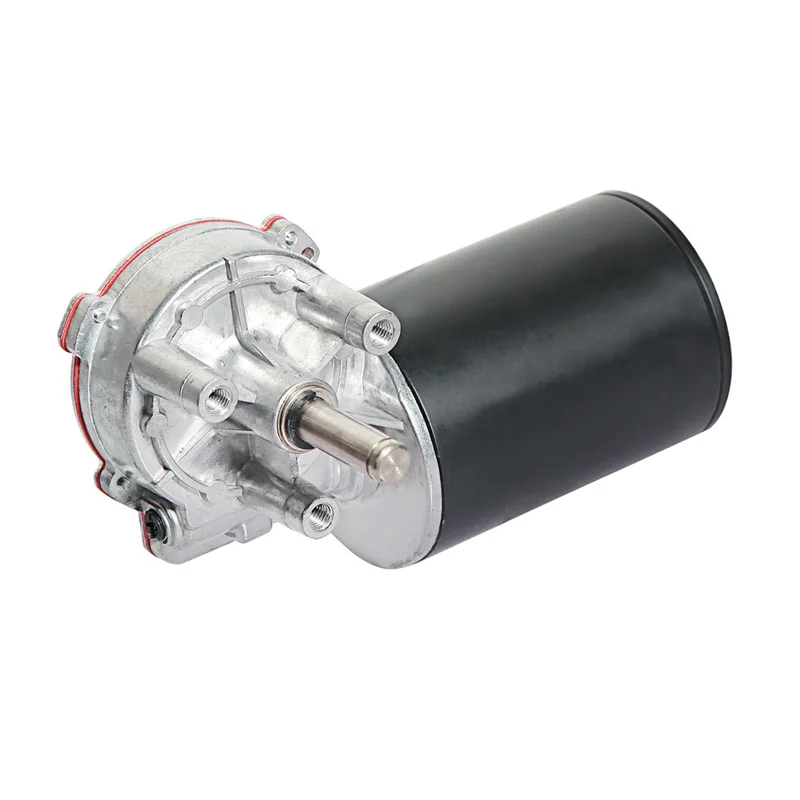

F45ZY 23JW Furniture Lift Gear Motor Desk Lifting Motor
- Category: >>>
- Supplier: Zhejiang Dongzheng Motor Co. Ltd.
Share on (62392665605):
Product Overview
Description
Product Description
Characteristics
1. Voltage: 12 ~ 60V DC
2. Gear Ratio: 18:1, 36:1; 39:1
3. DC Motor Available ( OD ): 60mm, 52mm, F45mm
4. With 2 Hall Sensors
5. Reach, CE, RoHS compliance
6. Application: Table Lift, Furniture, Others
7. Solid Shaft Available Upon Request
DC RIGHT ANGLE GEAR MOTOR F45ZY-23JW SPECS AND FEATURE:
· Voltage 29V DC
· No-Load Speed 100rpm
· Max. Efficiency 38.3%
· Max. Efficiency Point 17.13Kg.cm@83rpm
· Stall Torque after Gearbox 100.79Kg.cm ( Stall Current 6.60A )
· Gear Ratio 36/1
DC RIGHT ANGLE GEAR MOTOR F45ZY-23JW SPECS AND FEATURE:2. Gear Ratio: 18:1, 36:1; 39:1
3. DC Motor Available ( OD ): 60mm, 52mm, F45mm
4. With 2 Hall Sensors
5. Reach, CE, RoHS compliance
6. Application: Table Lift, Furniture, Others
7. Solid Shaft Available Upon Request
DC RIGHT ANGLE GEAR MOTOR F45ZY-23JW SPECS AND FEATURE:
· Voltage 29V DC
· No-Load Speed 100rpm
· Max. Efficiency 38.3%
· Max. Efficiency Point 17.13Kg.cm@83rpm
· Stall Torque after Gearbox 100.79Kg.cm ( Stall Current 6.60A )
· Gear Ratio 36/1
Voltage 24V DC
No-Load Current 1.2A Max.
No-Load Speed after Gearbox 143RPM ( Motor 5600rpm )
Stall Torque after Gearbox 21N.m ( Motor 0.53N.m )
No-Load Noise 46dB
Max. at Distance 30cm Testing
Gear Ratio 39/1
Weight 775g
Customized Gear Motors for Typical Applications | ||||||||
Tarp Gear Motors | Slow Juicer Motors | |||||||
Curtain & Window Motors | Robot Pool Cleaner Motors | |||||||
Door & Gate Motors | Robot Lawn Mower Motors | |||||||
Automatic Pool Cover Motors | Solar Tracking System Motors | |||||||
Related Products
Company Introduction
OVERVIEW
Dongyang City Dongzheng Motor Co., Ltd. is a state-level high-tech enterprises which Professionally involves in research, development, manufacture, and sales of various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Dongyang City Dongzheng Motor Co., Ltd. is a state-level high-tech enterprises which Professionally involves in research, development, manufacture, and sales of various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
CERTIFICATION & MANAGEMENT
All have passed the REACH, CE & CCC approval, RoHS Compliance, in part pass the UL approval; Adopting the ISO9001: 2015 Quality Management System, ISO14001 Environmental Management System as well as OHSAS18001 Occupational Health and Safety Management System.
All have passed the REACH, CE & CCC approval, RoHS Compliance, in part pass the UL approval; Adopting the ISO9001: 2015 Quality Management System, ISO14001 Environmental Management System as well as OHSAS18001 Occupational Health and Safety Management System.
Our Services & Strength
Sufficient Sales Teams for International Business
Strong R & D Capability
Large Production Capacities
Stable Massive Production Quality
Excellent Pre and after Sales Service
Stable Massive Production Quality
Excellent Pre and after Sales Service
Certifications
Production and Testing Facilities
FAQ
Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
