Muti Station Vapour Sand Blasting Machines
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (62392709450):
Product Overview
Description
Products Description
Muti Station Vapour Sand Blasting Machines
This wet sandblasting machine is made of stainless steel material, which features much more durable and never get rust when introducing water for wet blasting.
It is specially designed with double working station for operating large products, and allows 2 operators process at the same time to improve efficiency.
It is specially designed with double working station for operating large products, and allows 2 operators process at the same time to improve efficiency.
Details Images

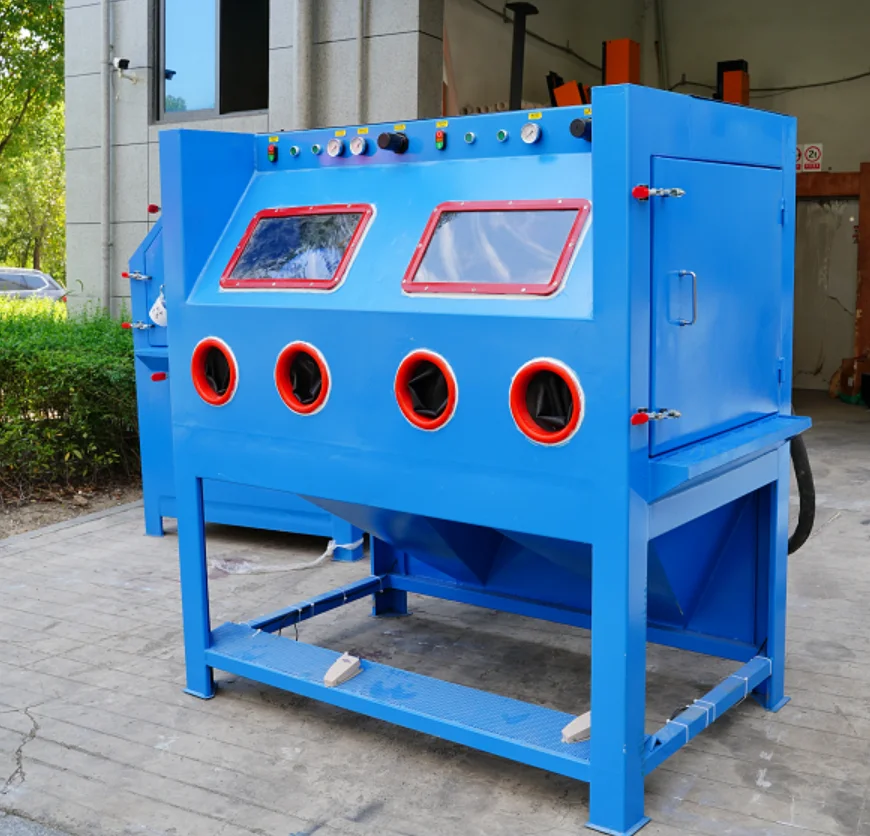

Muti station vapour blasting machines

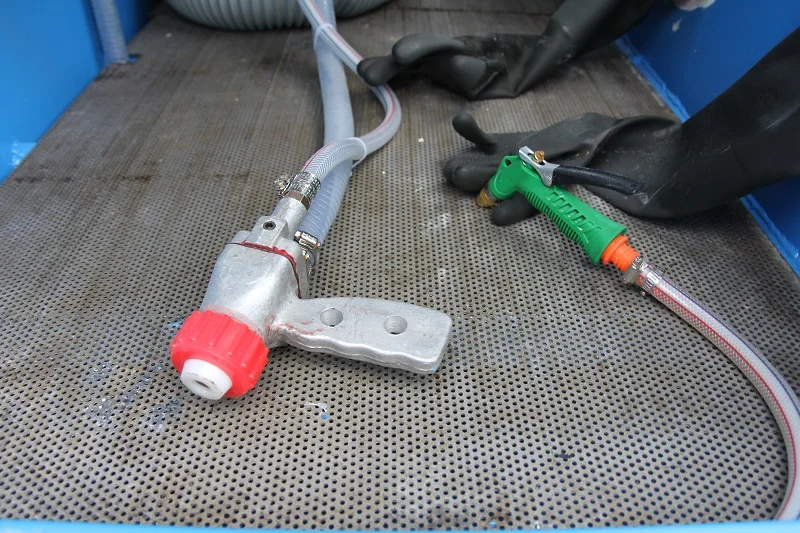

This Stainless steel sheel water liquid dustless abrasive sand blasting cabinet for metal adopts sand mixed with water for sandblasting, making more delicate surface, less abrasive consumption, whose gun can be fixed as well as hand operation, light and flexible, easy to operate.
The dry sand blasting machine can be installed a sand-jet pump, designed and manufactured as the same type of wet sand blasting machine This sand blasting machine can be automatic or semi-automatic based on customer's requirements.
Model: | KF-1610W |
Dimensions: | 1700*1500*800mm |
Working cabin size: | 1600*1000*800mm |
Power: | 220V 50HZ |
Body plate thickness: | 2mm |
Cabin lights | 220V 13W Energy-saving Lights |
Machine weight: | 320Kg |
Separator motor: | 220V 50HZ 550W |
Separator power: | 0.55KW |
Separator air volume: | 4.5m3 / min |
Work piece sandblasting gun: | 2 pieces |
Compressed air source: | 3-8bar (kg / cm2) flow 0.6-1.0 cubic meters / min. (User-owned) |

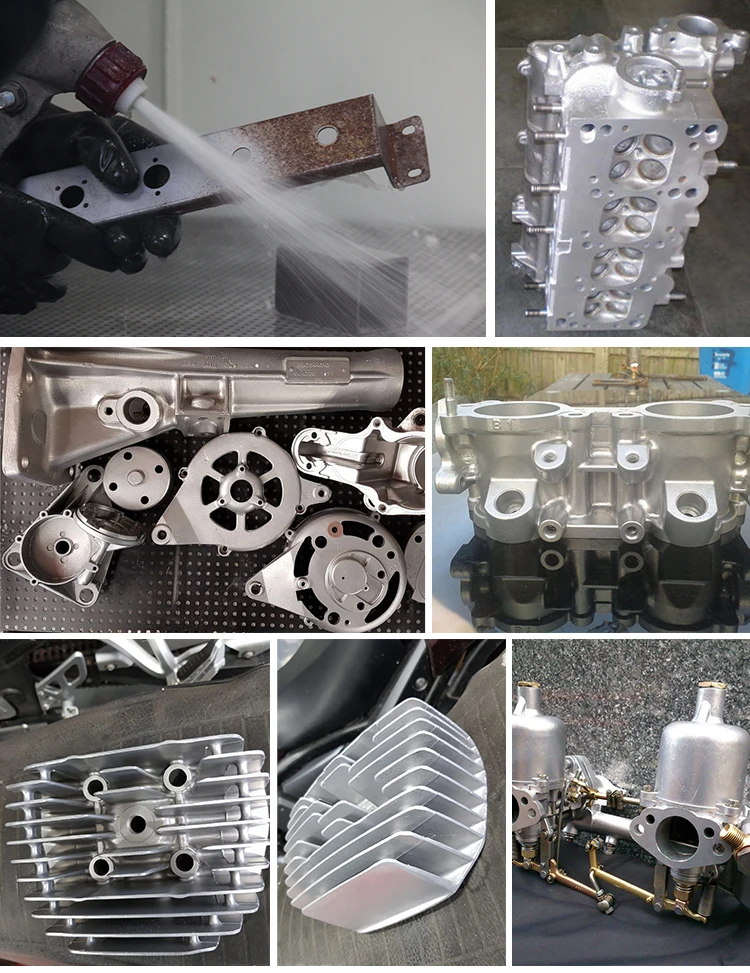

Application
This wet sandblasting machine is made of stainless steel material, durable and anti-rust. Specially desinged double working station is for operating oversized products.
Recommend Products
Model | KF-1610W(double guns | KF-1212W | KF-1010W | KF-9080W |
Working size(mm | 1600*1000*800 | 1200*1200*2000 | 1000*1000*800 | 900*800*800 |
Weight | 320kg | 350kg | 300kg | 280kg |
Loading | 100-140kg | 80-120kg | 50-80kg | 30-50kg |
Packing size(mm) | 1700*1500*2000 | 1300*1700*2200 | 1100*1500*2000 | 1000*1200*2000 |
Packing
Factory&workshop
PROFESSIONAL MANUFACTURER OF SURFACE FINISHING MACHINERY
Kafan is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
FAQ
1.What is the air pressure and air consumption of each blasting gun?
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
