NP SMZB7045 T2 7X 45X Electronic And Precision Industry Repairing Trinocular Stereo Zoom Microscope with Double Arm Boom Stand

Product Overview

Description



Features :



• 7X-45X Zoom Stereo Microscope with Super Widefield Optics


• 30mm Super Widefield 10X Eyepieces with 20mm Field of View


• 45 Degree Inclined Trinocular Head


• Sharp Stereo Erect Images over a Wide Field View


• Crystal Clear Original True Color Images


• High Resolution with Great Flatness and Contrast


• Eye Tube with Adjustable Diopter


• Adjustable Interpupillary Distance


• High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers


• Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation


• Rubber Eye-guards Providing Further Comfort


• Full Optical Glass Elements


• Precise Ground Glass Lens


• Sturdy Boom Stand for Versatility and Large Working Area


• Stand Finished with Stain Resistant Enamel


• 1.5" Rugged Solid Cast Metal Stand Base


• All Metal Mechanical Components


• Manufactured under ISO 9001 Quality Control Standard


• Excellent Two (2) Year Manufacturer Warranty





Specifications :



• Head: 45 degree inclined 360 degree swiveling trinocular


• Eyepiece: 30mm super widefield high-eyepoint WF10X/20


• Objective: 0.7-4.5X


• Zoom Range: 6.4:1


• Diopter Adjustment: +/-5dp


• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)


• Field of View: 1-1/4" (33mm)

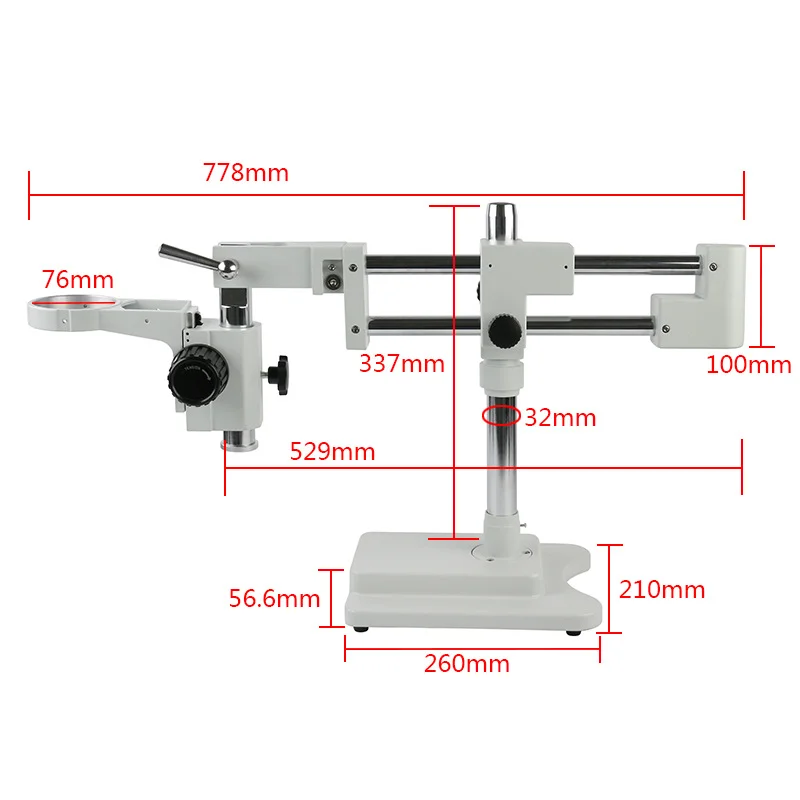

• Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base


• 1-1/4" (33mm) SUPER widefield of view and 4" (100mm) working distance


• Accessories: eye-guards





Packing List :

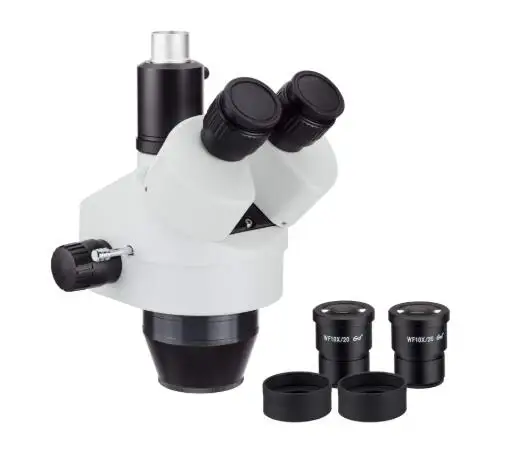

• One Trinocular Stereo Zoom Microscope Head


• One Pair of Super Widefield 10X Eyepieces


• Double-arm Boom Stand with Focusing Rack


• One Pair of Eye-guards
