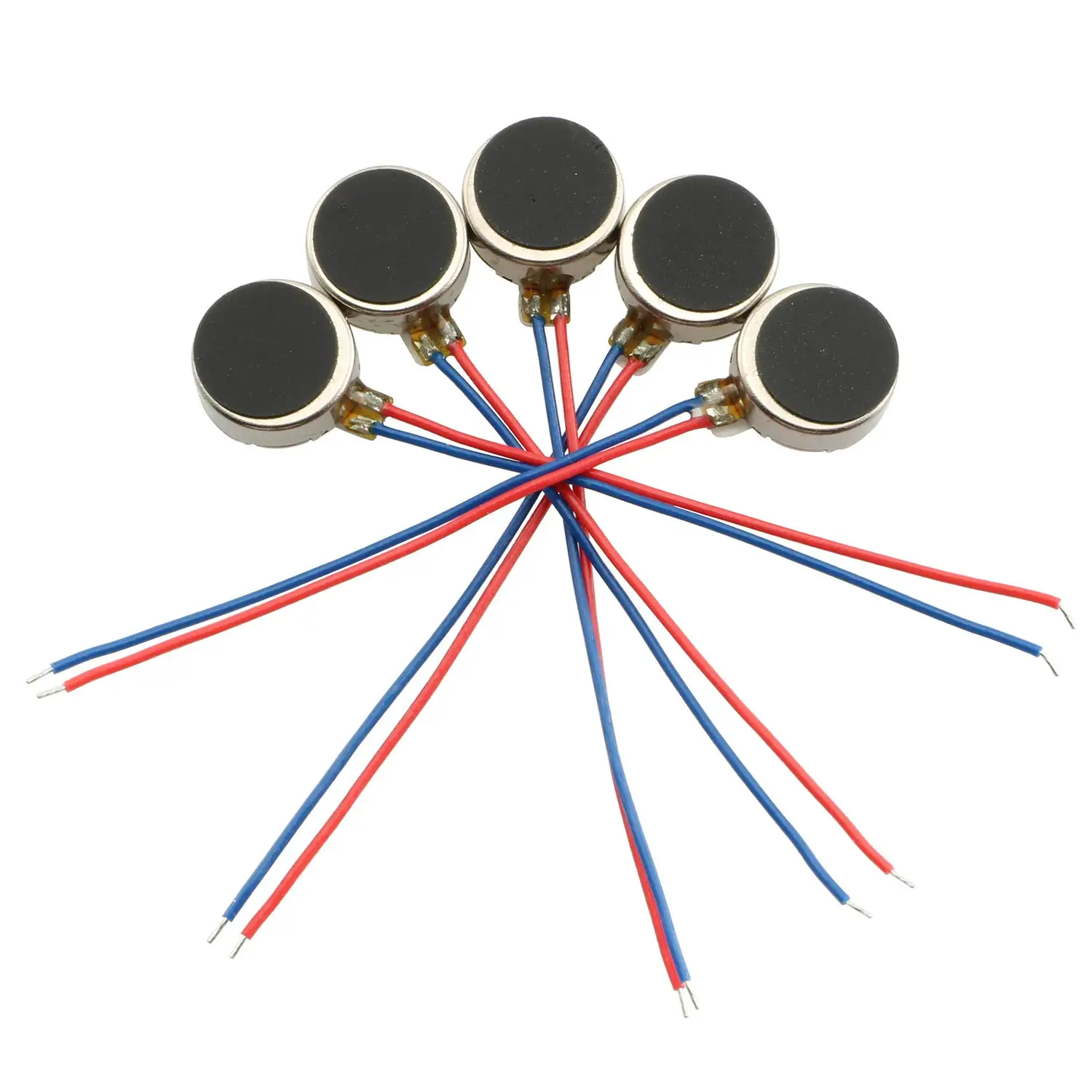

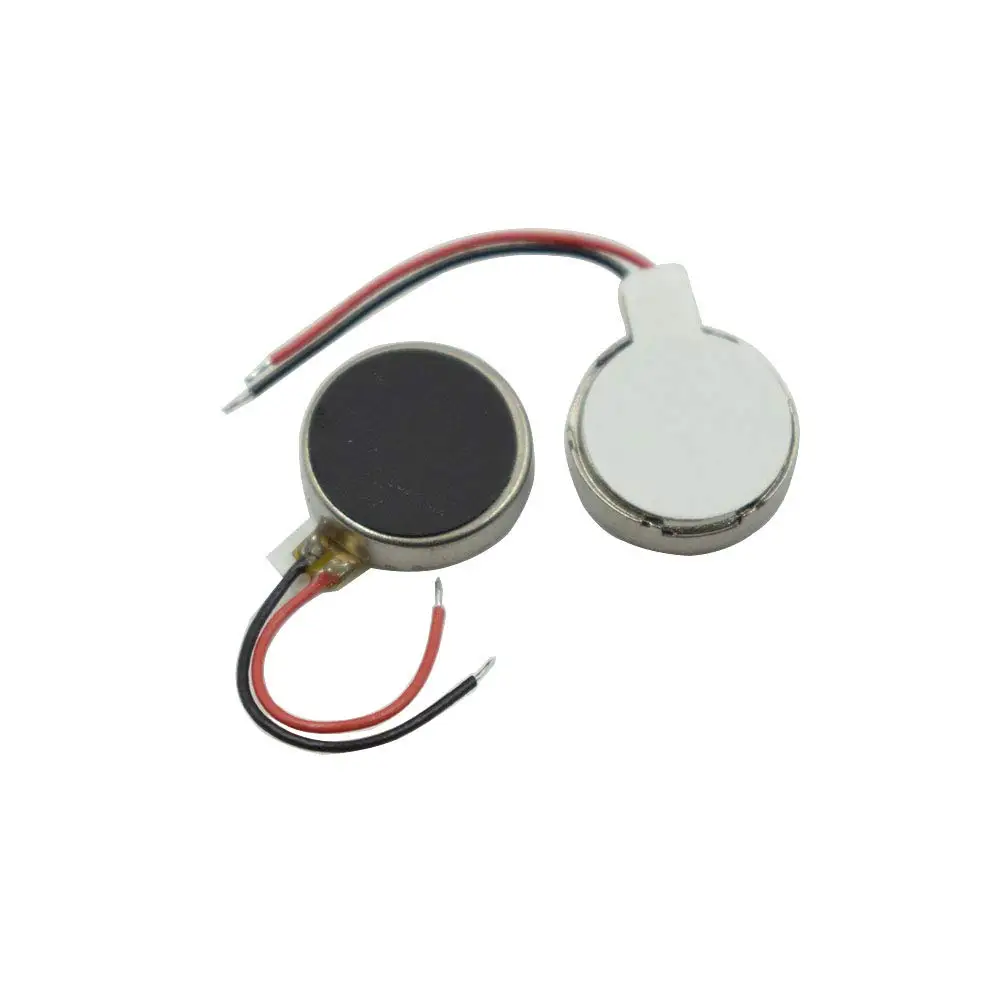

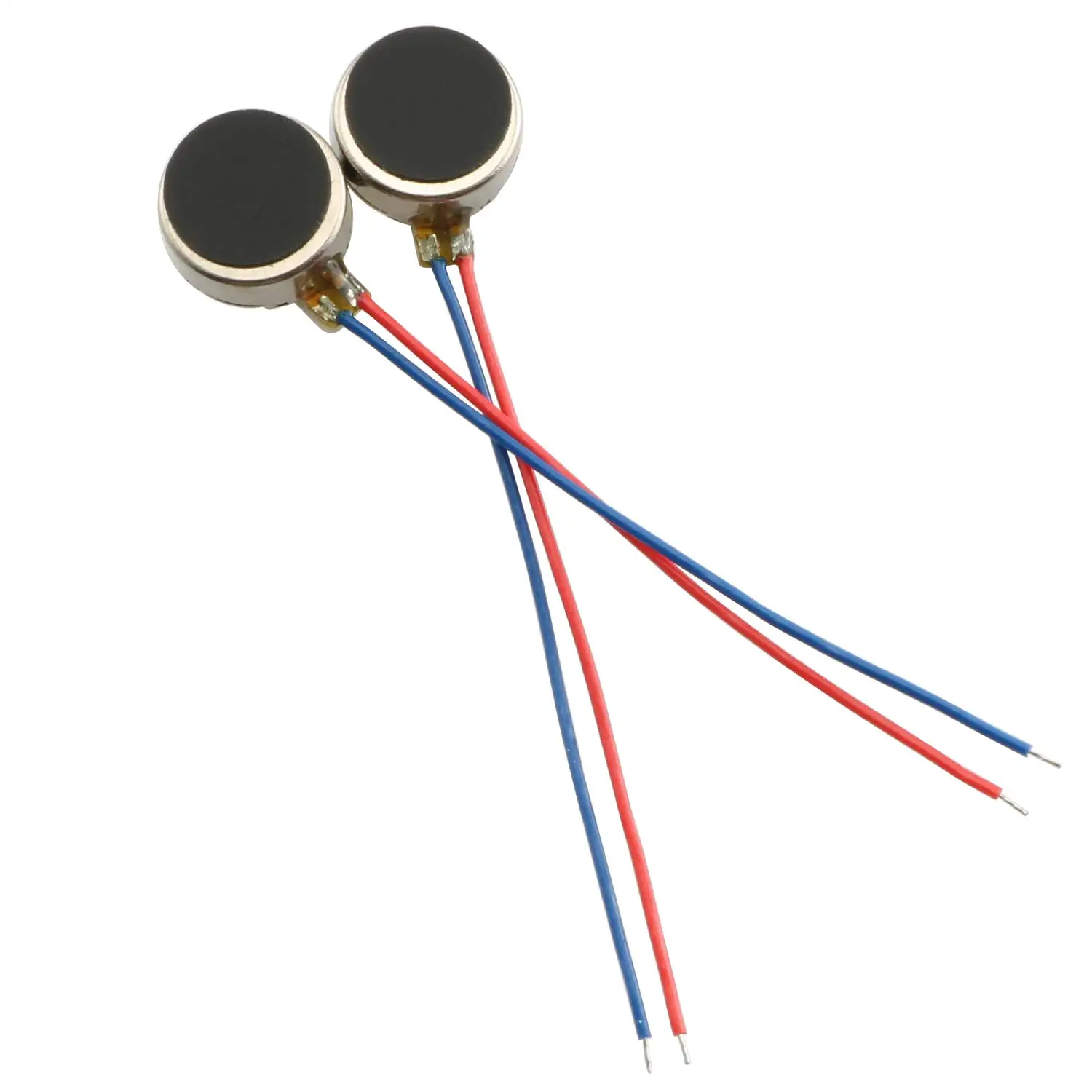

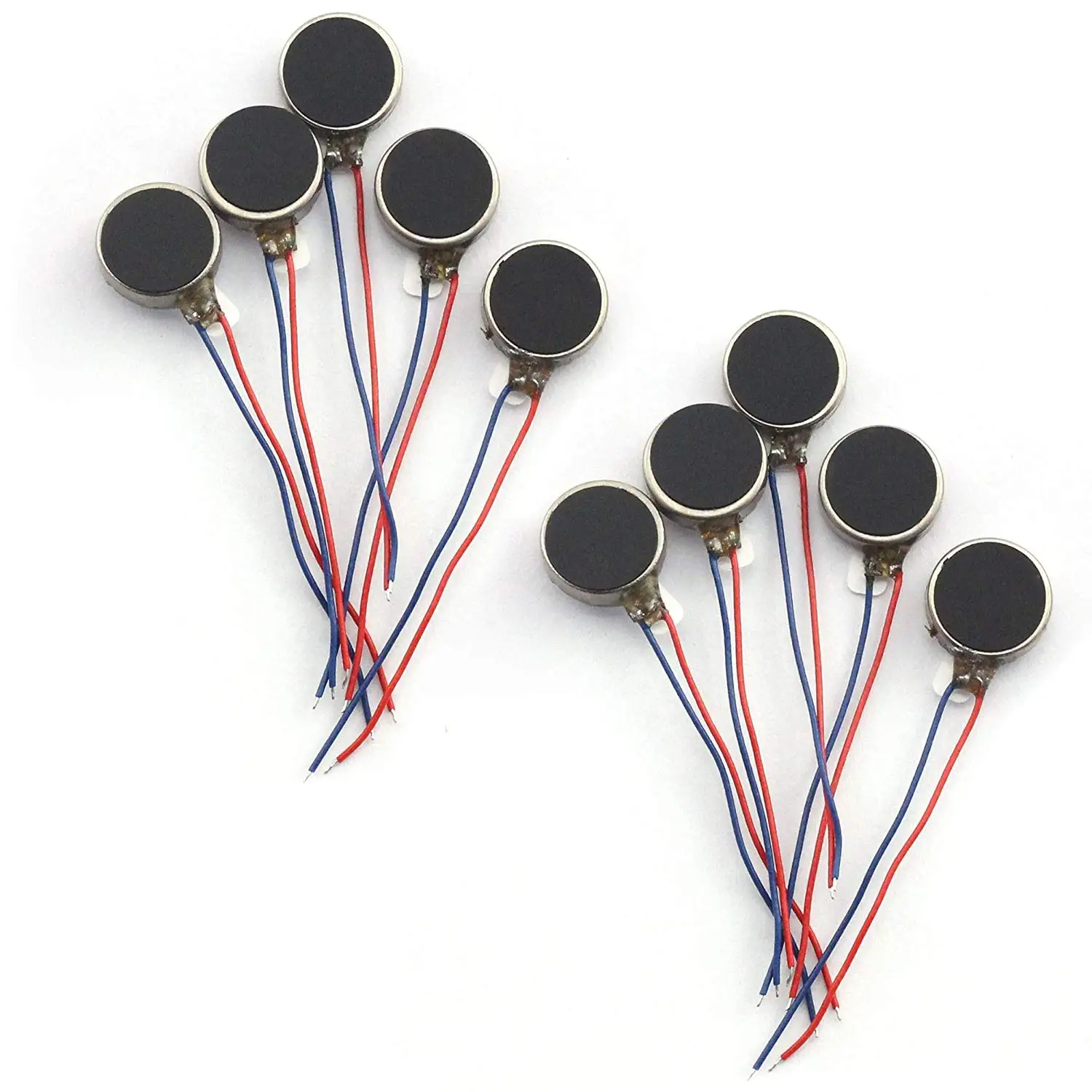

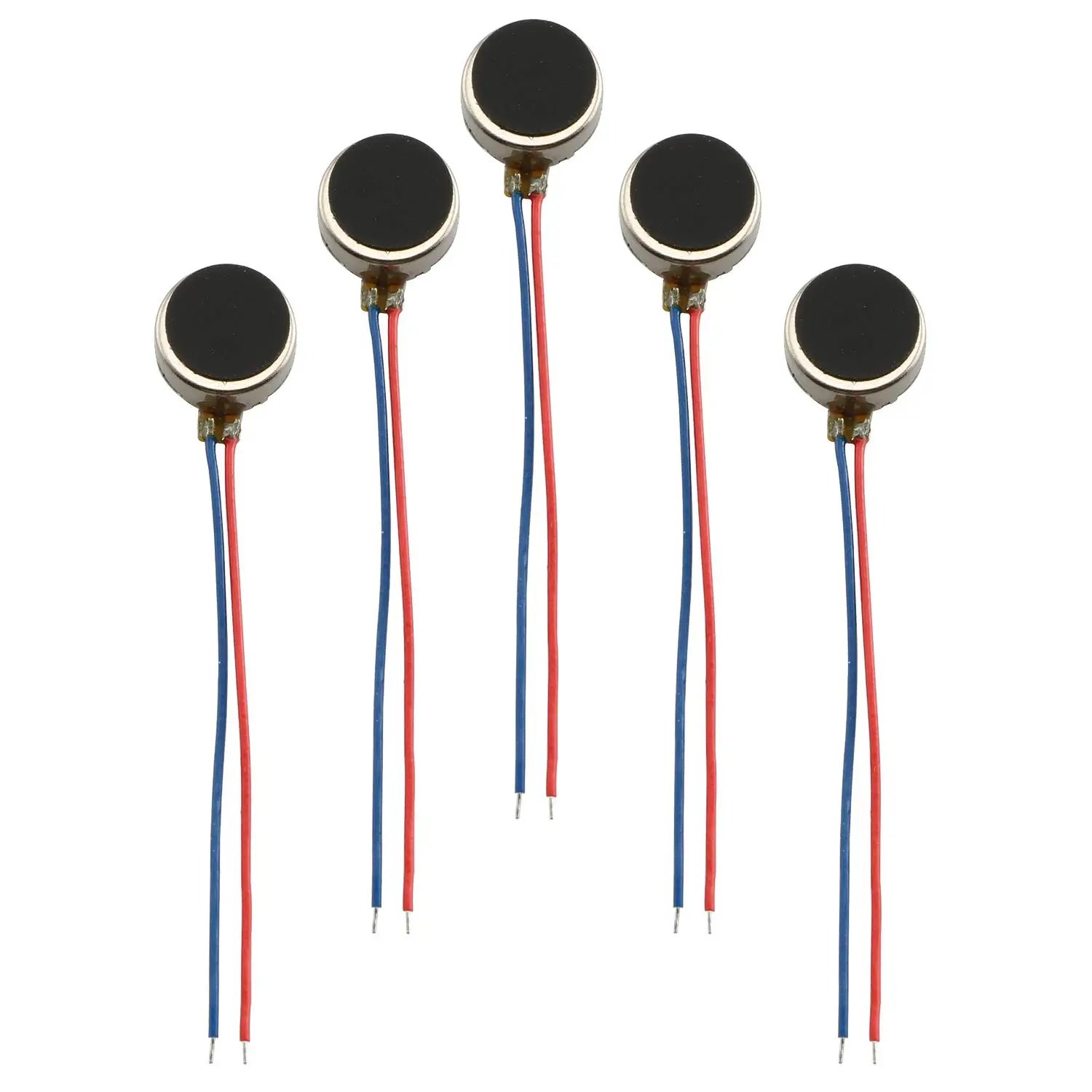

1027 10mm coin flat motor dc vibration motor for face of instrument (62392732941)

Share on (62392732941):


Price:

Quantity:


Product Overview

Description



Product Description


1027 coin vibration motor


Rated Voltage
3.0v DC
2.08The use of Voltage range
2.8~3.2V DC
Rotation Direction
CW/CWW
The use of temperature range
-10℃~60℃≤60%RH
Rated Current
80mA
Rated speed
12000 ± 2500 rpm/min
Stall Current
100mA Max
Starting Voltage
0.8V DC
Thickness
3.4± 0.2mm
Insulation Resistance
 10MΩ
Weight
About 1.2 g


1.Rotation direction (CW/CCW);       2.Counter-Weight size(R2.5*L2.4)

3.Lead wire length(2-170.0±2.0)        4.Lead wire material(UL3302-30#PE)

5.Rated Speed,Current,Torque and so on





Our Advantages




Product Uses

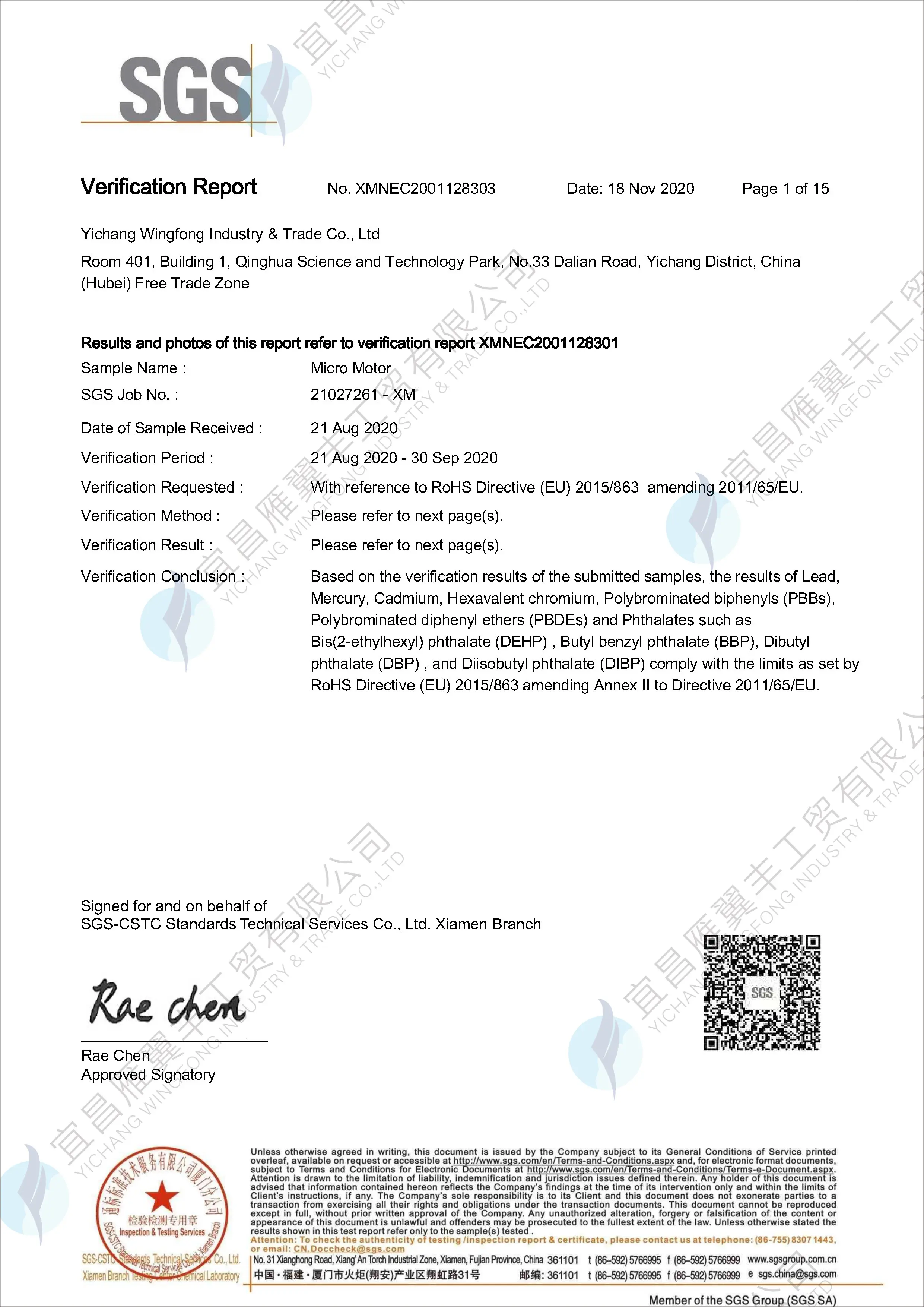

Certifications




Shipping & Packing





Shipping:

SF:3-5 working days

FedEx:3-7 working days

DHL:3-7 working days

UPS:5-10 working days

EMS:7-35 working days

We also supply customized


Packing: 100-200pcs/foam box.1000-2000pcs/carton



Company Profile


               Yichang Wingfong Industry & Trade Co.,Ltd
Our company was established in 2004, with 15 years experience specializing in the production of motor, main product is driving motor, vibration motor, iron core motor, double shaft motor, gear motor, etc., our company passed SGS and CE product quality certification, the products are mainly sold to Germany, the United States, Japan, South Korea, Italy, Russia, etc., because of good quality and professional service, received customer consistent high praise, we will return you with better products to consumers.


FAQ


Q: Are these motor's parameter from the above list can be modified ?

A: Yes, motor's parameter can be customized. We can modify the rotation diection, motor's working voltage,   lead wire length, lead wire matrial, rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.



Q: How to order?

A:Please send us your purchase order by Email or call me, then make quotation according to your order, after confirm, we can make you Performa invoice under your request.



Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?

A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for ? And what does the working condition look like (duty cycles and load status)?  And how long is the motor's expected lifetime ? etc. Then we can a make full assessment according to that.



Q:Is it possible for you to develop new motors if we provide the tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.



Q:Can I get some samples first? How soon can I get the samples?

A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from different places). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
