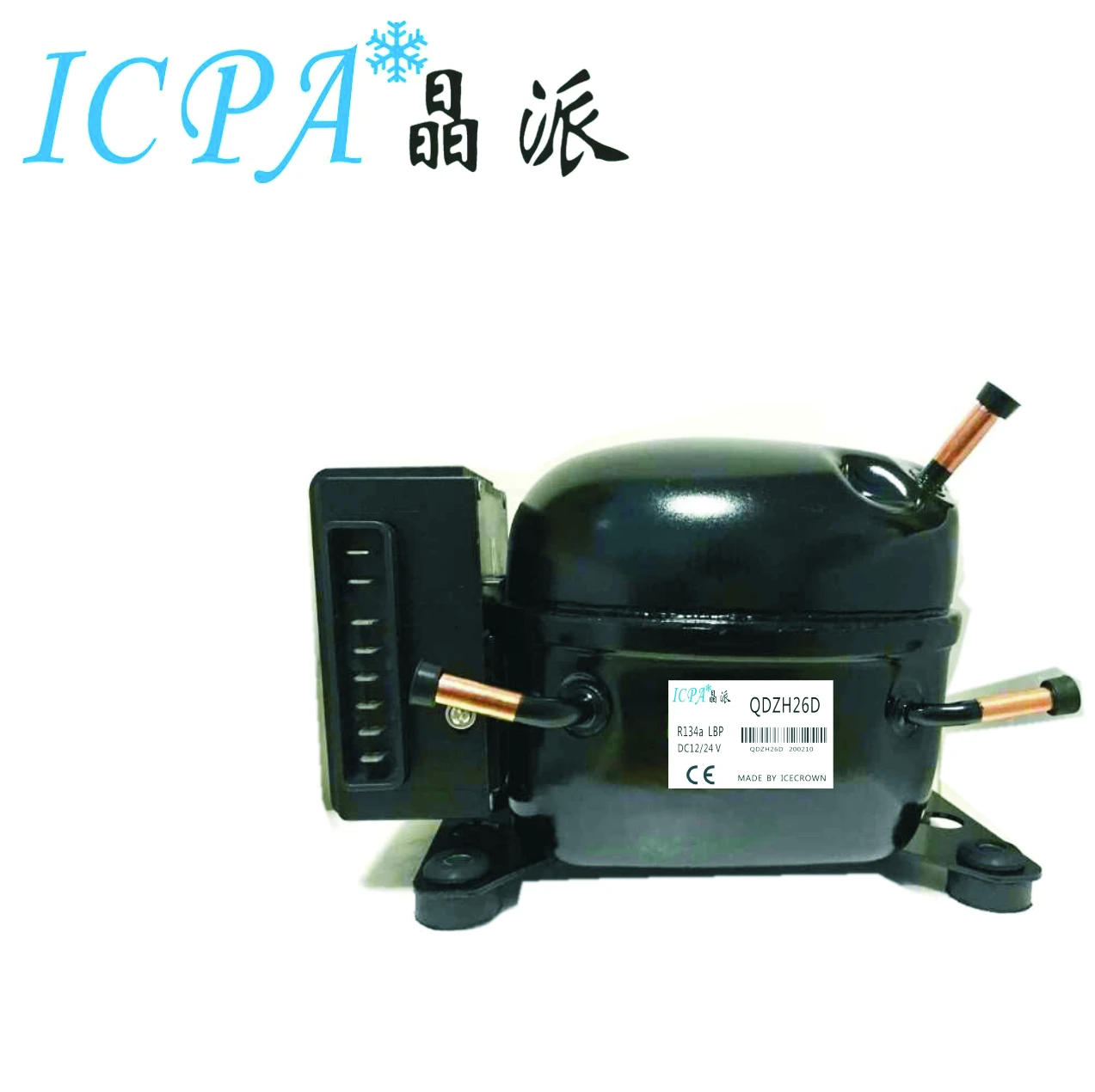

DC12 24V solar DC refrigerator Fridge freezer compressor QDZH26D

Product Overview

Description

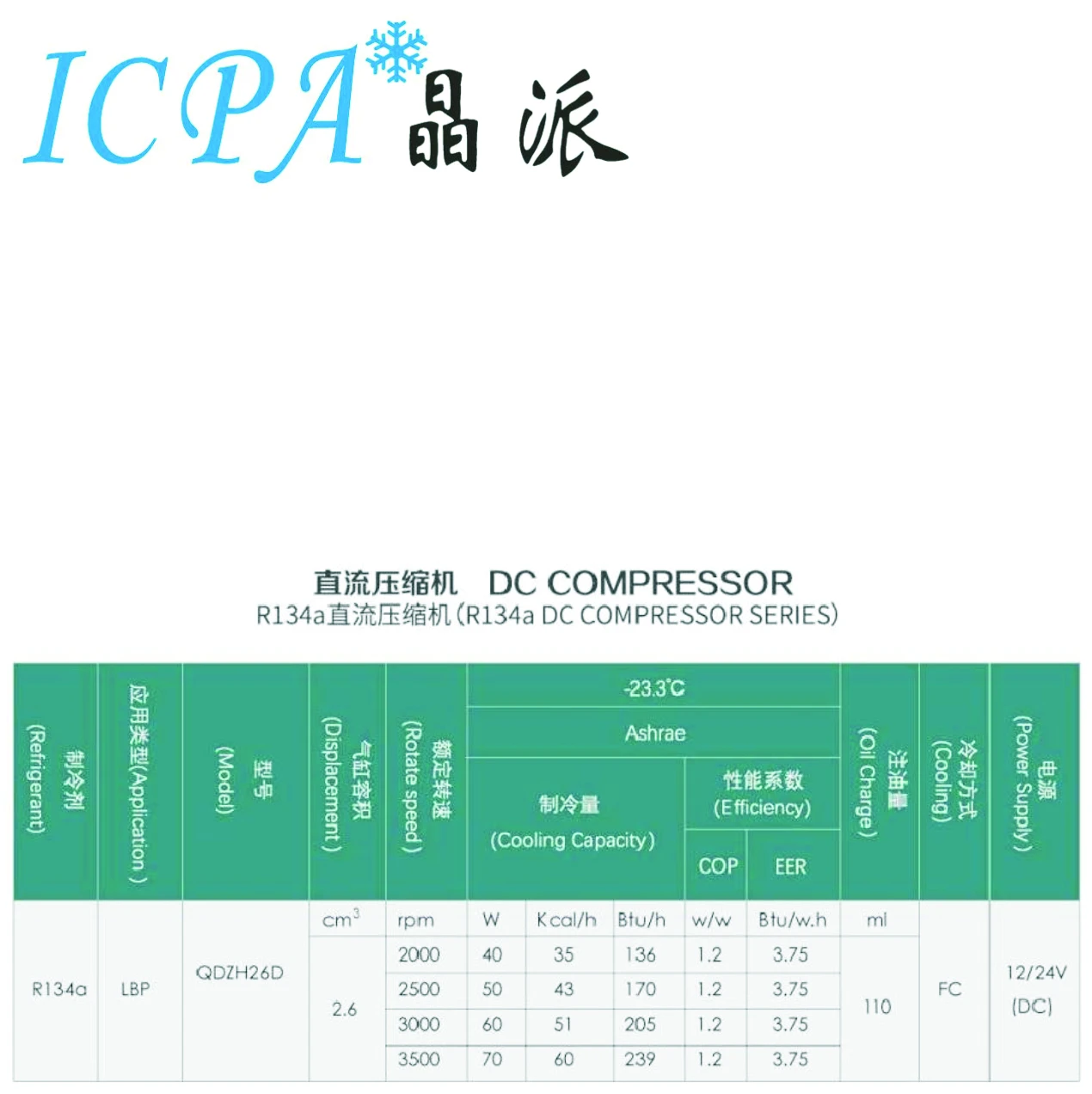

Compressor: QDZH26D;

Displacement cm3 :2.6

Application: LBP

Rotation rpm:       200    2500  3000  3500

Capacity W:          40       50      60      70

Input Power W :    33       41      50      58

Operating Current A:  12V4A

COP W/W:                    1.2

Operating Voltage V: DC10.7~31.5V

Cooling :Static or Fan cooling

Lubricant: Polyester

Weight kg: 3.5

Weight of Controller kg: 0.5

Motor Type: BLDCM

Refrigerant: R134a

Throttling Device :Capillary

Power Supply V :DC12-24

Test conditions:Evaporating Temp -23.3℃

Suction. Temp.:32.2℃

Condensing Temp.: 54.4 ℃

Sub-cooling Temp.: 32.2℃

Ambient Temp.: 32.2 ℃

Test Voltage :12VDC
