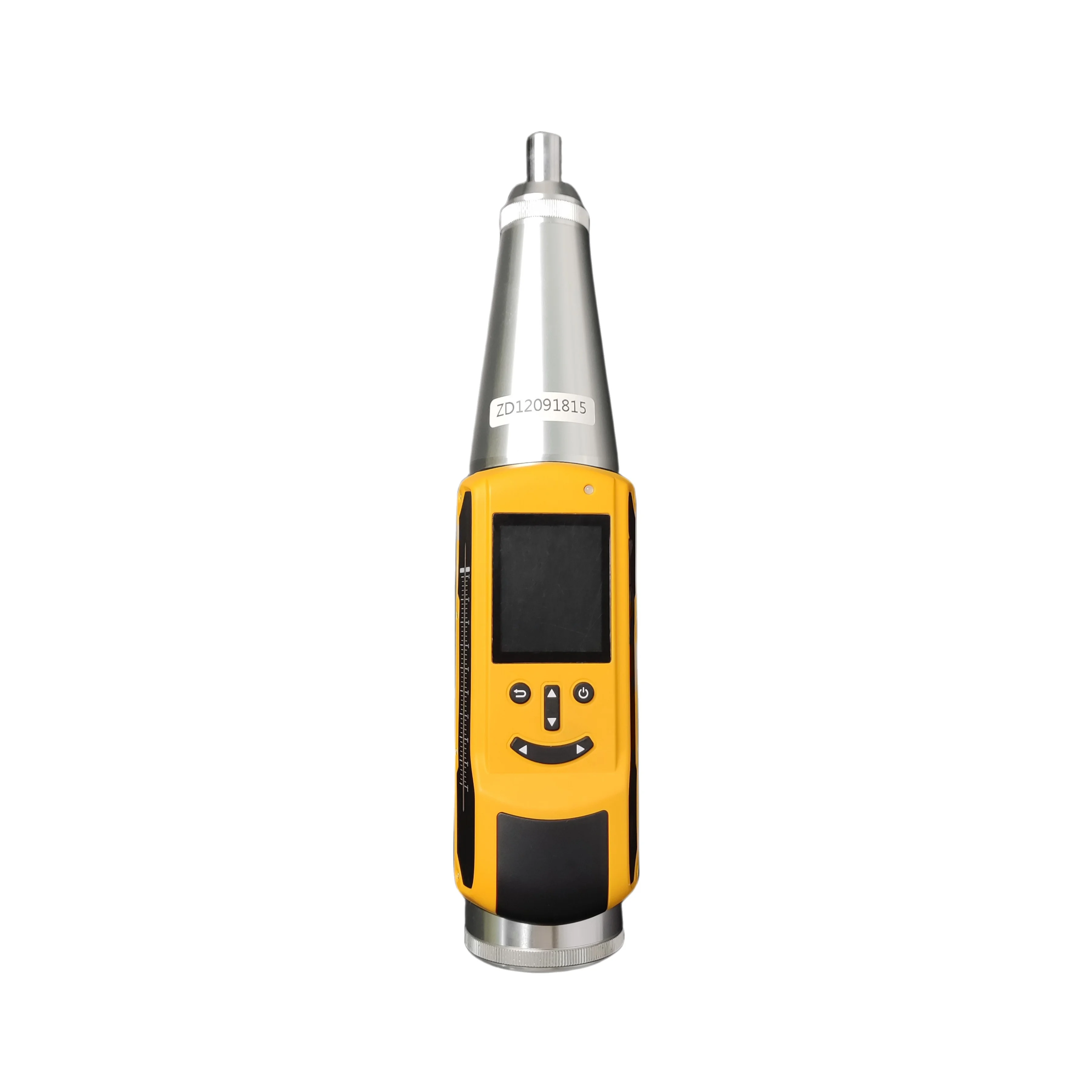

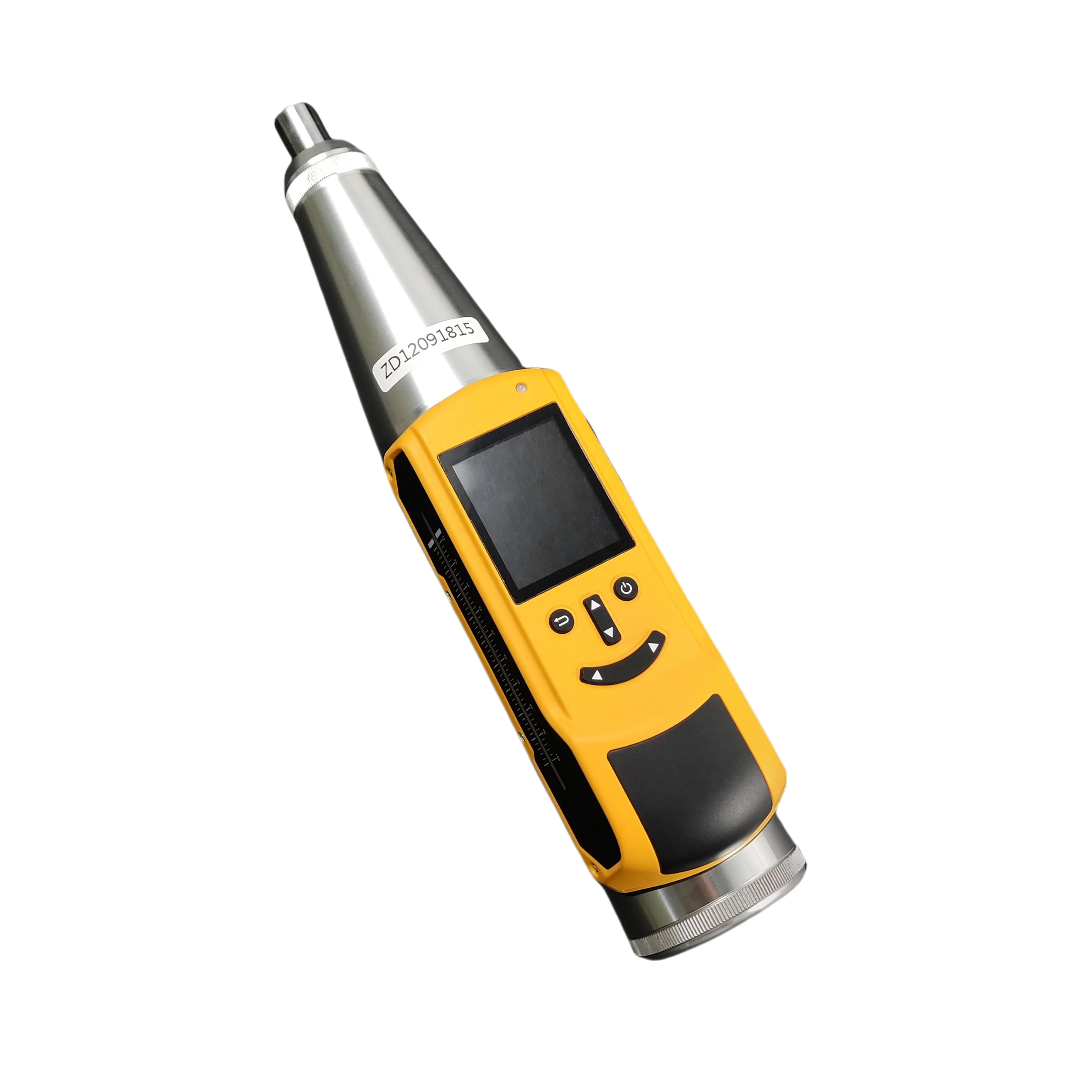

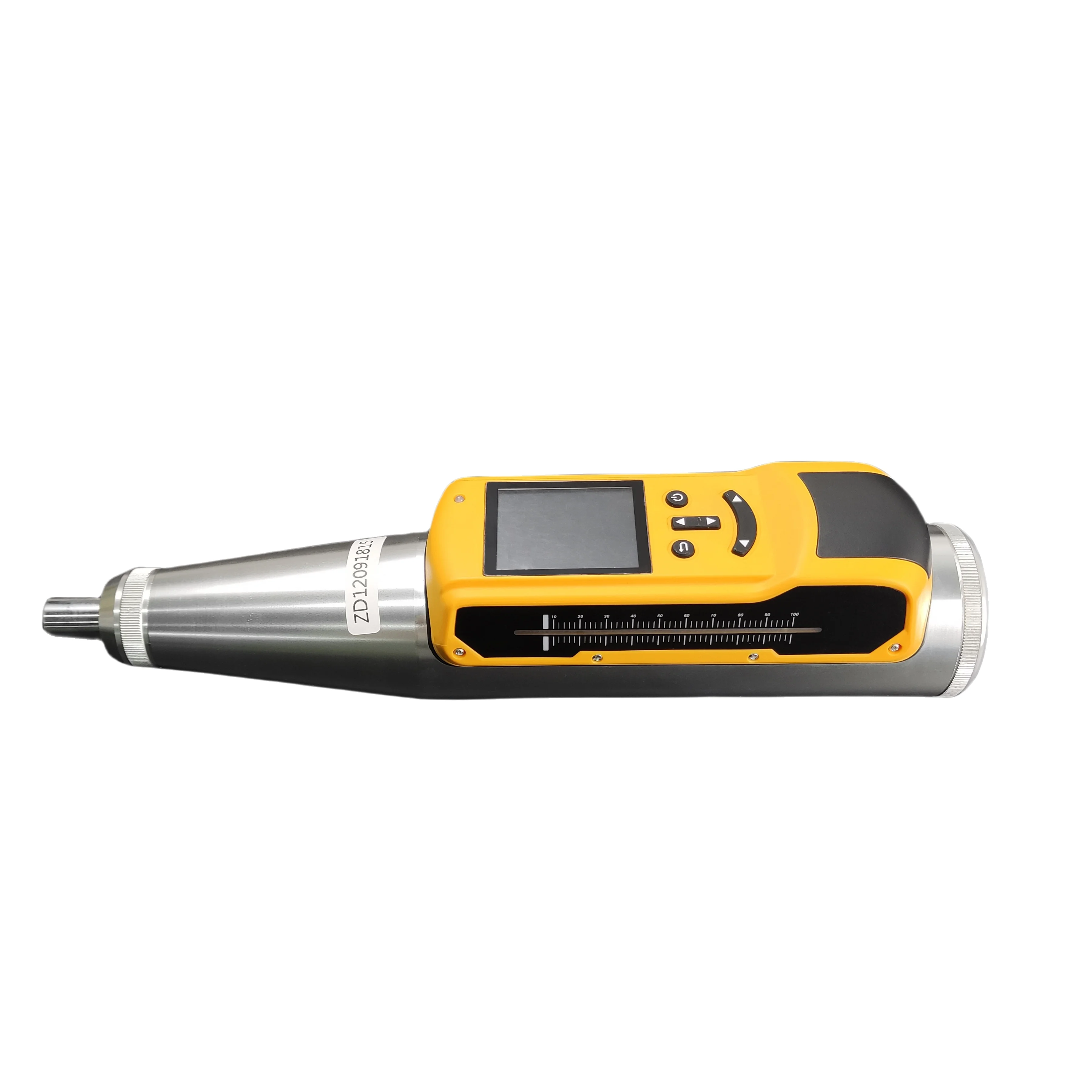

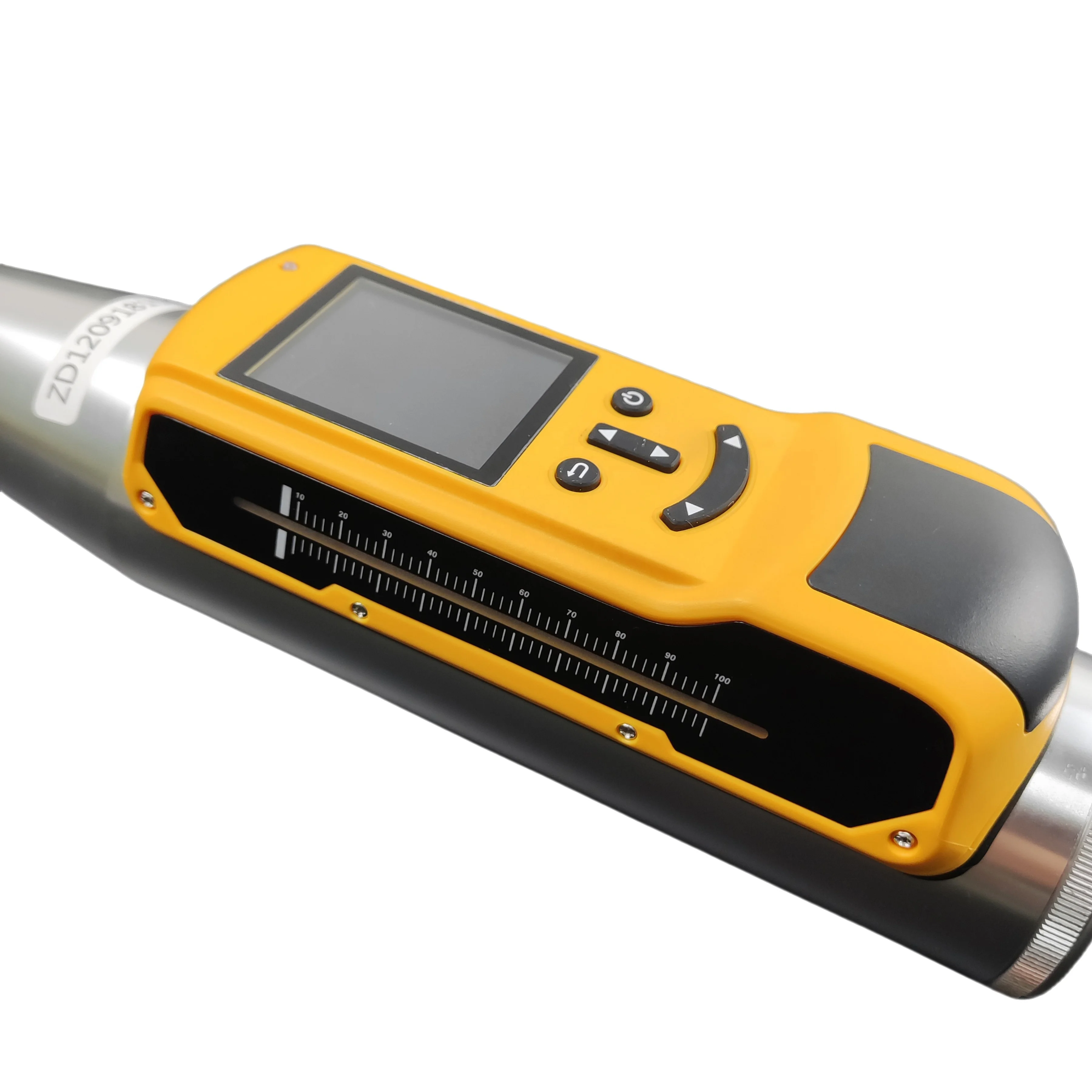

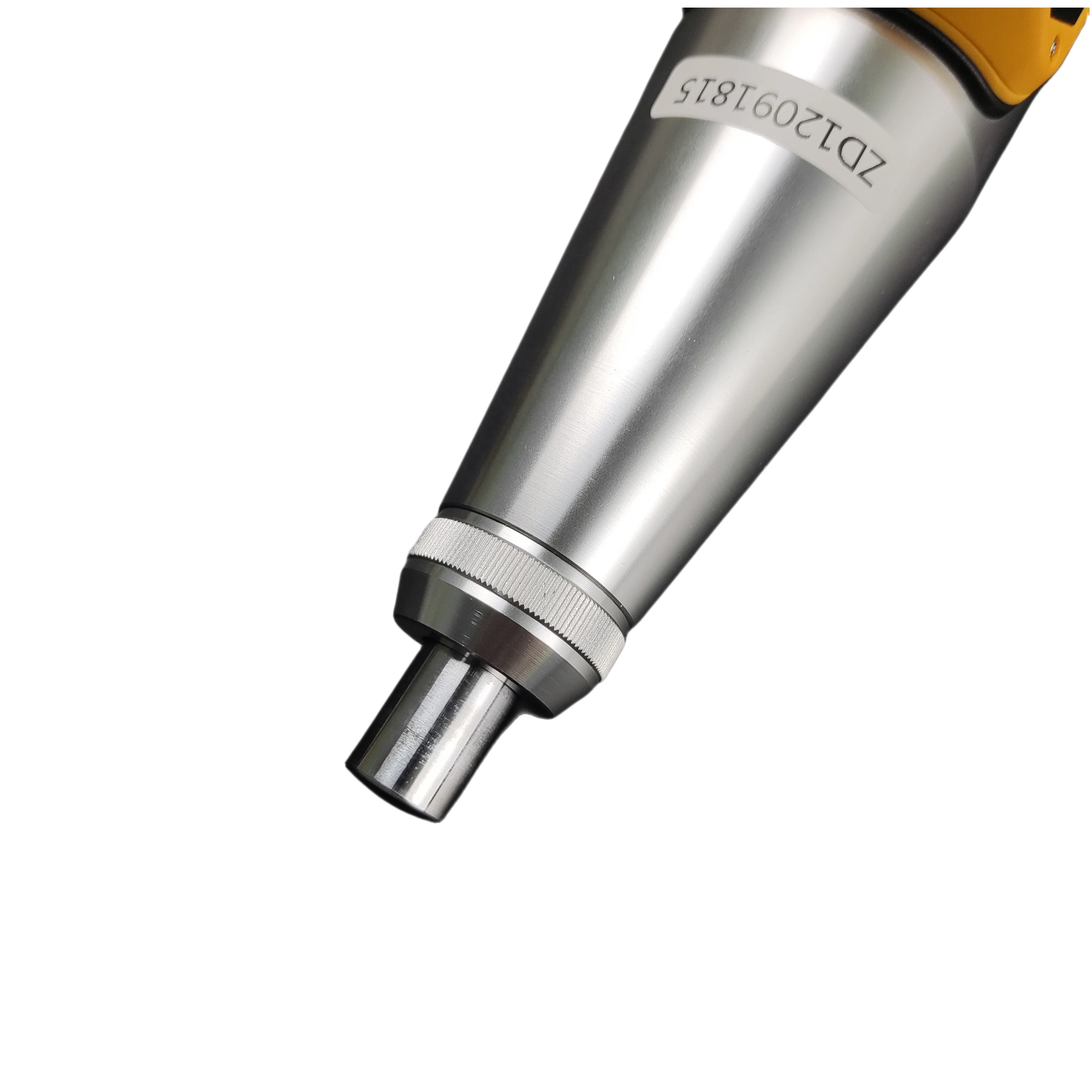

SAM-DRH Digital Rebound Hammer


Product Description




Self-detachable digital rebound hammer, the digital part adopts modular design and non-contact grating photocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and has voice broadcast, Bluetooth printing, wireless WIFI data upload ; Later data analysis and processing, automatic data analysis and test reports according to specifications. It improves the work efficiency of rebound testing, reduces the labor intensity of inspectors, reflects the science, advancement, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence.


Specification


Digital module
Display screen
2.0 inch color screen（220*176 Pixel）
Language
Chinese and English
Output method
Digital display, voice report, Bluetooth printing, WIFI upload
Storage quantity
2000 builds, 640,000 data
Automatic shut-down
No operation automatic shutdown
Power supply
3.7V lithium battery 1050 mAh (disassemble and replace at will), support dual battery and dual charge
Operation method
Silicone buttons
Communication Interface
USB interface, Bluetooth interface, WIFI interface
Data processing
Automatic data analysis and export test report
Collection method
Automatically display and record the rebound value
Volume（mm）
150*62*39
Weight（kg）
0.1kg（With battery）
Rebound hammer
Nominal kinetic energy
2.207J
Impact tension spring stiffness
7.85N/s
Indication consistency
≤±1 The difference between the pointer reading of the mechanical hammer and the screen reading of the instrument
Steel anvil rate fixed value
80±2
Volume（mm）
Ø60×280
Weight（kg）
1.1Kg(With digital module)
