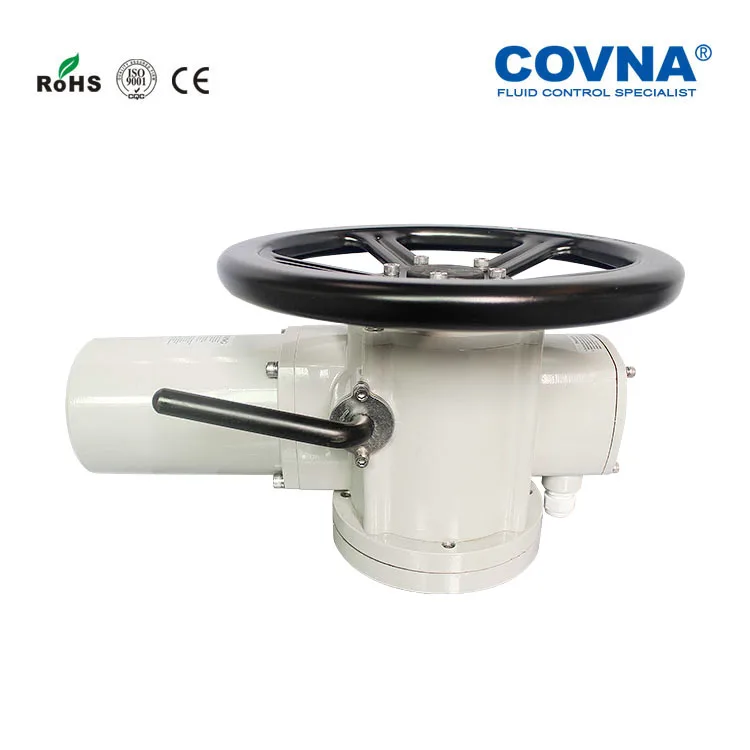

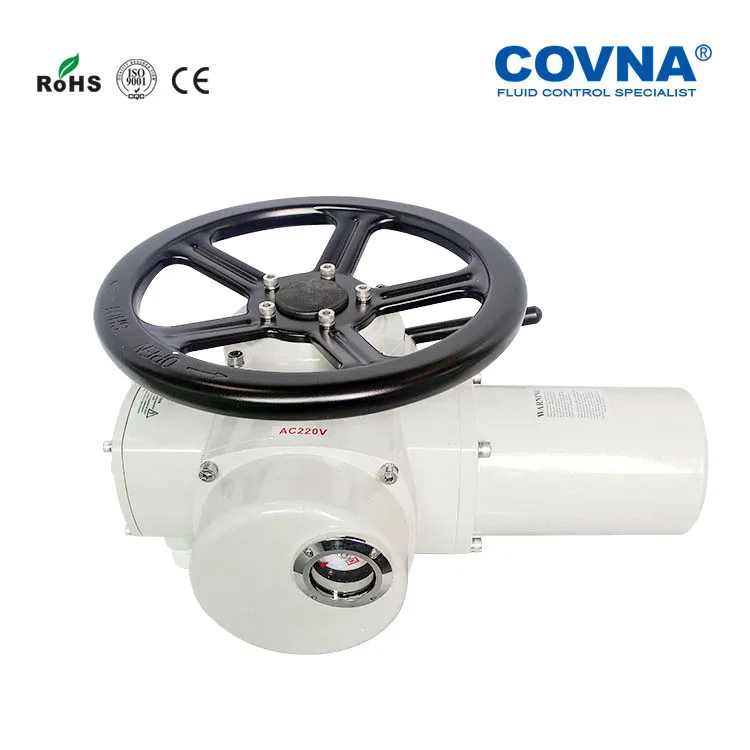

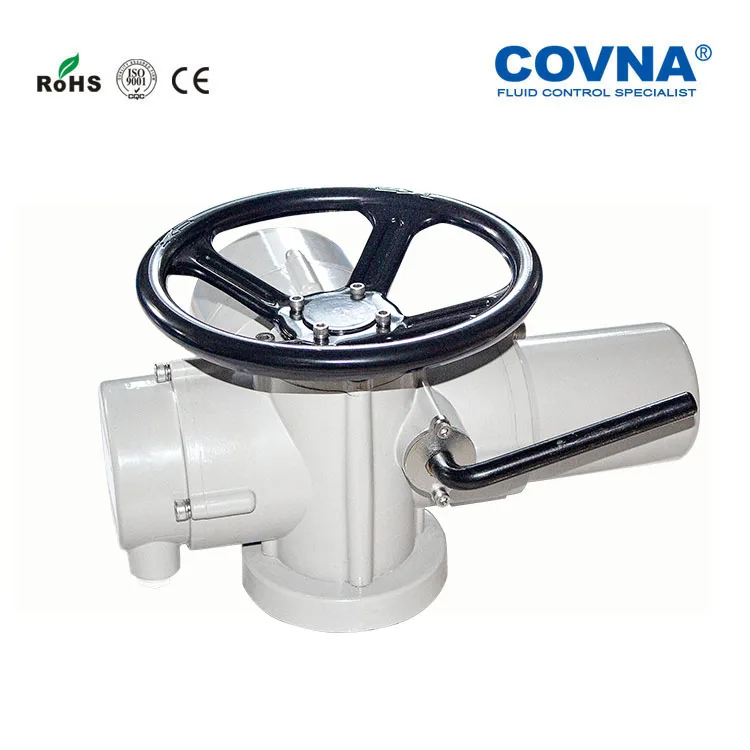

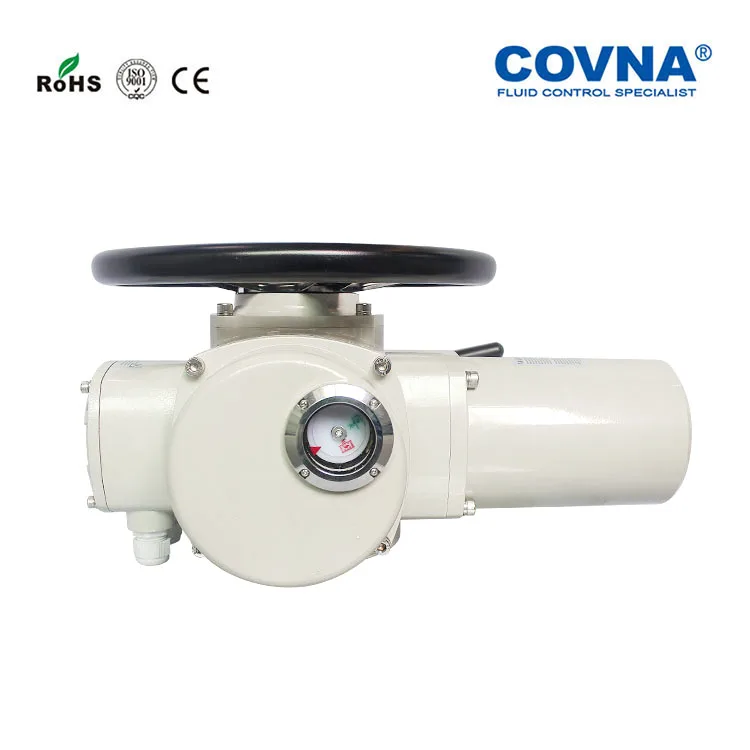

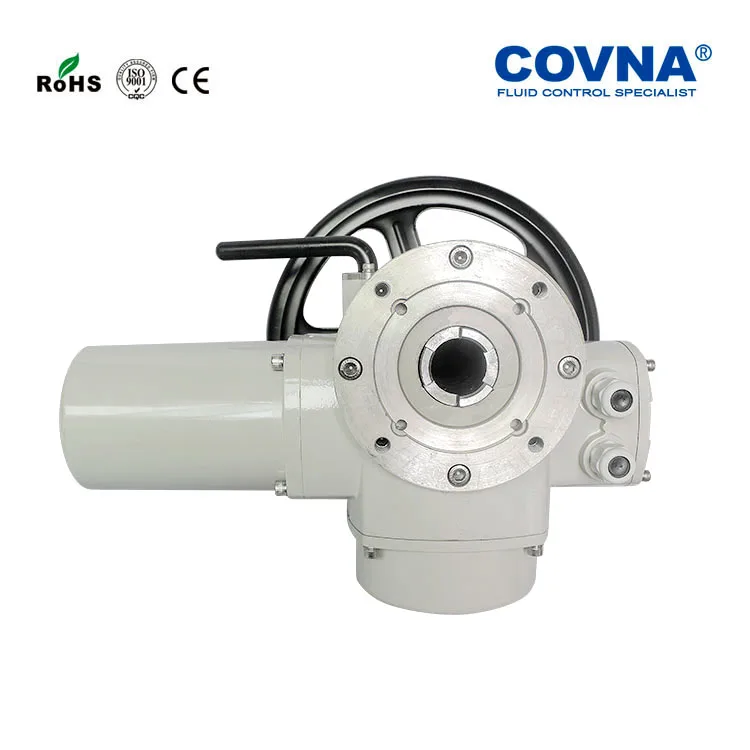

Привод моторизованного клапана AC380V, интеллектуальный 4 20ma 450N, многооборотный Электрический привод
- Category: Valves >>>
- Supplier: COVNA Industry Automation Co. Ltd.
Share on (62393021346):
Product Overview
Description
Product Description
Features Of COVNA Multi-Turn Electric Actuator:
●High torque range up to 10,000Nm
●Wide ambient temperature from -40℃ to 100℃
●Suitable for high humidity environment
●High protection class and high corrosion protection
●Divided by control method: ordinary type, intelligent switch type, intelligent adjustment type(Profibus Fieldbus, Modbus
Fieldbus, Hart Fieldbus, FF Fieldbus, Device Net Fieldbus)
●Available in 3-phase AC,1-phase AC and DC motors
●Handwheel for manual operation
●Suitable for gate valve, globe valve, ball valve and butterfly valve to allow your automation easier
●Suitable for high humidity environment
●High protection class and high corrosion protection
●Divided by control method: ordinary type, intelligent switch type, intelligent adjustment type(Profibus Fieldbus, Modbus
Fieldbus, Hart Fieldbus, FF Fieldbus, Device Net Fieldbus)
●Available in 3-phase AC,1-phase AC and DC motors
●Handwheel for manual operation
●Suitable for gate valve, globe valve, ball valve and butterfly valve to allow your automation easier
Item | AC380V Motorized Valve Actuator Intelligent 4-20ma 450N Multi Turn Electric Actuator | ||||
Applicable Standards | GB, DIN, ANSI, ASME, JIS, API | ||||
Size Range | DN15 to DN200 | ||||
Operating Pressure | 10bar, 16bar, 20bar, 40bar, 64bar, Class 150, Class 300 | ||||
Temperature Of Media Normal Type | -22℉ to 356℉ | ||||
High-Temperature Type | -22℉ to 842℉ | ||||
End Connection | Flange | ||||
Suitable Media | Water, Air, Oil, Gas, Steam, Pulp, etc. | ||||
Voltage | DC-12V, 24VAC-24V, 110V, 220V, 380V | ||||
Actuator Type | ON OFF Type, Modulating Type or Intelligent Type | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||

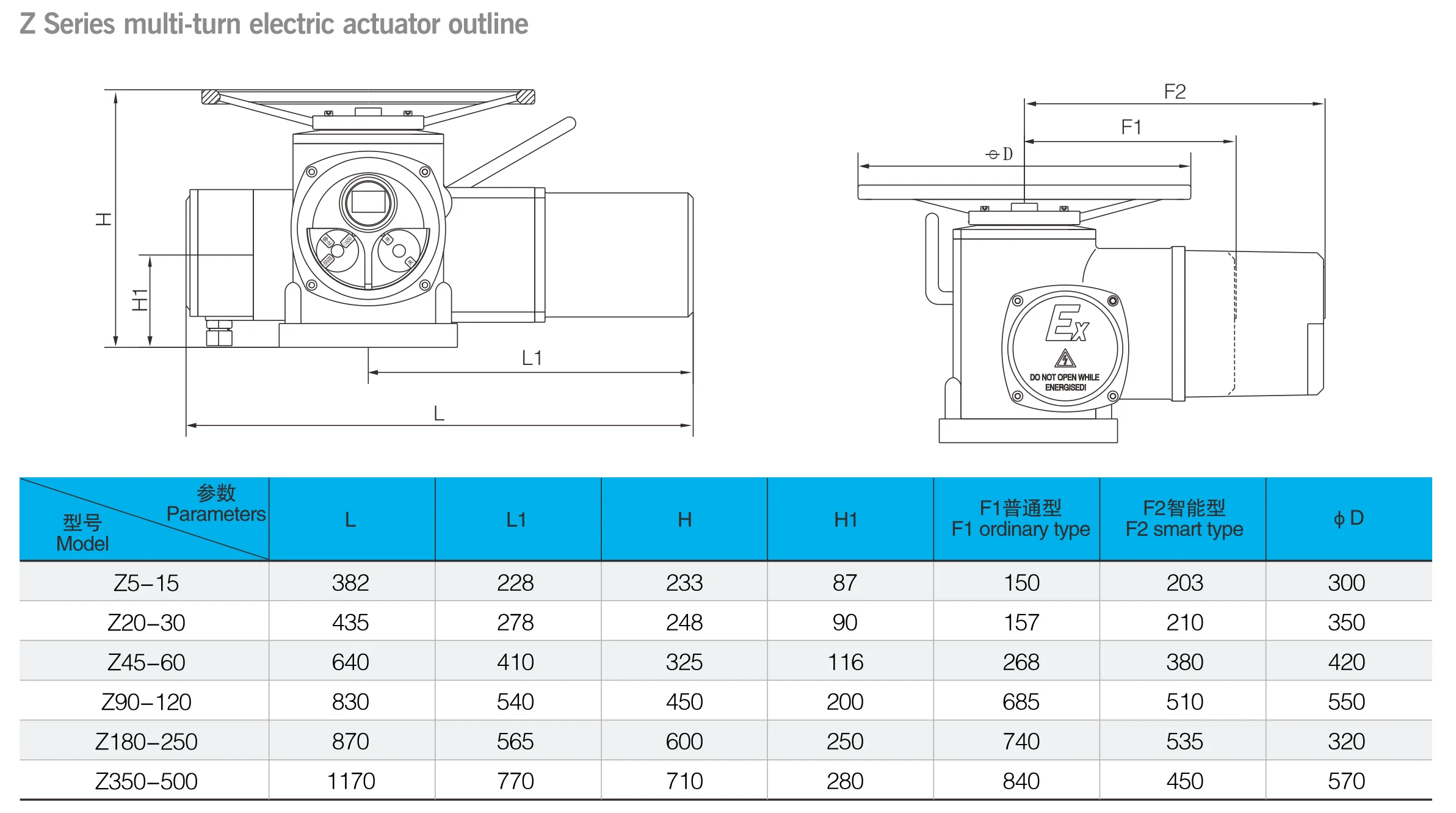

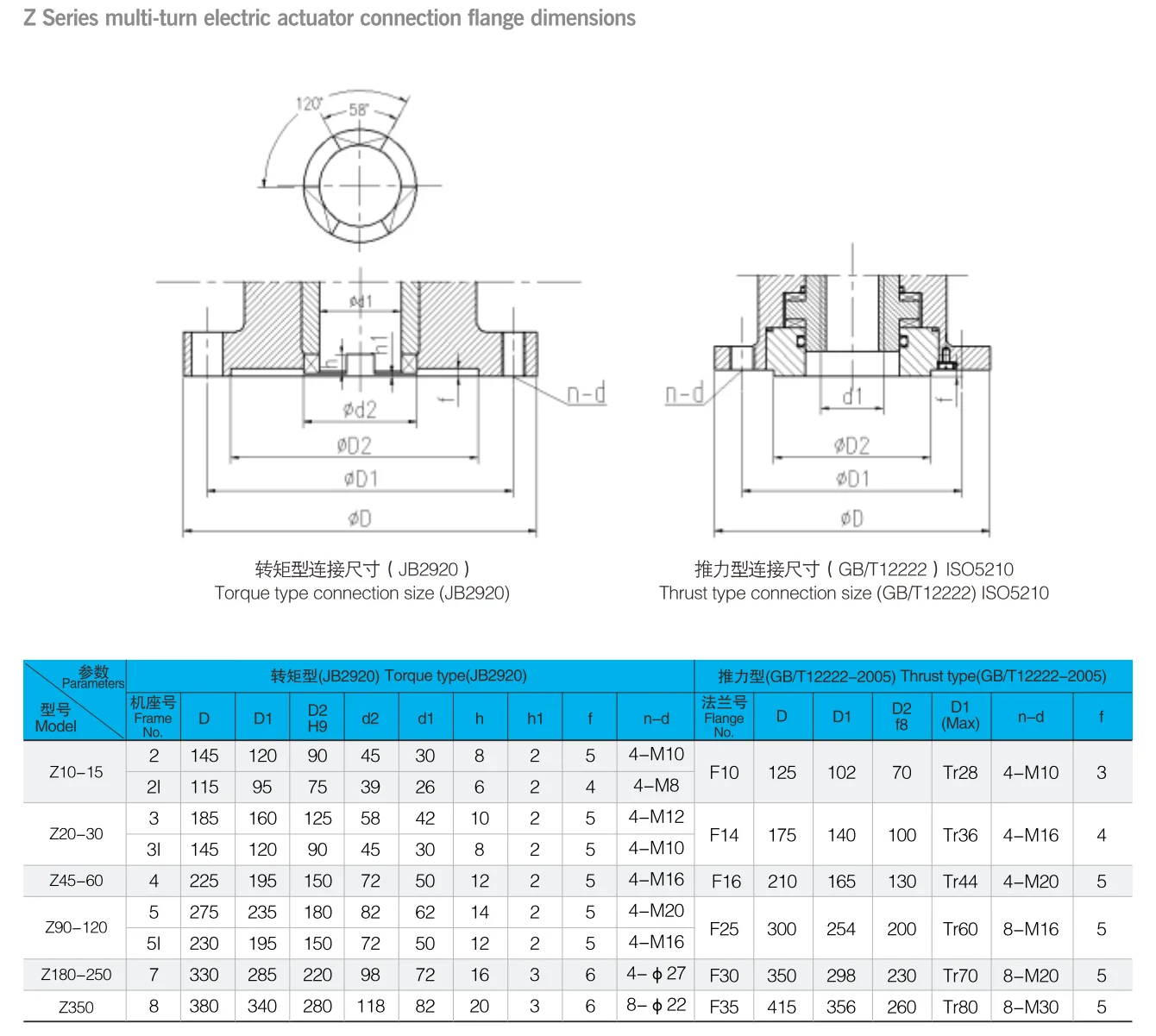

Dimension:

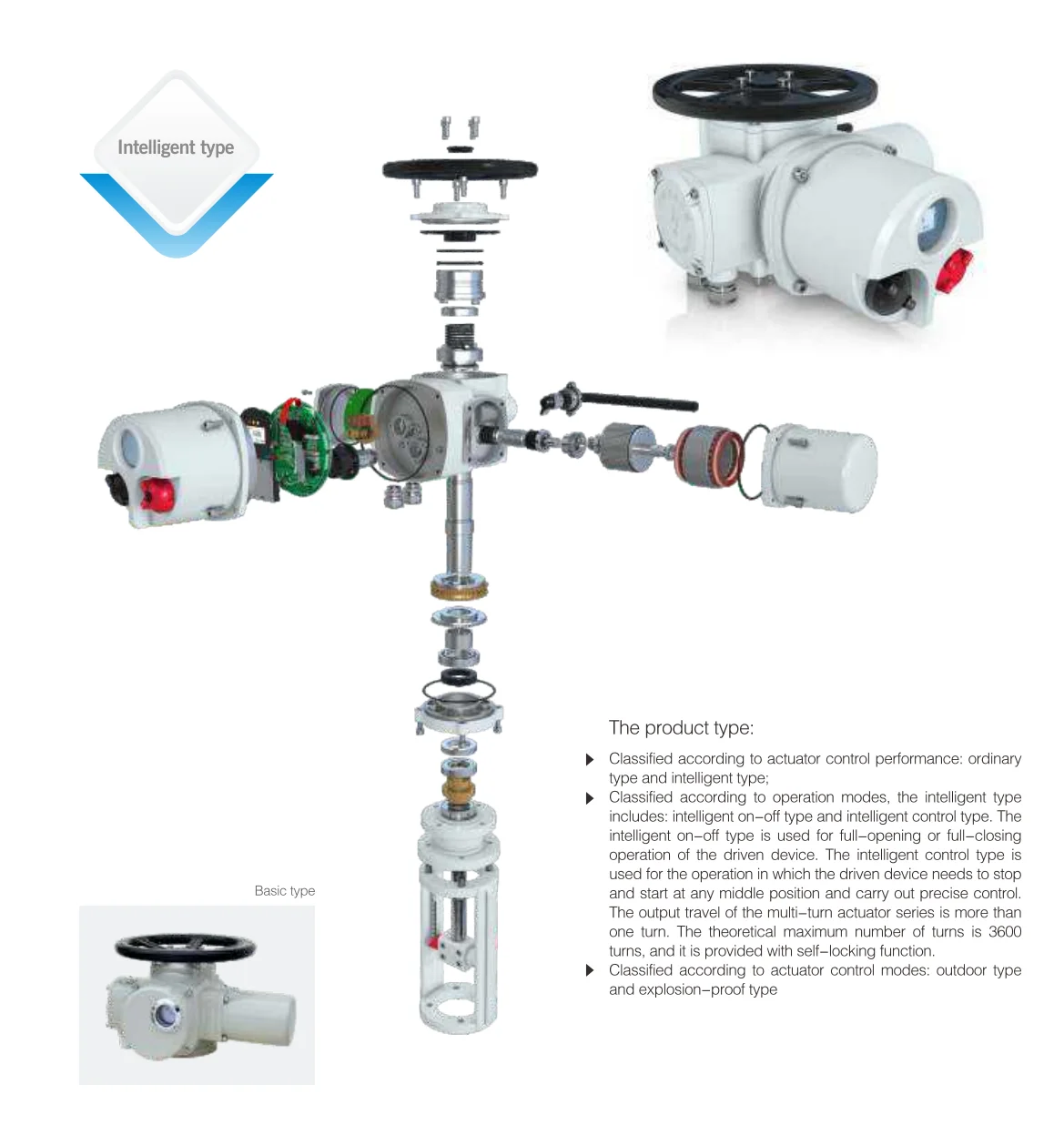

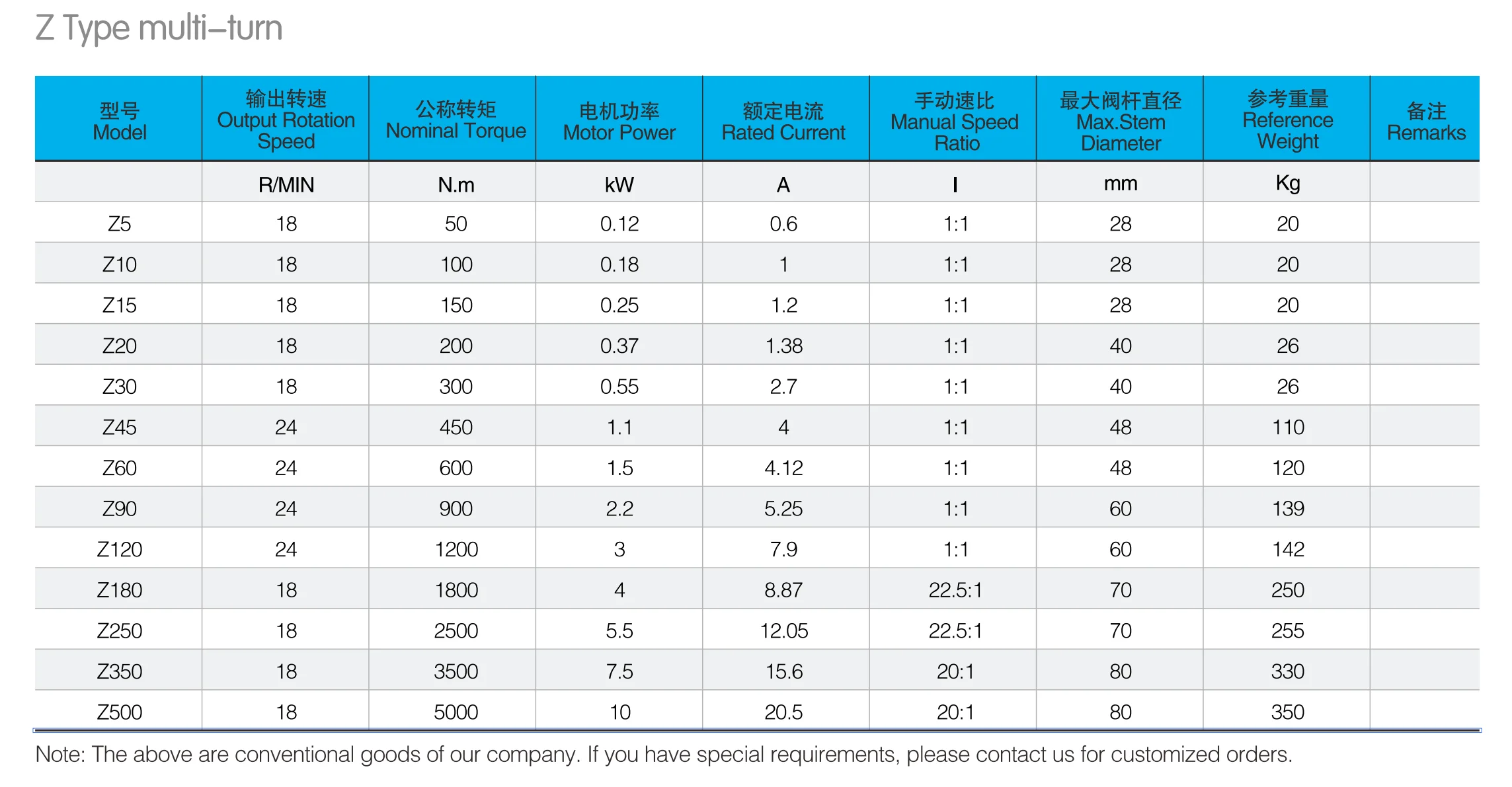

Electric Actuator
Technical Parameter of Valve Body
Buyer Feedback
Company Profile
Company strengths:
1.COVNA-Specialized Manufacturer of High Quality Actuated Valve for 22＋ Years. 2.German imported manufacturing facilities, 100%
Q.C passed before shipping, quality assured.
3.Extensive flow control project experience and various product solutions can beoffered.
4.OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard（Offer various
international standard, ANSI, JIS, DIN, etc.）
5.German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
6.Inquiry will be replied within 8 hours.
7.Custom complaints handed by one stop professional service.
8.ISO 9001certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
9.Industrial standard 1 year (12 months) warranty.
10.On time delivery, comprehensive warranty service, consultation to after-sales service in place.
Q.C passed before shipping, quality assured.
3.Extensive flow control project experience and various product solutions can beoffered.
4.OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard（Offer various
international standard, ANSI, JIS, DIN, etc.）
5.German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
6.Inquiry will be replied within 8 hours.
7.Custom complaints handed by one stop professional service.
8.ISO 9001certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
9.Industrial standard 1 year (12 months) warranty.
10.On time delivery, comprehensive warranty service, consultation to after-sales service in place.

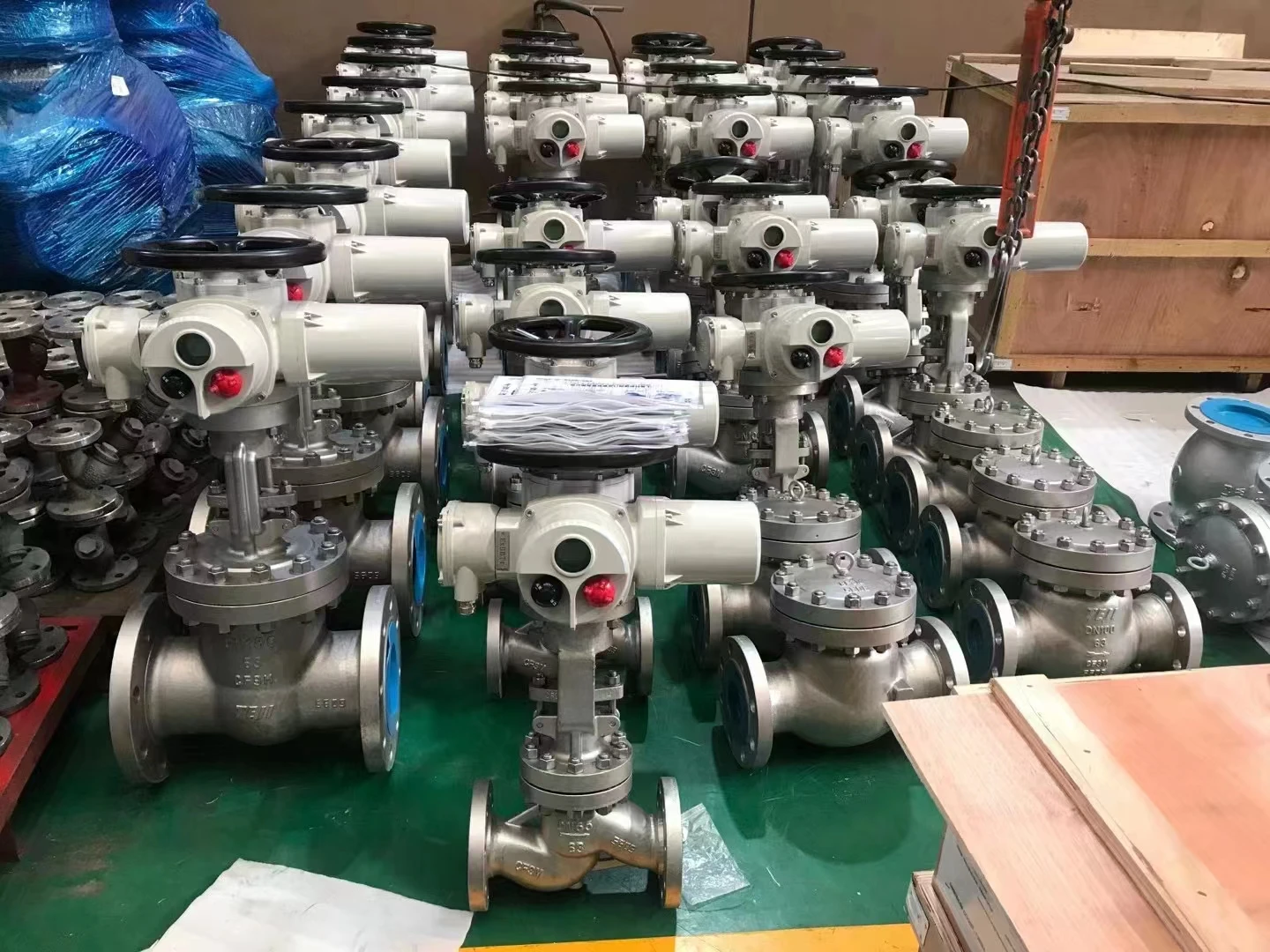

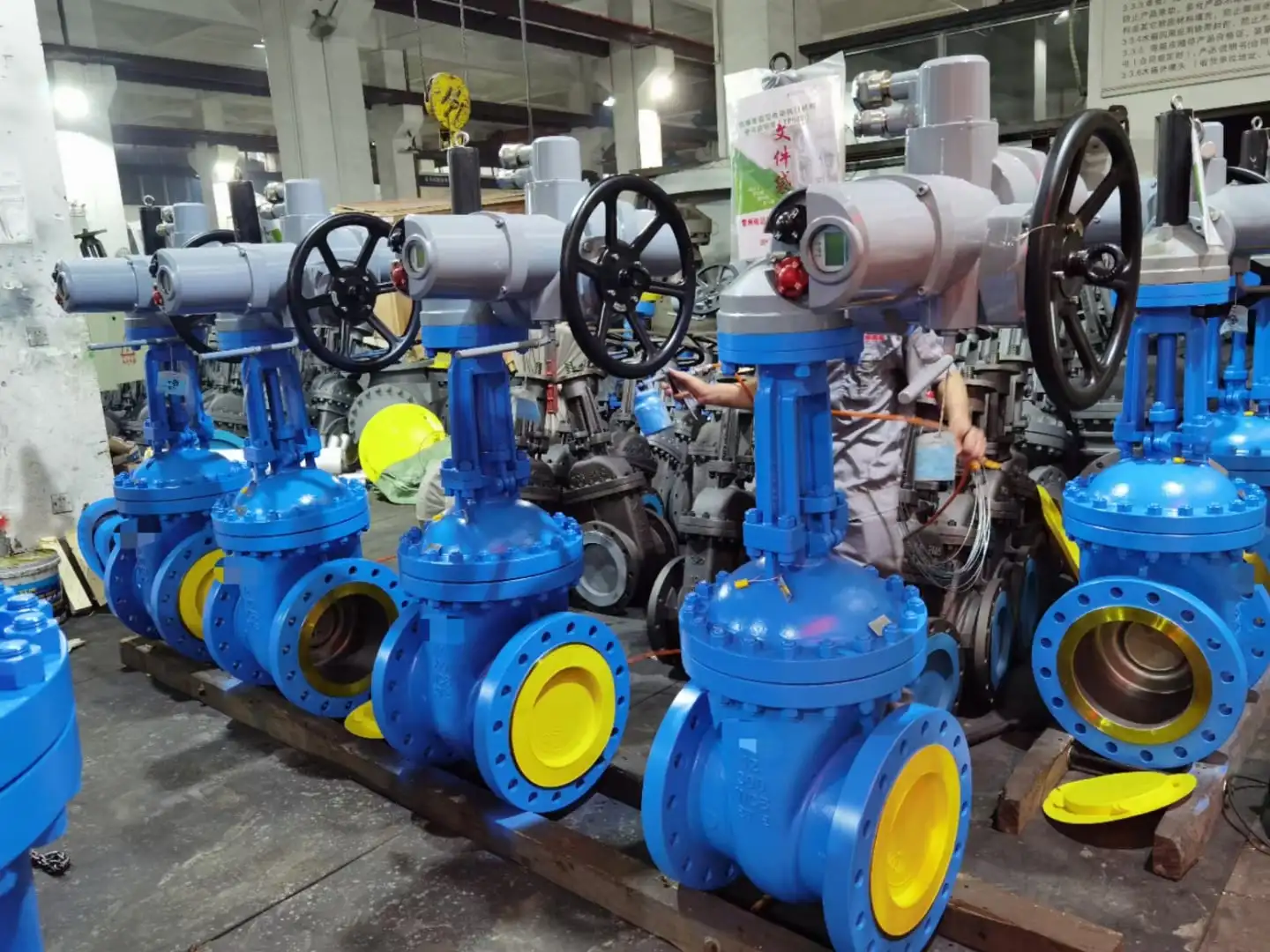

Factory Strength:

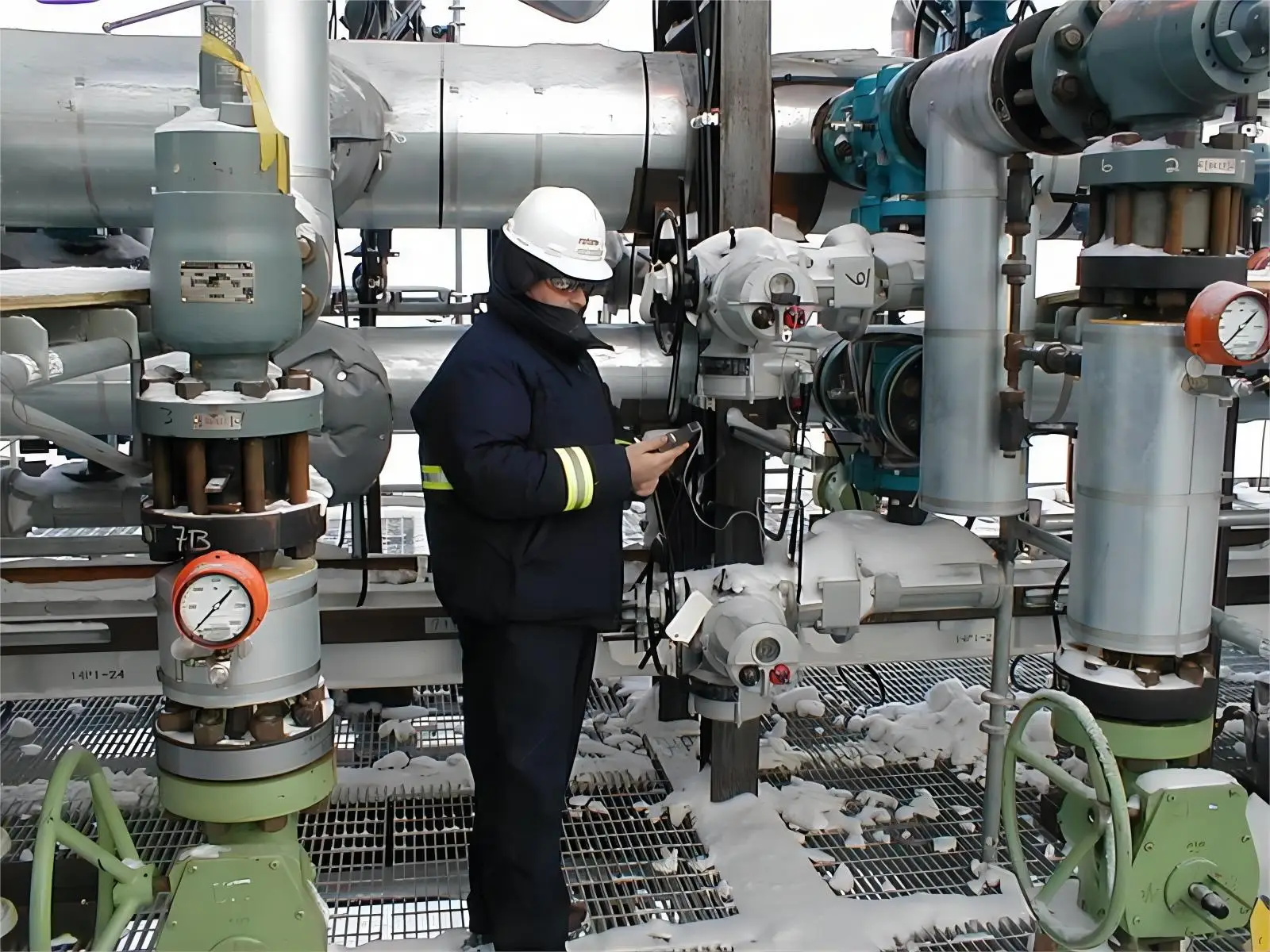

Exhibition&Finished Project

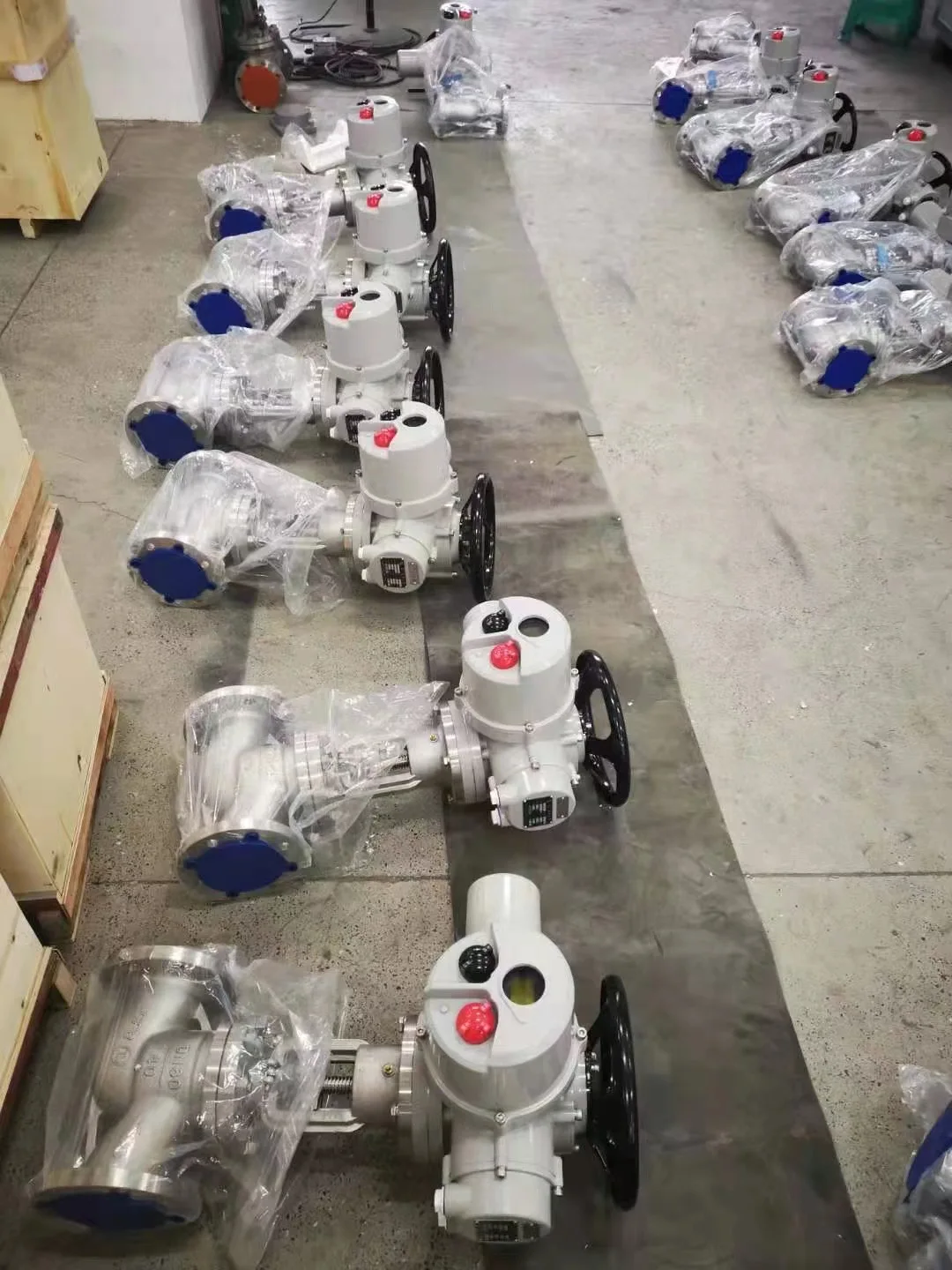

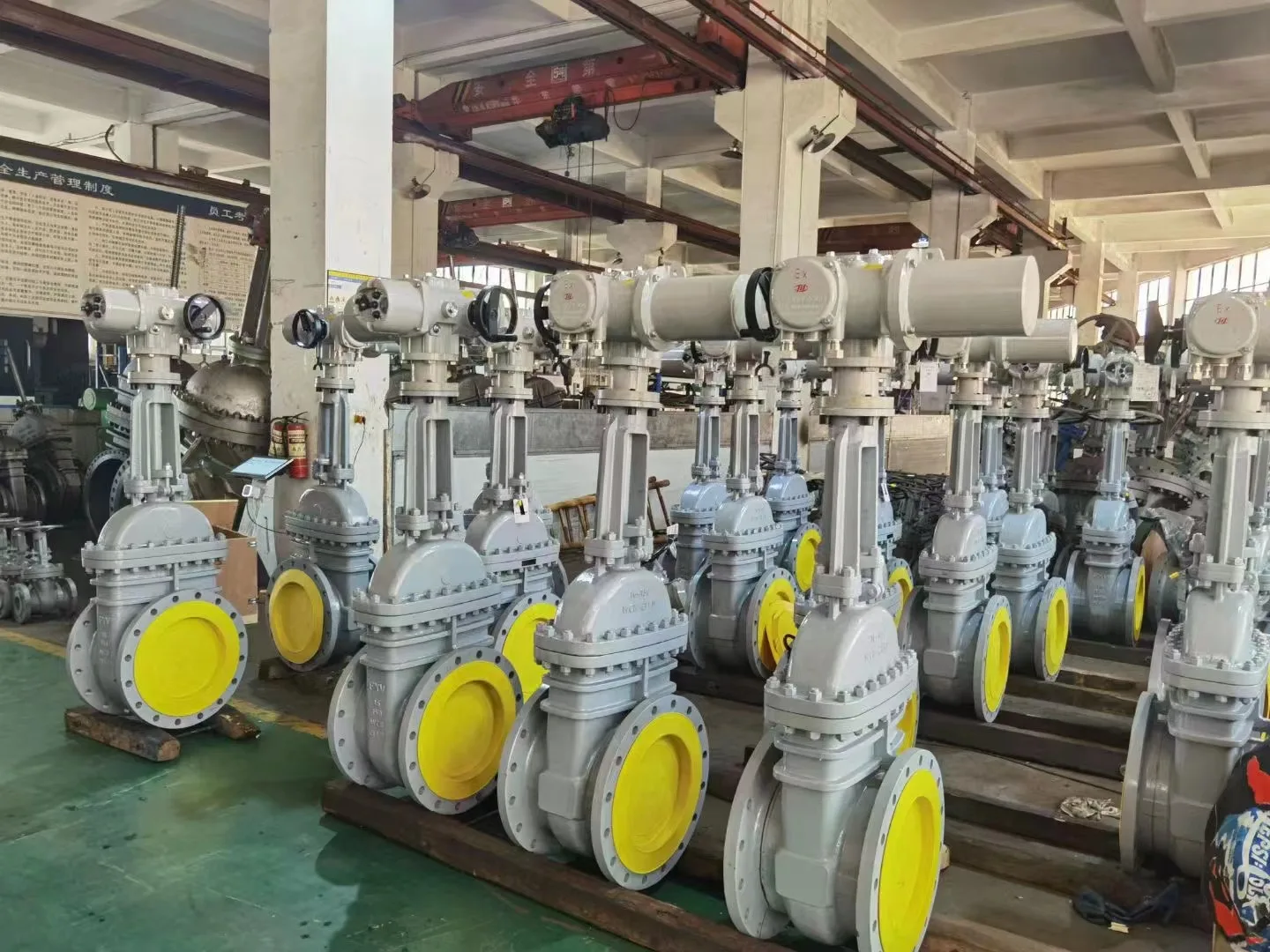

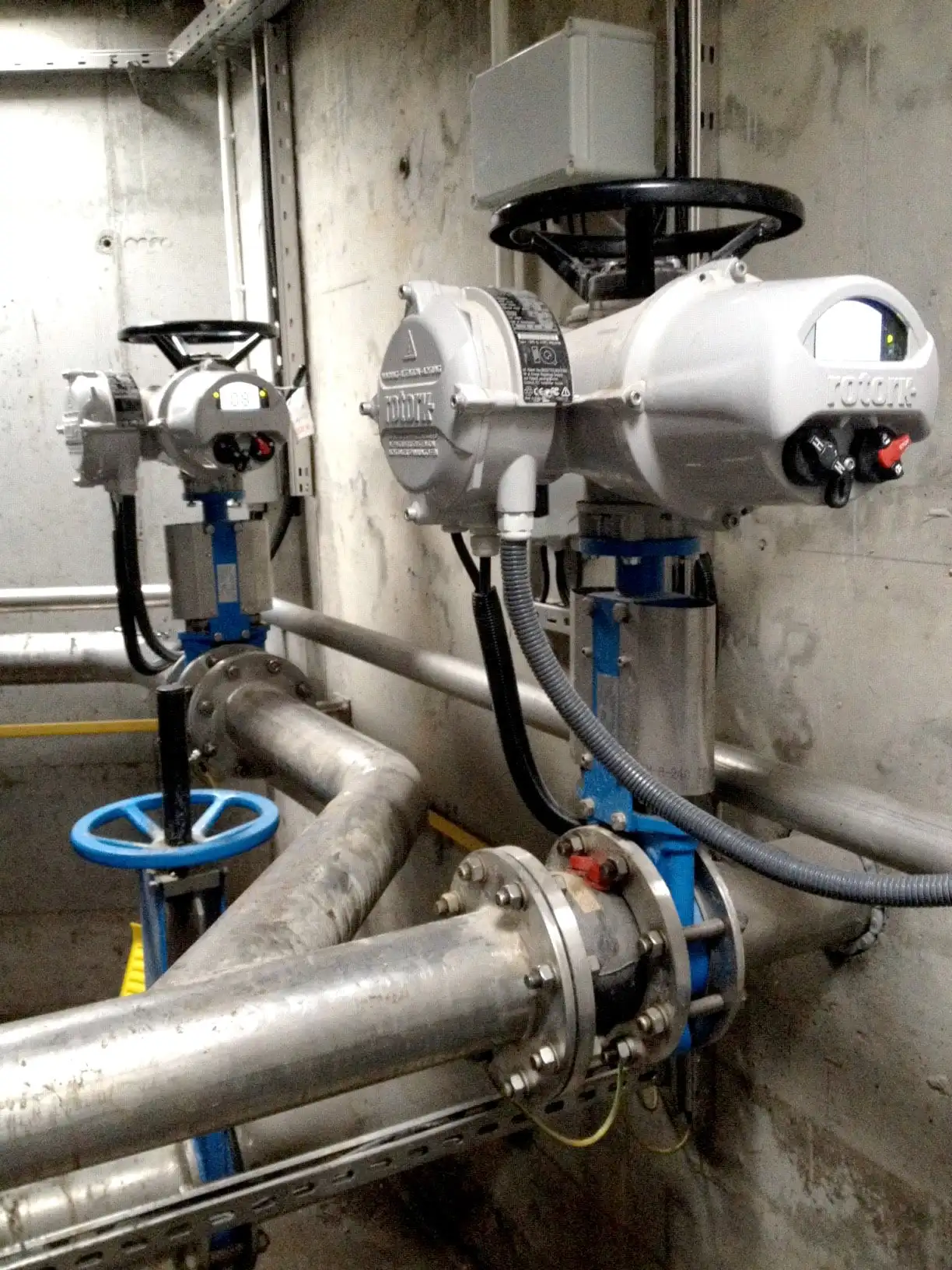

Project of Motorized Valve
Project of Pneumatic Actuated Valve
Project of Solenoid Valve

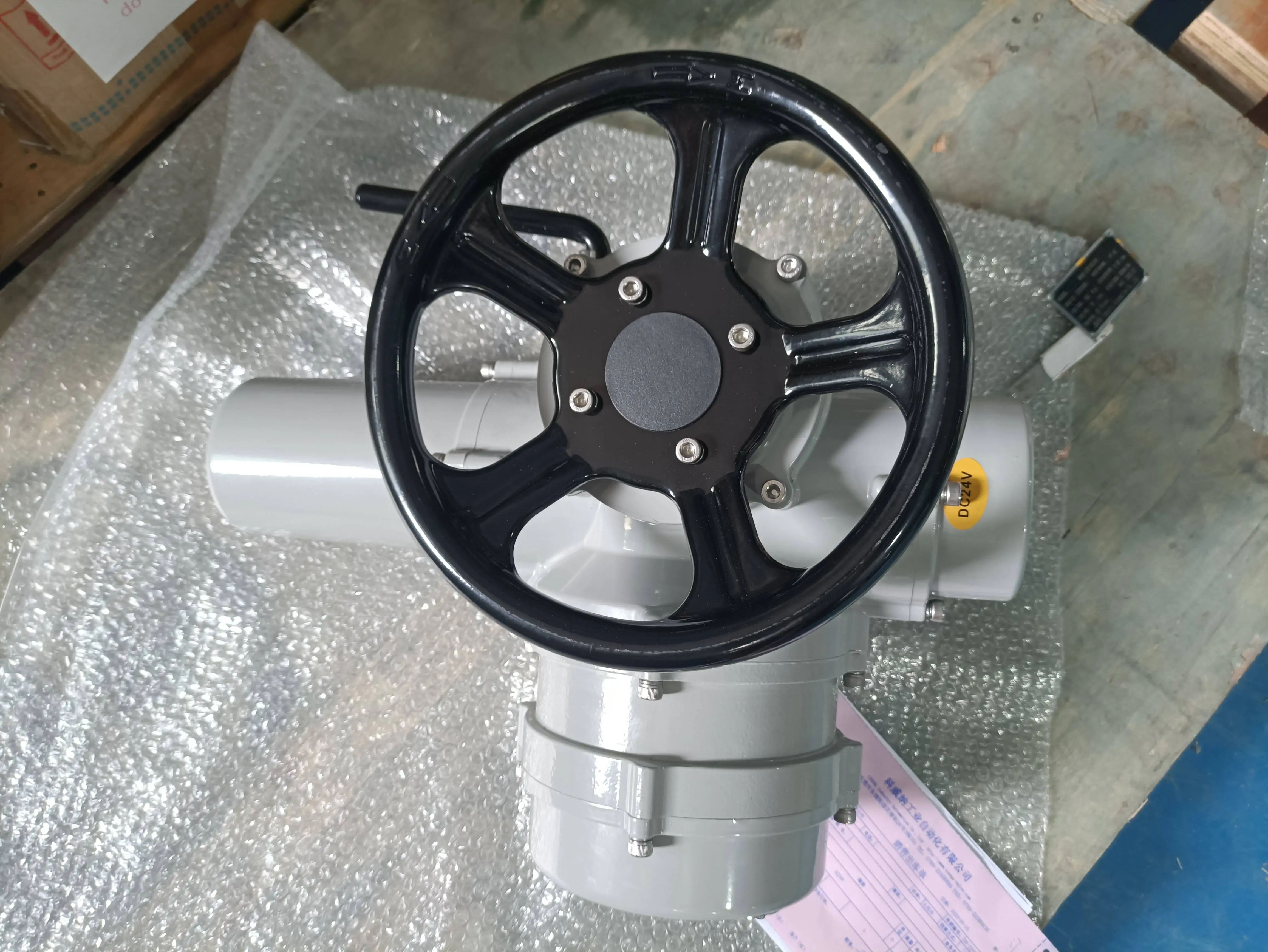

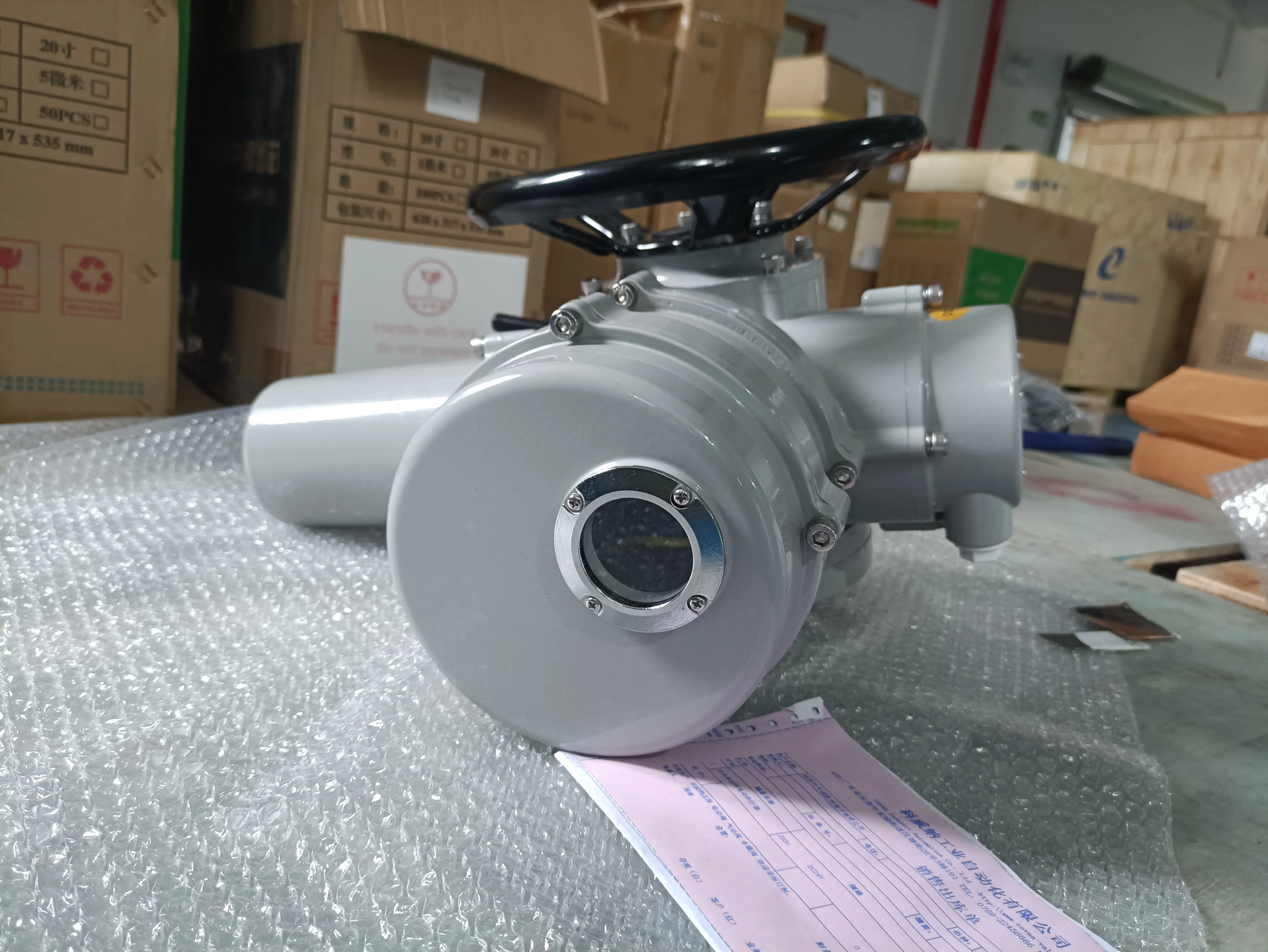

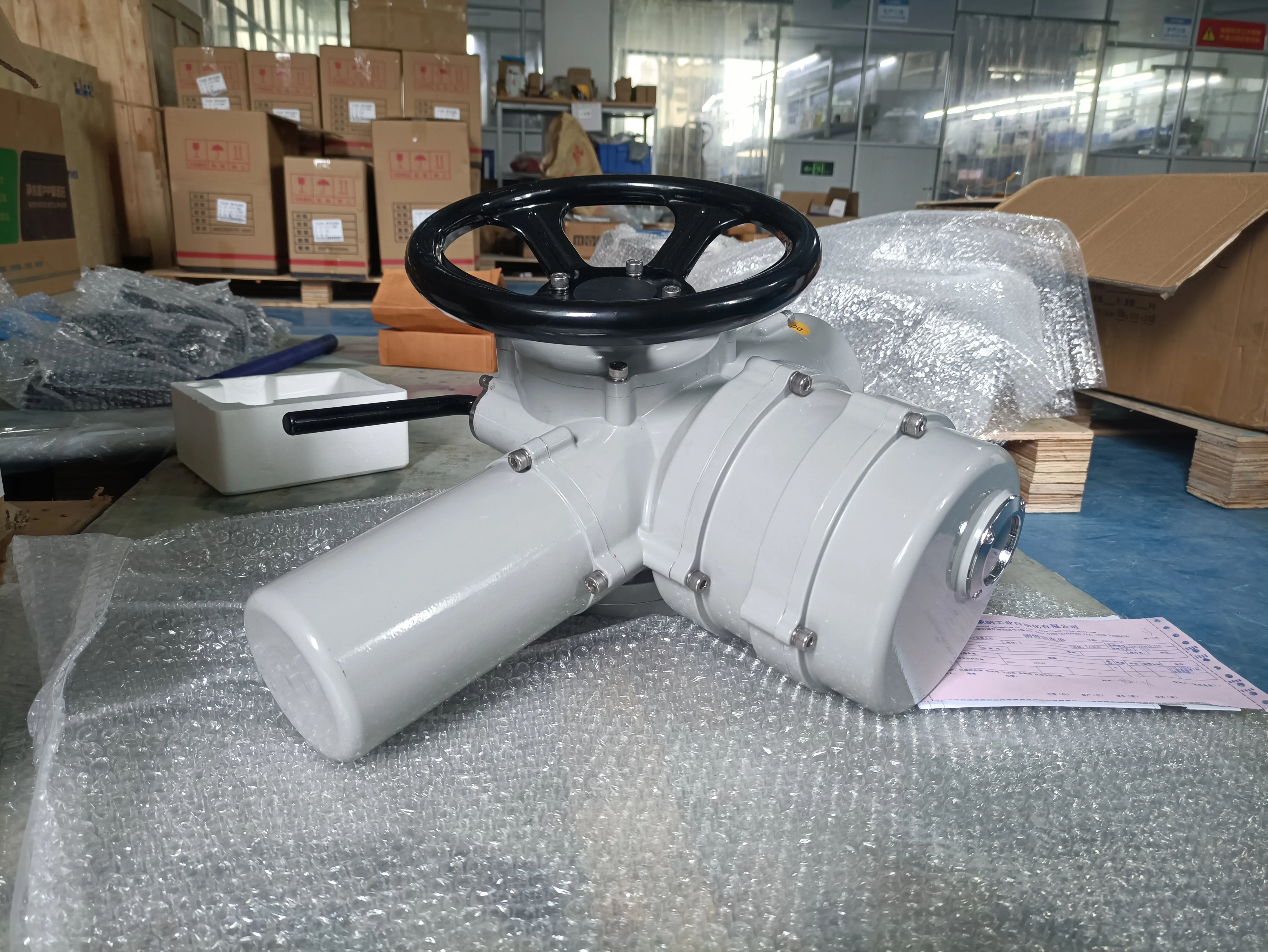

Packaging & Delivery
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
