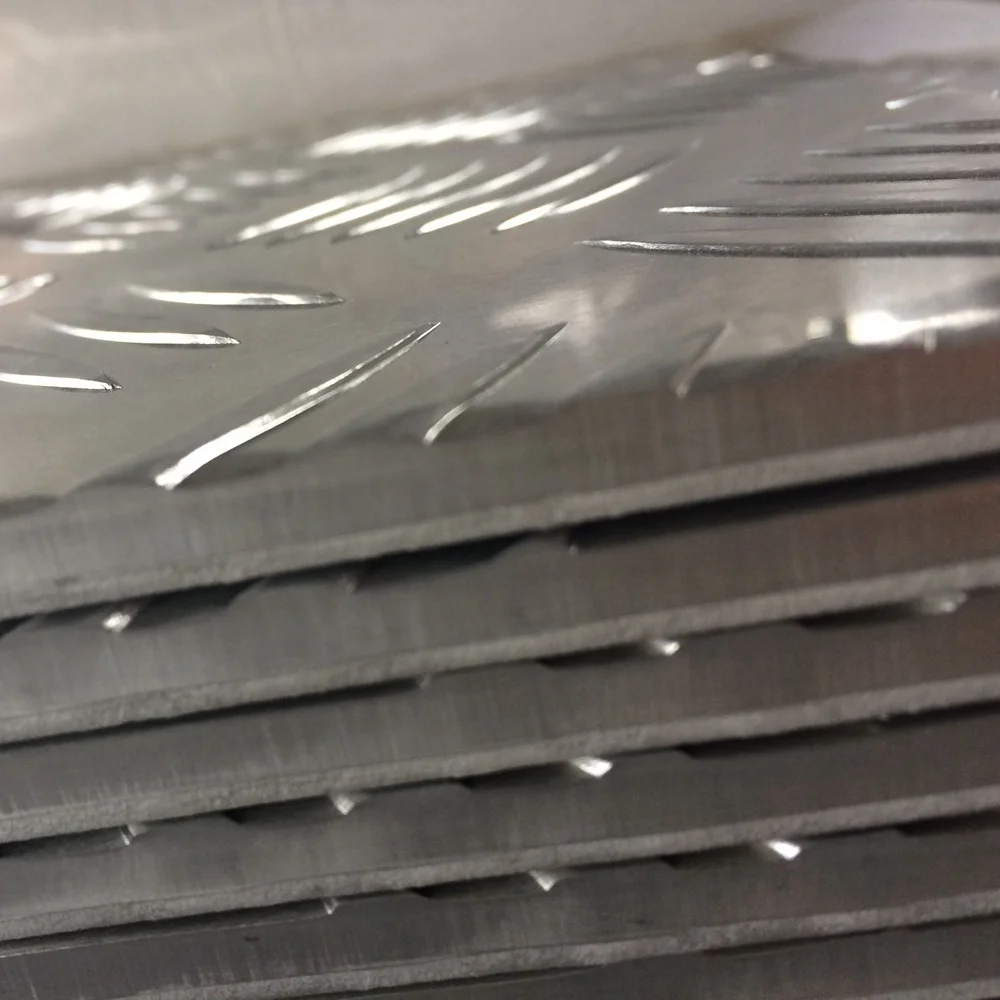

Price of aluminum alloy 1100 1060 1050 5 bar aluminum checker sheet plate

Product Overview

Description



Product Description







Factory price>>Customized on-demand>>Reasonable shipping and fast delivery>> Free sample
Product Name	Price of aluminum alloy 1100 1060 1050 5 bar aluminum checker sheet plate
Alloy	1050  1060  1100  3003  3004  3105  5052  6061
Thickness	1.0-6.0mm
Width	500-1600mm
Suface	Mill finish,Flat,Clean
Film / Paper	Can be blue film coated or not, also can be paper between each sheet
MOQ	3 MT , or depend on the SPECIFICATION .
Production Line	DC and CC
Application	Industrial Construction,Warehouse, Roof of Large-span Steel Structure Housing ,Wall Decoration
Kind attn	Custom Made, if any questions, pls do feel free to contact us .



• 10 years focus on aluminum


• From the time you place your order to when the aluminum is used, we are with you every step of the way.


•  Quality is what we do


• Innovation that reduces cost, save lives, and help the environment

Aluminum diamond plate, sometimes called aluminum tread plate, aluminum floor plate, or aluminum checker plate, is available in different sizes. strength, skid resistance, and durability are the primary selling points of aluminum diamond plate.



What’s more,Our high-quality aluminum diamond plate features a raised pattern of diamonds on one side (reverse side featureless).

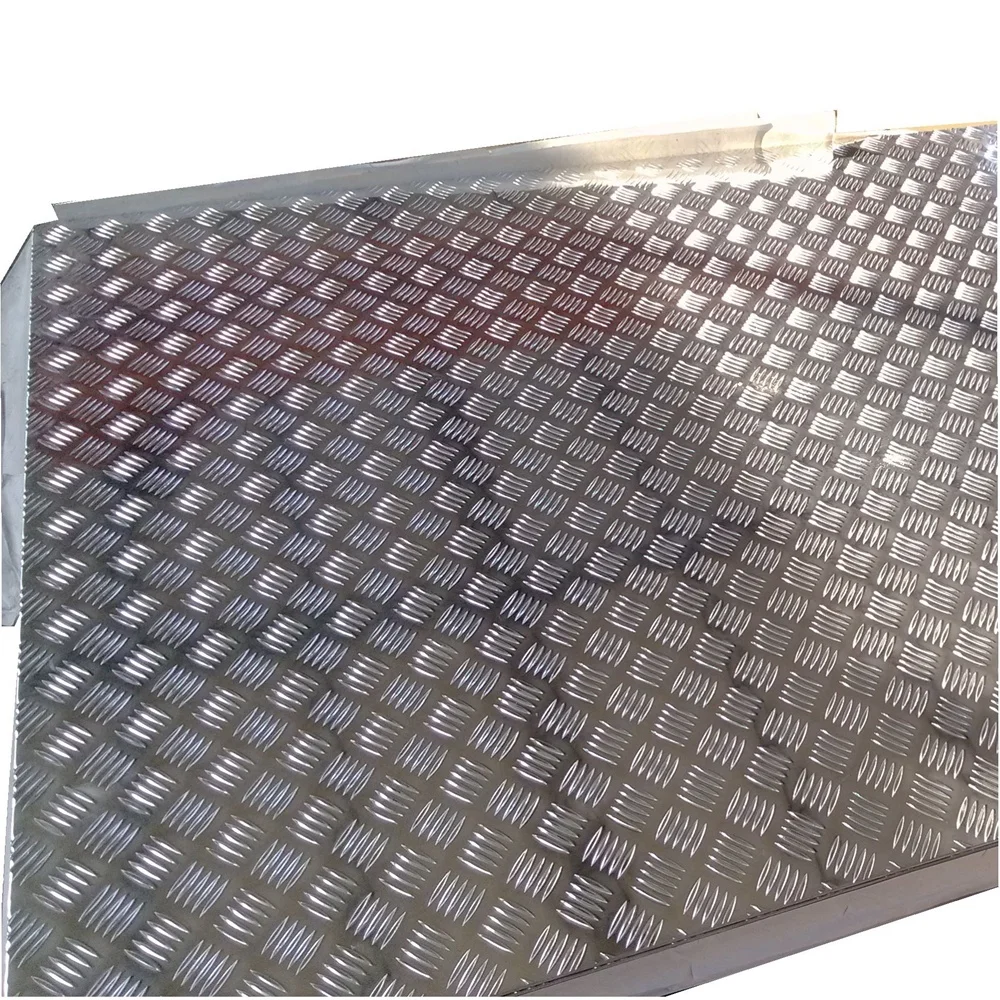

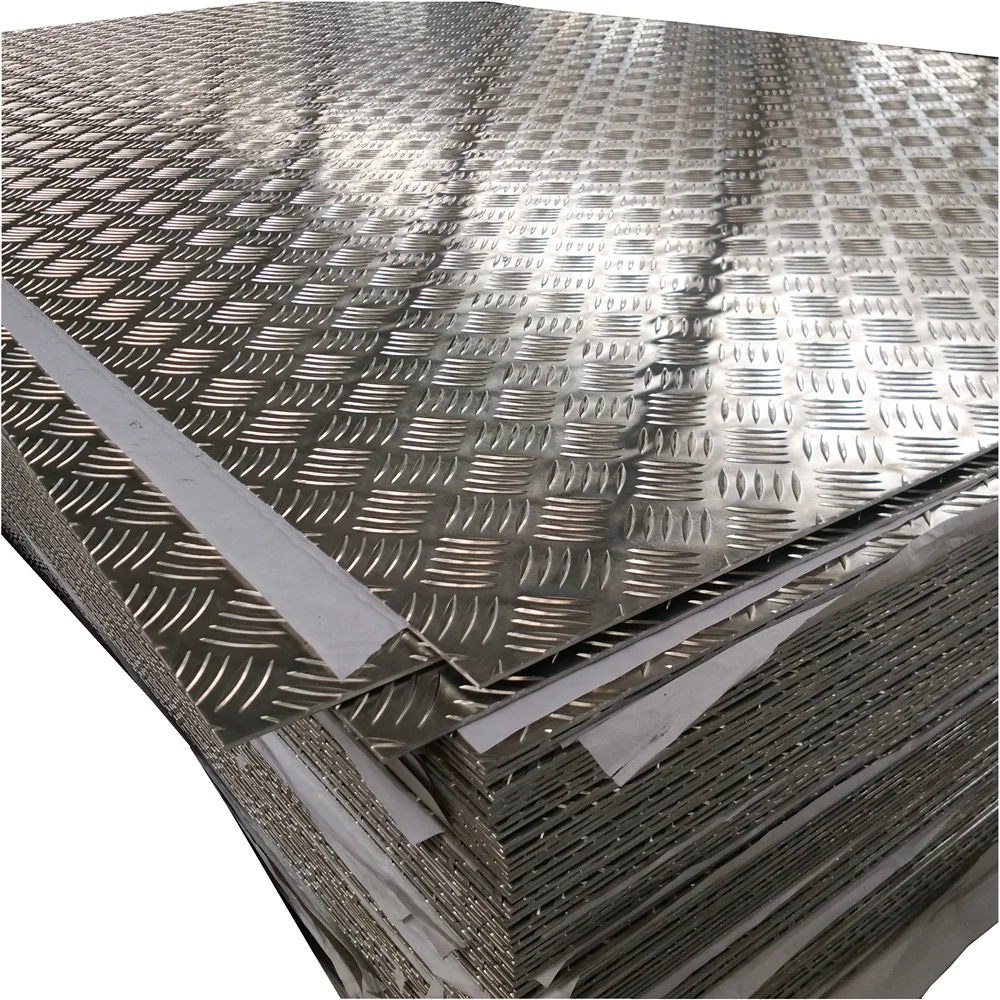

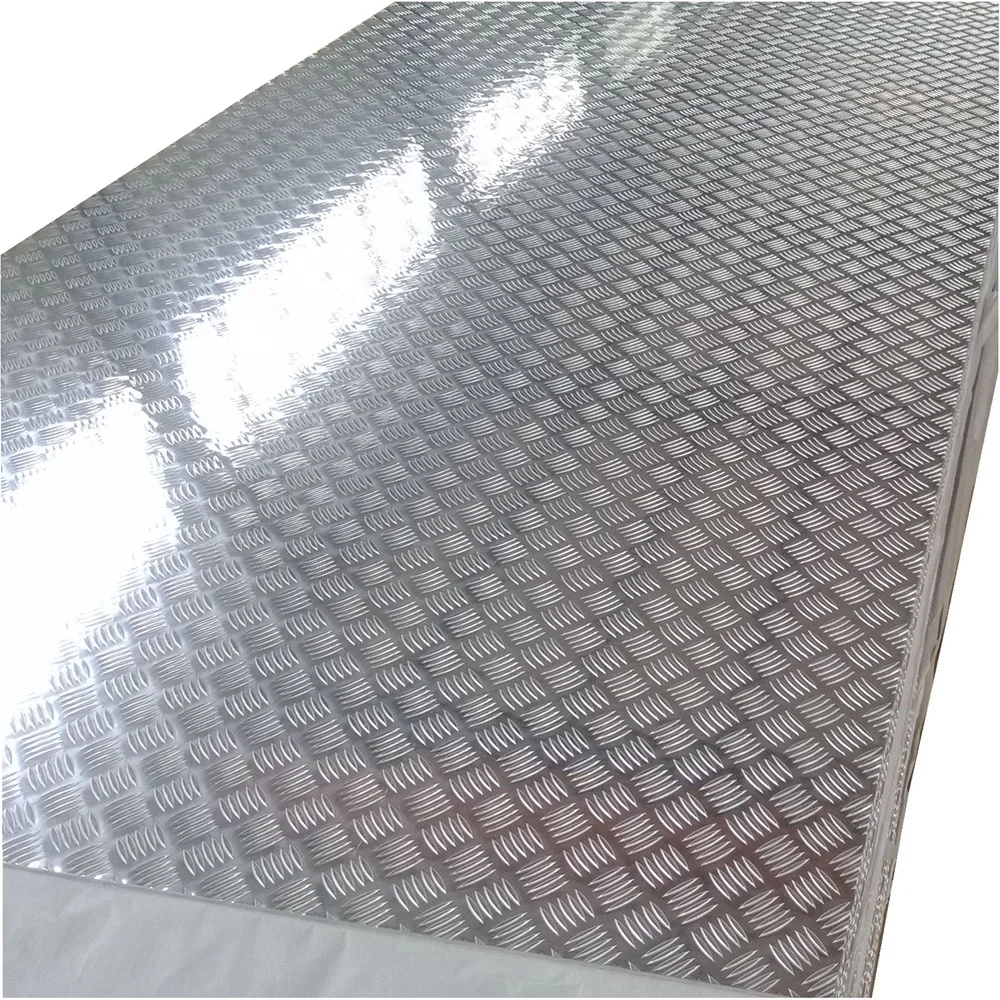

There are three models of aluminum tread plate in our company,5 bar aluminum checker plate,3 bar antiskid antiskid aluminum checker plate,one bar aluminum checkered plate.

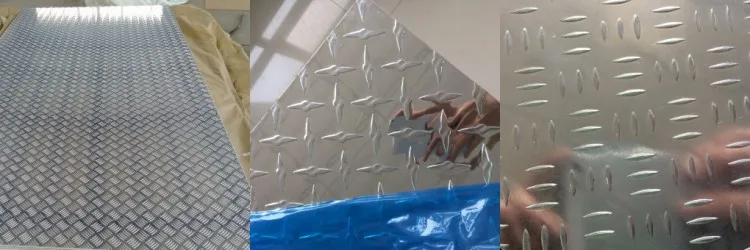

5 bar Aluminum checker plate	One bar Aluminum tread plate	Three bar Aluminum checkered plate



Aluminum tread plate is commonly application as below.



Diamond aluminum tread plate for Toolboxes	5 bar aluminum checker plate for truck	One bar aluminum checkered plate for ladder



Chemical Composition





Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Other	Aluminum
1060	0.25	0.35	0.05	0.03	0.03	-	0.03	0.03	0.03	99.6
1100	0.95		0.05~0.2	0.05	-	-	0.1	-	0.15	99
3003	0.6	0.7	0.05~0.2	1.0~1.5	-	-	0.1	-	0.15	Remaining
5052	0.25	0.4	0.1	0.1	2.2~2.8	0.15~0.35	0.1	-	0.15	Remaining
6061	0.4~0.8	0.7	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.15	Remaining
7075	0.4	0.5	1.2~2.0	0.3	2.1~2.9	0.18~0.28	5.1~6.1	0.2	0.15	Remaing





Packing and Shipping





STANDARD SEAWORTHY PACKING,OR AS CUSTOMERS’ REQUEST .





Aluminum sheet	Aluminum coil	Currugated aluminum sheet



Certification









Hi dear,no matter what aluminum products you need,we can supplier it for you.Meanwhile Customs sizes as you need.Email:hailey.aluminum & gmail.com whatsapp:+86-186 6899 3256
