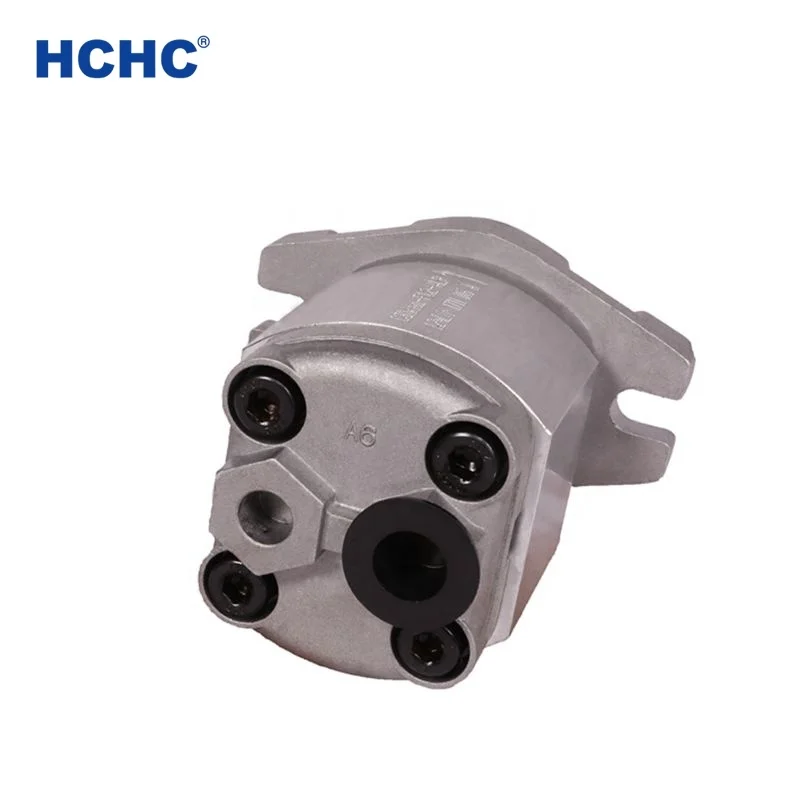

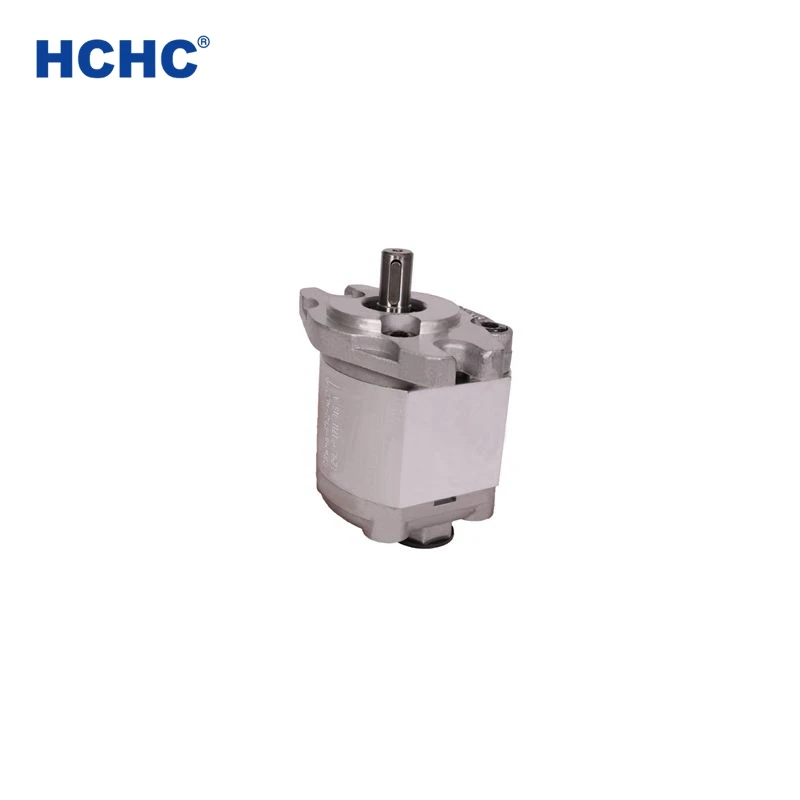

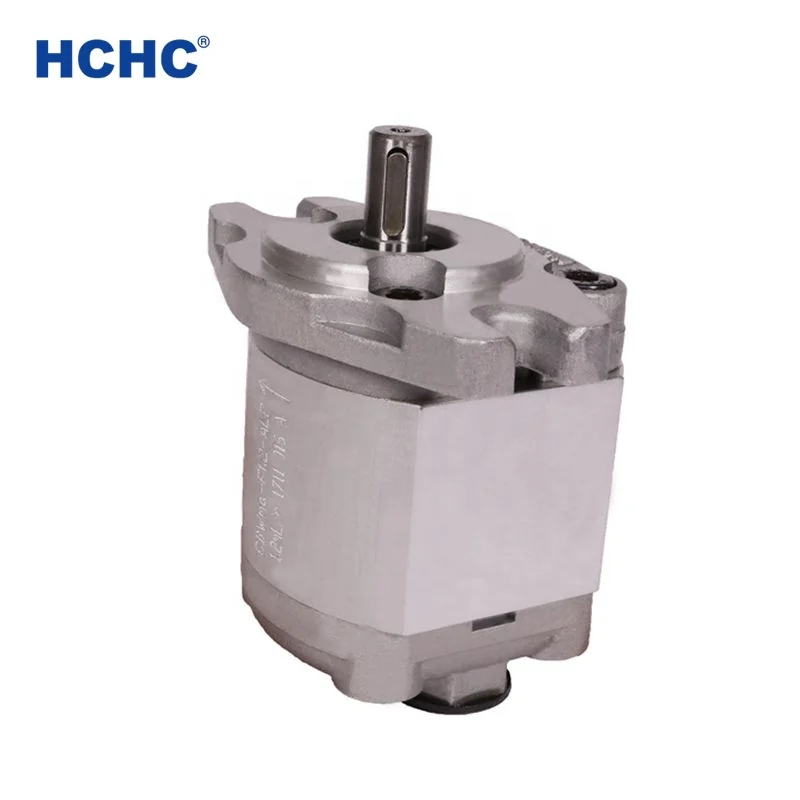

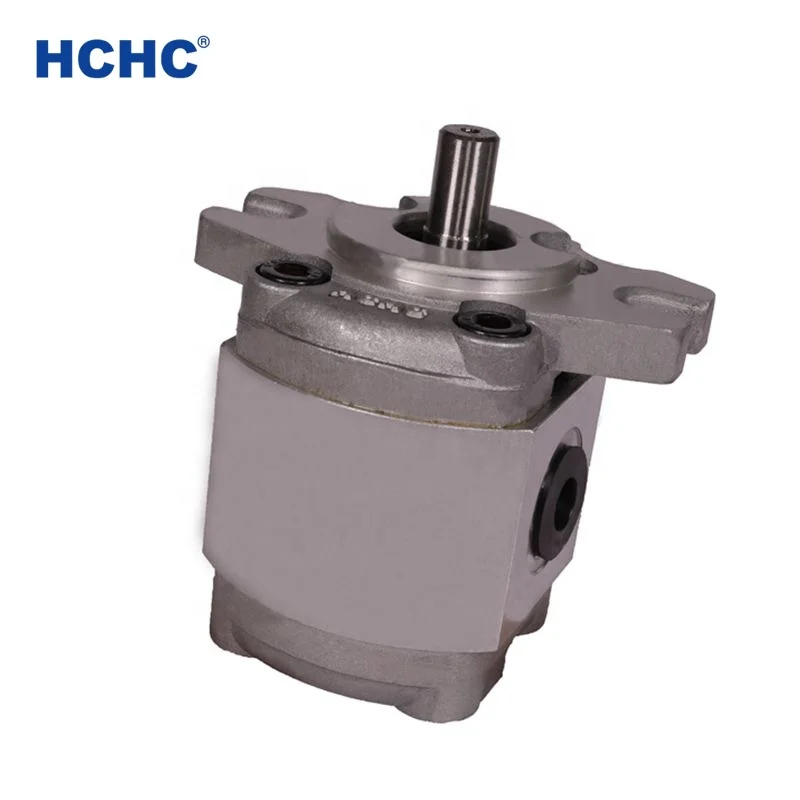

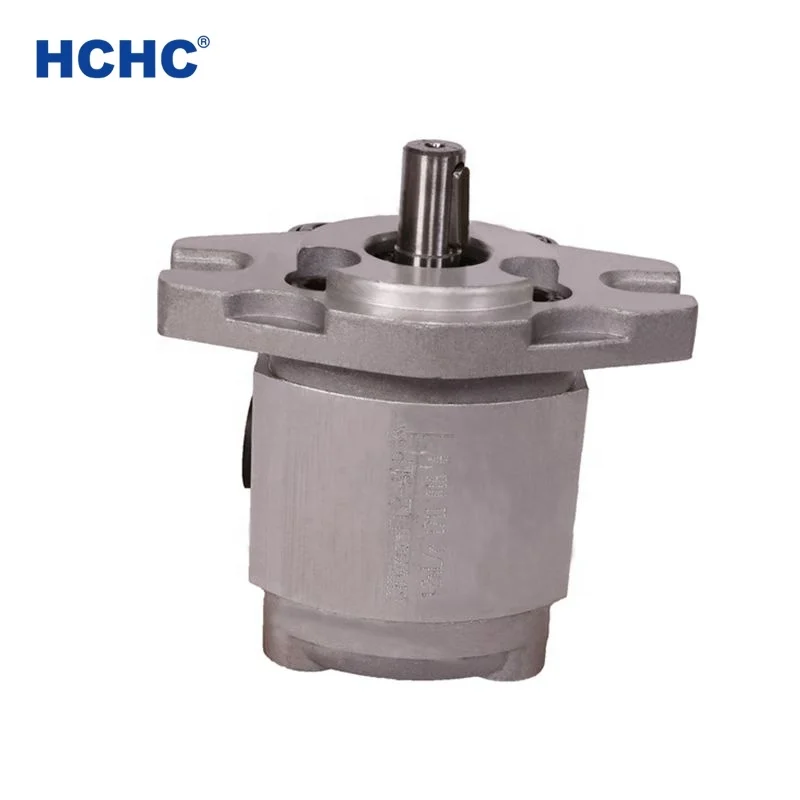

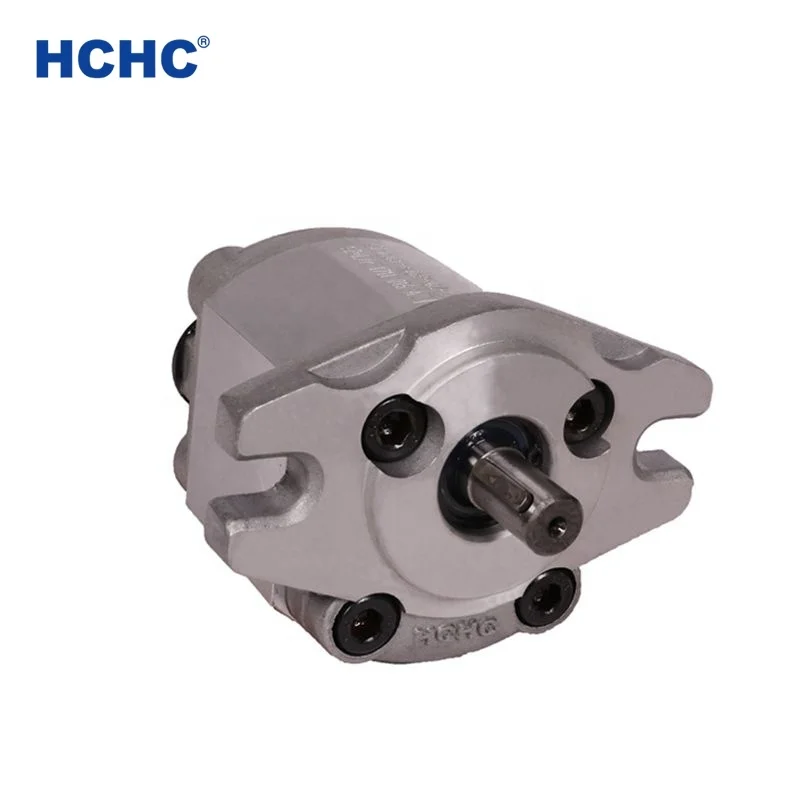

Hydraulic pump exporter gear pump price excavator bulldozer roller mobile crane dump truck
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (62393201087):
Product Overview
Description
Product Description
Performance Characteristics:
CBWma/mb-F
★ High strength aluminum alloy housing.
★ The connection form of input shaft includes flat key, rectangle spline and involute spline.
★ The connection form of oil inlet and oil outlet has options of thread and flange.
★ The automatic compensation mechanism of axial clearance enables gear pump to maintain a long-time high efficiency work.
★ With high working pressure and wide speed range, it can maintain high volume efficiency even at a slow speed of 600rpm.

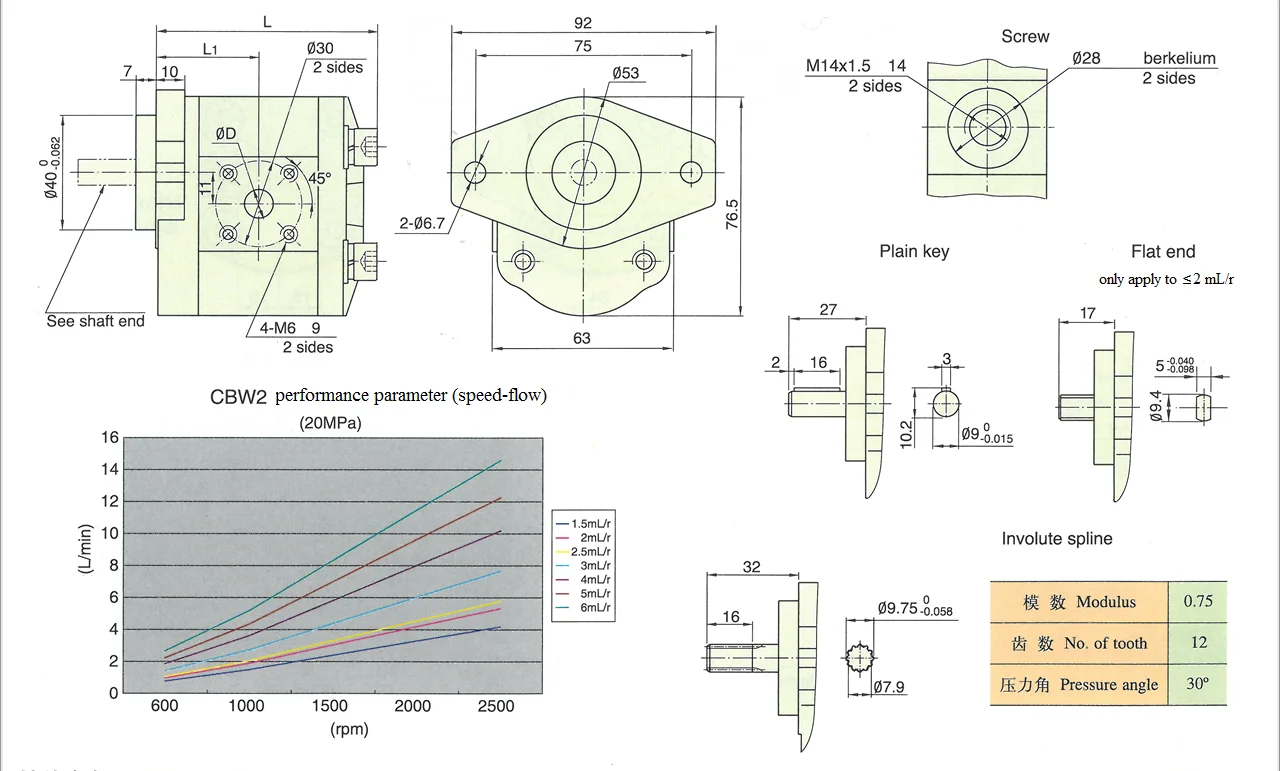

Specification
Model Code
CBWma-F12-ALP
① ② ③ ④ ⑤⑥⑦ ⑧⑨
①Product code
②Pressure grade: F=200bar
③Nominal displacement(mL/r)
④Mounting type: A=rhombic flange
⑤Joining port type: L=thread
⑥Shaft extension type: P=plain key
⑦Rotation: R=clockwise(omitted)
②Pressure grade: F=200bar
③Nominal displacement(mL/r)
④Mounting type: A=rhombic flange
⑤Joining port type: L=thread
⑥Shaft extension type: P=plain key
⑦Rotation: R=clockwise(omitted)
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volume Efficiency (≥%) | Weight (kg) | ||||||
Rated | Max. | Min. | Rated | Max. | |||||||
CBWma-F12-ALP | 2.0 | 20 | 25 | 600 | 2500 | 6000 | 93 | 6 | |||

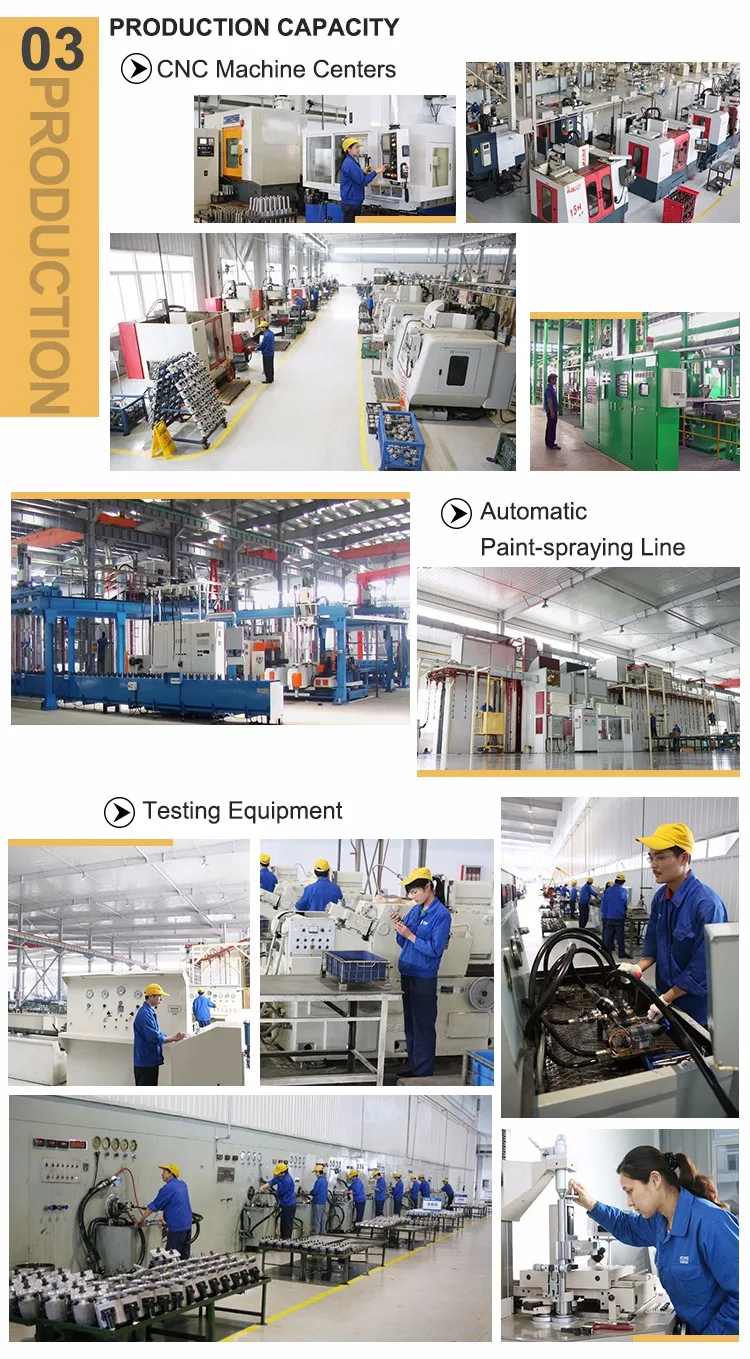

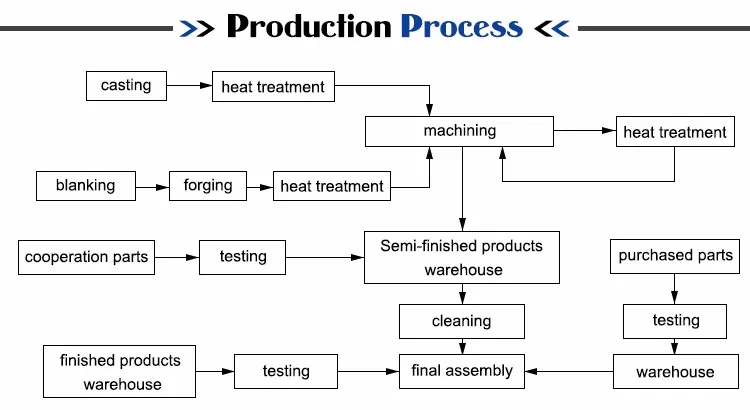

Production Process
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Packing & Shipping
