4.3 inch lcd panel display 4.3 inch TFT lcd
- Category: >>>
- Supplier: Hua Xian Jing Display Limited
Share on (62393237285):
Product Overview
Description
4.3 inch tft lcd with resistive touch panel
Product Description
Product information:
Module No.: | TFT043BT003 |
Screen Size: | 4.3 inch |
Resolution: | 480 x RGB x 272 |
Panel Type: | IPS |
Display Mode: | Normally Black |
Module Size: | 105.4 x 67.1 x 4.17 mm |
TP Size: | 104.8 x 65 mm |
Active Area: | 95.04 x 53.86 mm |
Driver IC: | ST7282 |
Backlight: | 10 LED Light |
Interface: | RGB 24 Bit |
Connector: | FPC |
Pin Number: | 40 |
Pix Arrangement: | RGB-stripe |
Number of Colors: | 16.7M |
Viewing Direction: | 6 O’Clock |
Operating Temperature: | -20~+70℃ |
Storage Temperature: | -30~+80℃ |
Size: 4.3"
Resolution: 480 x 272
Driver IC: ST7282
Interface: RGB 24 Bit
Control-Board: No
Touch Screen: Optional
Mechanical Diagram:

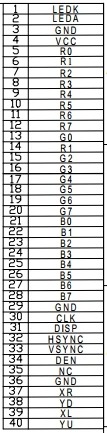

Interface Pin Description:
Company Information
VIDEO
WORKSHOP
EQUIPMENT
Product Application
Top professional TFT LCD display manufacturer | |
Small-size LCD display | Mobile device, Toy, Smart Watch, Medical equipment, Camera, Air-condition display, Office electronic equipment, etc. |
Mid-size LCD display | Mobile device, POS, PDA, Car Automotive product, Medical equipment, Industrial control equipment, Household video doorbell, Air-condition display etc. |
Big-size LCD display | Tablet PC,DVD Player, Media Play, Educational product, Automotive product, Audiovisual equipment( Display for car/ Portable DVD/Long-distance terminal),Video door phone, Security products etc. |
Application Range
The LCD products can be used for many kinds of field,such as:Telecommunication Devices;Consumer Products;Technical Equipment;Medical Equipment;Industrial Equipment;Home Appliance;Automotive;White Goods etc.
Packaging
(1) Packed the LCM into ESD bag.
(2) Packed the LCM+ESD bag in air bubble bag/film.
(3) Put the above together into foam box.
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape.
Shipping
FAQ
1.Why should I choose you?
Our LCD quality has Three standards: 1.consuming standards.2.Industrial standards. 3.Low power consumption,long life. We select the best raw materials, and bring in the most expensive equipment and very tough management.
In fact, If the quantity is higher or the cooperation time is long, as long as the customer files the price request, the favorable price can be available after negotiation.
2.Q:What is your payment method?
A:We usually accept the payment methods include T/T,Paypal and Western Union. Deposit in advance and balance before shipping upon the payment amount.Buyer can choose which payment ways that you accept.
3.Q:How much the transportation freight of samples?
A: The freight depends on total weight,volume and your address.
4.Q:Can you design the lcd in accordance with our demand?
A:Sure.We will give you the best tooling charge.
5.Q:How to order lcd?
A:Please send us your purchase order by e-mail,or ask us to send you one invoice. We need to know the following information for your order.
1)Product information-Quantity,part number.
2)Delivery time required.
3)Shipping information-Company name,address,Phone,Destination sea port.
4)Forwarder's contact details if you have any in China.
6.How to understand in full range?
Full range means that our products are in great variety.We have what other manufacturers have,and we have what they don’t have.The customer is easy to find what they want in our product group.
7.Q:How can I get the samples?
A: If you need samples, we can make as per your request .We can provide one free sample, more than one sample should pay sample fee,and the customer need to pay the shipping fee.Sample lead time always be within 3-5 days.
8.Q: How long can I expect to get the sample?
A:In general,3-7 days.
9.Q:How long the warranty ?
A:12 months.
