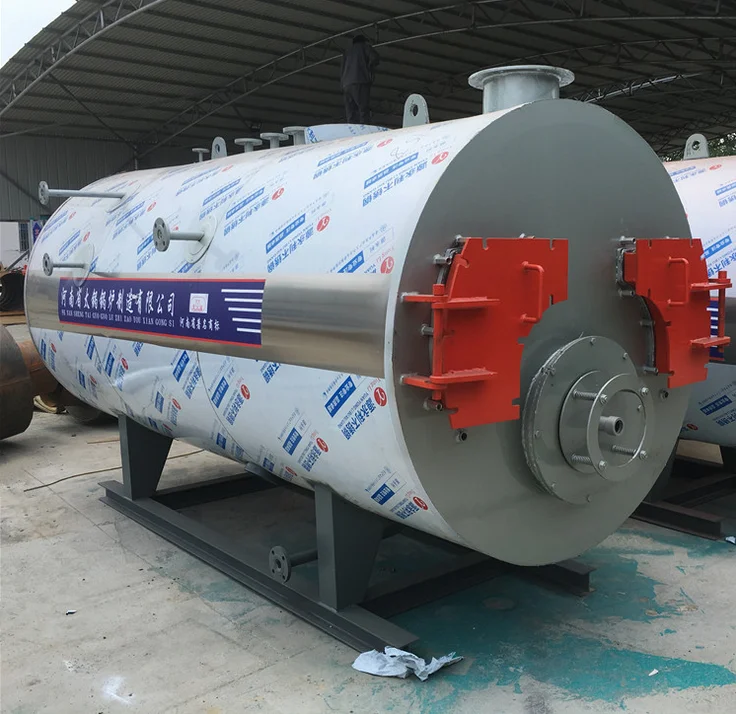

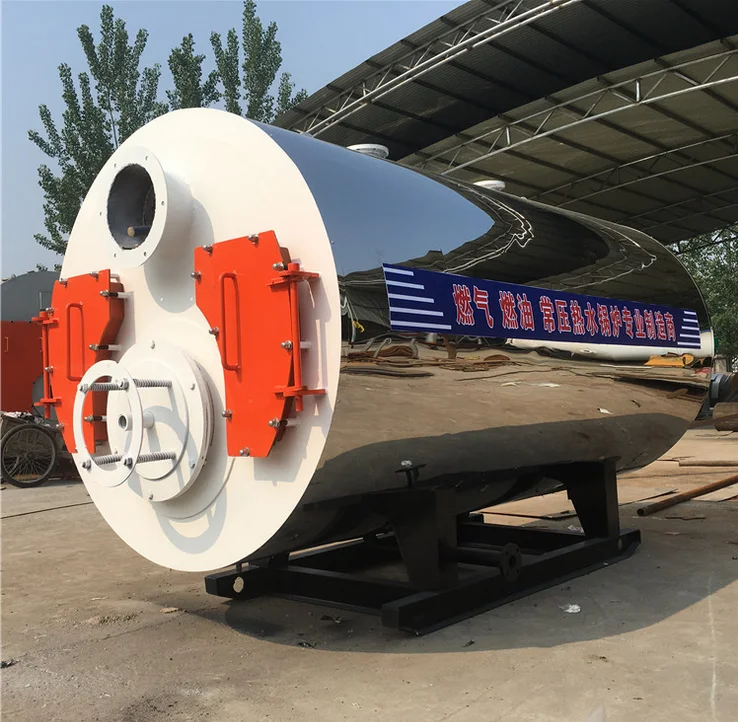

Factory price steam boiler gas hot water 7 ton thermostat heating boiler

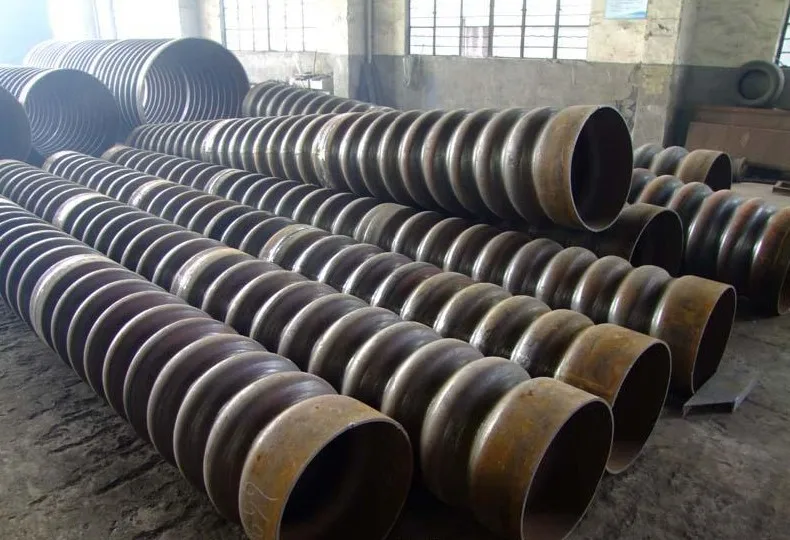

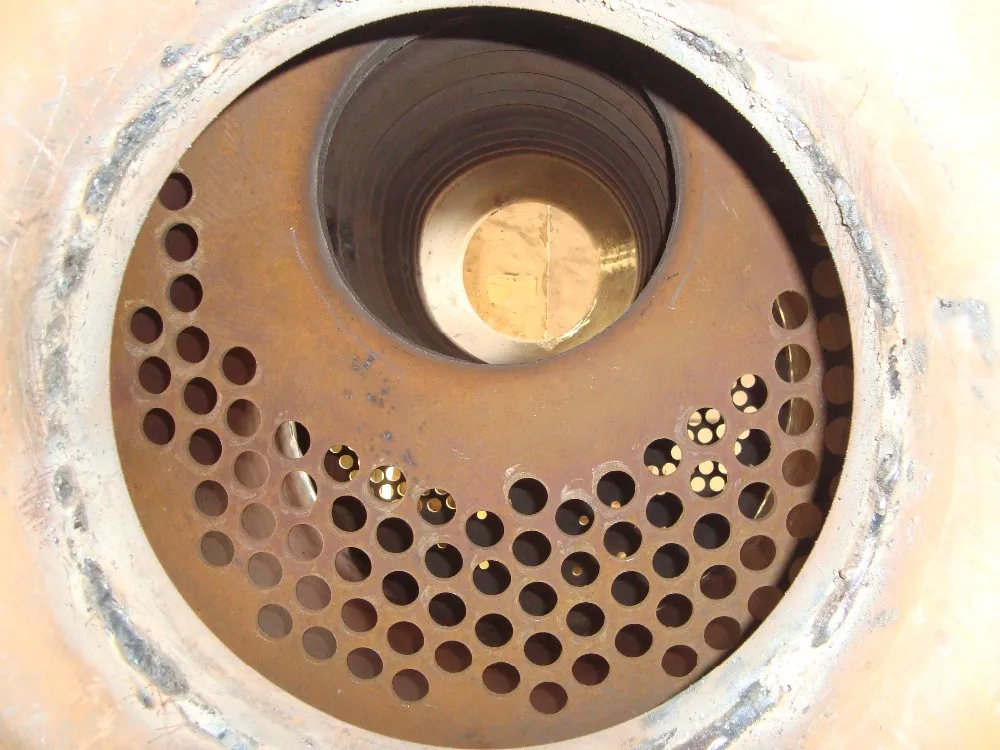

1.WNS series boiler is fullautomatic oil(gas) fired boiler; adopting horizontal internal micro positive pressure combustion, full wet back/fire tube design, high efficiency spirally corrugated tubes, fuel economizer and reasonable insulation package; the thermal efficiency can reach more than 90%. Its novel design, rational structural and nice performance achieved perfect quality and nice performance.

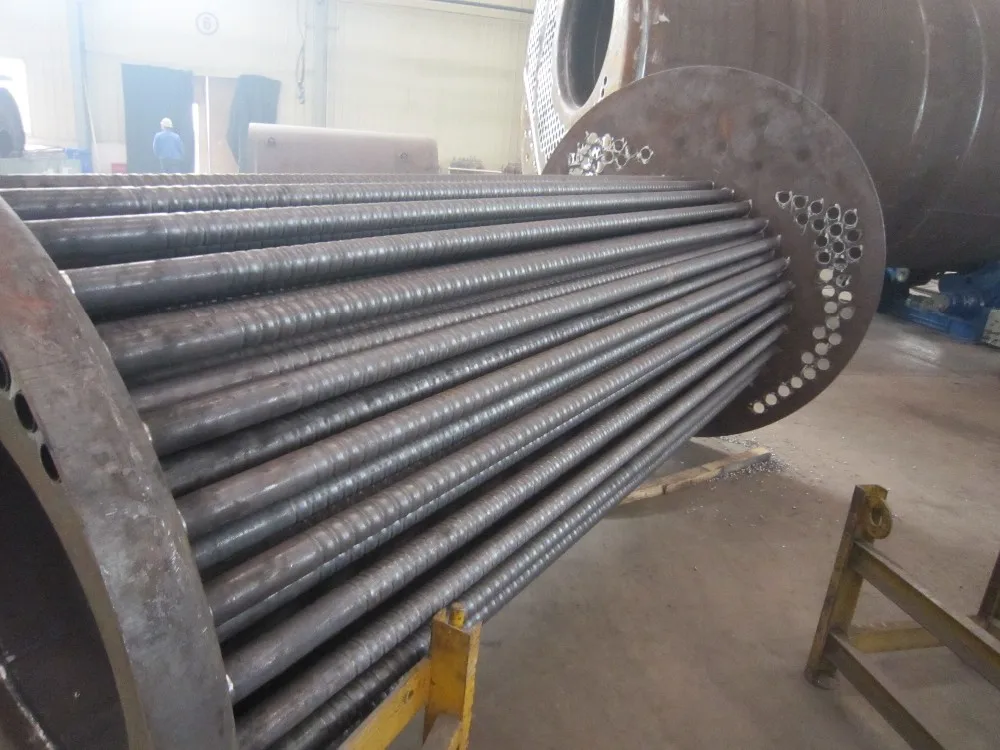

2.Internal micro positive pressure combustion, full wetback / fire tube design, spirally corrugated tubes etc. can fully enhance the thermal efficiency and reduce the smoke temperature. The openable front/back smokebox make the inspection & maintenance is easier.

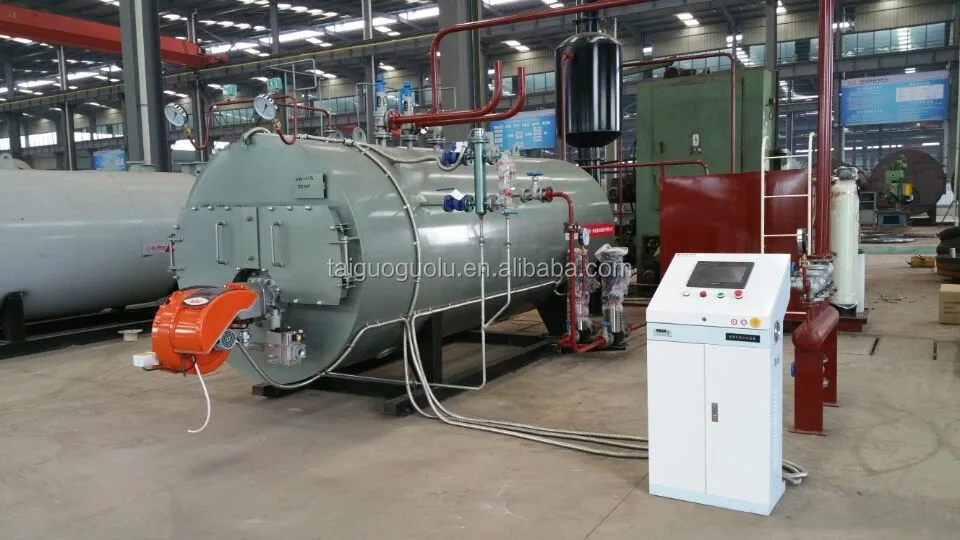

3.Under the commanding of PLC, all auxiliaries work automatically and safely.
4.Compact structure not only makes the installation is easy, also reduce the construction cost of boiler room.

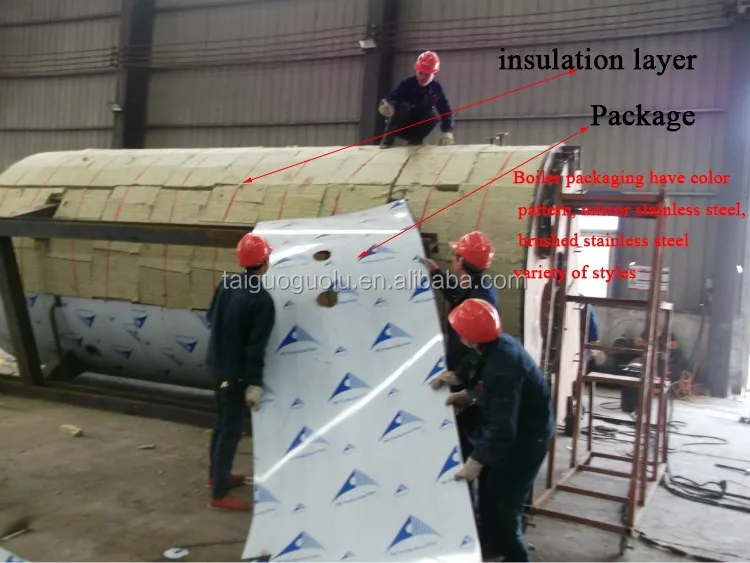

5.New type thermal insulation material and the quality stainless plate packages realize the good insulation effect and nice looking.

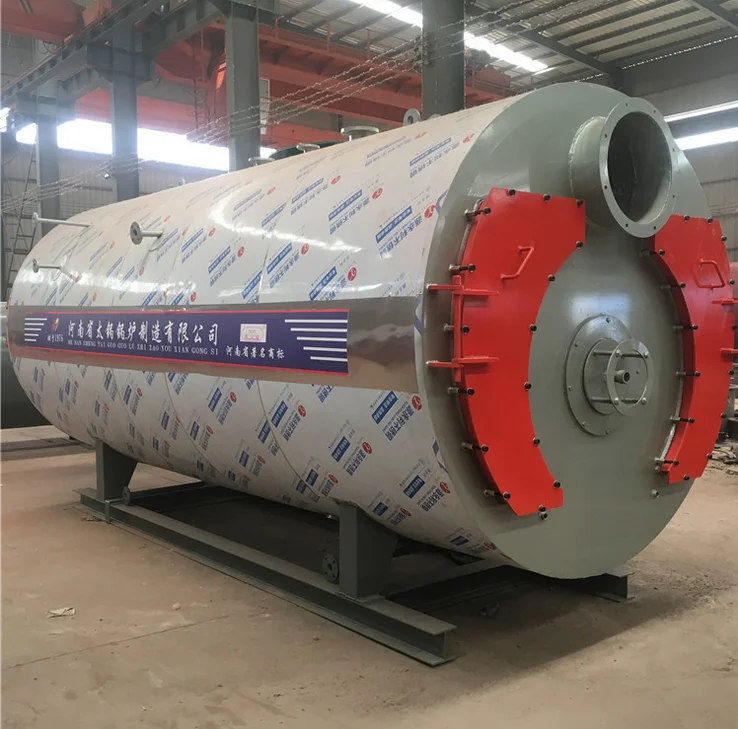

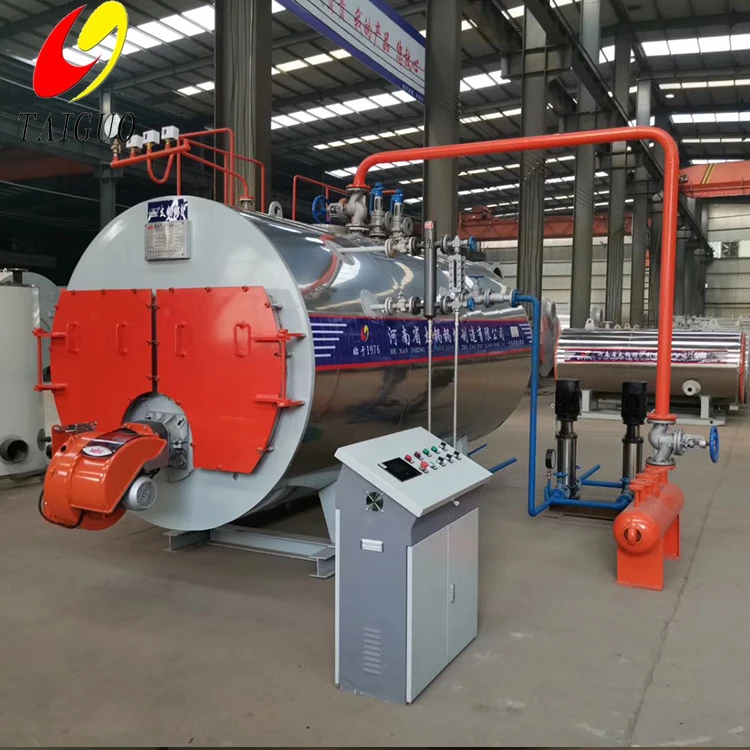

WNS series Gas Oil Fired Steam Boiler
Model	0.5	1	1.5	2	3	4	5	6	8
Steam output (t/h)	0.5	1	1.5	2	3	4	5	6	8
Steam Pressure (mpa)	0.7               1.0              1.25                 1.6                   2.5
Steam temperature (℃)	154                184            194                  204                   225
Thermal efficiency	90-92%
Diesel consumption(kg/h)	32.5	65.4	98	131	136.2	261.6	327	392.4	523.2
Heavy oil consumption(kg/h)	34	69.5	105	139	208.5	278	347.5	417	556
LNG consumption(m3/h)	39.5	79.3	119	159	237.9	317.2	396.5	475.8	634.4
LPG consumption(m3/h)	14.2	29	43.5	58	87	116	145	174	232
CG consumption (m3/h)	84	168.5	253	337	505.5	674	842.5	1011	1348
Length of the boiler (m)	2.93	3.50	4.10	4.50	4.58	5.00	5.70	6.10	6.40
Width of the boiler (m)	1.70	1.90	1.90	2.00	2.11	2.23	2.50	2.30	2.70
HIght of the boiler (m)	1.72	2.20	2.31	2.36	2.47	2.58	2.80	2.67	3.20
Total electric consumption(kw)	1.4	3.3	4.4	4.8	11	12	26	27	30
Transport weight(t)	3.5	4.5	7	7	9	10	14	16.2	17.8

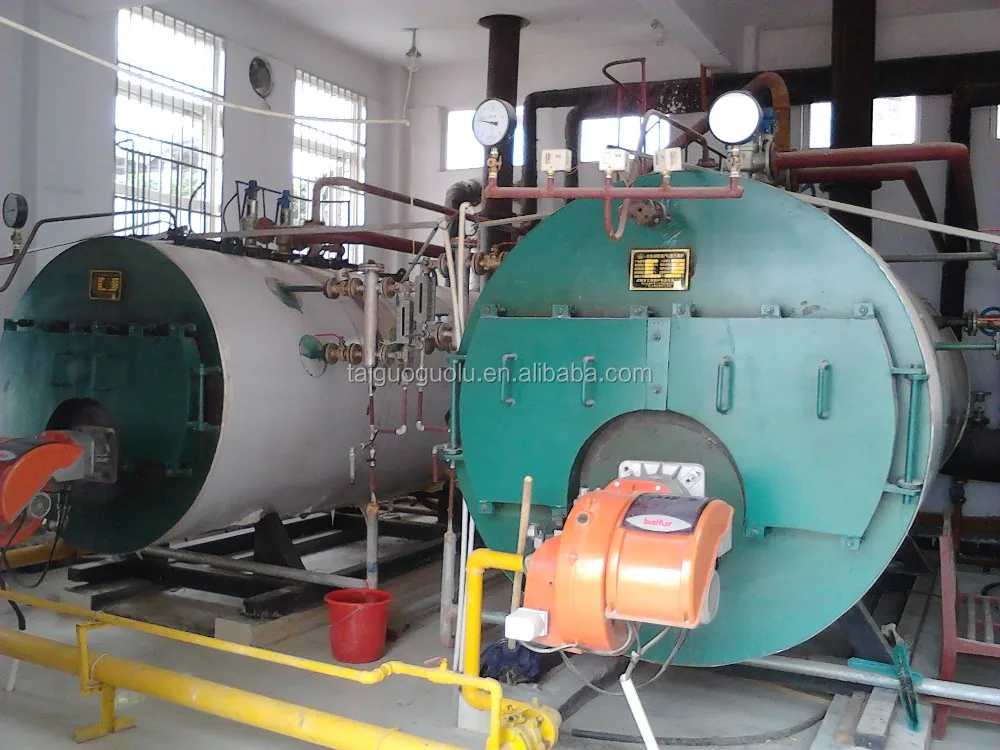

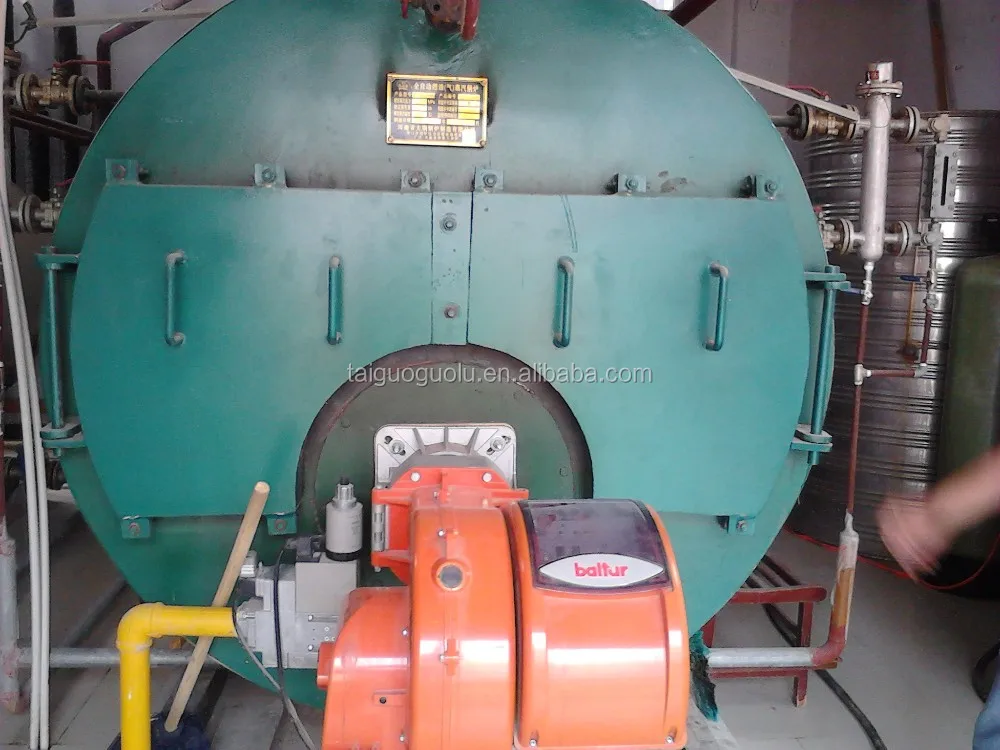

Detailed Images

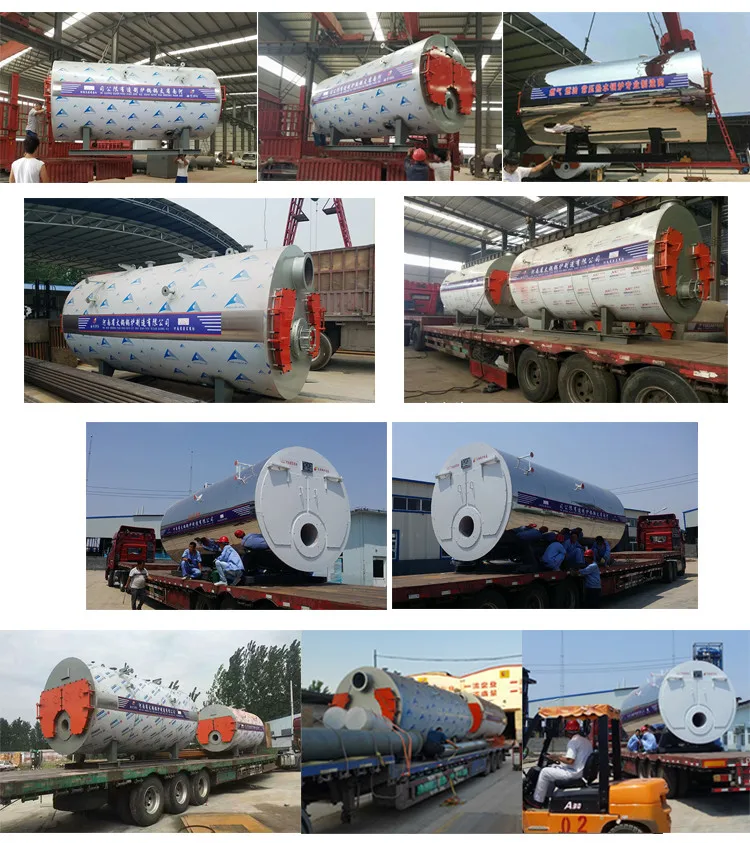

Packing & Delivery

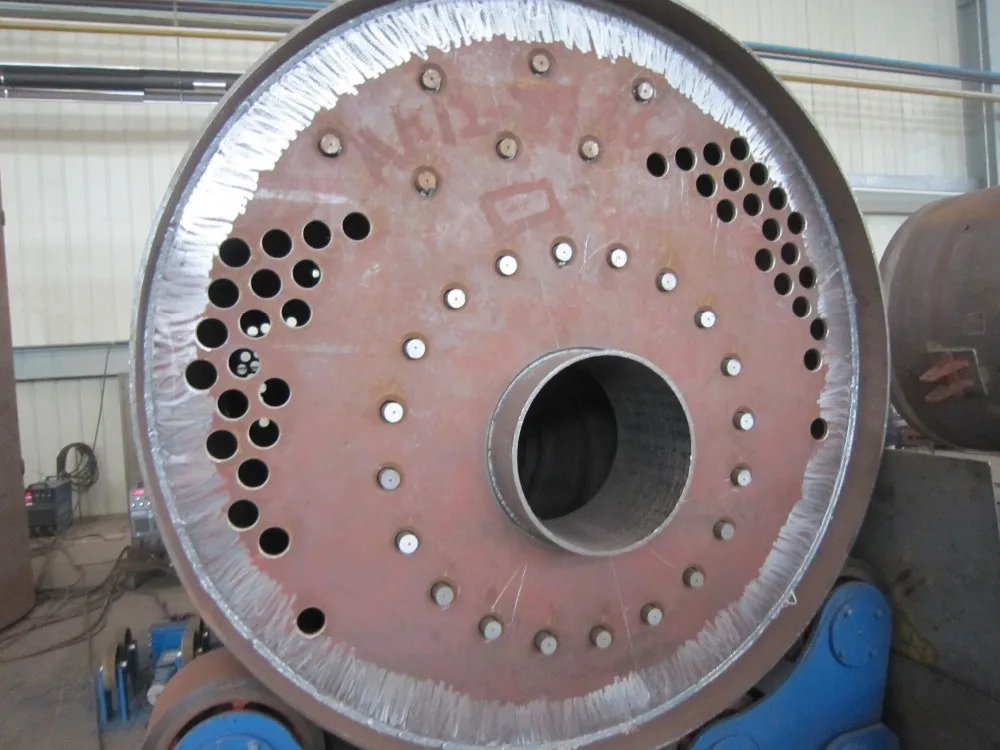

Production flow

Quality control system

Include 8 subsystems, design, techonics, welding, inspection, non-destructive testing, heat treatment, materials physics and chemistry inspection, device management Each process will be strict supervised.

5 process quality point, Raw material inspection, product specimen, NDT, hydrostatic test, Heat treatment. The products must be inspected by third party before delivery.

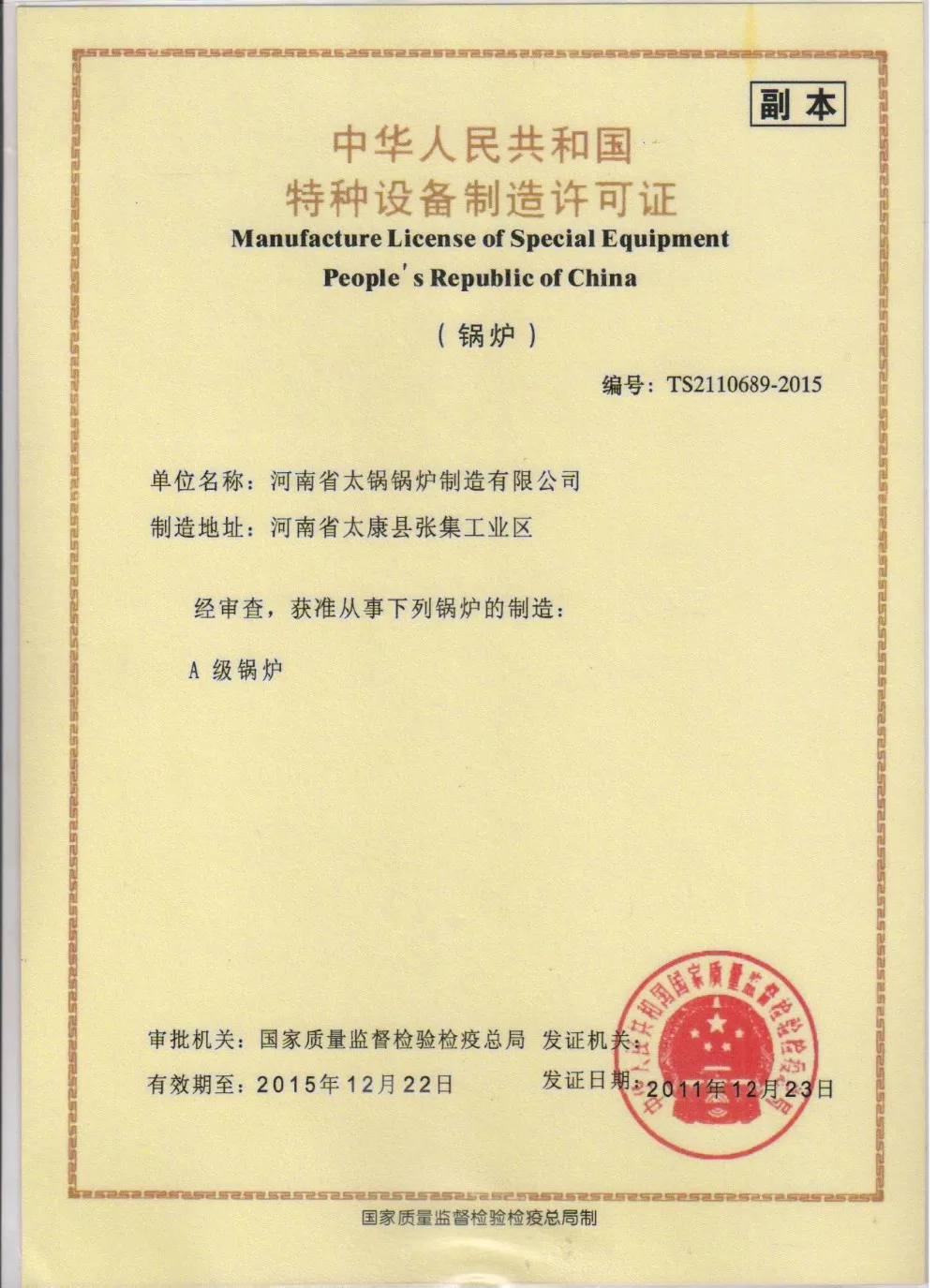

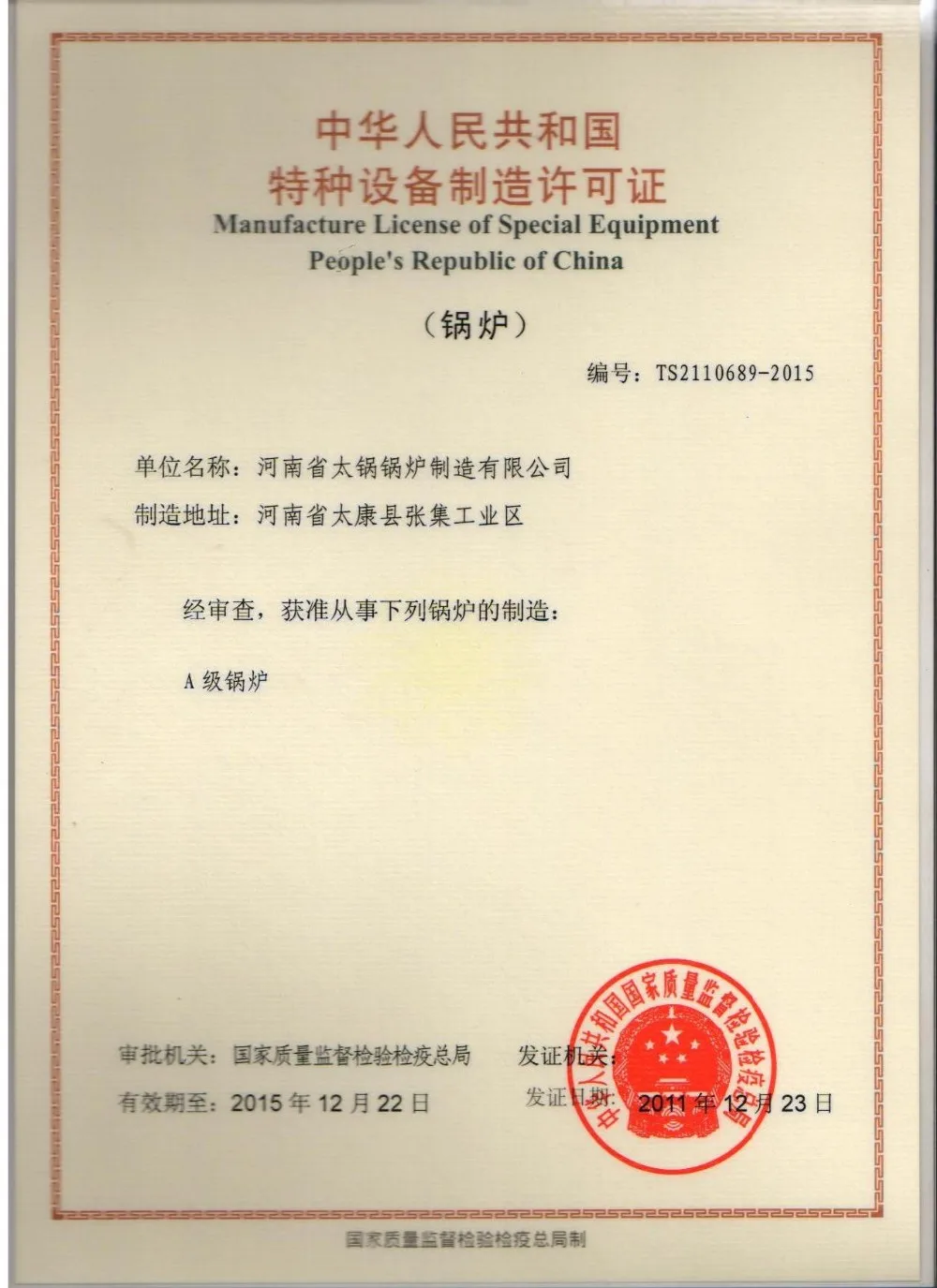

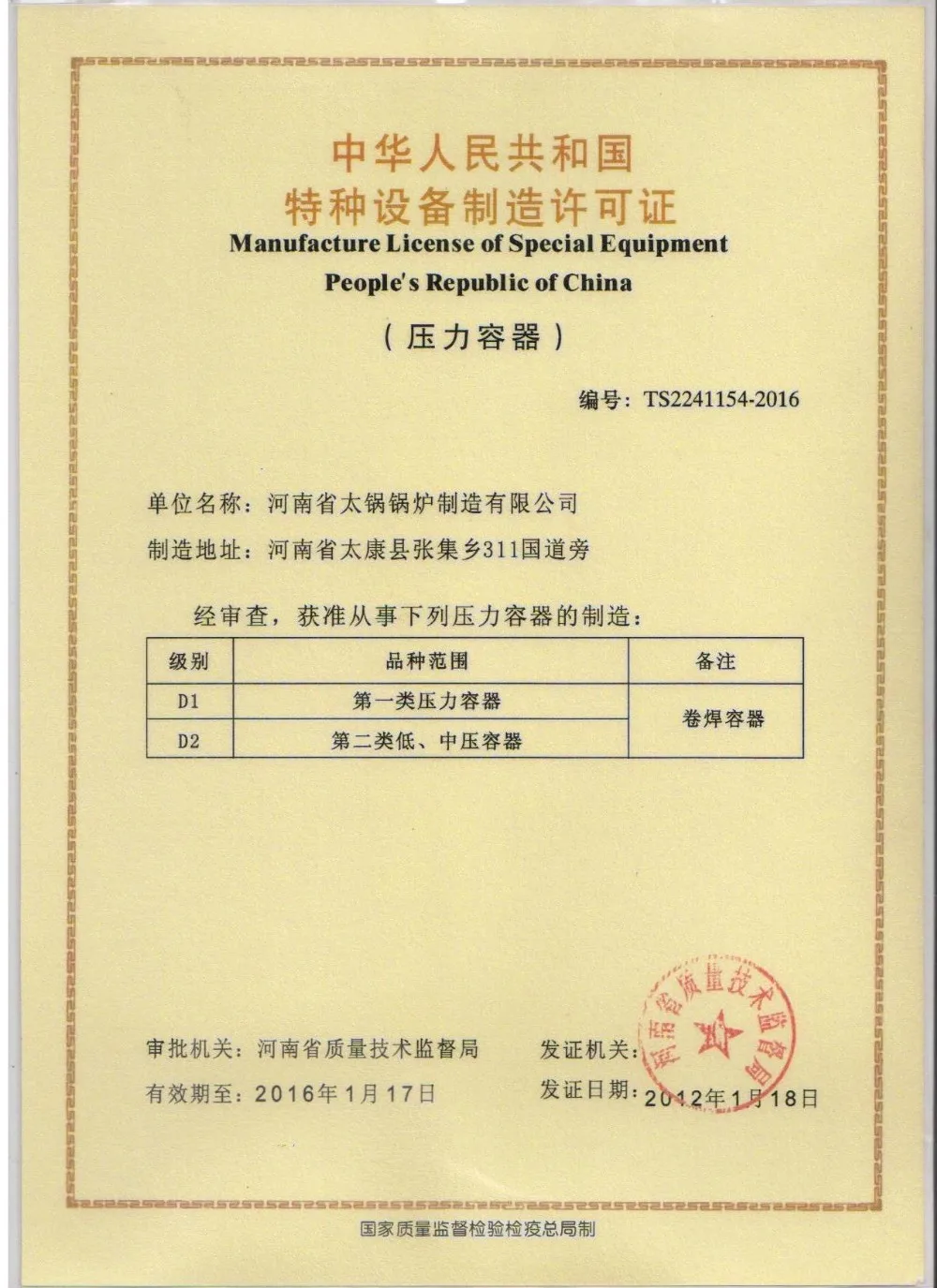

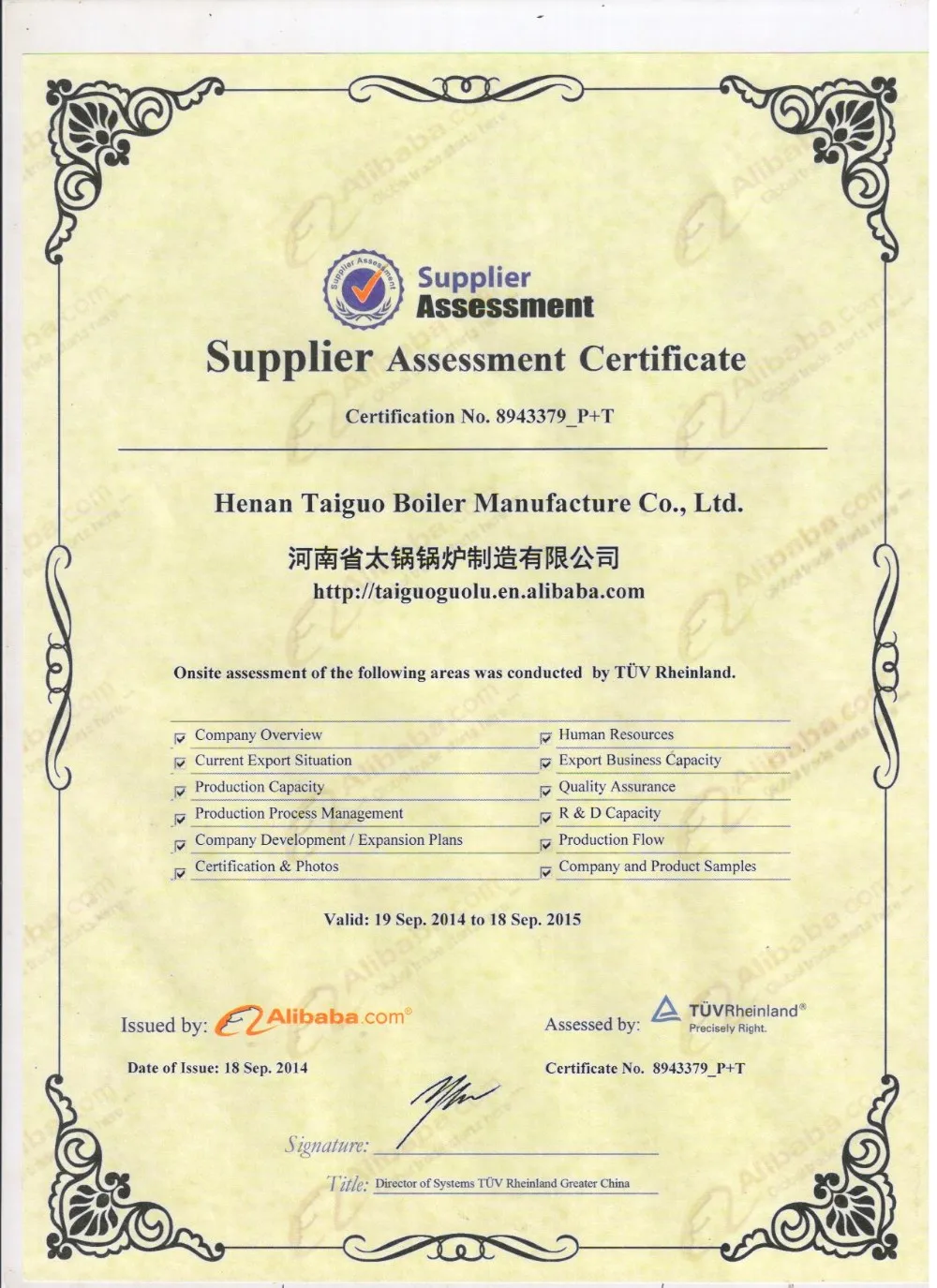

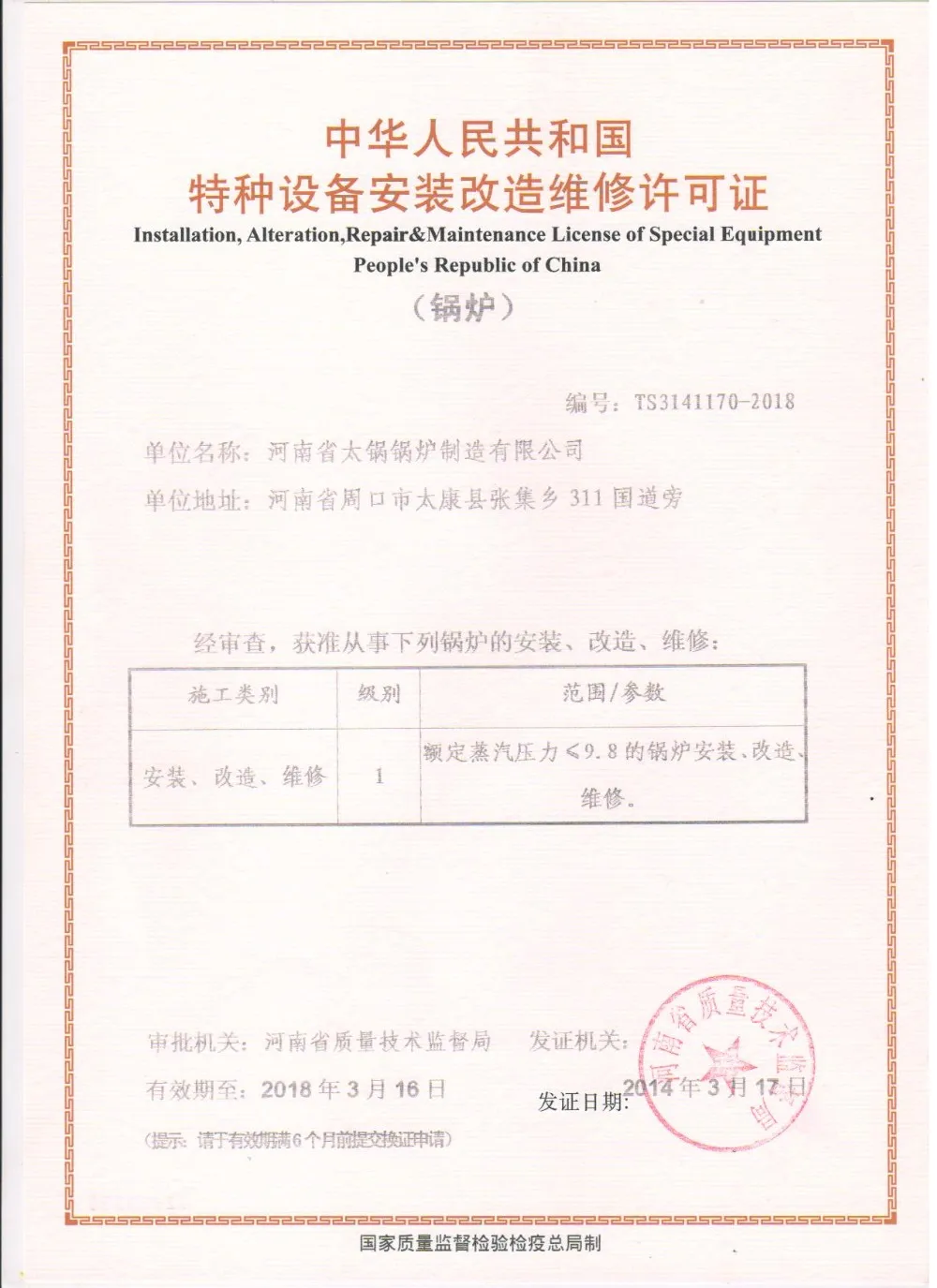

Certifications

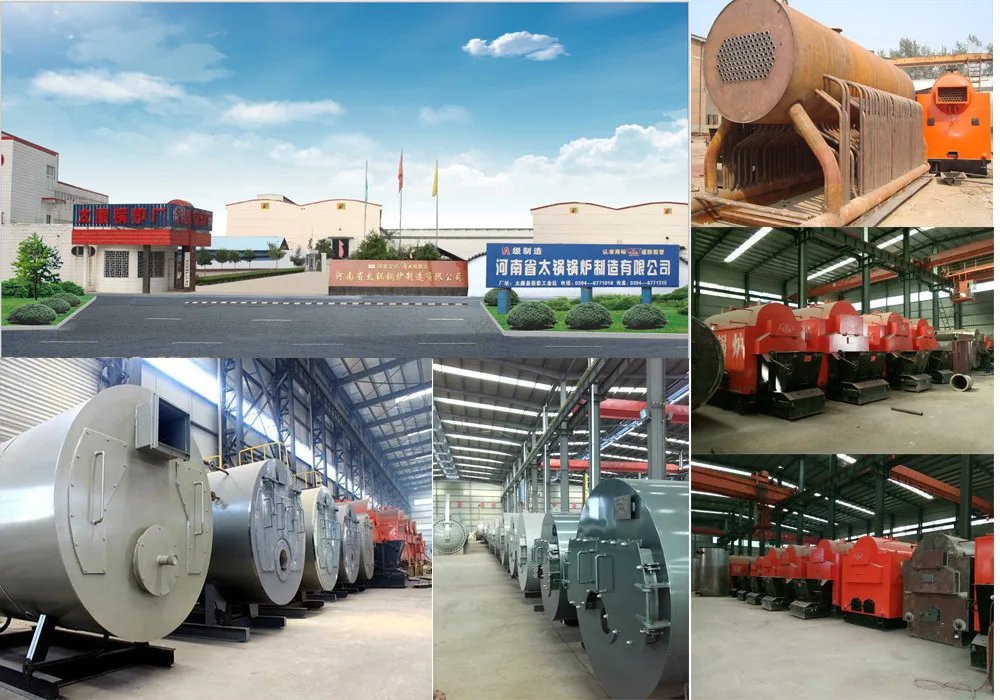

Our Company

 TAIGUO founded since 1976 as the Chinese government appointed Grade A Quality Leading Boiler Manufacturer in China;
Factory area 40000 square meter, total building area 80000 square meters.
Company team: Total about 277 staffs. Chairman 1, CEO 1, Senior Engineer 5, Intermediate Engineers 15, Front-line Staffs 150, Sales 75, After-sale service team 30 (Quality tracking 5, Delivery 5, Installation 20).
Our study team has close relation with the most Chinese famous study institutes
Third party inspection report to reconfirm the final quality: by Zhoukou Institute of Special Equipment Inspection & Technical Research (China official).

Contact us

FAQ:

1 Q:Are you a factory or trading company?
A:We are a factory of 39 years history.
2 Q:Why we choose you? Show your advantage.
A: 1. Chinese Famous Brand
2. Super High Quality, Competitive Price
3.Fast Delivery ,Big Production Ability
3 Q:What is your Warranty and After-sale Service
A:Warranty: 2 year for main body,1 years for parts.
After-sale service:professional engineer for guiding the installation, opertation and maintenance.

Dear friend:

Thank u for your time.

Pls confirm thoese questions to get our steam boiler quotation:

1,which kind of boiler u want?steam boiler or hot water boiler

2, The fuel ,capacity,working pressure and the destination port.

Contact person:Monica wang

Tel/wechat/what'app:+86 13213246599

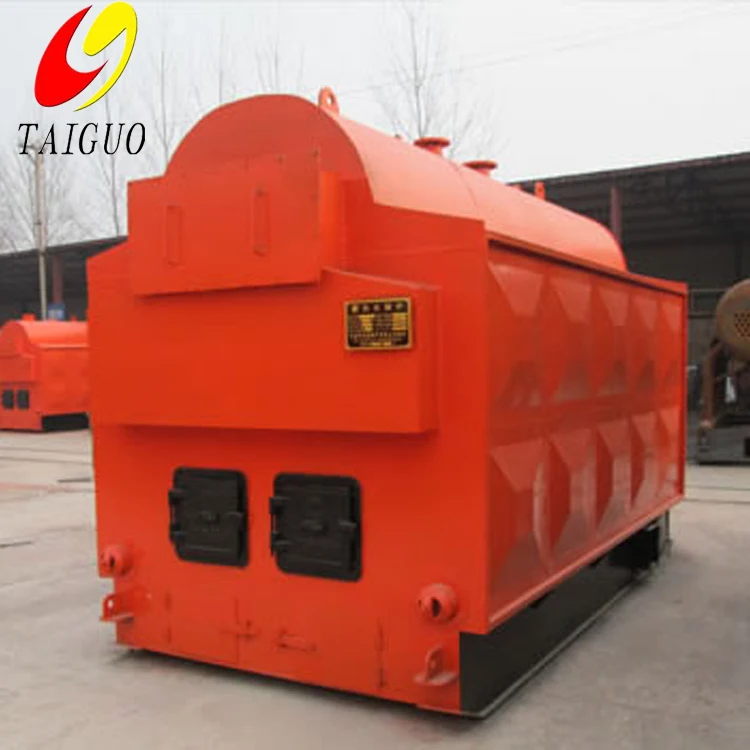

Recommend Products
