Product Overview
Description
Product Description
1. The WAS5100 product is designed for granular crops such as grain and oil. It uses a unique side-mixing sample device. The sample tray is designed with half-loading and half-mixing. The results of one-loading measurement are more repeatable than the same type. Up-and-down products of up or down are increased by 2-3 times. 2. TheWAS5100 integrates the side-mixing sample device with the calibration device. The reference, standard and sample can be collected under one rotation condition, which reduces the influence of ambient temperature and vibration and other conditions on the spectral stability. The measurement results were improved by 1-2 times in many days. 3. The WAS5100 adopts a one-button acquisition mode. After the trigger, the instrument runs automatically. Without user intervention, the output is directly displayed on the screen, which reduces the difficulty for users. 4, the instrument supports WIFI connection, can carry out remote maintenance and remote upgrade and other functions 5, the appearance of a new clamshell screen design, angle can be adjusted to facilitate the perspective of a variety of scenarios.

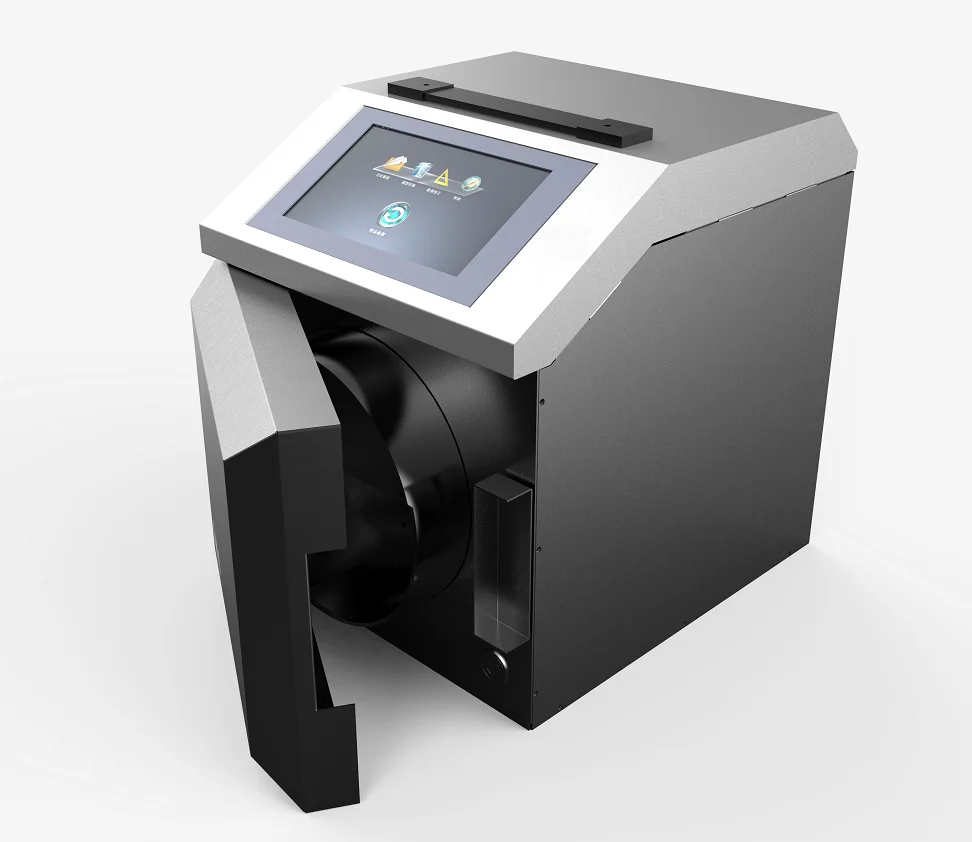

The WAS-5100 portable grain analyzer is a detection device based on near-infrared spectroscopy. The unique rotary sample measuring device can effectively measure granular samples such as soybean, rapeseed, wheat, corn and peanut. , barley, rice, sesame and so on. The device supports one-button operation and is convenient and quick. The instrument has built-in automatic calibration device to ensure the stability and consistency of the device.
Instrument characteristics:
Unique rotary mixing device to solve the physical interference of the sample;
Small size, light weight and easy to carry;
The instrument has good stability and high signal to noise ratio;
The instrument has good consistency and the model is convenient to transfer;
Software and model one-click upgrade;
Support WiFi connection and remote assistance;
Instrument characteristics:
Unique rotary mixing device to solve the physical interference of the sample;
Small size, light weight and easy to carry;
The instrument has good stability and high signal to noise ratio;
The instrument has good consistency and the model is convenient to transfer;
Software and model one-click upgrade;
Support WiFi connection and remote assistance;
Measuring object | Grain, rapeseed, etc. | weight | <10kg |
Measurement item | Protein, oil, moisture, ash, etc. | powered by | 24V/3A |
measure time | <3min | External interface | USB |
Sample capacity | 350mL | monitor | 7 inch industrial touch screen |
Principle of splitting | MEMS micromirror + grating | Power consumption | 25W (average) |
Core detector | Single-point indium gallium arsenide detector | Instrument operating temperature | 5°C-45°C |
Wavelength range | 950-1650nm | Instrument working relative humidity | <75% |
size | L279mm×W338mm×H291mm | Instrument storage temperature | -40°C-+60°C |
The internet | WIFI external wireless network card |
