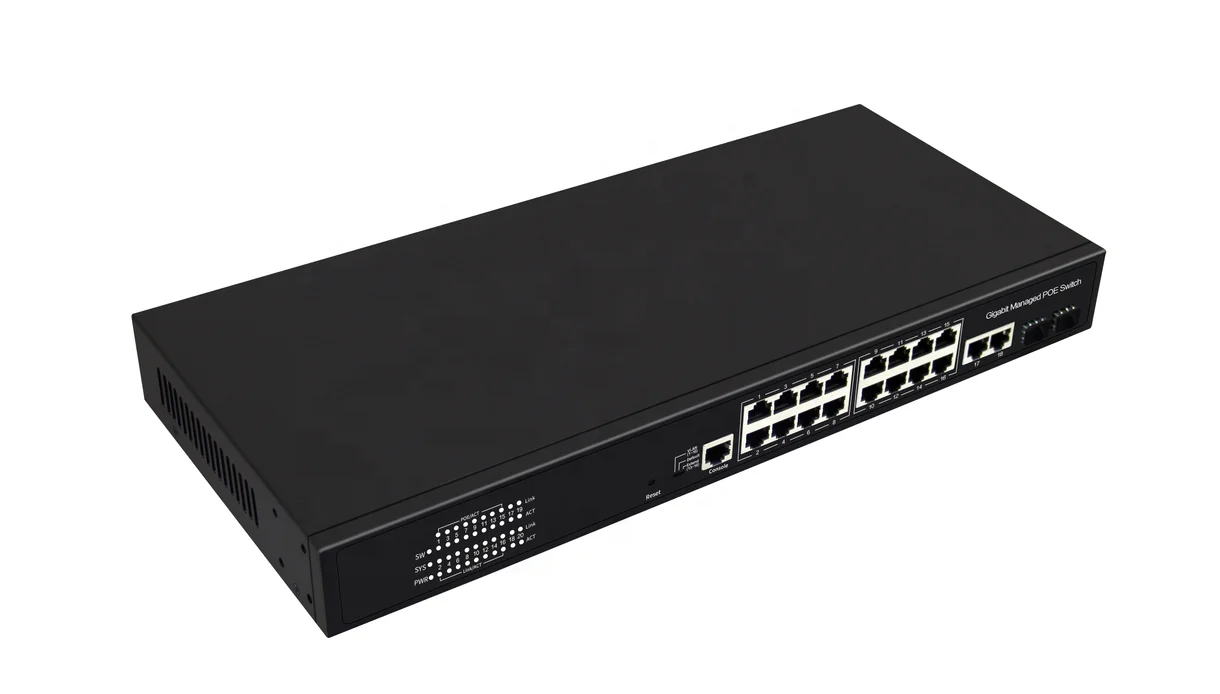

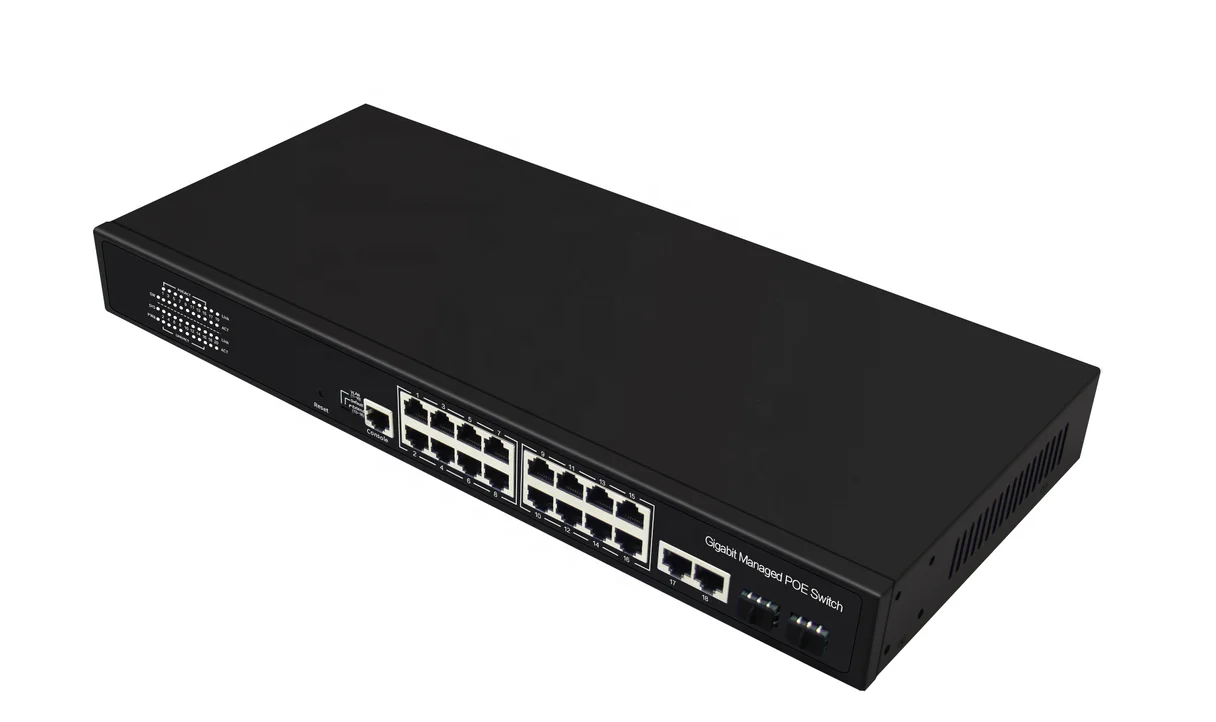

OEM 16 Port Gigabit 300W CCTV Network Ethernet managed PoE Switch 48V 10/100/1000M 2 Port GE Combo Console Port

Product Name

16 Port Gigabit Managed POE Switch

Product Model

ZX-AFGM-1622S

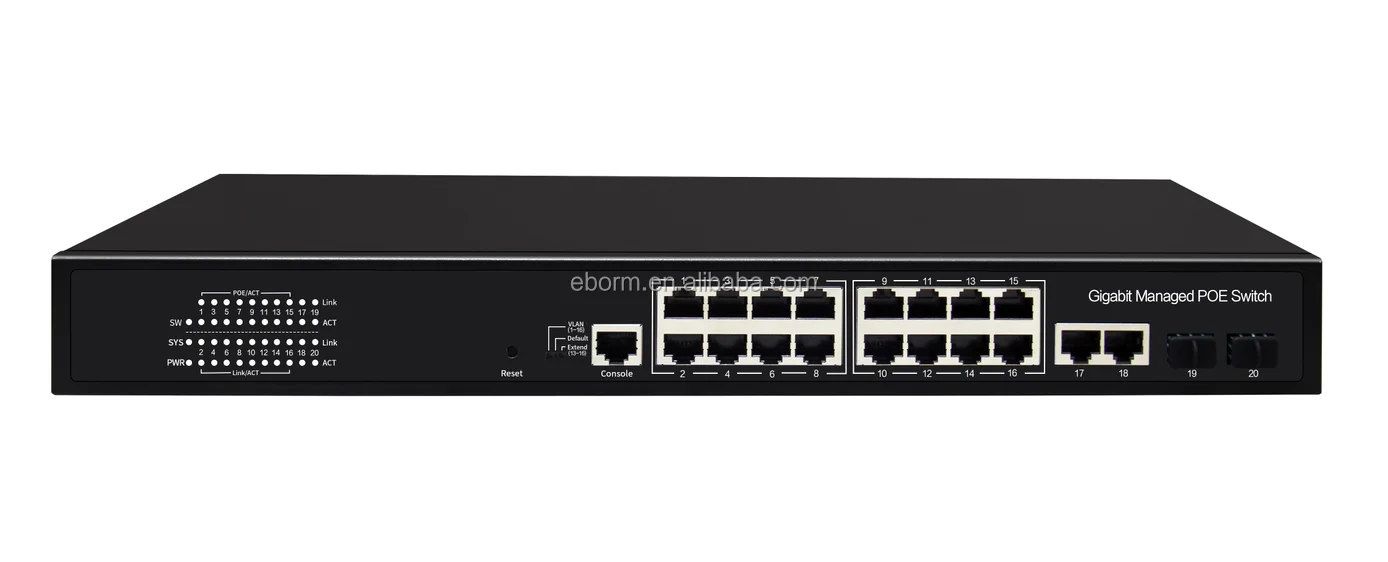

Interface

16*10/100/1000M PoE Ports + 2*10/100/1000M Ethernet Uplink Ports + 2*Gigabit SFP Uplink Ports + 1*Console Port

Network Protocols

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

IEEE 802.3z

IEEE 802.1q

IEEE 802.1p

PoE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

POE port output: DC52V

Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)

Port Lightning Protection

General Mode 6KV,

Differential Mode 4KV,

ESD 15KV.

Network Transmission Medium

10BASE-T: Cat3, 4, 5 UTP (≤ 100 m)

100BASE-TX: UTP (≤100 m) above Cat5

1000BASE-TX: UTP (≤100 m) above Cat5

Optical

Multimode fiber: 1310nm, 2Km

Single mode fiber: 1310nm, 20/40 Km

                     1550nm, 60/80/100/120Km

Reset

Short press restart, long press 5 seconds to restore factory Settings

DIP Function

VLAN: 1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software).

Default: all ports can communicate with each other, PoE Watchdog is closed

Extend: 13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software).

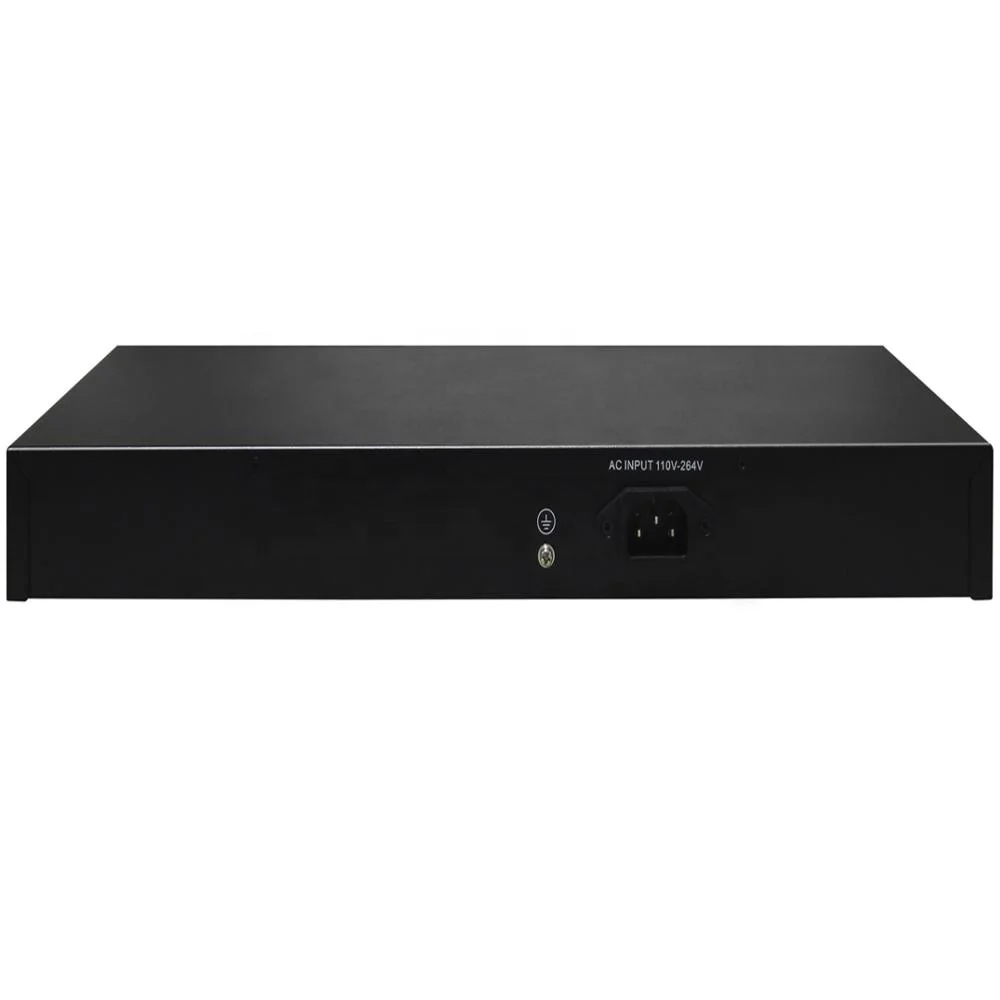

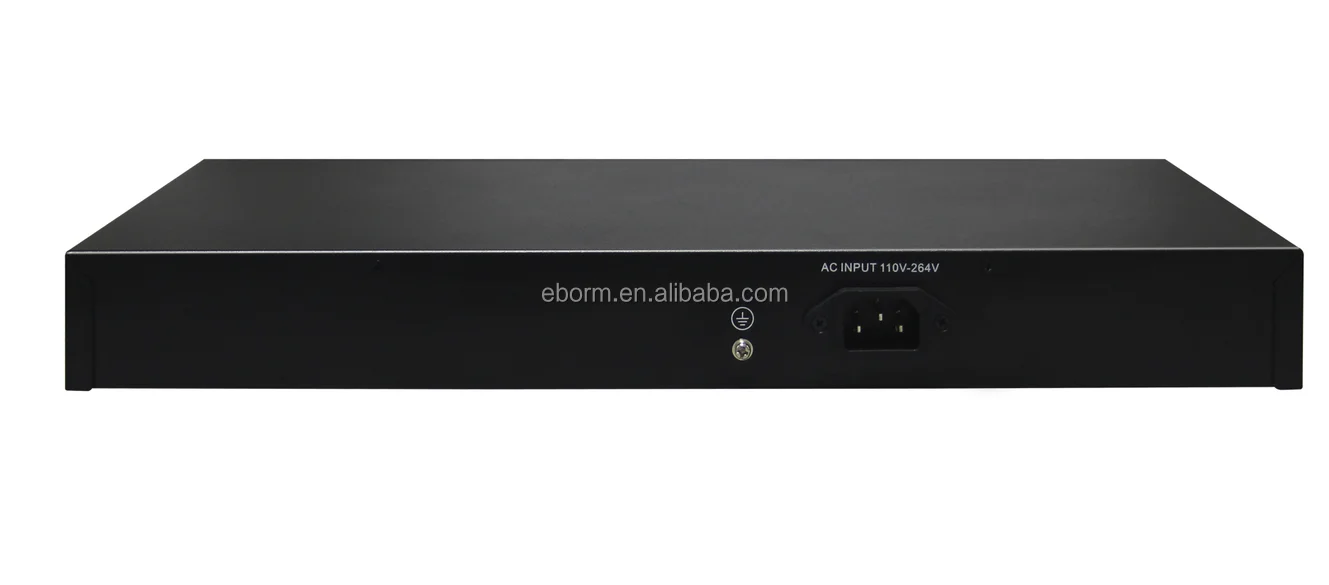

Power Supply

Machine input voltage: AC100-240V;

Output: DC52V5.76A

Total power: 300W

Physical Dimension

Product size (L×W×H): 410mm×185mm×44.5mm

Package size (L×W×H): 468mm×274mm×81mm

Product weight: 2.3kg

Package weight: 2.9 kg

Working Environment

Operating Temperature:-20° ~ 55 ° C;

Storage Temperature: -40 ° ~ 85 ° C;

Operating Humidity: 10% ~ 95%, non-condensing

Working height: up to 10,000 feet (3,000 meters)

Storage height: up to 10,000 feet (3,000 meters)

Certification

CE, FCC,ROHS,3C
