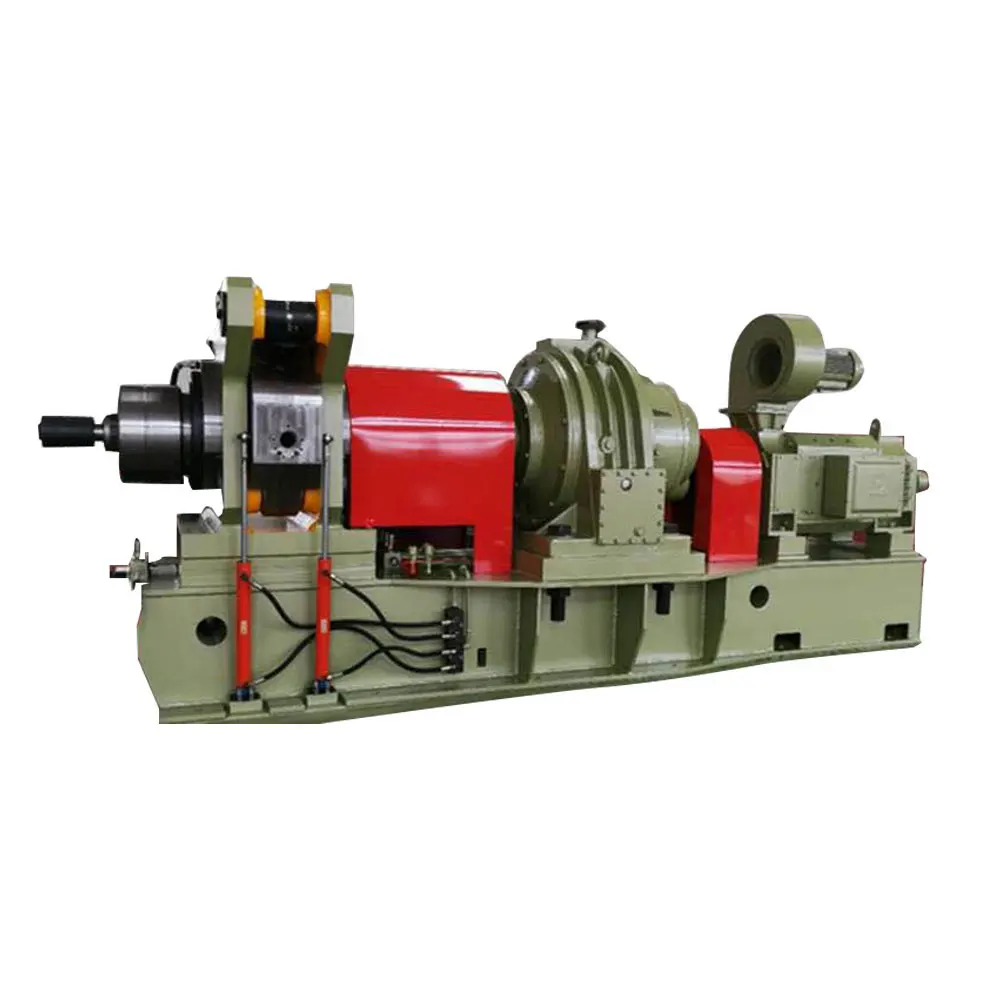

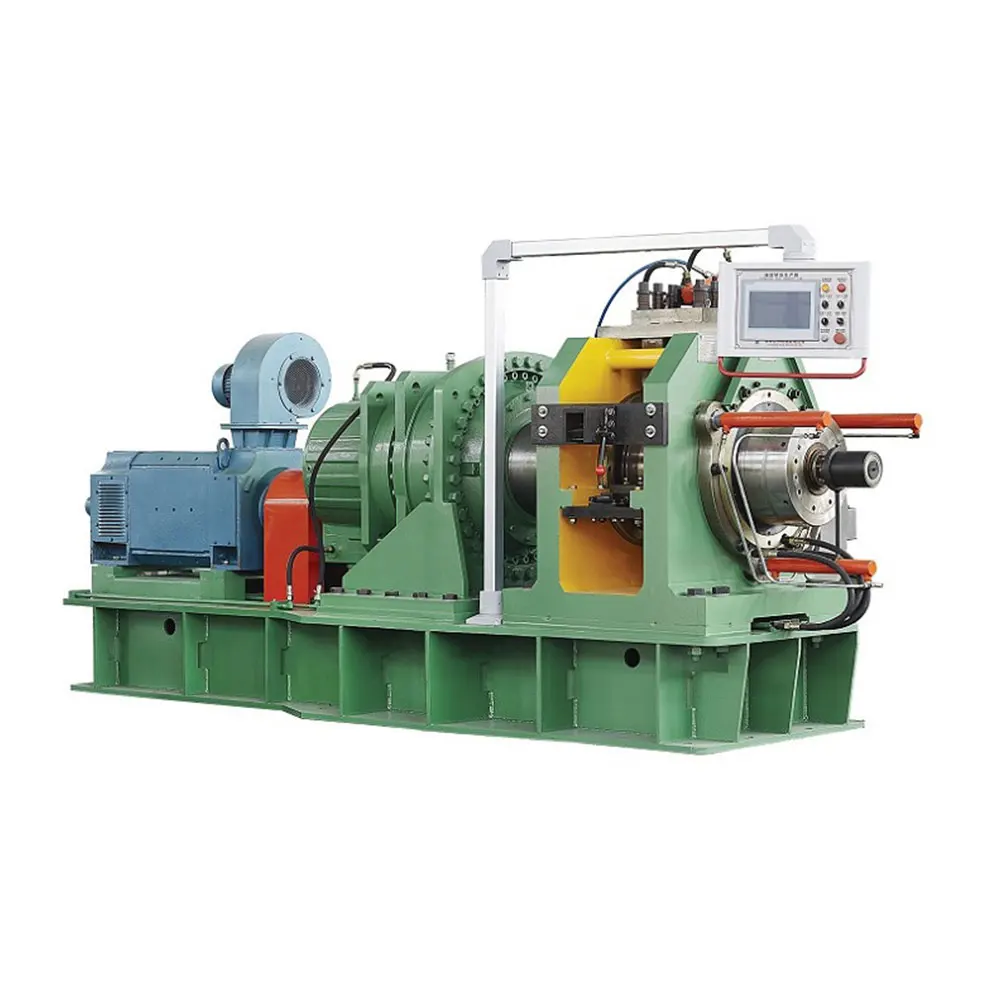

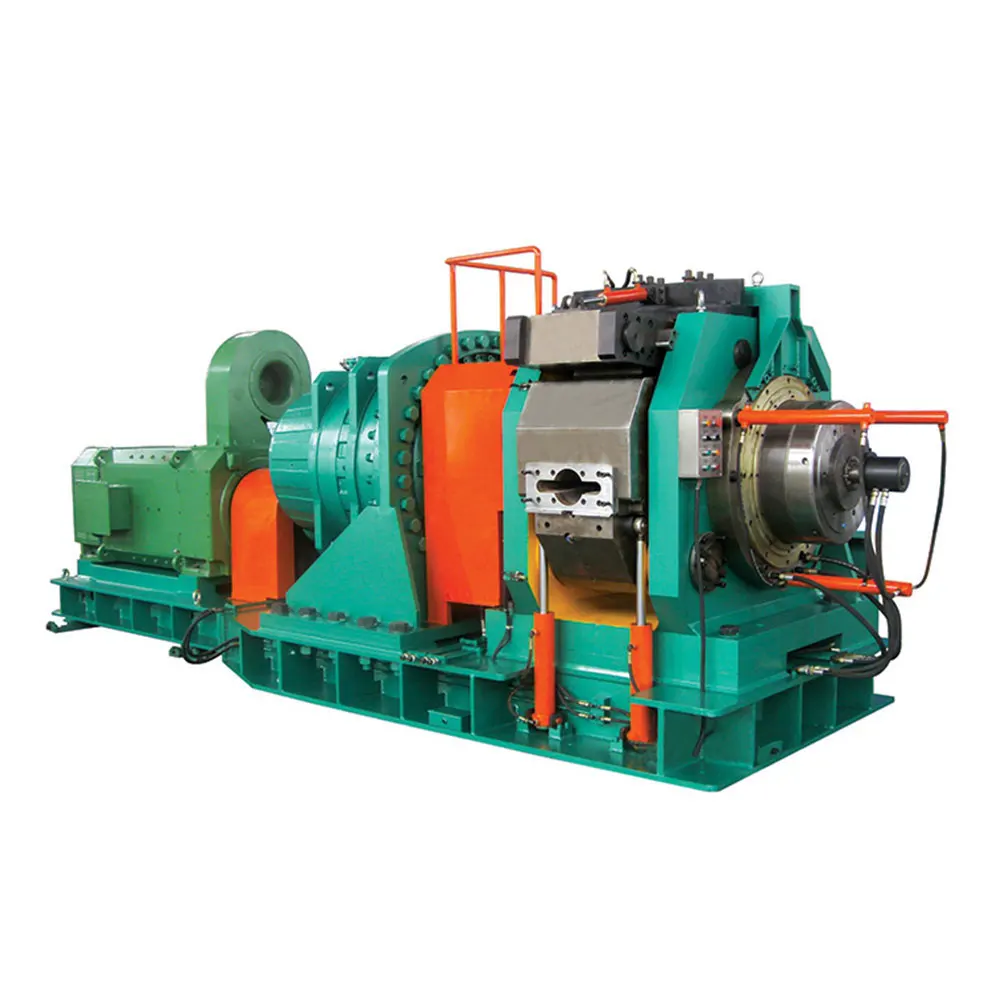

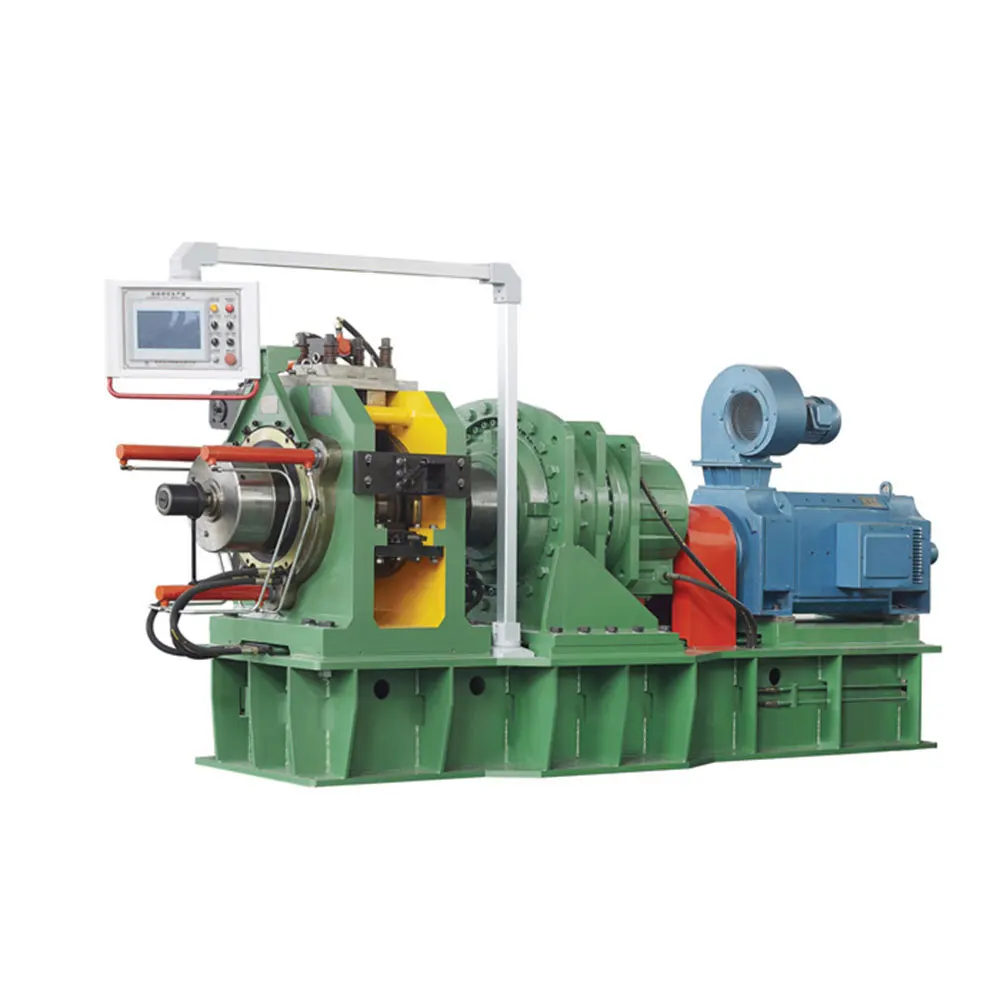

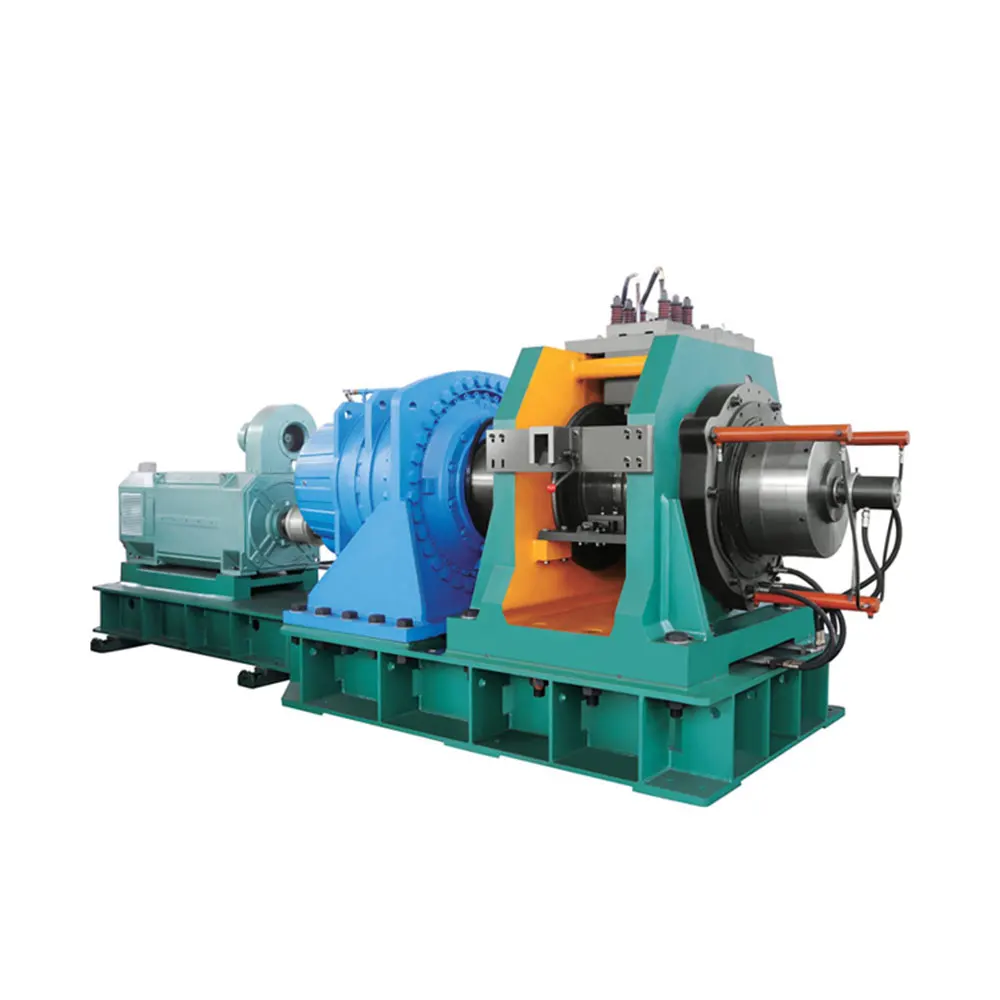

aluminum/Copper rod continuous extrusion line

Product Overview

Description

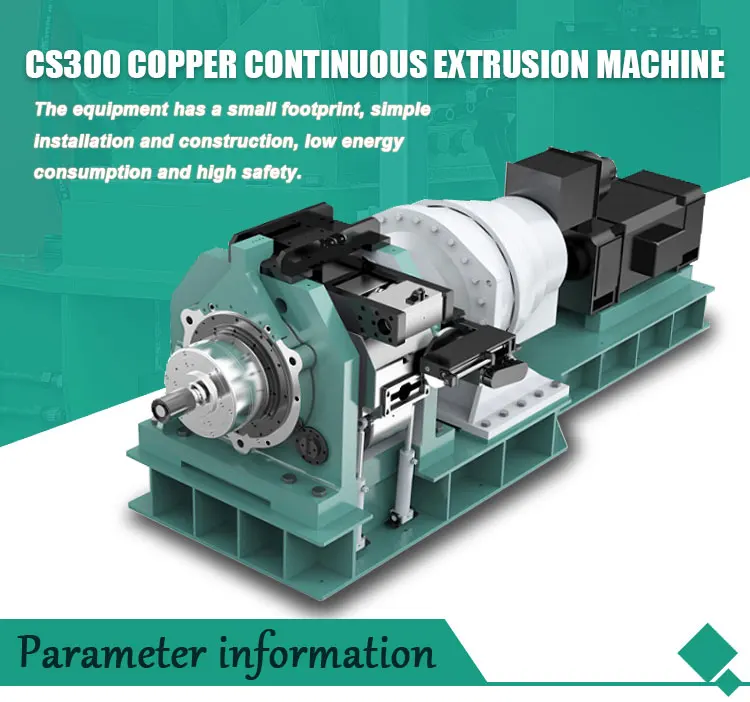

Copper Continuous Extrusion Machine
Main Functional Unit: Continuous Extrusion Machine	Model	300
	Nominal Diameter of Extrusion Wheel	300 mm
	Rated Rotation Speed	11 RPM
	Power of Main Motor	90kW/1000 RPM
Feed Stock	Copper Rod	Copper Rod
	Diameter Tolerance	±0.2mm
	Yield Strength	160MPa (Oxygen-free Copper Rod Produced by Upward Casting Process)
		Flat Copper Wires
Finish Product : Flat Copper Wires	Sectional Area Range	10-250mm²
	Max. Width	45mm
	Standard	Conforms to GB5585.1-85 standard
Entire Production Line: Copper Wire Production Line	Average Output	200-450kg/h
	Installed Capacity	380V, 3 phase, 115KVA
	Flash Amount	1-3%
Workshop	Minimum Dimension	Length: 30m, Width: 7 m, Height: 4 m
	Cooling Water	40 m³/h (Cooling Tower)
	Compressed Air	0.7 MPa, 1 m³/min



Main features

1, The continuous extrusion equipment is to extrude the copper rod to generate high pressure and high temperature. Through mold extrusion forming, it can adapt to small-batch production of various kinds, and can also adapt to large-batch production.

2, Through the high-pressure and high-temperature treatment, the influence of defects (cracks, burr and so on) existing in the raw material on the finished products can be eliminated.

3, To increase the density. The finished products are extruded at high temperature and high pressure, so that the surface is bright and clean, and the dimensional precision is high.

4, The product does not require annealing, and the hardness shall be uniform. The extrusion process can thoroughly eliminate the problem of raw material joint, and the length of the required product is not subject to the restriction of the length of the raw material.

5,  The floor area of the extrusion equipment is small, the installation and construction are simple, the energy consumption is low, and the labor intensity is low. The safety during the production process is high, and the production environment is clean, which completely meets the environmental protection requirements.

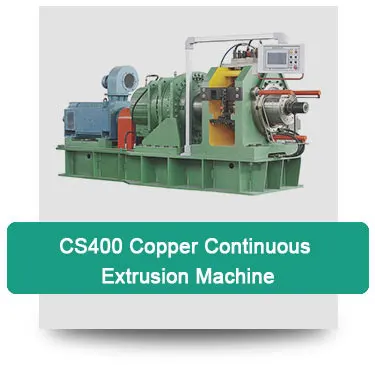

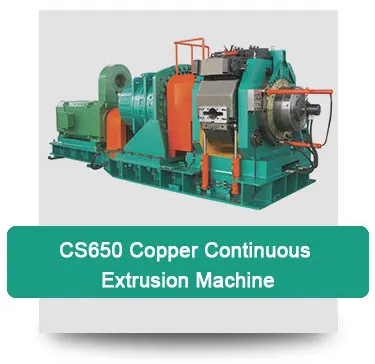

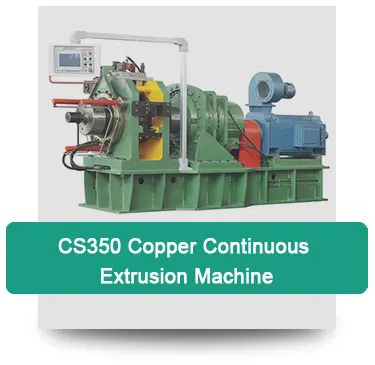

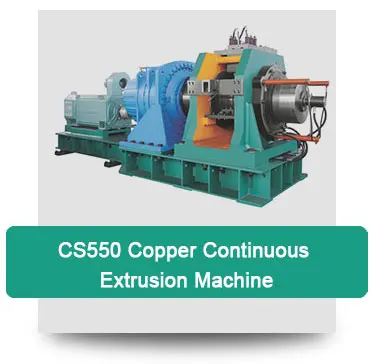

Copper continuous extruder hot models: cs650 copper continuous extruder, cs300 copper continuous extruder, cs350 copper continuous extruder, cs400 copper continuous extruder, cs550 copper continuous extruder





 Continuous extruder has a variety of models, divided into copper extruder and aluminum extruder and brass extruder, at the same time, we sell a variety of extruder parts









1. What brand of electrical appliances do you use? Can we specify a brand?

  In the electrical part, we mostly use Schneider and Siemens, and can accept the brand designated by customers



2. What service can you supply?

  Engineers available to service machinery overseas.



3. What’s the packages?

  The normal package is wooden box. If export to foreign countries,the wooden box will be fumigated or use polywood case.



4. Can you do turn-key project?

  Yes, We have a mature technical team that can do turnkey engineering.



5. What’s the payment terms?

  30% by TT as deposit, 70% by TT or LC at sight vefore delivery.



6. What’s your advantages?

  As a member of the family business, we have a copper production plant. Therefore, we are more familiar with the production process. At the same time, we have professional engineers and can get more direct use feedback. We have a good cooperative relationship with most of the domestic machinery manufacturers, so we can get a better price.



7. What’s the delivery time?

  Usually 60 working days.
