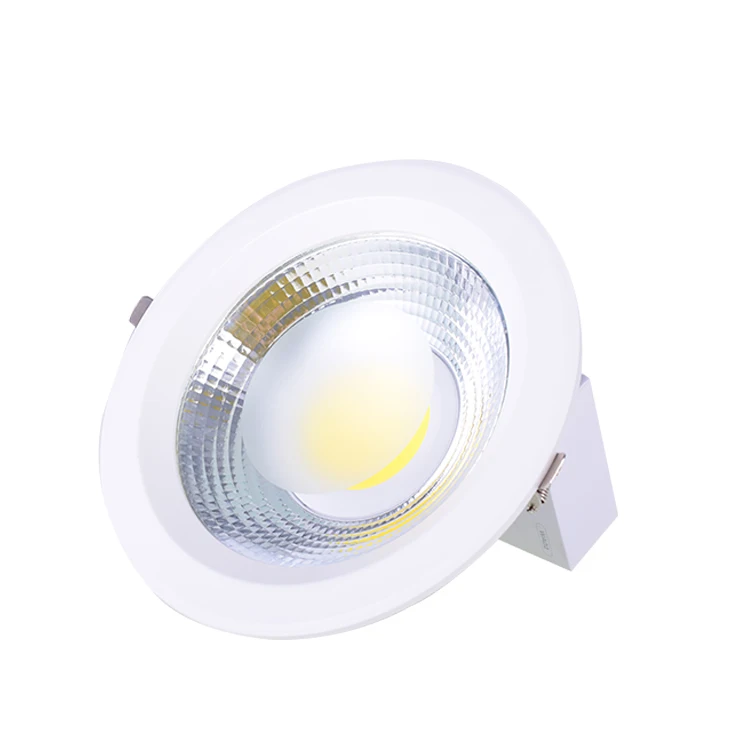

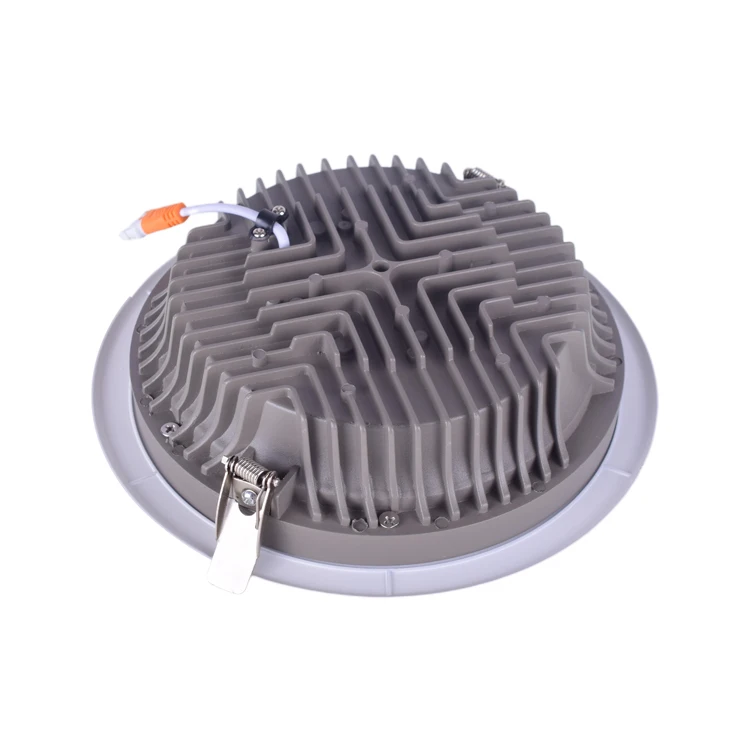

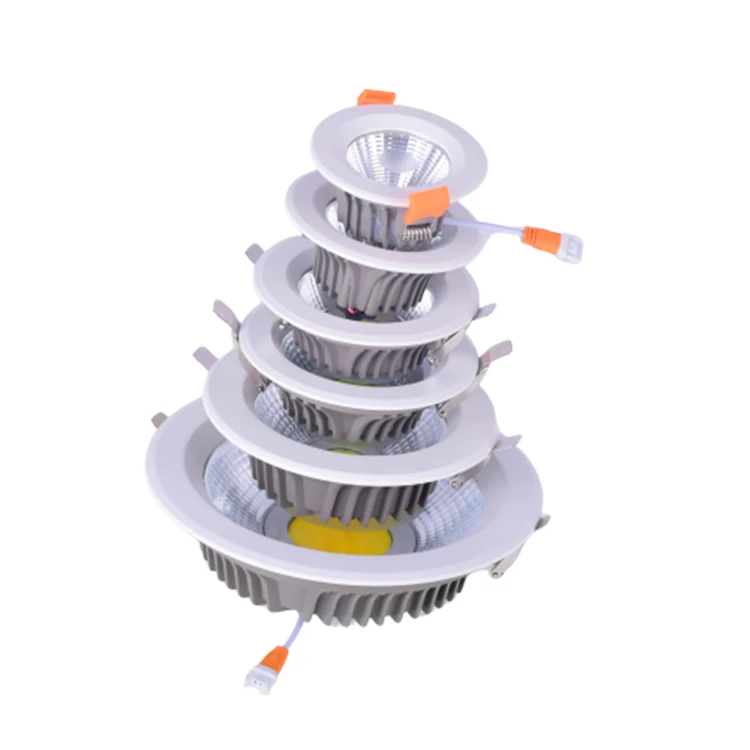

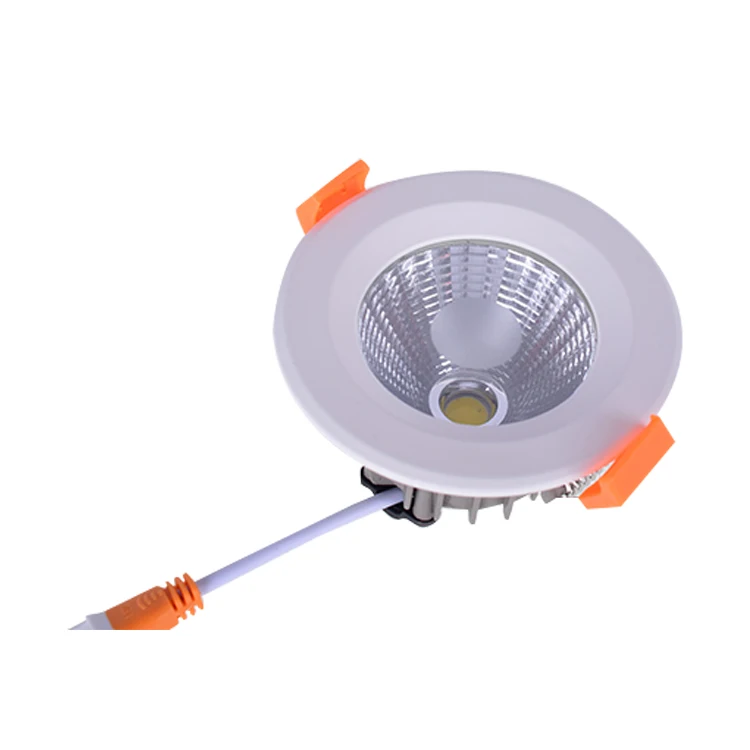

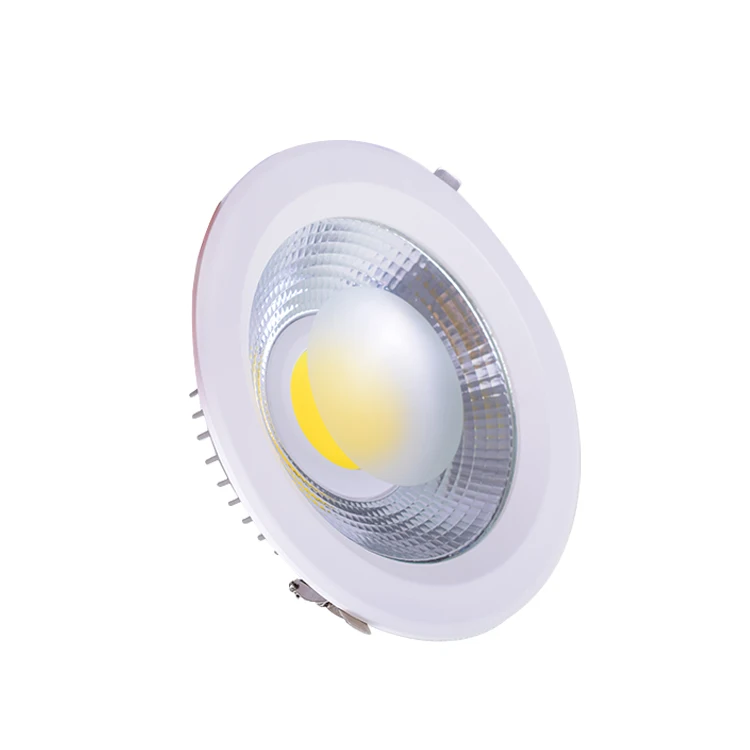

IP44 COB LED Recessed Downlights Dimmable 20W LED Ceiling Lamps Spot Light Office Downlight 83mm Cutout
IP44 COB LED Recessed Downlights Dimmable 20W LED Ceiling Lamps Spot Light Office Downlight 83mm Cutout
- Category: Downlights >>>
- Supplier: Zhongshan Guzhen Boyu Lighting Electronics Factory
Share on (62393376521):
Product Overview
Description
IP44 COB LED Recessed Downlights Dimmable 20W LED Ceiling Lamps Spot Light Office Downlight 83mm Cutout
Product Description
Cob Led Downlight
| DATASHEET | |||||||
| Information | Model No. | BY-X1-5W | BY-X1-7W | BY-X1-10W | BY-X1-15W | BY-X1-20W | BY-X1-30W |
| Light source | COB | ||||||
| Electrical Information | Power(W) | 5/7/10/15/20/30w | |||||
| Voltage | AC100-277V 50-60Hz | ||||||
| Driver efficiency | >90% | ||||||
| Power factor | 0.95 | ||||||
| Optical Information | Luminous flux(lm) | 500 | 700 | 1000 | 1500 | 2000 | 3000 |
| Luminous efficacy(lm/w) | 100LM/W | 100LM/W | 100LM/W | 100LM/W | 100LM/W | 100LM/W | |
| Opening Dimension | 70mm | 85mm | 105mm | 140mm | 165mm | 200mm | |
| CRI | >80 | ||||||
| Color temperature | 3000k/4000k/6500k | ||||||
| Beam angle | 120° | ||||||
| Mechanical Information | Housing material | Aluminum+ PC | |||||
| Lens material | optical PC | ||||||
| Ambient temperature | -30℃~50℃ | ||||||
| IP Rating | IP44 | ||||||
| Packaging Information | Product size(MM) | 90*42mm | 90*42mm | 130*60mm | 165*60mm | 190*60mm | 220*73mm |
| Opening Dimension | 75mm | 75mm | 110mm | 140mm | 170mm | 200mm | |
| Packaging size(CM) | 100*52mm | 100*52mm | 140*70mm | 175*70mm | 200*70mm | 230*83mm | |
| N.W. about(KG) | 0.168 | 0.17 | 0.31 | 0.40 | 0.53 | 0.7 | |
| G.W. about(KG) | 0.21 | 0.215 | 0.4 | 0.52 | 0.61 | 0.8 | |
Installation Diagram:
