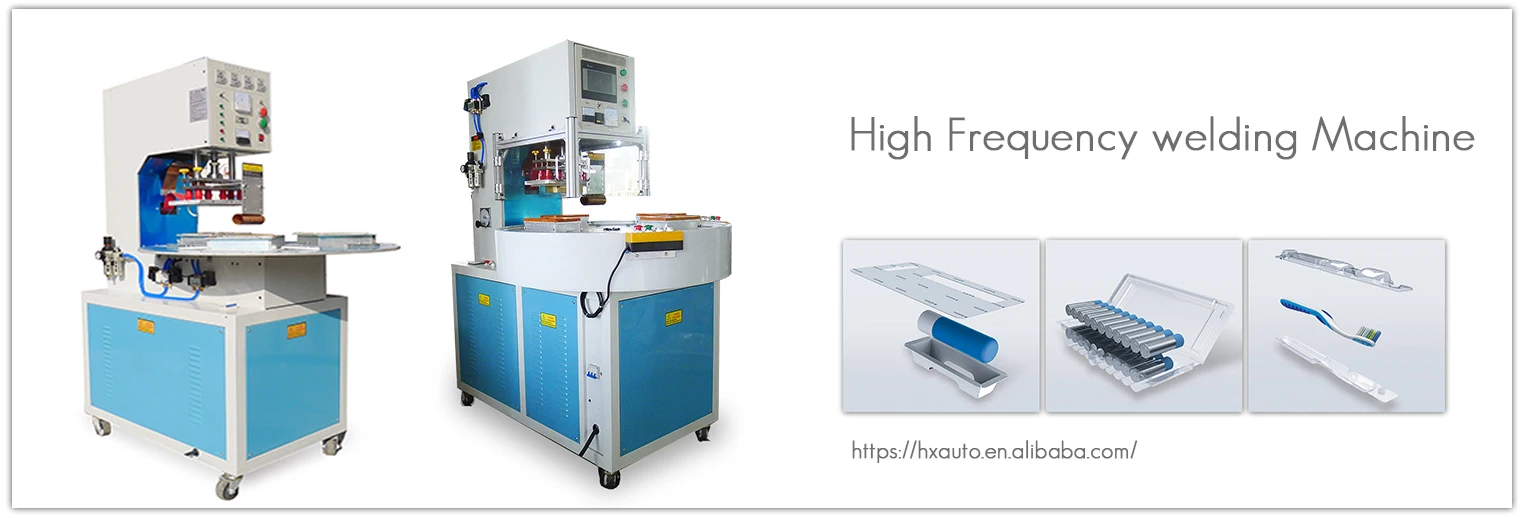

High frequency welding Sealing machine for plastic/blister/card packing
- Category: Blister Packaging Machines >>>
- Supplier: Shenzhen Huaxiang Mechanical Equipment Co. Ltd.
Share on (62393393472):
Product Overview
Description
Parameter
| Model | HX-5K | HX-8K | HX-10K |
| Output Power(KW) | 5 | 8 | 10 |
| Input Power(KVA) | 8 | 15 | 18 |
| Oscillation Tube | 7T85RB | 7T69RB | E3069RB |
| Sealing Force(T) | 5 | 10 | 10 |
| Stroke Adjustment(mm) | 100 | 100 | 100 |
| The size of upper electrode(mm) | 200*350 | 300*500 | 300*500 |
| The size of lower electrode(mm) | 300*500 | 300*500 | 300*500 |
| Rectifier | Silicon Diode | ||
| Gap of electrodes(mm) | 200 | ||
| Voltage | 50/60HZ AC380V 3P | ||
| Speed(scecond) | 1-10 | ||
| Capacity(per/h) | <360 | ||
| Frequency(MHZ) | 27.12MHZ | ||
| PLC Control, auto turntable,robot hand can be choose | |||
| PS Customizeable | |||
INFO
Used for APET,PETG,PVC,PET,etc material usage of double blister sealing, blister paper card packing, toothbrush packing, with EVA cloth leather, leather,PU material welding and fusing,also be used in PVC, APET, PETG, PP sheet of soft crease box production line
Features
1. Using vacuum tubes, the output power is stable and reliable.
2. Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
3. Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
4. Infinitely adjustable head trip, special mechanical pedal mechanism maximum pressure up to 400kgs.
5. According processing needs, choose pneumatic pressure way to reduce the intensity of work, enhance the quality of voltage products.
6. Stepless temperature heating system, make work more efficient.

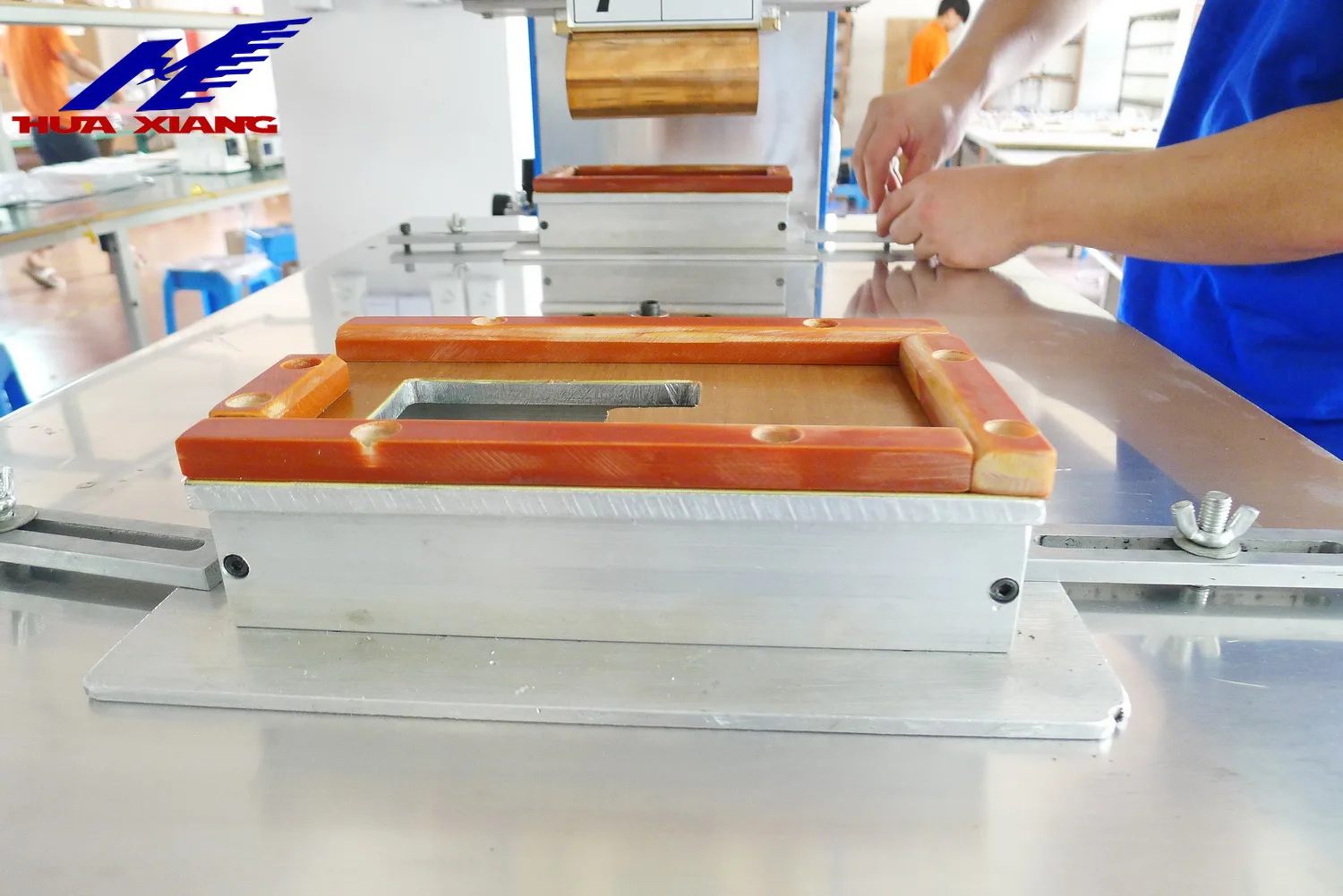

7. The four type horizontal adjustment, easy adjustable die to save time.
8. Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.

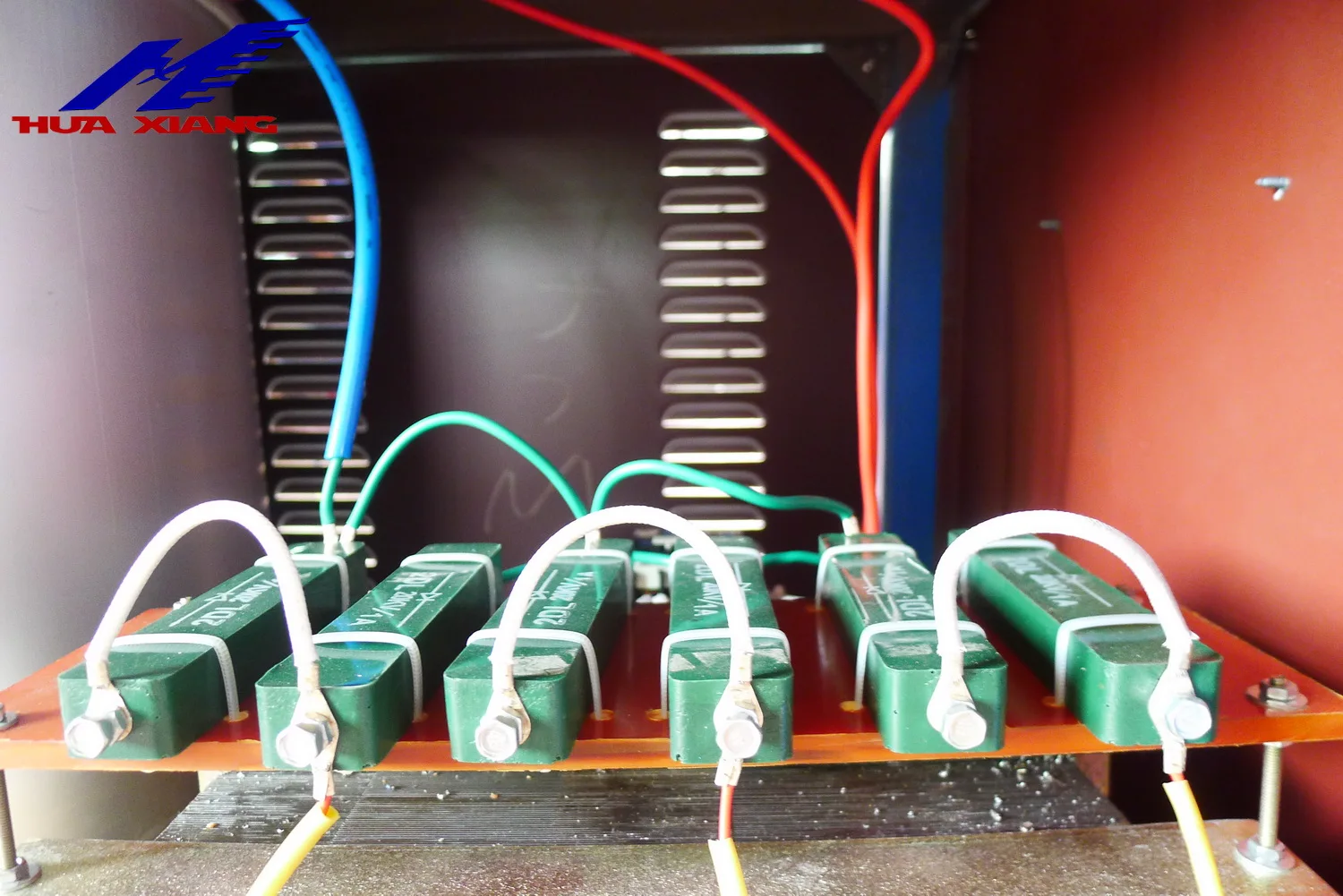

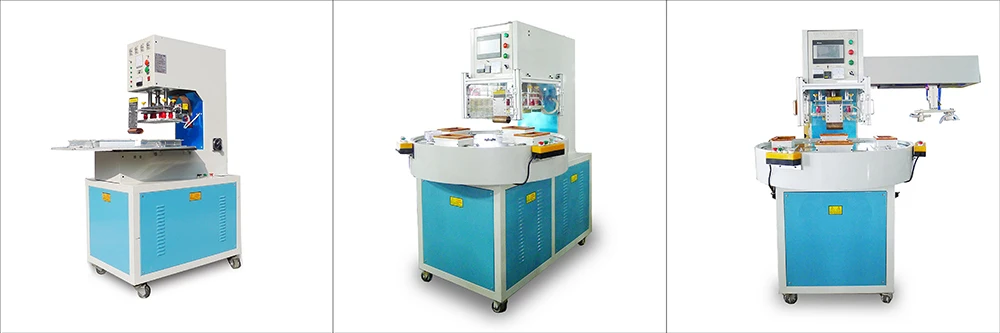

Machine detailed

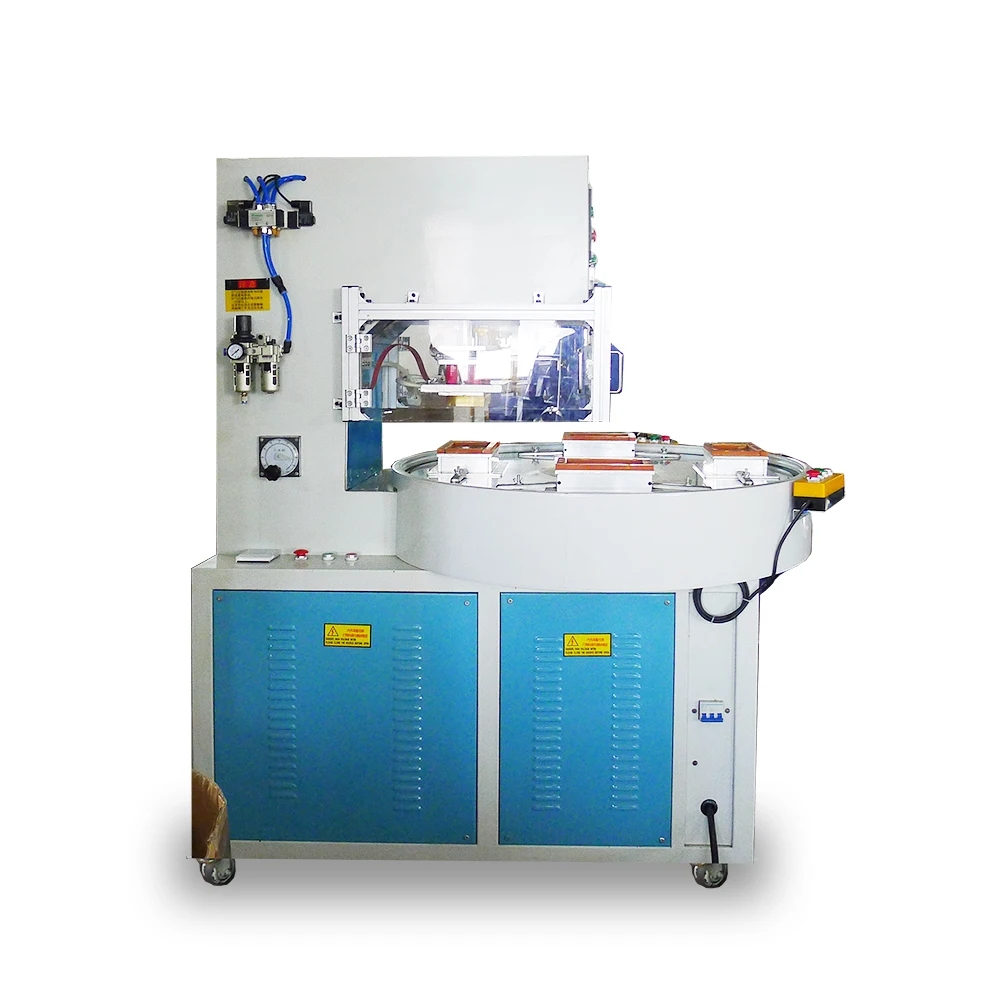

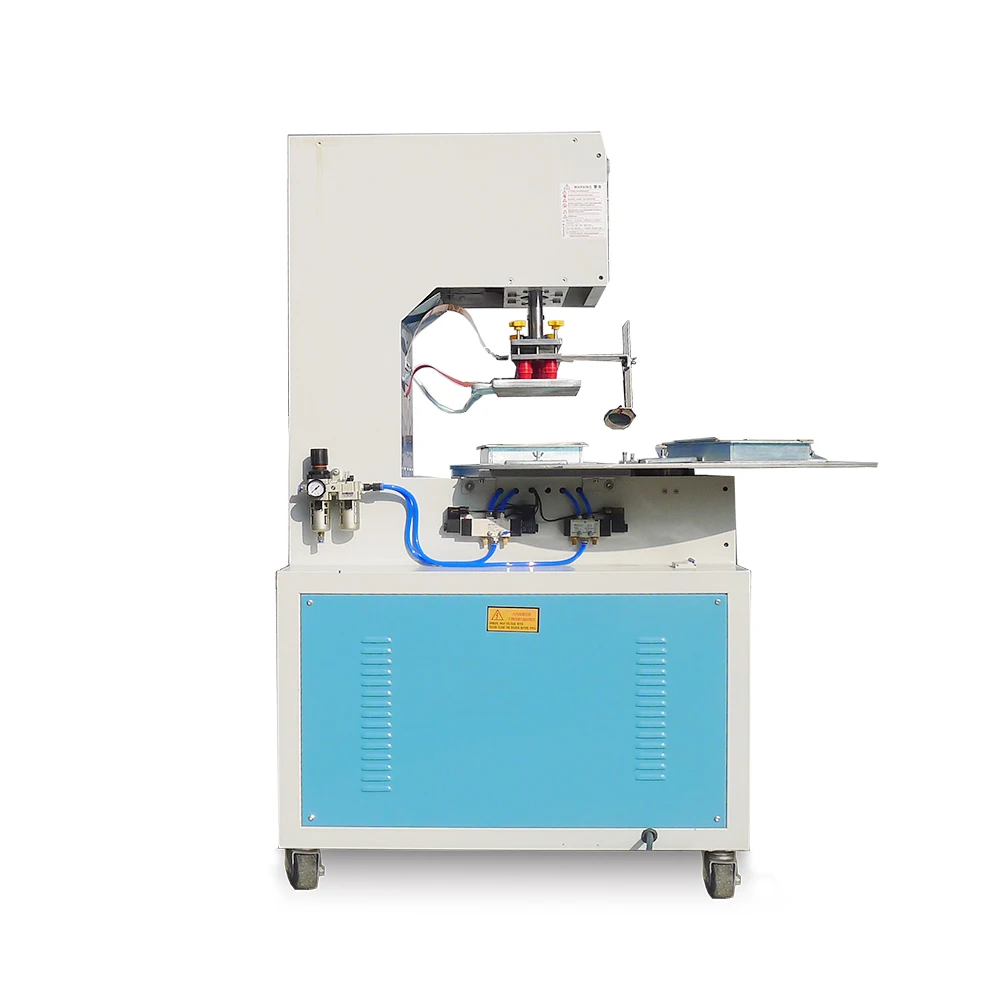

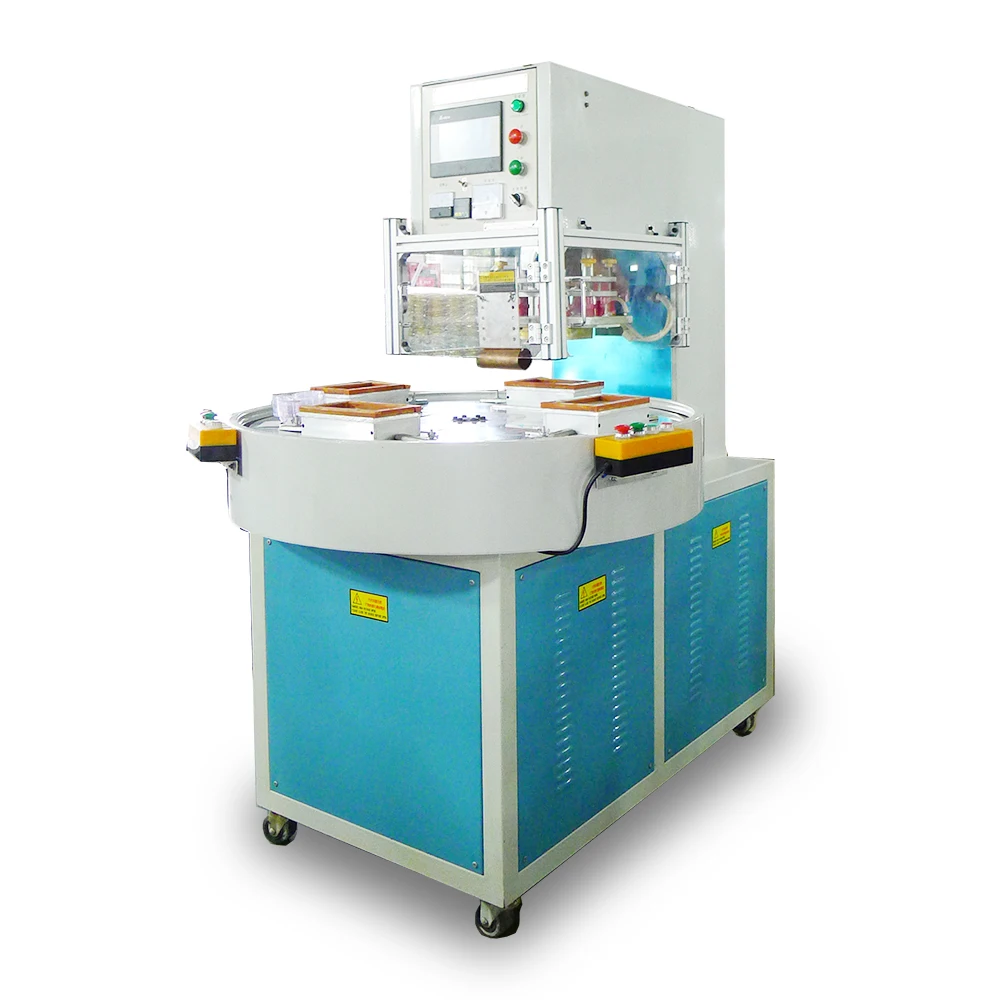

| Manual turntable | Auto turntable | Auto turntable |
| / | PLC control | PLC control |
| / | safety cover | safety cover |
| / | / | Robot hand |

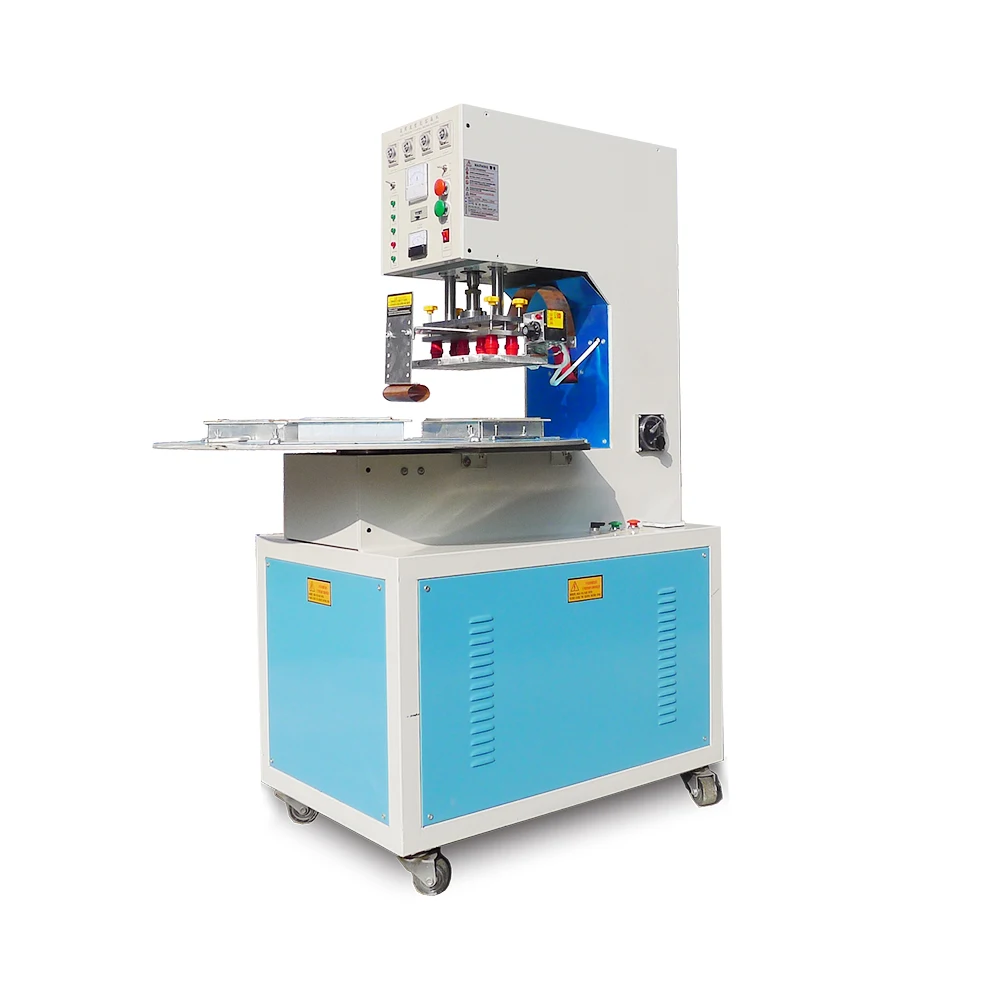

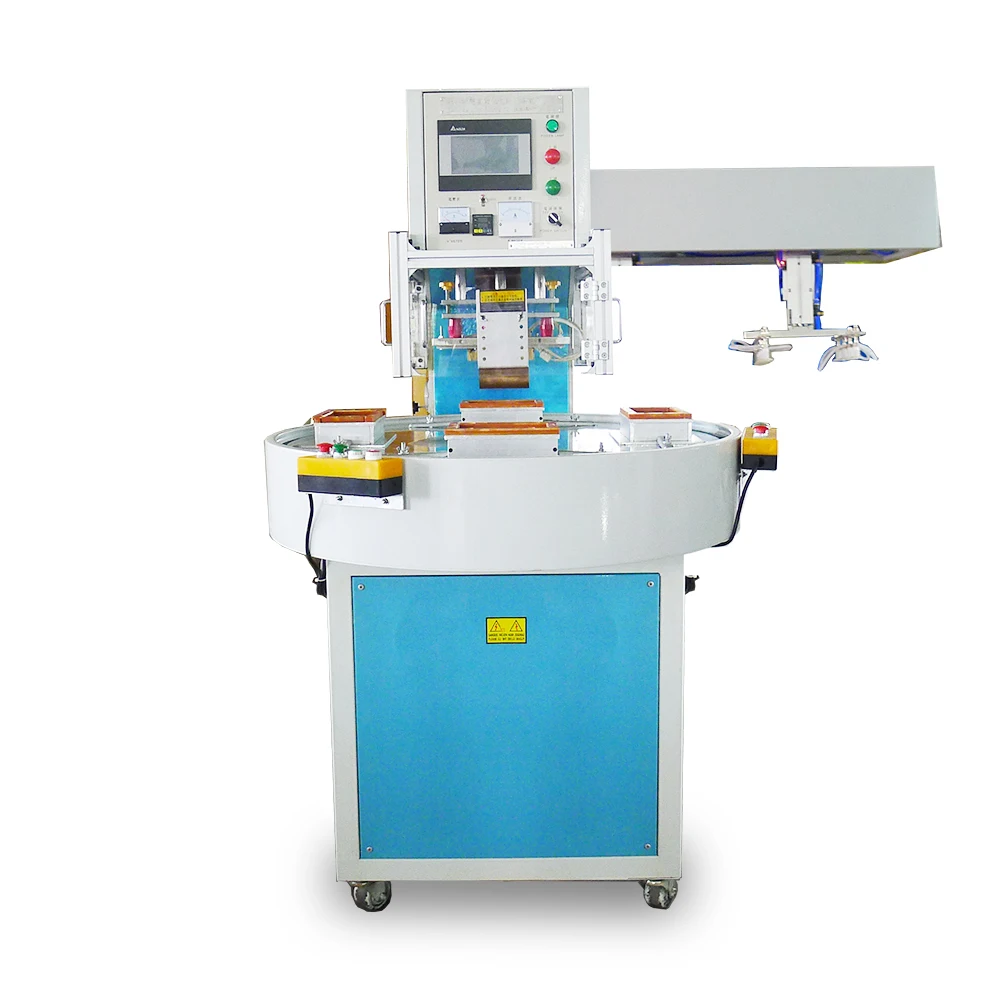

Machine picture

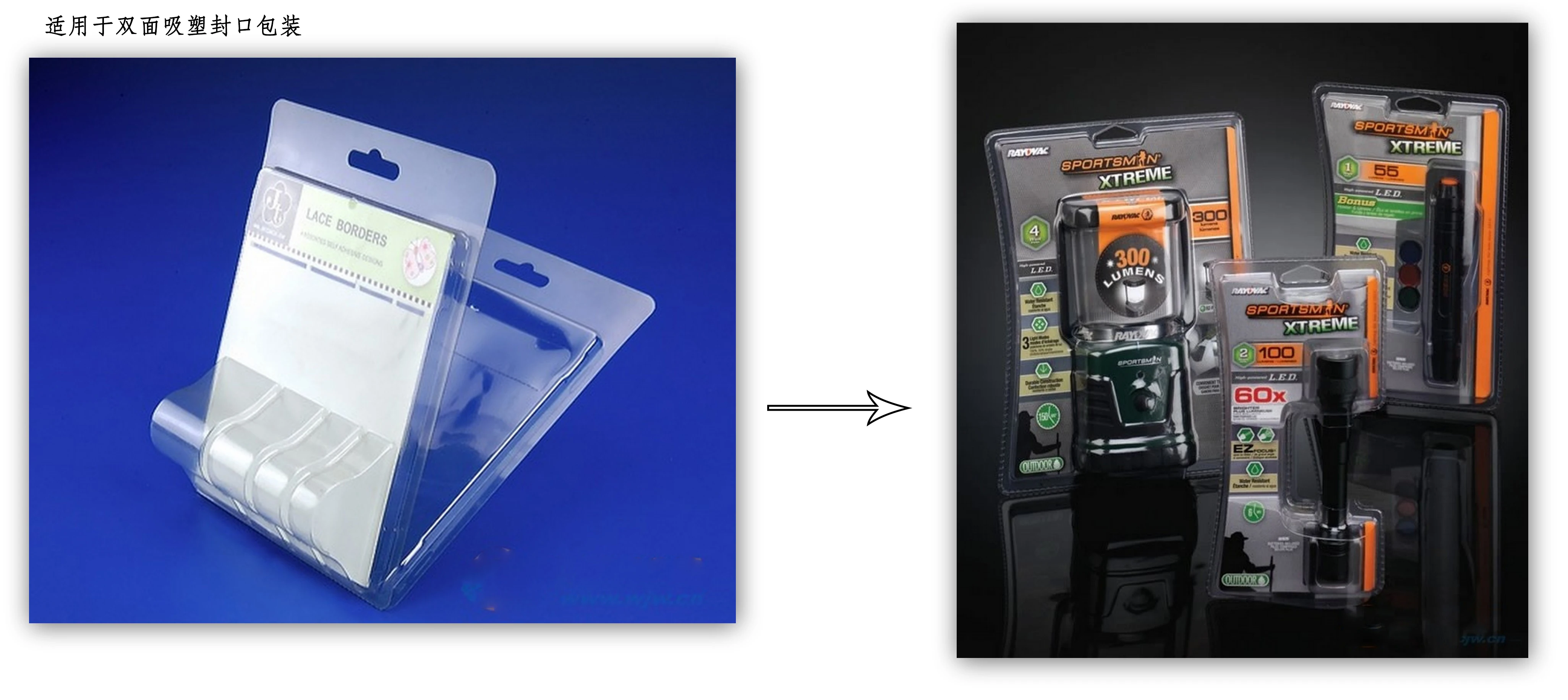

Sample picture
FAQ
1. How can i install the machine and operate it?
Our machine is easy to install and convenient to operate. We will send you English version manual, videos, photos to let you know how to do it. Meanwhile we also support free online service for you. Just tell us what you need and what problems happen. We will give you the best solutions within 24hrs. Also we can provide engineer overseas service.
2. How can you ensure the machine quality?
The accessories in the machine are imported from Japan, German, Korea and so on. Our goal is win the customer with best quality. All our workers in factory has more than 5 years experiences in this field. And we will test and check the machine again before shipped.
3. How can i do if the machine failure?
Welcome to contact us directly if the machine failure, we have professional technology team 24hrs online. We can give you the solutions in the first time to ensure the machine can work again.
4. How about your warranty?
We can provide 12 months free replace accessories. Meanwhile we will provide 2-3 sets free accessories when you purchase the machine. If possible, our engineer can go to overseas for fix your machine.
Leaving an inquiry to know more details about the price,shipment,discount etc.

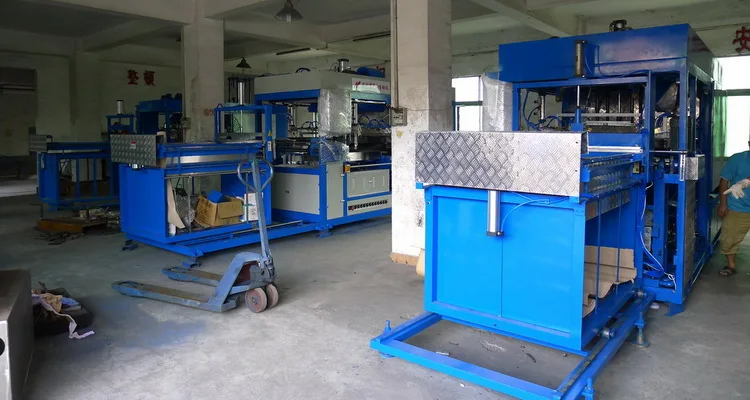

Factory INFO
About us
Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.
Contact
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length Width and thickness?
