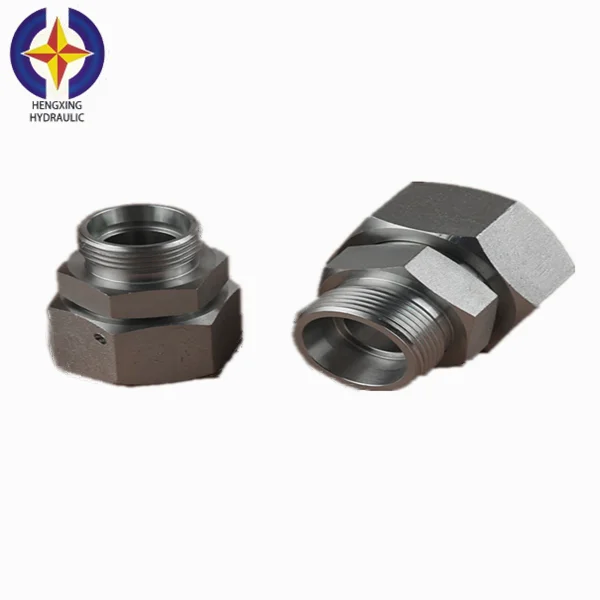

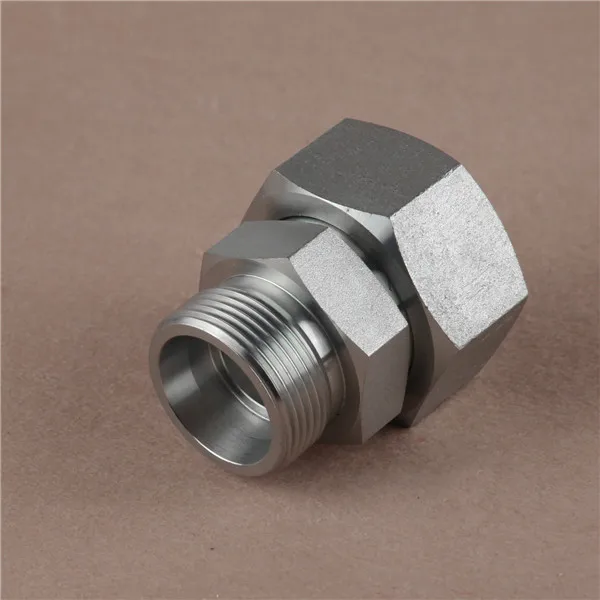

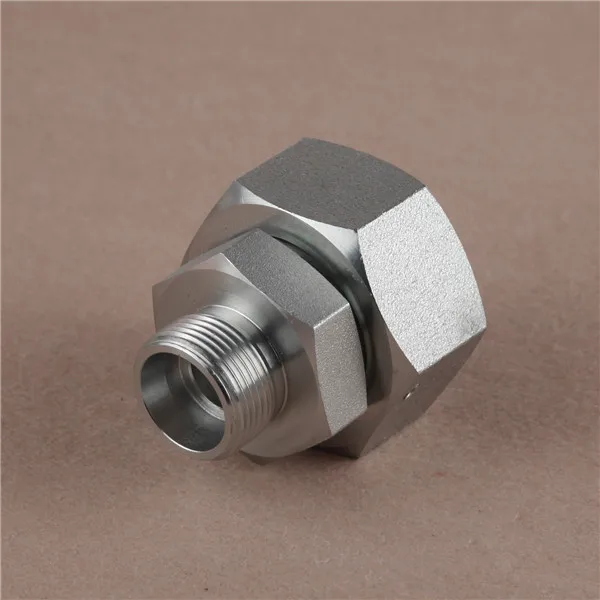

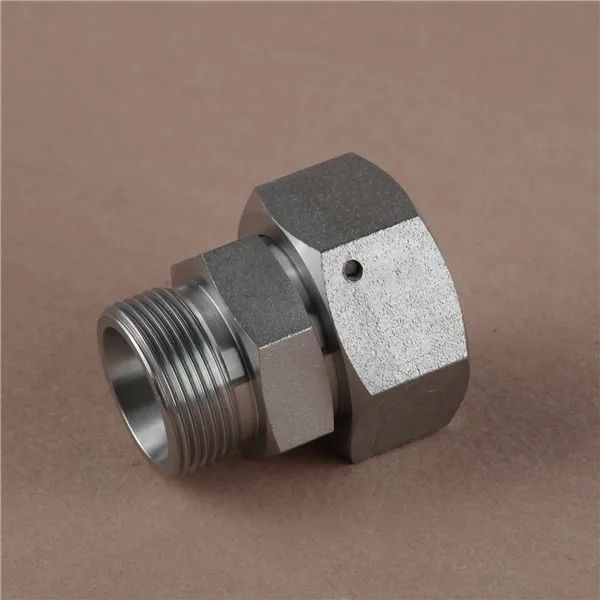

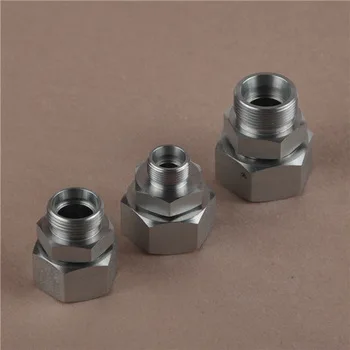

Metric Male & Female 60cone Seat Hex Blank Hydraulic Adapter 2D standard production
- Category: >>>
- Supplier: Henan Hengchuang Precision Manufacturing Co. Ltd.
Share on (62393400119):
Product Overview
Description

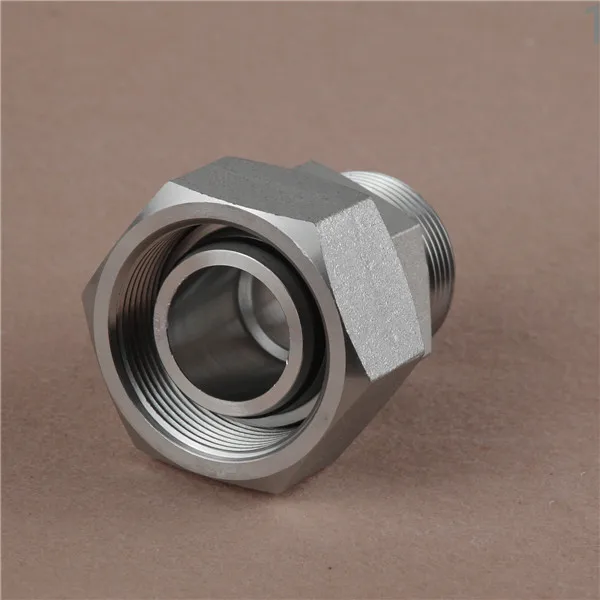

double end adapter
Product Description
We adhere to the precise service concept and do our best to provide after-sales service. We will provide you with professional technical support and services to solve many problems you encounter during installation and use.

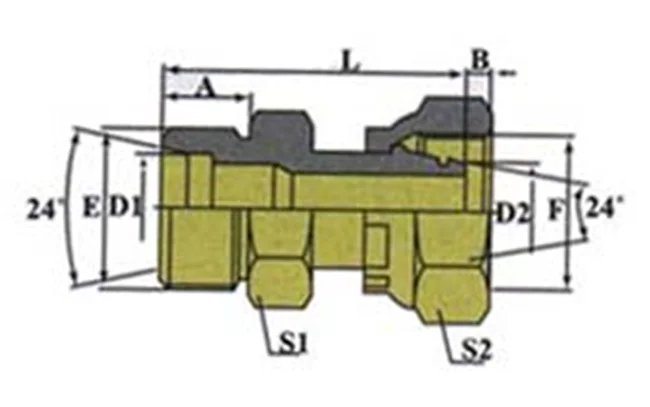

| THREAD | TUBE O.D. | DIMENSIONS | |||||||
| PART NO. | E | F | D1 | D2 | A | B | S1 | S2 | L |
| 2D-18-20 | M18X1.5 | M20X1.5 | 10 | 12 | 13.5 | 2.5 | 19 | 27 | 43.5 |
| 2D-18-22 | M18X1.5 | M22X1.5 | 10 | 14 | 13.5 | 2.5 | 22 | 27 | 45.5 |
| 2D-20-22 | M20X1.5 | M22X1.5 | 12 | 14 | 13.5 | 2.5 | 22 | 27 | 45.5 |
| 2D-20-24 | M20X1.5 | M24X1.5 | 12 | 16 | 13.5 | 3 | 24 | 30 | 46.5 |
| 2D-22-24 | M22X1.5 | M24X1.5 | 14 | 16 | 14 | 3 | 24 | 30 | 47.5 |
| 2D-22-30 | M22X1.5 | M30X2 | 14 | 20 | 14 | 3 | 30 | 36 | 54 |
| 2D-24-30 | M24X1.5 | M30X2 | 16 | 20 | 14 | 3 | 30 | 36 | 54 |
| 2D-24-36 | M24X1.5 | M36X2 | 16 | 25 | 14 | 3 | 36 | 41 | 55 |
| 2D-30-36 | M30X2 | M36X2 | 20 | 25 | 19 | 3 | 36 | 41 | 60 |
| 2D-30-42 | M30X2 | M42X2 | 20 | 30 | 19 | 5 | 41 | 50 | 66 |
| 2D-36-42 | M36X2 | M42X2 | 25 | 30 | 20 | 5 | 41 | 50 | 67 |
| 2D-36-52 | M36X2 | M52X2 | 25 | 38 | 20 | 6.5 | 50 | 60 | 71 |
| 2D-42-52 | M42X2 | M52X2 | 30 | 38 | 20 | 6.5 | 50 | 60 | 71 |
All of our products accept your custom requirements, regardless of the size of the product or the color of the product, as long as the product style you need, we can make a finished product that makes you satisfied.
Company Information
Hengxing Hydraulic Co., Ltd., located in Gongyi city. The company was founded in 2012, after years of tempering, the company has been among the top three in the quality of the national hydraulic industry, which has been fully recognized by the hydraulic industry. The main product categories: 1. Fluid connectors (hose assembly, hose connectors, hard pipe connectors, valve fittings and various supporting accessories), used for various construction machinery in Asia-Pacific region through American gates group, Australian RYCO company and other companies; 2. Metro fasteners (metro pipe segment bolts, high-speed rail bolts, high-strength fasteners, etc.), used for metro construction in major cities through China railway corporation , Sinohydro corporation of China, China construction group corporation and other central enterprises; 3. Aerospace parts ,mainly used in the propulsion system of spacecraft launch through Henan Aerospace 695 factory.
Our factory workshop is the most complete facility in China. We constantly upgrade our equipment to provide customers with the fastest and best service.
Main Features
1).Convenient one-touch fittings provide instant tubing connections
2).Plug connection: threaded and hose barb ends available
3).Material type :Steel , Zinc Alloy
4).Each and every pcs was tested at 10kgs/cm2
Product Application
Our products can be applied to all kinds of large machinery. We constantly improve the quality of our products only to be more assured for our customers. If there are any problems during the warranty period, we will do our best to help you.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
