Product Description
Product Name | 13.3 '' TFT Lcd module |
Type | LCM |
Size | 13.3 inch |
Resolution | 1920*1080 |
Pixel pitch | 0.153(H) * 0.153(V) |
Display colors | 16.7M,100%sRGB |
Luminance | 400 cd/㎡ |

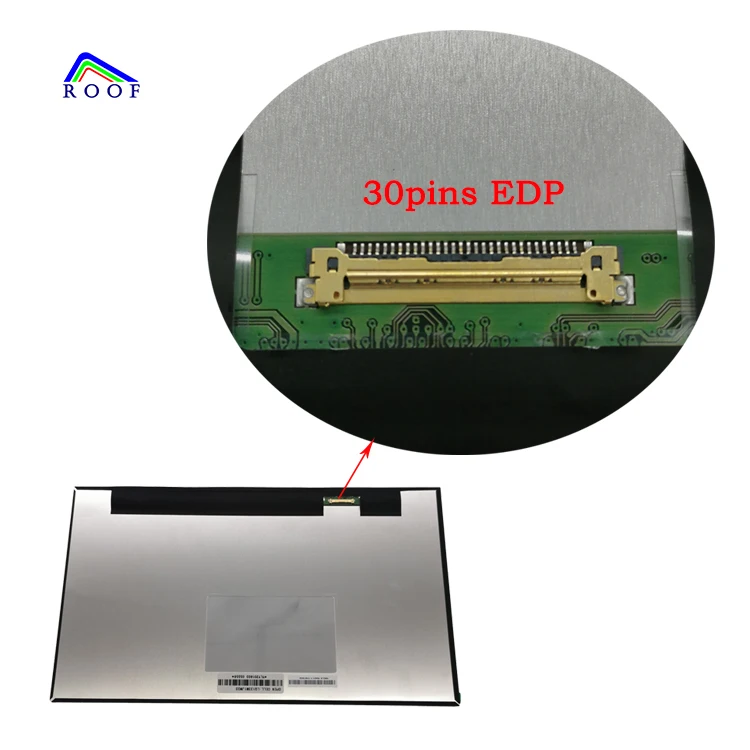

Interface | 30pins EDP |
Panel Type | IPS |
Backlight | WLED |

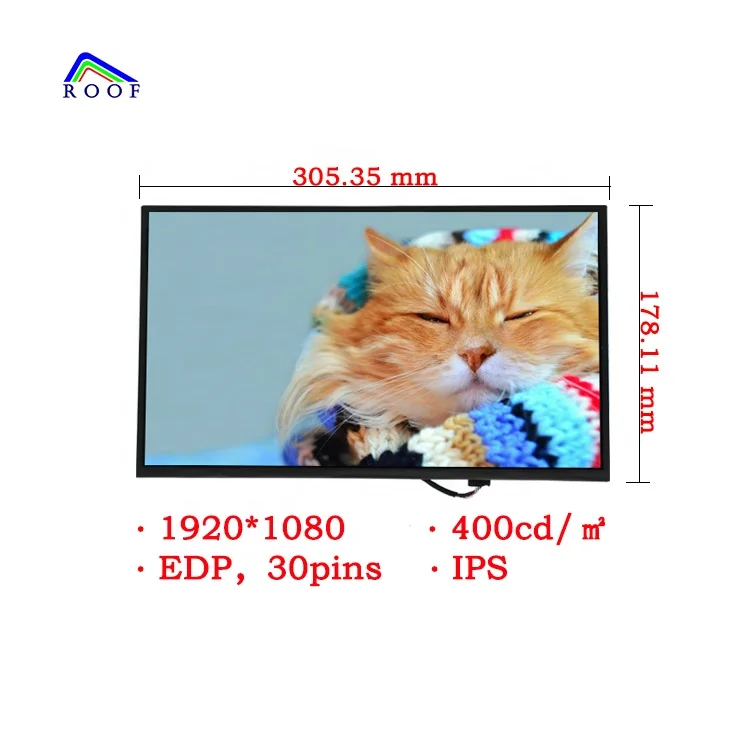

Outline Dimension | 305.35(W) * 178.11(H) mm |
Active area | 293.76(H) * 165.24(V) mm |
Product performance description

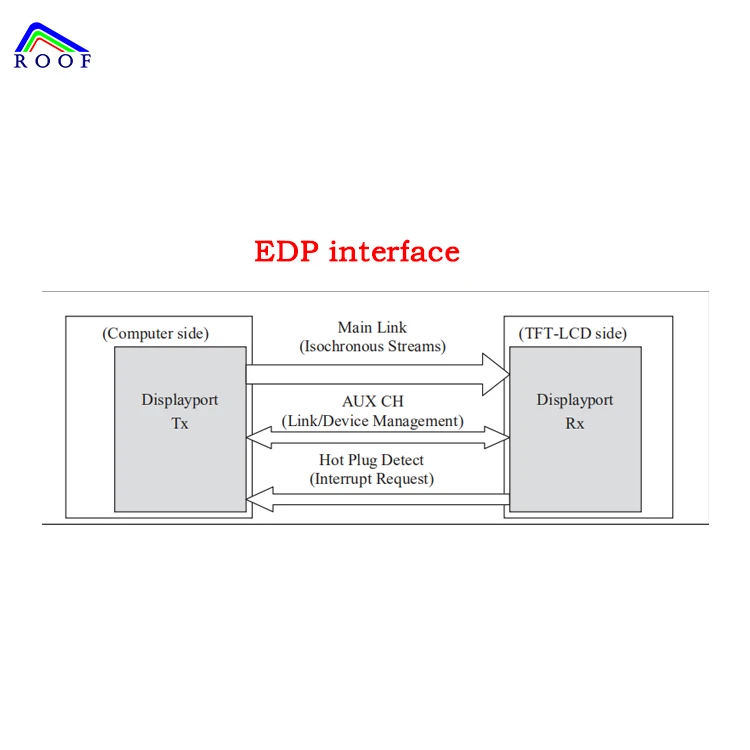

This module is a color active matrix LCD module incorporating Oxide TFT(Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, a control circuit and power supply circuit. Graphics and texts can be displayed on a 1920×3×1080 dots panel with 16777216 colors by using eDP(Embedded Display Port)Ver1.3 interface and suopplying +3.3V DC supply voltage for TFT-LCD panel driving.
In this TFT-LCD panel, color filters for excellent color perfomance is incorporated to realize brighter and clearer pictures, making this model optimum for use in multi-media applications.
Optimum viewings are in all directions.
8serial 8paralel LED structure.
Backlight-driving LED controller is built in this Module eDP Transfer rate Specification : 2.7Gbps / 2lane
Details Images

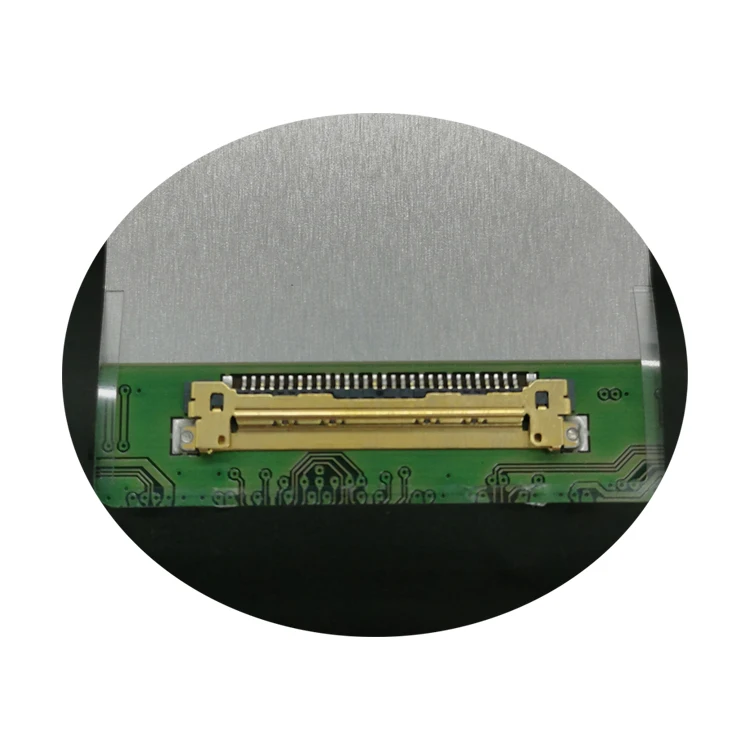

eDP singals, +3.3V DC power supply, and B/L power supply
Don't input any signals or any powers into a NC pin. Keep the NC pin open.
The shielding case is connected with signal GND.
Product Usage
Our company's products are mainly used in notebook computers, monitors, advertising machines, tablets, game displays, car displays, face recognition solutions and industrial displays, etc.Please fell free to contact us for more product information.
Packing&Shipping
In order to ensure that the product will not be damaged during transportation, we have the default packaging and transportation method. Please contact us for details. If you have special requirements, please contact us.
