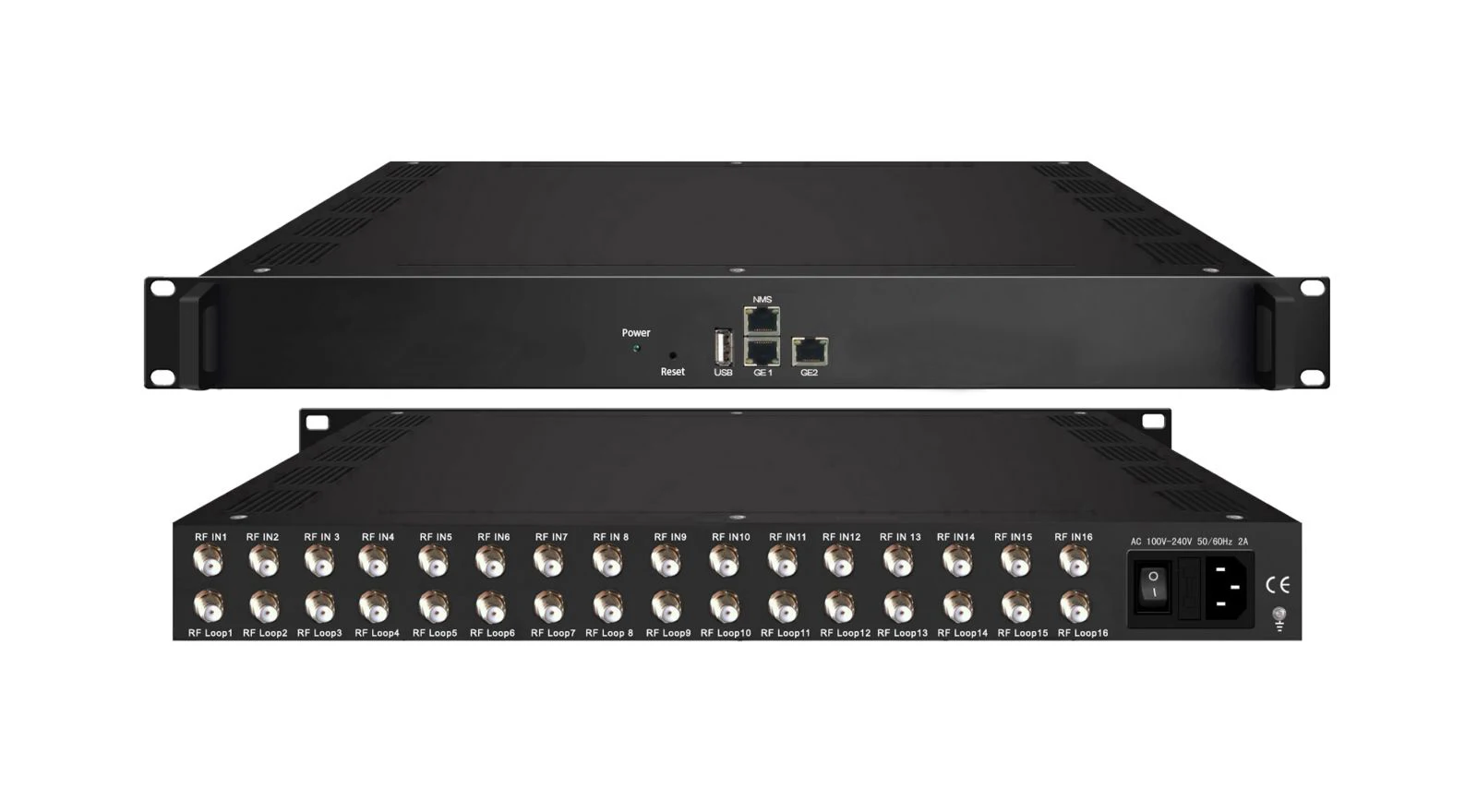

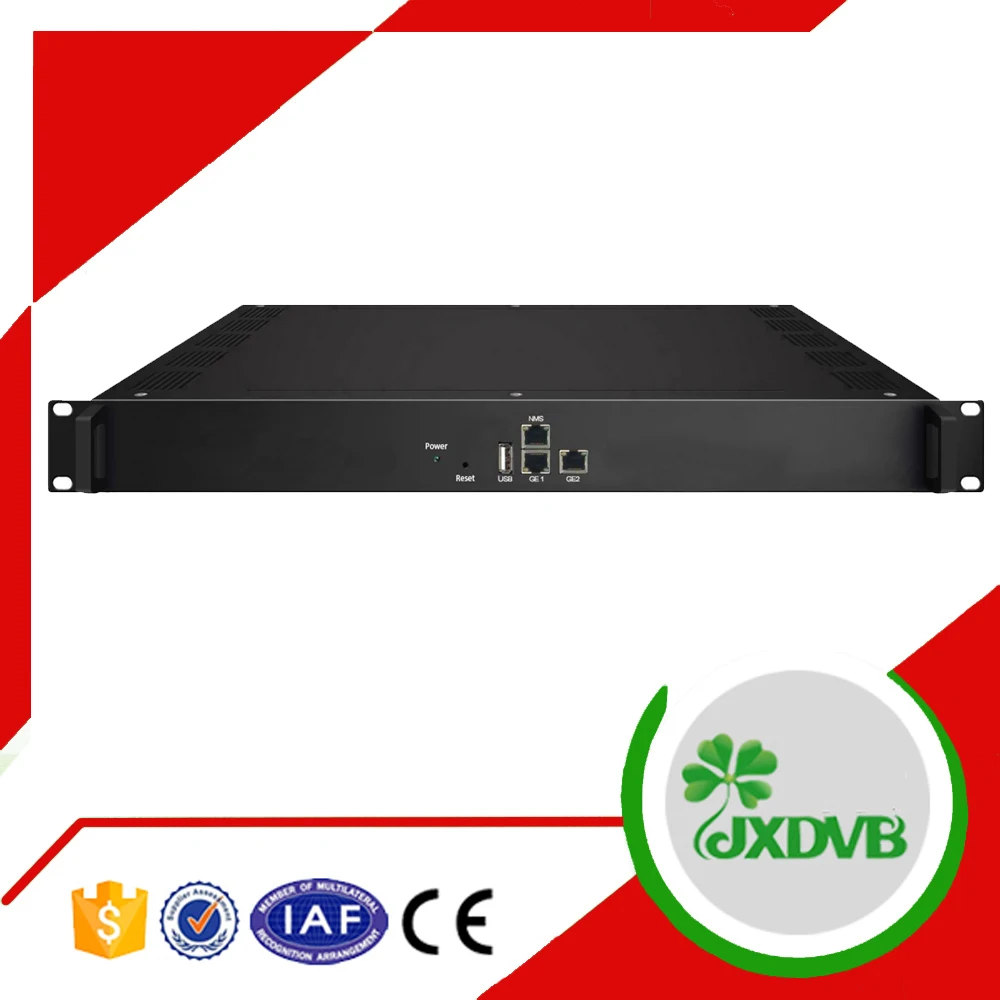

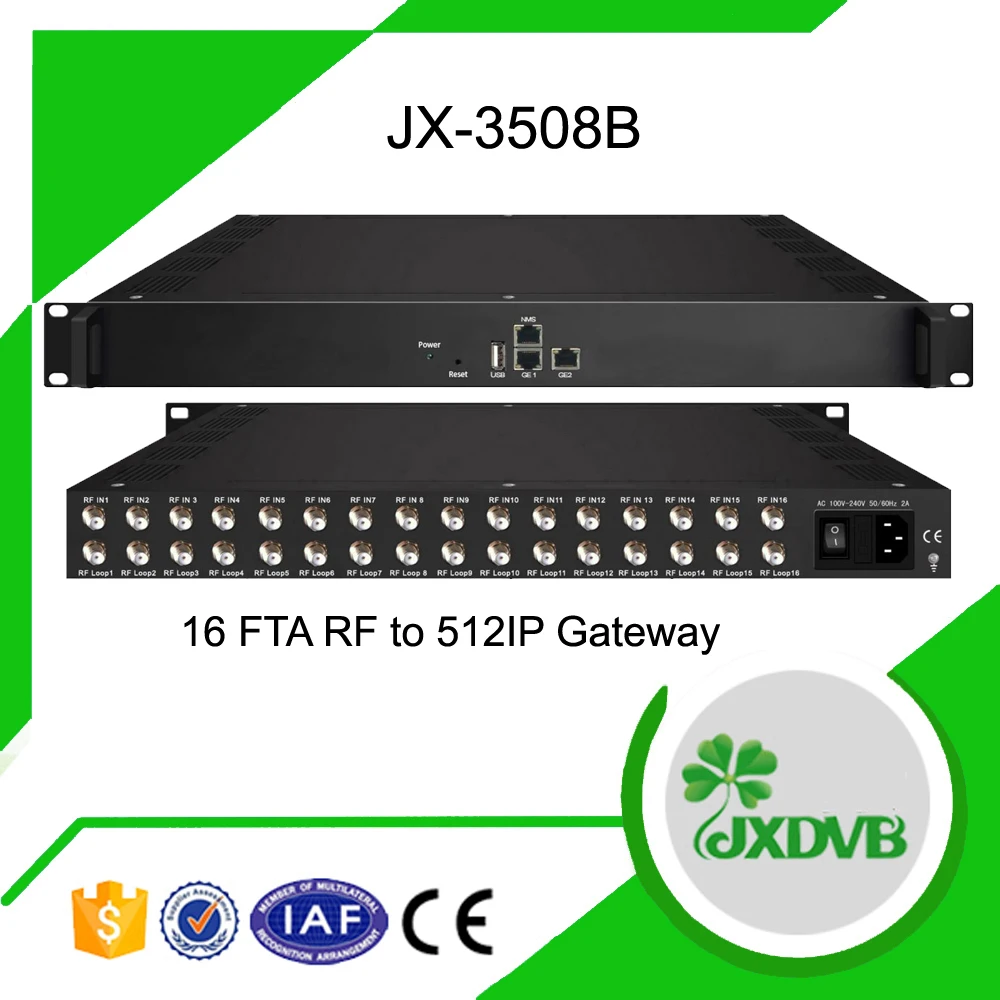

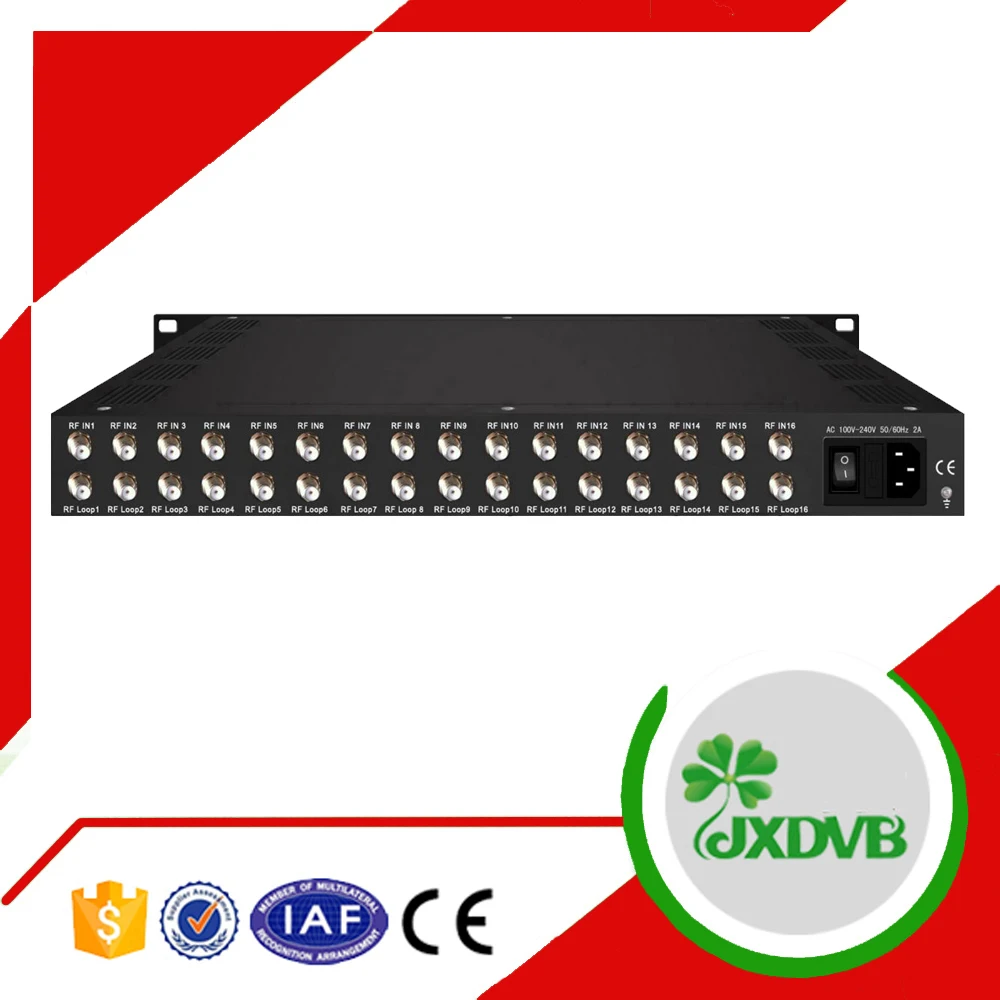

UDP RTP Multicast Unicast IPTV Gateway
- Category: >>>
- Supplier: Chengdu Jiexiang Technology Company Ltd.
Share on (62393429312):
Product Overview
Description
UDP RTP Multicast Unicast IPTV Gateway
Skype: live:jiexiang02 to contact Jaylyn
Key Features

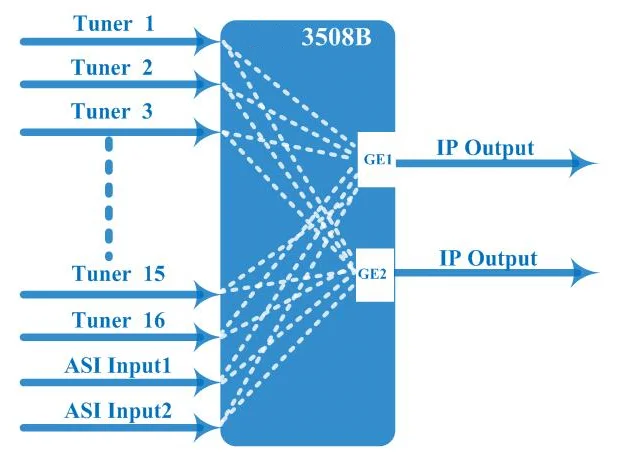

Integrated with demodulation and gateway function
Support 16 DVB-S/S Tuner input
Support BISS descrambling (Up to 800Mbps)
Support accurate PCR adjusting
Support PID filtering, re-mapping
Support PSI/PI rebuilding and editing
2 GE output, maximum output bit-rate is 800Mbps(GE2 port is the copy of GE1 port)
SPTSx512 output over UDP and RTP, unicast and multicast
Support DisEqc function
Support LCD display and keyboard
Support Web operation
Specifications
| 16 tuners input DVB-S/S | ||
Input | DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds | ||
DVB-S: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK | |||
| |||
| 2~30Mbauds |
| |
| 2 GE output (GE2 port is the copy of GE1 port) | ||
Output | UDP and RTP protocol, Unicast and Multicast | ||
| 512 SPTS IP output |
| |
BISS | Mode 1, Mode E |
| |
descrambling |
| ||
|
|
| |
| Support CA PID filtering, PID re-mapping | ||
Multiplexing | PID remapping ( automatically or manually) | ||
| Accurate PCR adjusting |
| |
| Generate PSI/ SI table automatically | ||
Transmission | Maximum total bit-rate is 800Mbps | ||
Bit-rate | |||
|
|
| |
| Dimension(W×L×H) |
| 482mm×410mm×44mm |
| Approx weight |
| 3.6kg |
Miscellaneous | Environment |
| 0~45℃(work);-20~80℃(Storage) |
| Power requirements |
| 100~240VAC,50/60Hz |
| Power consumption |
| 20W |
