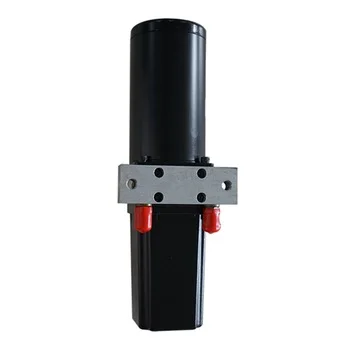

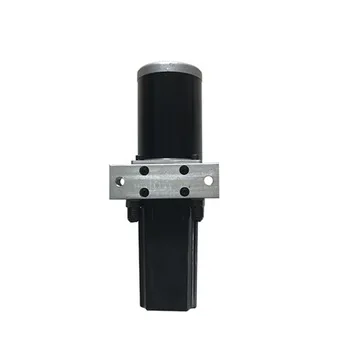

24v 48v mini micro hydraulic system small hydraulic power unit

Product Overview

Description

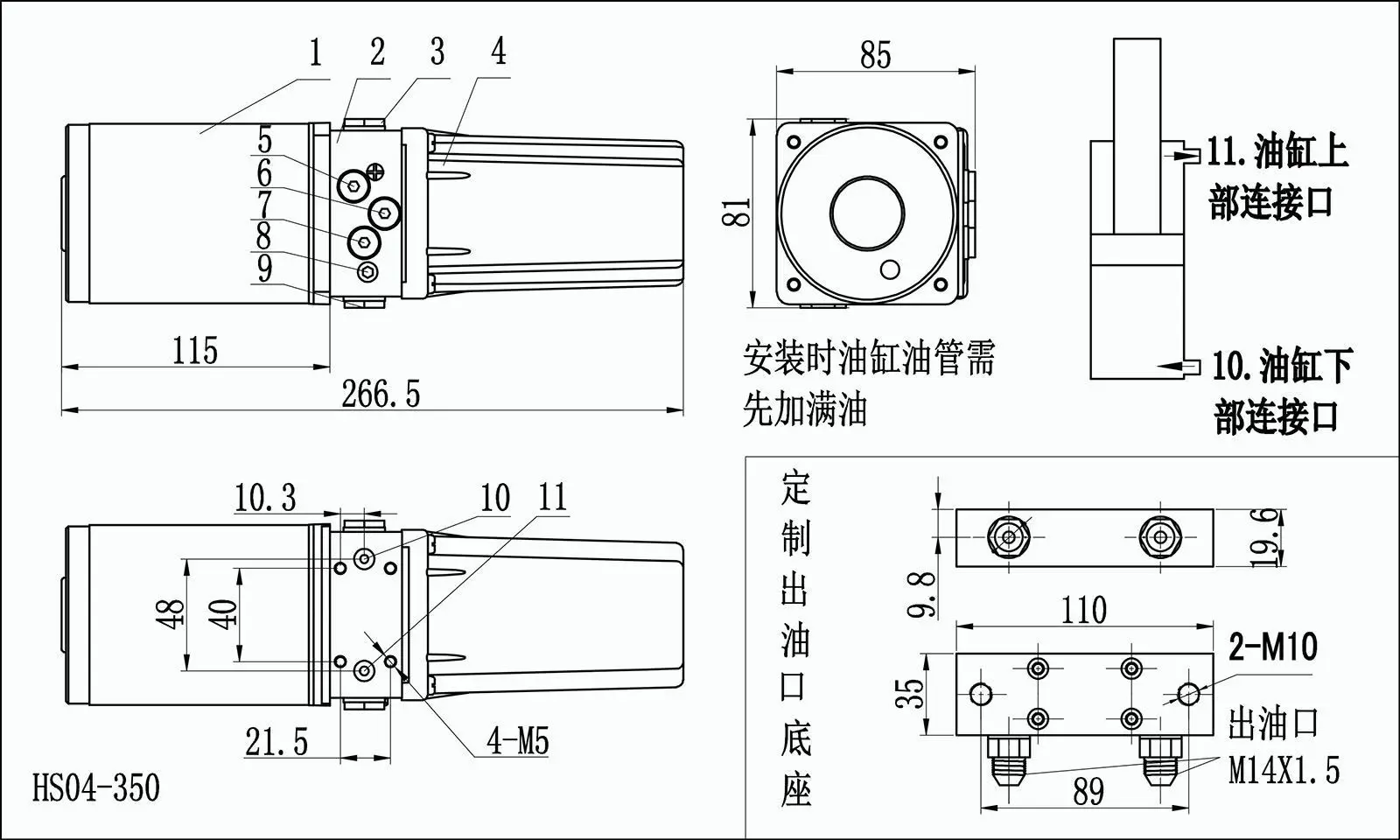

Model	HS04-350X
Specification	DC voltage
Working environment	-10 degrees Celsius to 50 degrees Celsius
Mounting hole size	12.3mm
Reduce mounting hole size	12.3mm
Minimum installation center distance	530 mm/customized
Advantage	Overcurrent, overload, overheat protection, hydraulic cylinder bidirectional self-locking
Product manual	The micro-hydraulic station is driven by a DC motor, which controls the DC motor to rotate in both directions, and bidirectional pressure output. The internal integrated overflow valve, check valve, reversing valve, safety valve, two-way pressure self-locking , widely used in various DC micro hydraulic machines, such as robots, electro-hydraulic platforms, electric dump trucks, marine hydraulic systems and automotive hydraulics Control System. The pressure output interface and installation dimensions can be customized according to the customer. Welcome to inquire, service hotline: 18985861828, Mr. Shen
