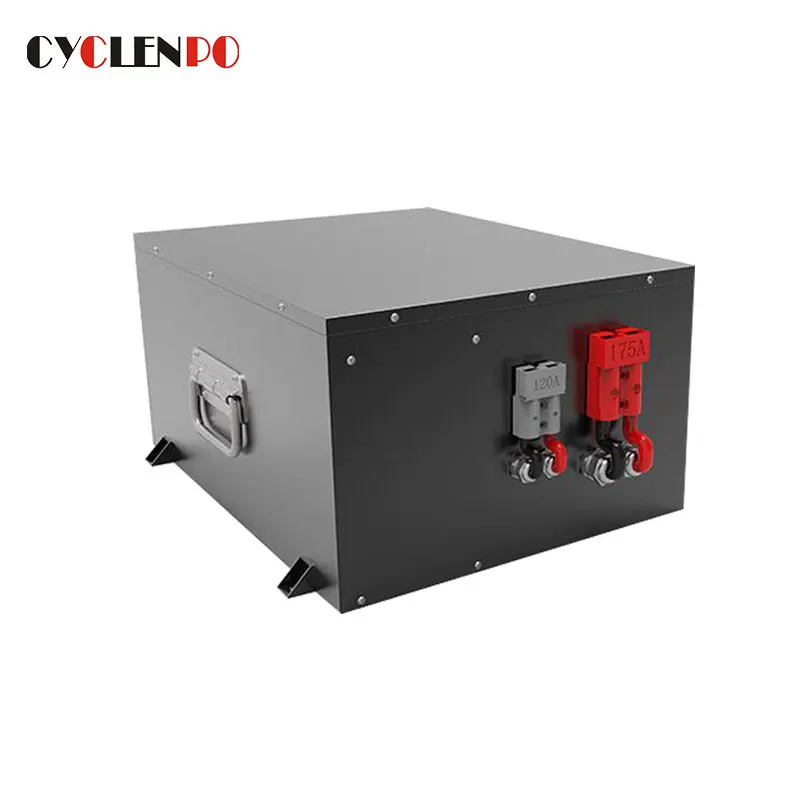

Customized 48v 50ah 100ah 200ah 240ah lithium ion battery for electric vehicles
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (62393503475):
Product Overview
Description
Product Description

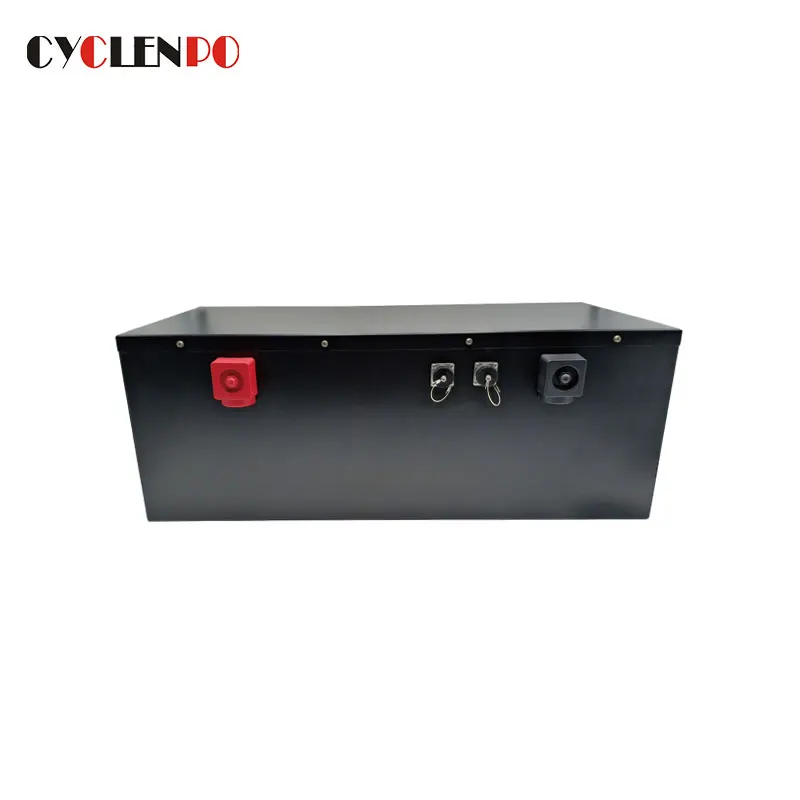

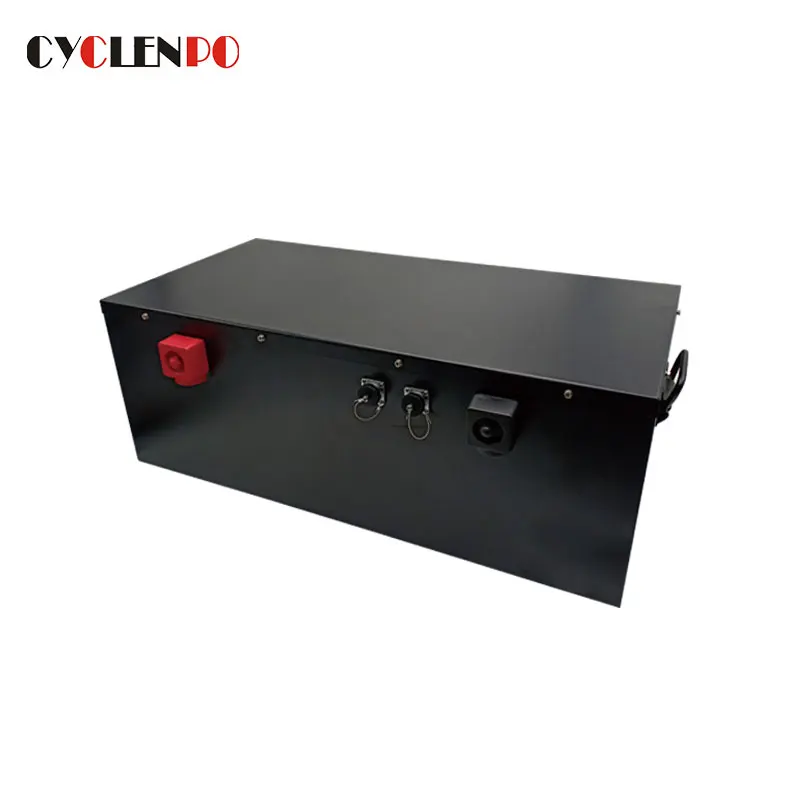

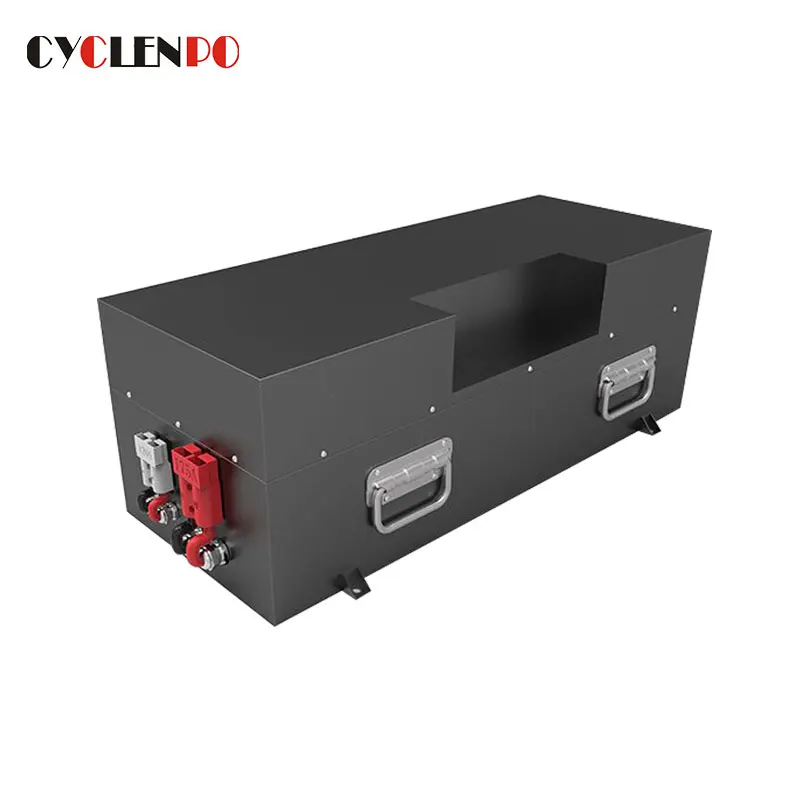

Customized 48v 50ah 100ah 200ah 240ah lithium ion battery for electric vehicles
Cyclen provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us. In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to
contact us at any time.
contact us at any time.
Item | General Parameter | Remark |
Model | IFR 3.2v100ah | Single |
Casing material for single cell | Nickel plated steel | |
Standard capacity（0.2C5A） | 200Ah | |
Rated voltage | 48V | Work voltage：3.20V |
Standard Charge voltage | 54.75V | (Single Ave. charge Voltage) |
Cut-off voltage | 37.5V | Single Ave. Discharge Voltage |
Standard charge current | 80A | 0.4C |
charging Time | About2.5h | |
Max Continuous discharge current | 100A | 0.5C |
Peak discharge current | 210A | 1.05C 5seconds |
Battery dimension | 710±1*412±1*268±1mm | |
Total weight（Approx.) | About 115 kg | |
Impedance（Max, at 1000Hz.） | ≤ 8 0 mΩ | |
Working Temperature | Standard | 0℃～45℃ |
discharge | -20℃～60℃ | |
storage | 0℃～45℃ |
Key Features
1.Nearly 100% efficient in both charge and discharge
2.Long cycle life >3000 times
3.Ultra safe lithium iron phosphate material
4.Smaller in size and lighter in weight
5.Modular and plug design makes easy to use
6.Low self-discharge rate: < 3% monthly
7.Good performance at high temperature and high temperature resistance
1. over charge protection
2. over discharge protection
3. short circuit protection
4. cell balancing
5. over heat protection
Application
AGV, electric wheelchair, forklift, sightseeing car, e-rickshaw, electric vehicles, ups, backup battery etc
Company Profile
Cyclen Technology Co.,Ltd, We are a high-tech enterprise specialized in research & production and sales of high performance lithium battery.
WE FOCUS ON
Various types of cylindrical lithium cells ,lifepo4 cells,and lithium polymer battery. We also provide solution of battery packs .Products are mainly used for rv,marine,solar system,electric vehicles,lighting,3c electronic,etc.

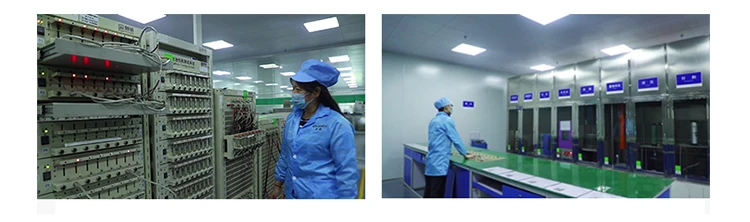

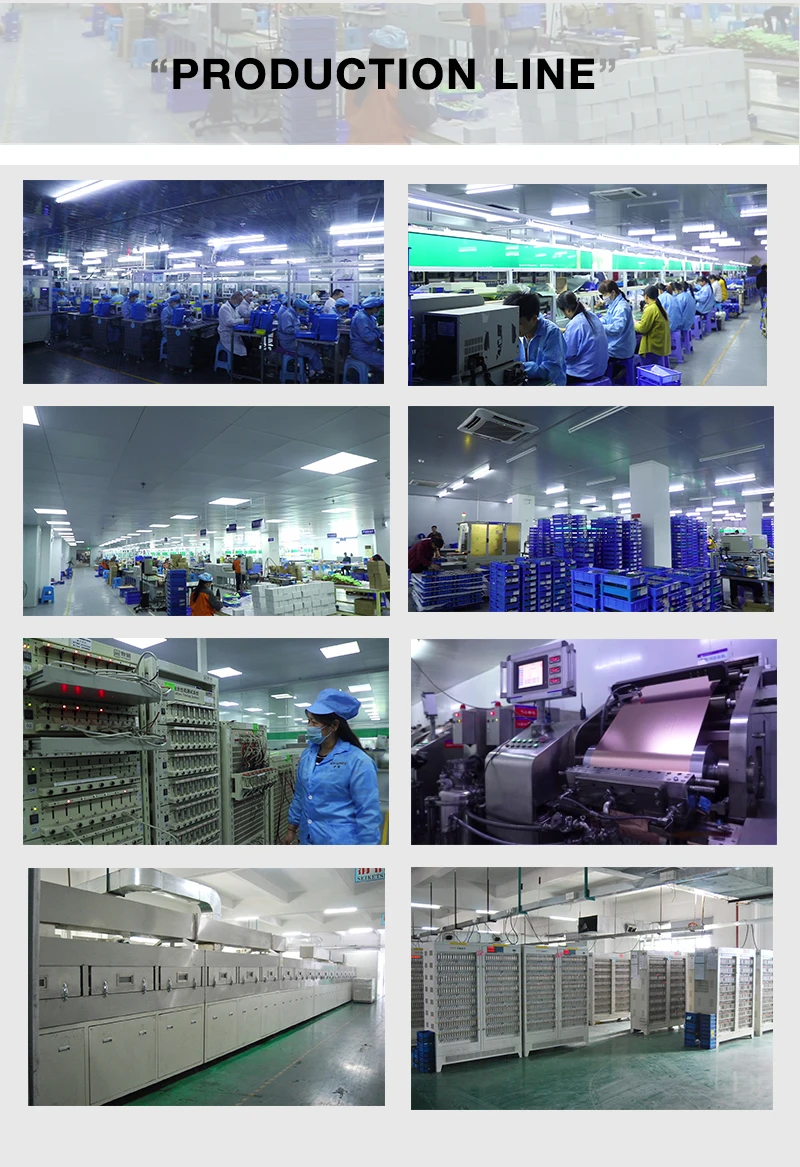

We have high performance lifepo4 and lithium battery material production lines and whole battery pack production line. Total 420 employees, with daily production capacity over 300,000 PCS lifepo4battery , li-ion cylindrical battery
Our batteries have passed different safety tests. High and low temperature test, over charge and over discharge test, short-circuit test, drop test, crush, vibration test: no fire, no leakage, and no explosion.
With Our Customers
Our products are mainly exported to abroad market like Europe,North America and Oceania.and we build good relationship with our clients.

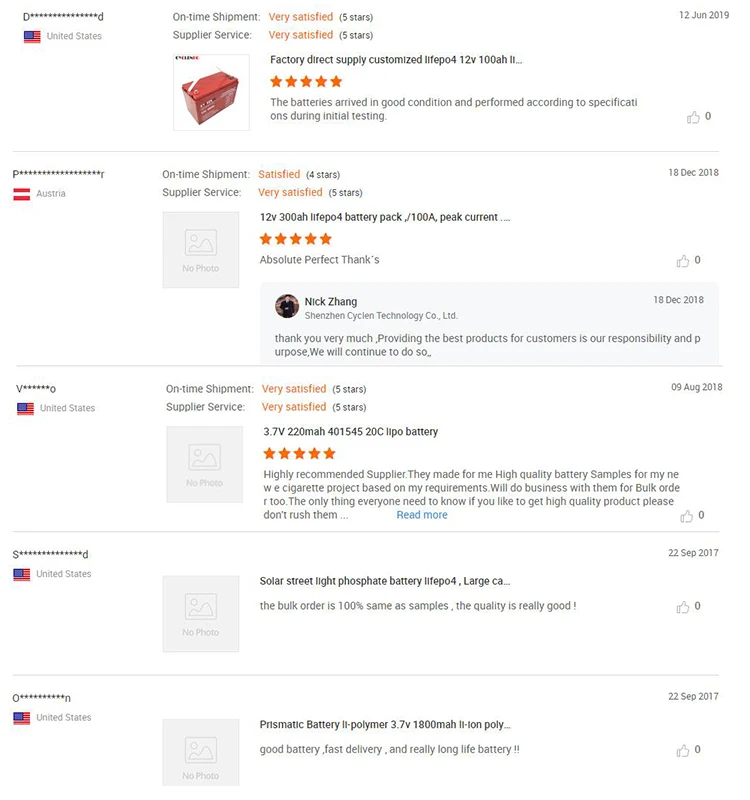

Nice reviews from our customers
Packaging and Delivery
We pack the battery in safe and standard way
One battery in a carton,filled with EPE foam at the bottom and on the top, then safely delivered by air or sea. Package can customized based on your requirement.
FAQ
1.Where can I get the price?
We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly the same as you request. The order can be also placed through alibaba trade assurance, it can guarantee the quality and delivery, if it has quality disrepency, Alibaba will help you and return the money to you.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for
newly produced samples.10-20 day for big order.
4.What shipping method can i choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
