Germany higher accuracy TCK6340 TCK6350 CNC slant bed Gang tool lathe machine cnc turning center

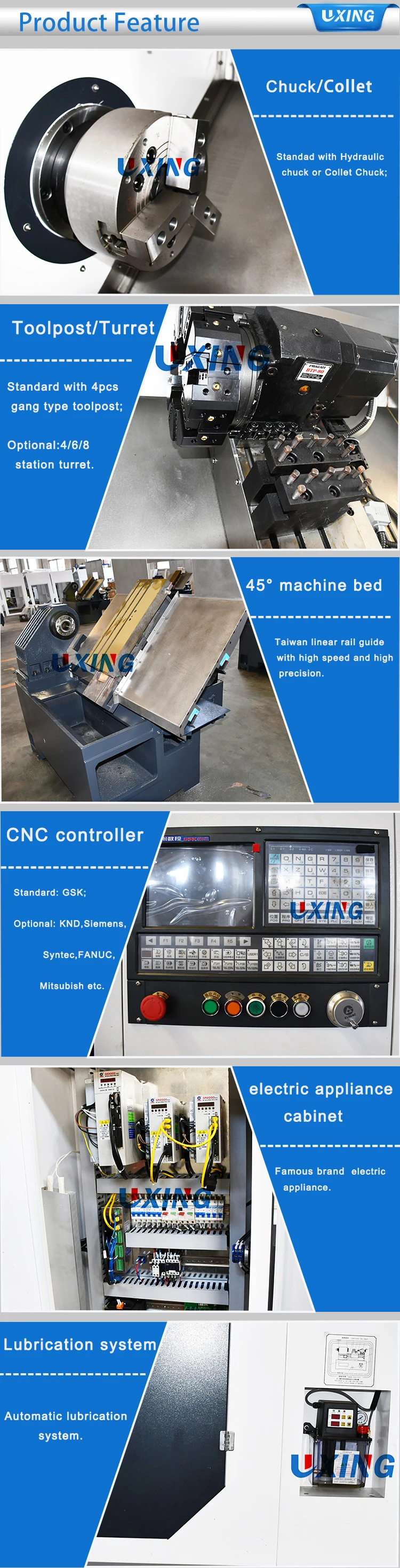

CNC Lathe Machine Features:
1.45 degrees slant bed CNC lathe;
2.Higher accuracy Taiwan linear guideways;
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the right or in the back;
4.Spindle unit has two types, the heavy cutting type and the high speed type.
The first one is suitable for bearing and gear processing. The second type is suitable for high speed and high precision.Customers could choose any type of them;
5.Screw pre-stretching structure;

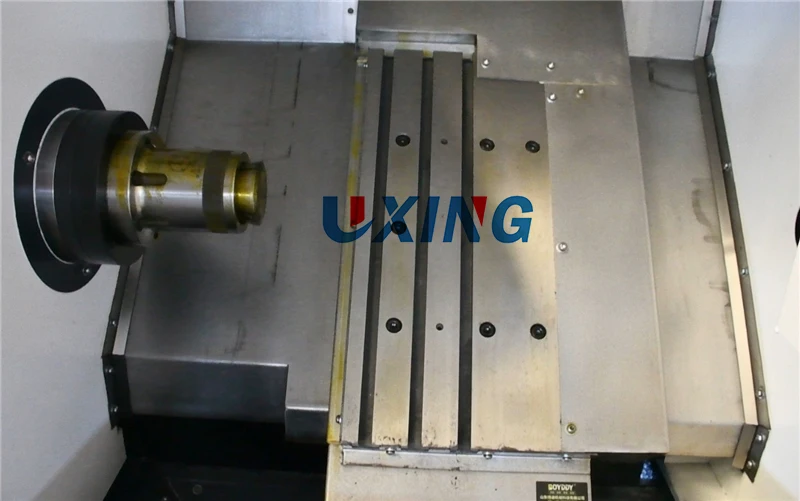

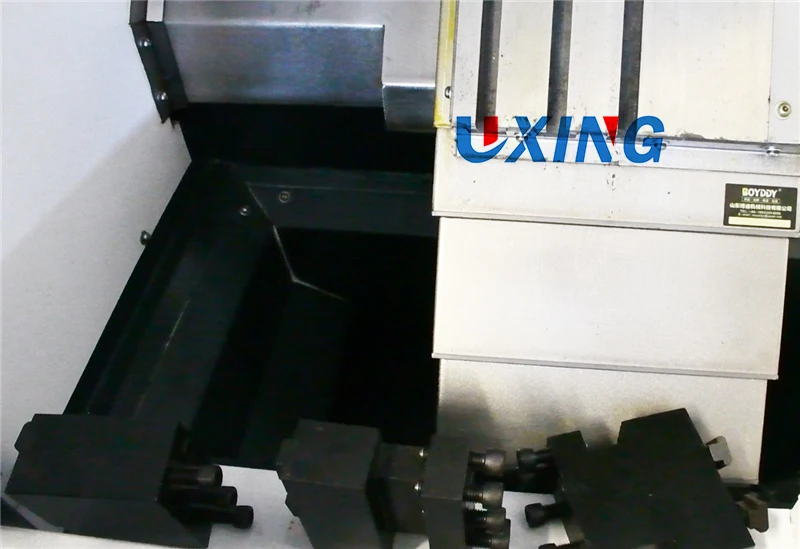

6.Gang type tool post standard;
7.Optional turret.
Machine main specifications:
Specification | Unit | TCK6336(S) | TCK6340 | TCK6350 |
Max. swing over bed | mm | 390 | 400 | 520 |
Swing over cross slide | mm | 130 | 140 | 220 |
Max. processing length | mm | 200(380) | 300 | 410/330 |
X/Z axis travel | mm | 400/300(500) | 380/350 | 500/500 |
Spindle unit | mm | 140/170 | 170 | 200 |
Spindle nose |
| A2-5 | A2-5 | A2-6/A2-8 |
Spindle bore | mm | 48/56 | 56 | 66 |
Bar capacity | mm | 40/45 | 45 | 55 |
Max. spindle speed | rpm | 4000/3500 | 3500 | 3000 |
Chuck size | in | 6/8 | 6/8 | 10 |
Spindle motor | kW | 3.7/5.5 | 5.5 | 7.5/11 |
X/Z axis repeatability | mm | ±0.003 | ±0.003 | ±0.003 |
X/Z axis feed motor torque | N.m | 6/6 | 6/6 | 7.5/7.5 |
X/Z Rapid traverse | m/min | 18/15(18/18) | 18/18 | 18/18 |
Tool post type |
| Gang type tool; Optional:Hydraulic Tool Turret | Gang type tool post; Optional:Hydraulic Tool Turret | Gang type tool post; Optional:Hydraulic Tool Turret |
Cutting tool shape size | mm | 20×20 | 20*20 | 25*25 |
Guide form |
| 45° inclined guide rail | 45° inclined guide rail | 45° inclined guide rail |
Total power capacity | kVA | 9/11 | 9/11 | 14/18 |
Machine dimension (L×W×H) | mm | 2200(2390)×1530×1780 | 2300*1500*1750 | 2500*1620*1890 |
Heavy weight (about) | kg | 2200(2500) | 2500 | 2900 |
Detail:
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
