High professional fully automatic signode strapper
- Category: >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (62393659434):
Product Overview
Description
High professional fully automatic signode strapper
Product Description
UDB-102A Fully automatic strapping machine is mainly suitable for strapping and packing of cartons,calcium-plastic cases,soft and packages as well as all kinds of articles in square,cylindrical.the machine has 8 power roller combination with the conveying line can realize unmanned automatic strapping.
1.The working process is devised by PLC
2.Electriceye detection during working process,
3.Eight roller with conveying line,realize unmanned automatic machine strapping
4.Automatic detection;automatic packaging;automatic transmission;high work efficiency
5.Imported electric appliances,stable performance,longer service life
6.With four electric motors for tape feed,tape retreat, tape storage and roller conveying.
7.Optional automatic alarm device, alarm when working in trouble or lack of tape
8.Cooling time is adjustable with strong tension
9.Could realize unmaned and working with production line
10.Cast steel movement structure
11.Can be used alone or be used with packaging line
2.Electriceye detection during working process,
3.Eight roller with conveying line,realize unmanned automatic machine strapping
4.Automatic detection;automatic packaging;automatic transmission;high work efficiency
5.Imported electric appliances,stable performance,longer service life
6.With four electric motors for tape feed,tape retreat, tape storage and roller conveying.
7.Optional automatic alarm device, alarm when working in trouble or lack of tape
8.Cooling time is adjustable with strong tension
9.Could realize unmaned and working with production line
10.Cast steel movement structure
11.Can be used alone or be used with packaging line
Specifications
Model | UDB-102A |
Name | fully automatic strapping machine/electric strapping machine |
Max.tension | 100kg adjustable |
Table height | 750mm |
Strapping speed | 2.5seconds/cycle |
Frame size | W800mm*H600mm |
Suitable for strap | PP Strap |
Strap width | 12mm-15mm |
Strap thickness | 0.55mm-1.2mm |
Voltage | 220V/380V/415V 3Ph |
Power | 0.75KW 50HZ/60HZ |
Machine dimension | L1400mm*W630mm*H1430mm |
Weight | 280kg |

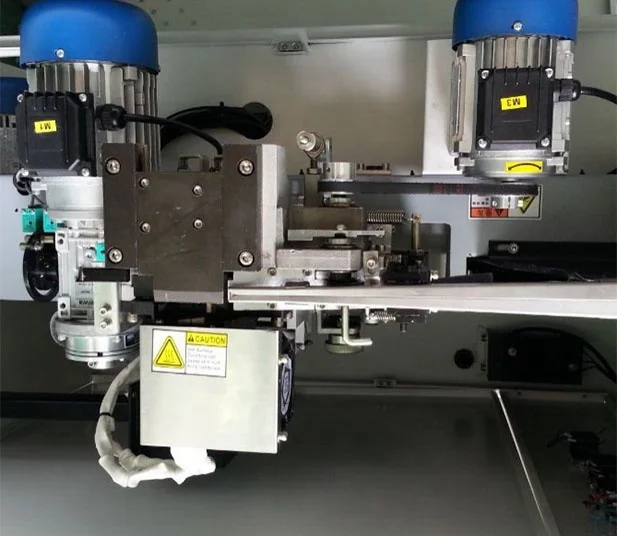

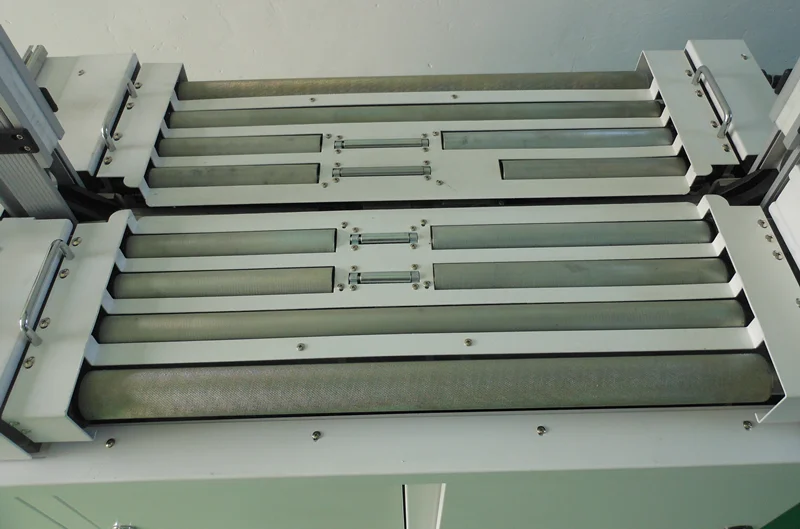

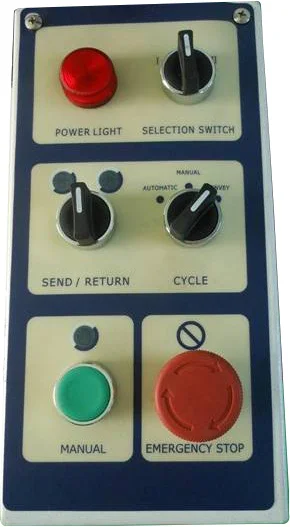

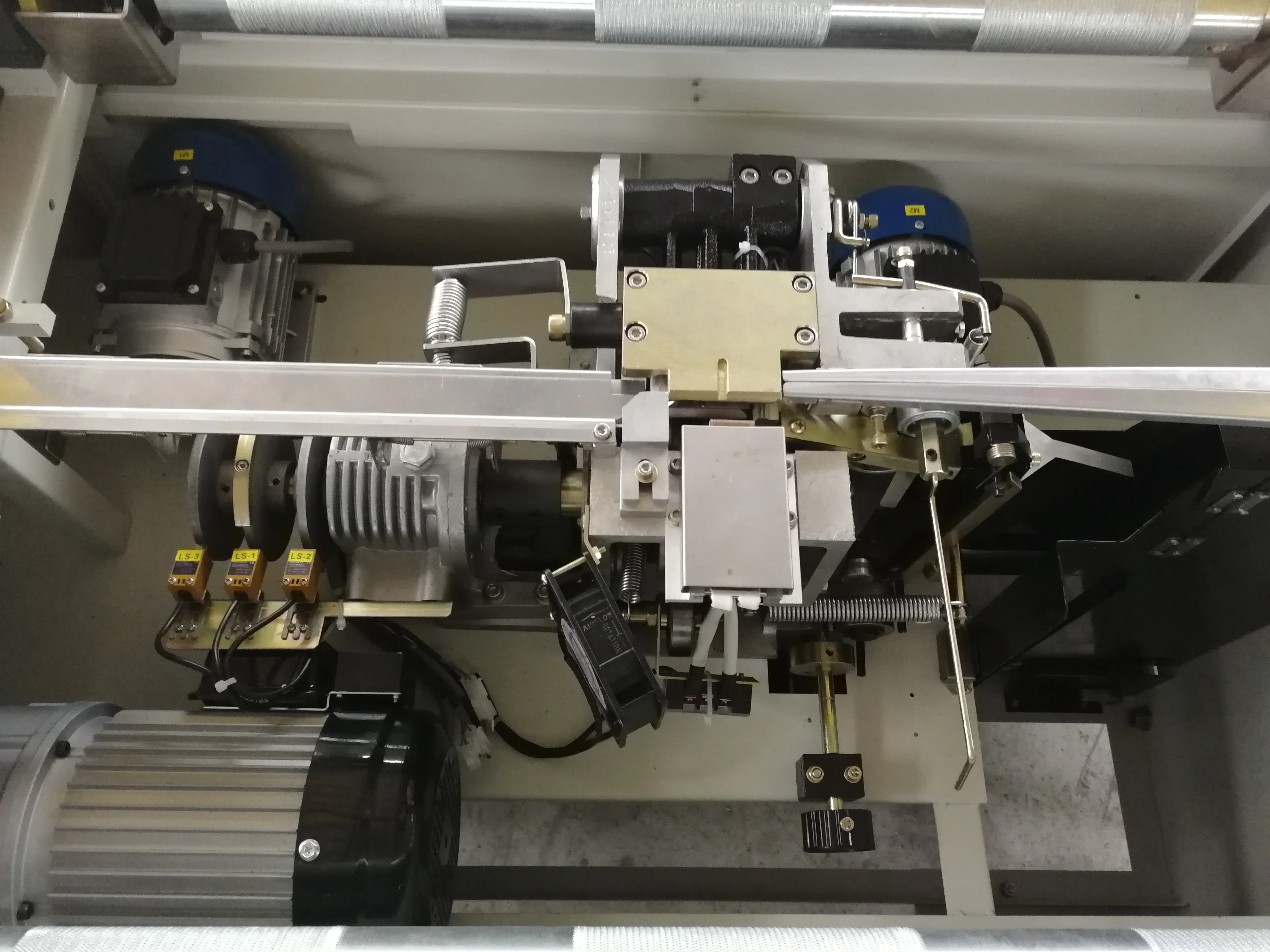

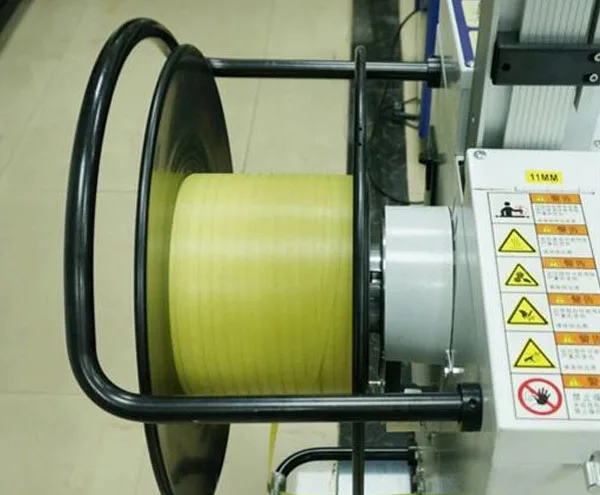

Detailed Images
Related Products
Packing&Shipping
Certifications
Company Introduction
Qingdao Youchuang Packaging Equipment Co.,Ltd.is a professional enterprise specializing in researching and developing ,producing and marketing machinery,12 years of R&D and manufacturing experience, focusing on R&D, manufacturing,and technical services of automated packaging equipment and Custom conveyor line, providing professional technical solutions.
We provide shrinking wrap machine, strapping machine, vacuum packaging machine, stretch wrapping machine, palletizer machine, various kinds conveyors, automated custom machine, etc. , with high automation and smart , according to customer requirements.Due to our high-efficient, automatic and applied packing machines, we are trusted and praised by our customers in the process of designing, manufacturing, selling, and after-sales service, based on the belief of "high-quality products, perfect service, and reasonable price."We believe that the spirit of "Specialty, Innovation, Practicism and Timeliness" and customers' trust will absolutely lead our company to success.
We provide shrinking wrap machine, strapping machine, vacuum packaging machine, stretch wrapping machine, palletizer machine, various kinds conveyors, automated custom machine, etc. , with high automation and smart , according to customer requirements.Due to our high-efficient, automatic and applied packing machines, we are trusted and praised by our customers in the process of designing, manufacturing, selling, and after-sales service, based on the belief of "high-quality products, perfect service, and reasonable price."We believe that the spirit of "Specialty, Innovation, Practicism and Timeliness" and customers' trust will absolutely lead our company to success.
FAQ
Q1: How do we test your machine?
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
Q2: What information shall I provide you when I need your offer?
Normally, please send me the requirements of your product, like the packing speed, your products main specification, voltage, frequency, plug and other information as more as possible so that we can quote you exactly what you need.
Q3: More questions or information please feel free to contact us at any time!
Qingdao YouCHuang Packaging Equipment CO.,Ltd
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
Q2: What information shall I provide you when I need your offer?
Normally, please send me the requirements of your product, like the packing speed, your products main specification, voltage, frequency, plug and other information as more as possible so that we can quote you exactly what you need.
Q3: More questions or information please feel free to contact us at any time!
Qingdao YouCHuang Packaging Equipment CO.,Ltd
