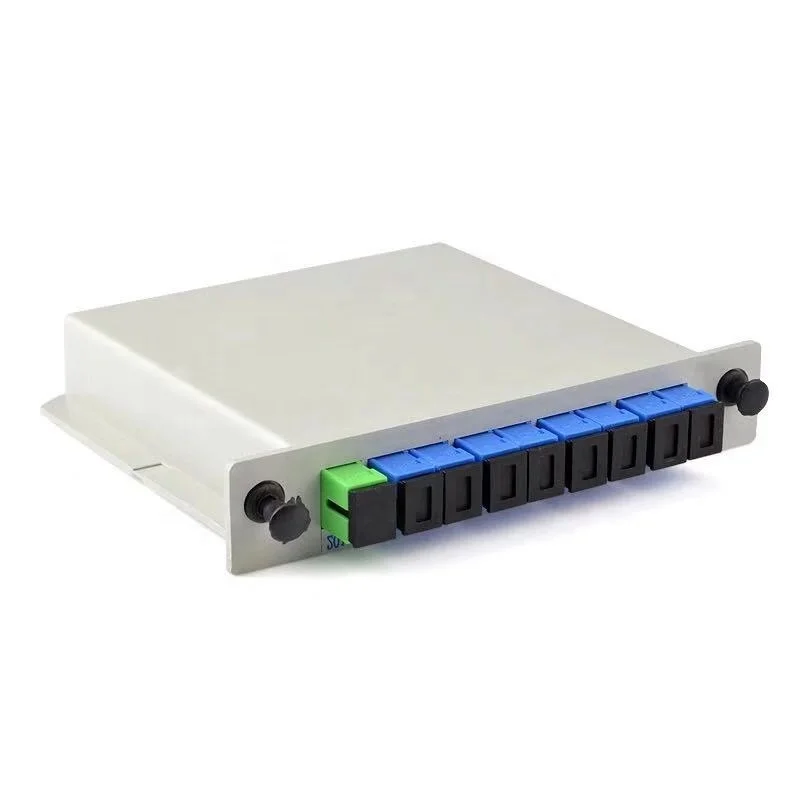

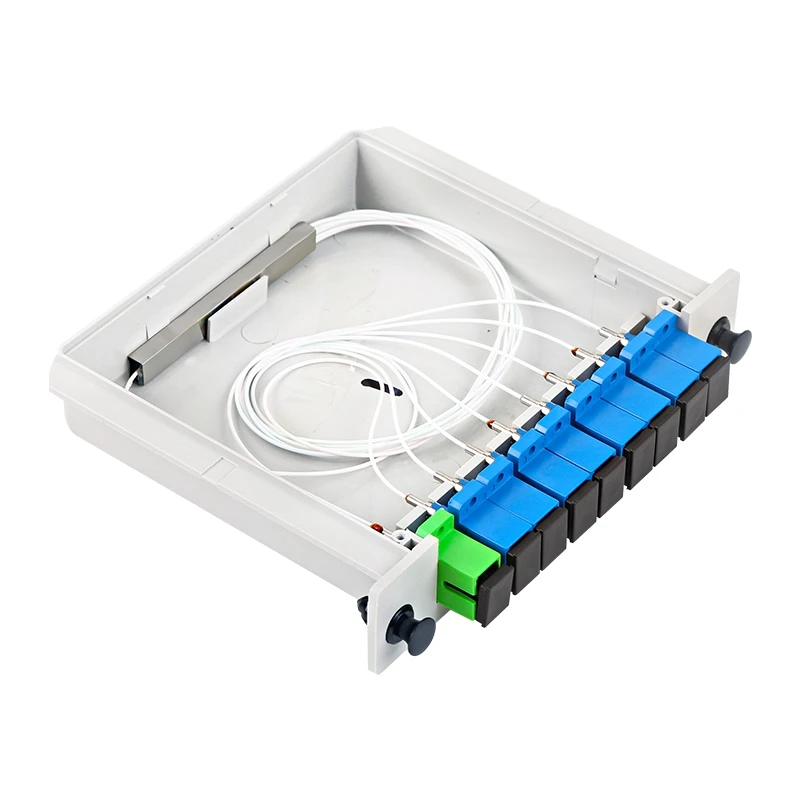

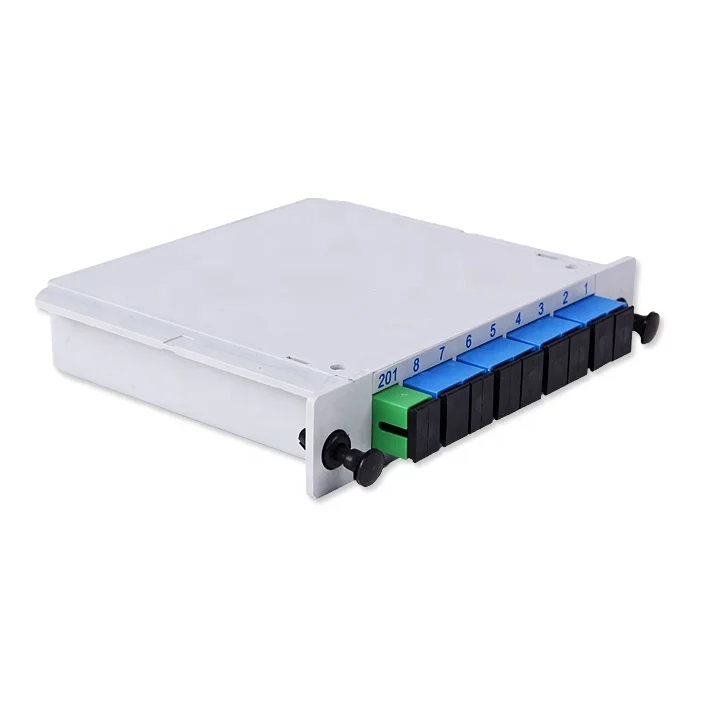

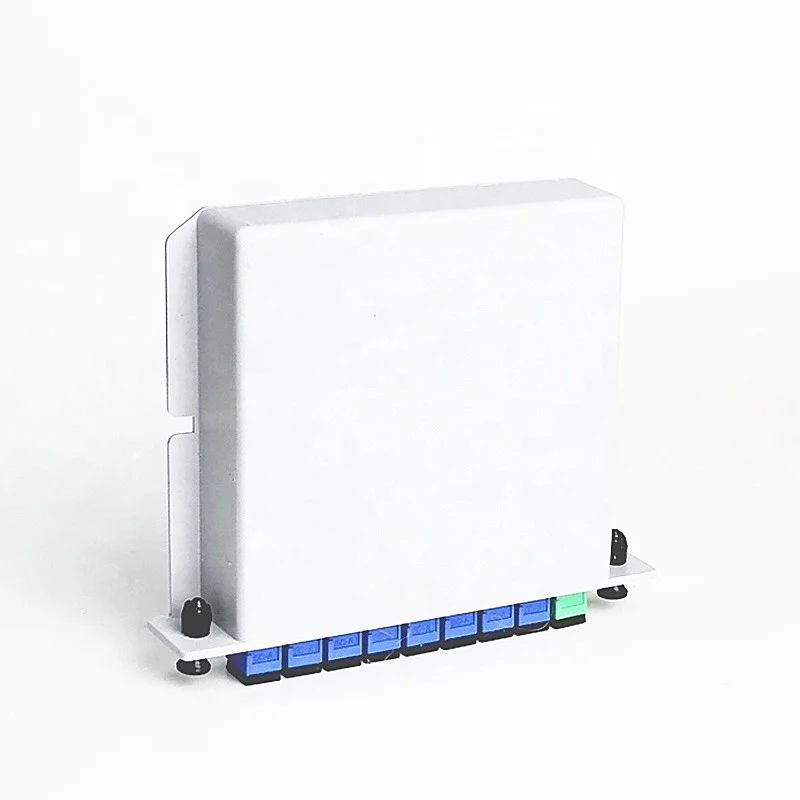

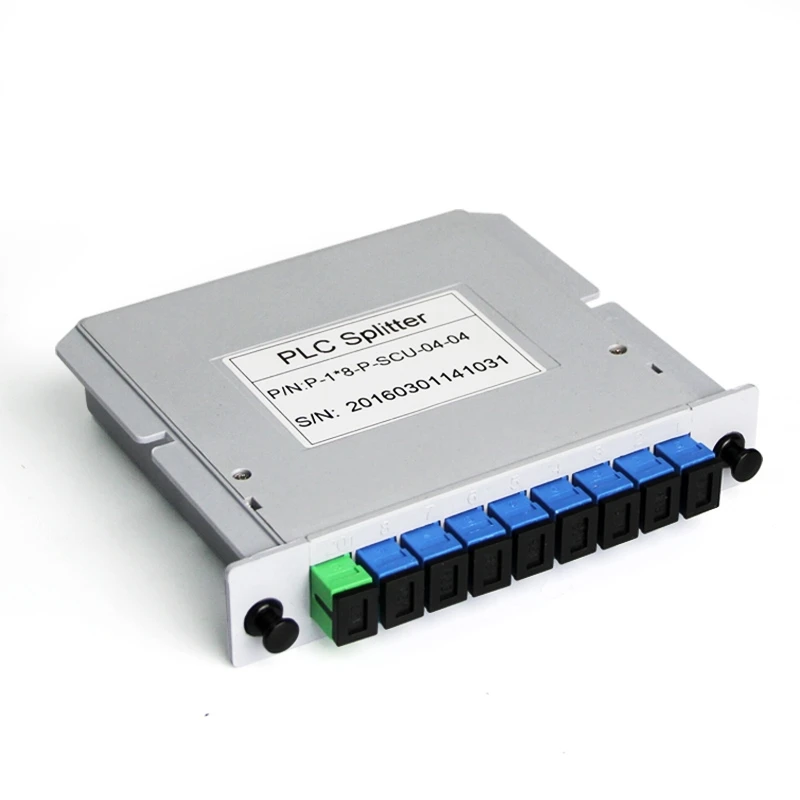

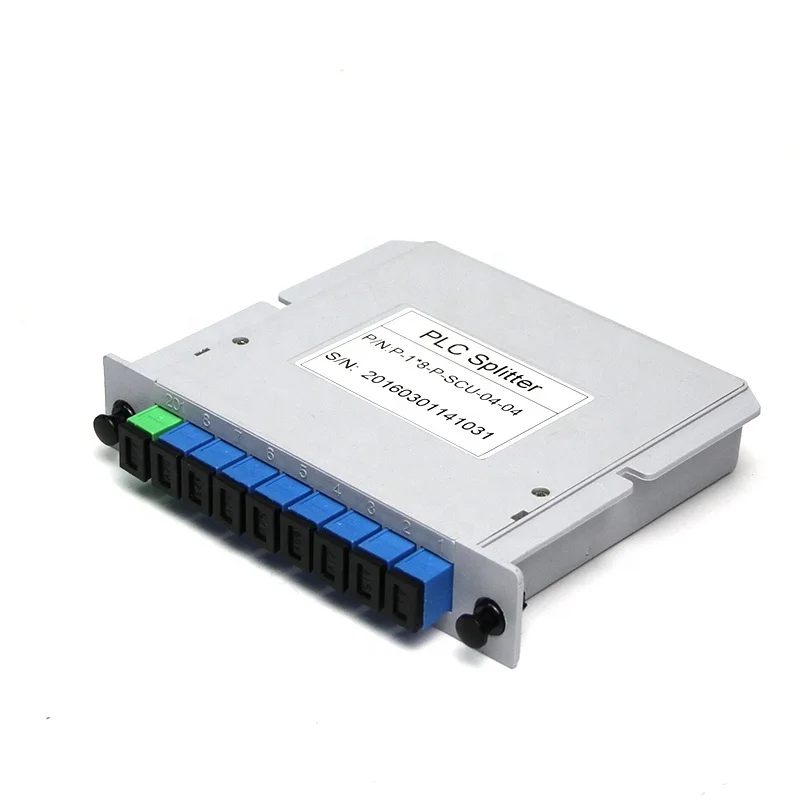

China ZKP SC/UPC 1X8 Fiber Optic PLC Splitter Inset Type LGX fiber optic splitter

Parameters

1×2

1×4

1x8

1×16

1×32

1×64

1×128

Operating wavelength

1260 ~1650nm

Insertion Loss (dB)(P/S Grade)

3.6/4.0

7.2/7.4

10.2/10.5

13.5/13.7

16.2/16.7

20.5/21

23.8/24.5

uniformity (dB)

0.4

0.6

0.8

1.0

1.2

1.8

2.0

PDL (dB)

0.2

0.2

0.3

0.3

0.3

0.4

0.5

Return Loss (dB)

≥55

Directivity (dB)

≥55

TDL(dB)

0.5

Operating/Storage Temperature (℃)

-40~85

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

2×128

Operating wavelength

1260 ~1650nm

Insertion Loss (dB)(P/S Grade)

3.8/4.2

7.5/7.8

10.7/11

14/14.2

17/17.5

21/21.5

25/25.5

uniformity (dB)

0.6

1.0

1.2

1.5

1.8

2.0

2.5

PDL (dB)

0.2

0.2

0.3

0.3

0.3

0.4

0.4

Return Loss (dB)

≥55

Directivity (dB)

                                                 ≥55

TDL (dB)

0.5

Operating/Storage Temperature (℃)

-40~85
