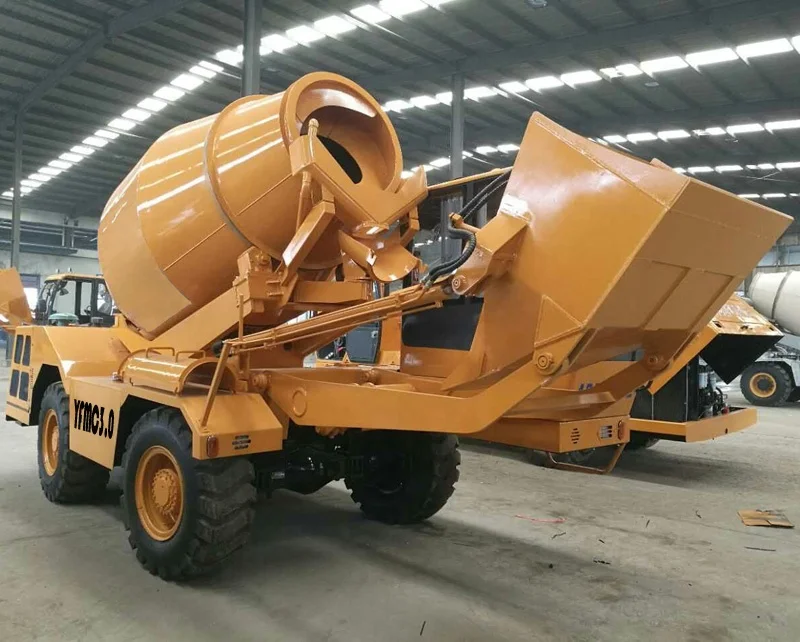

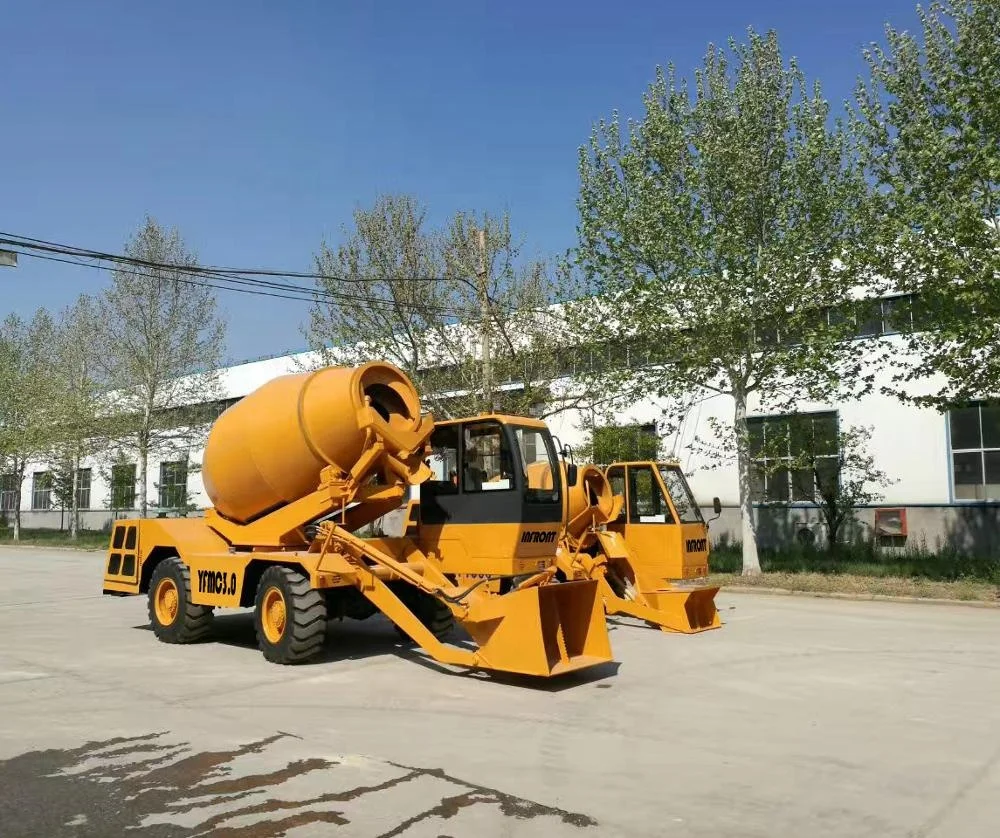

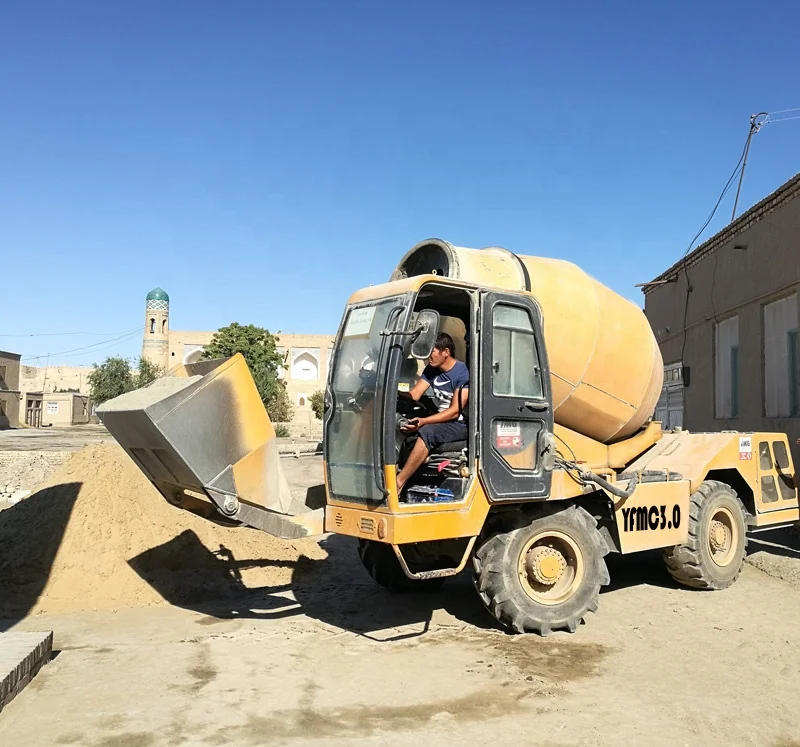

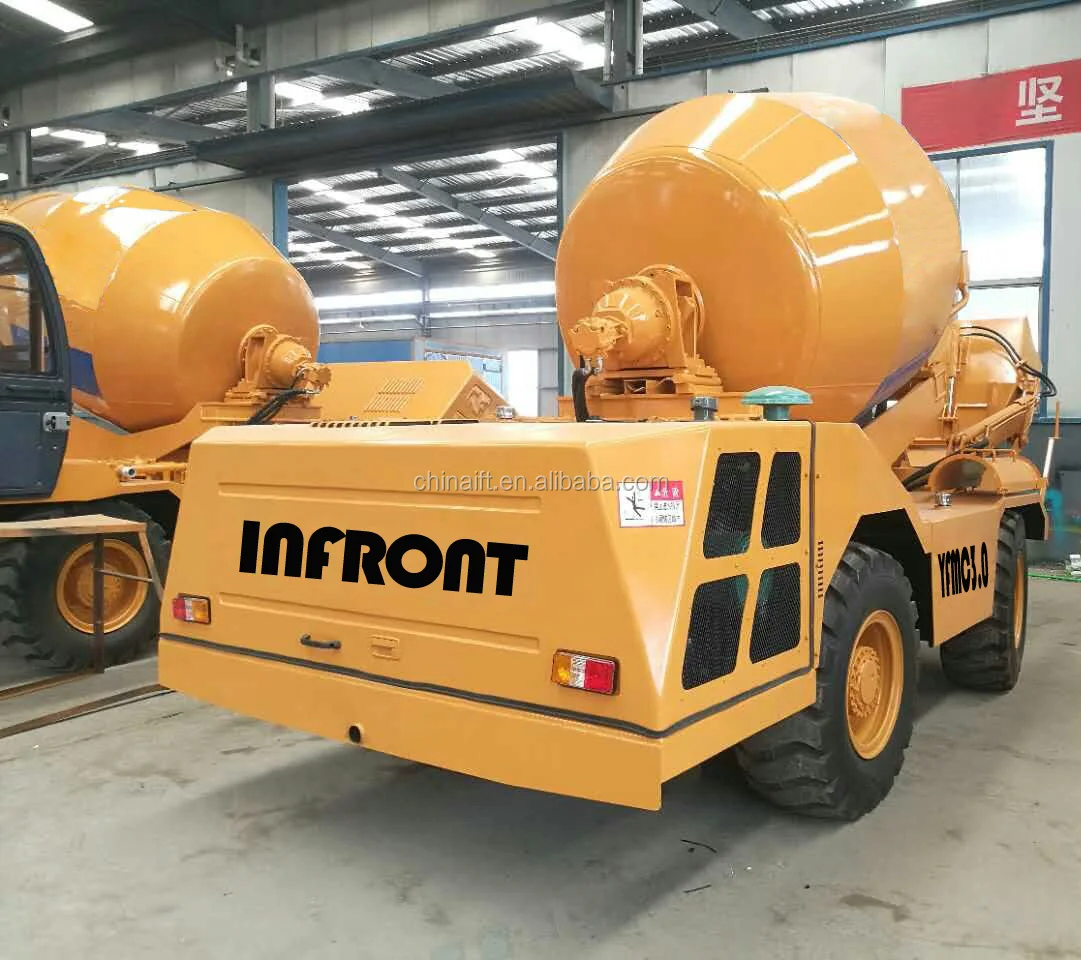

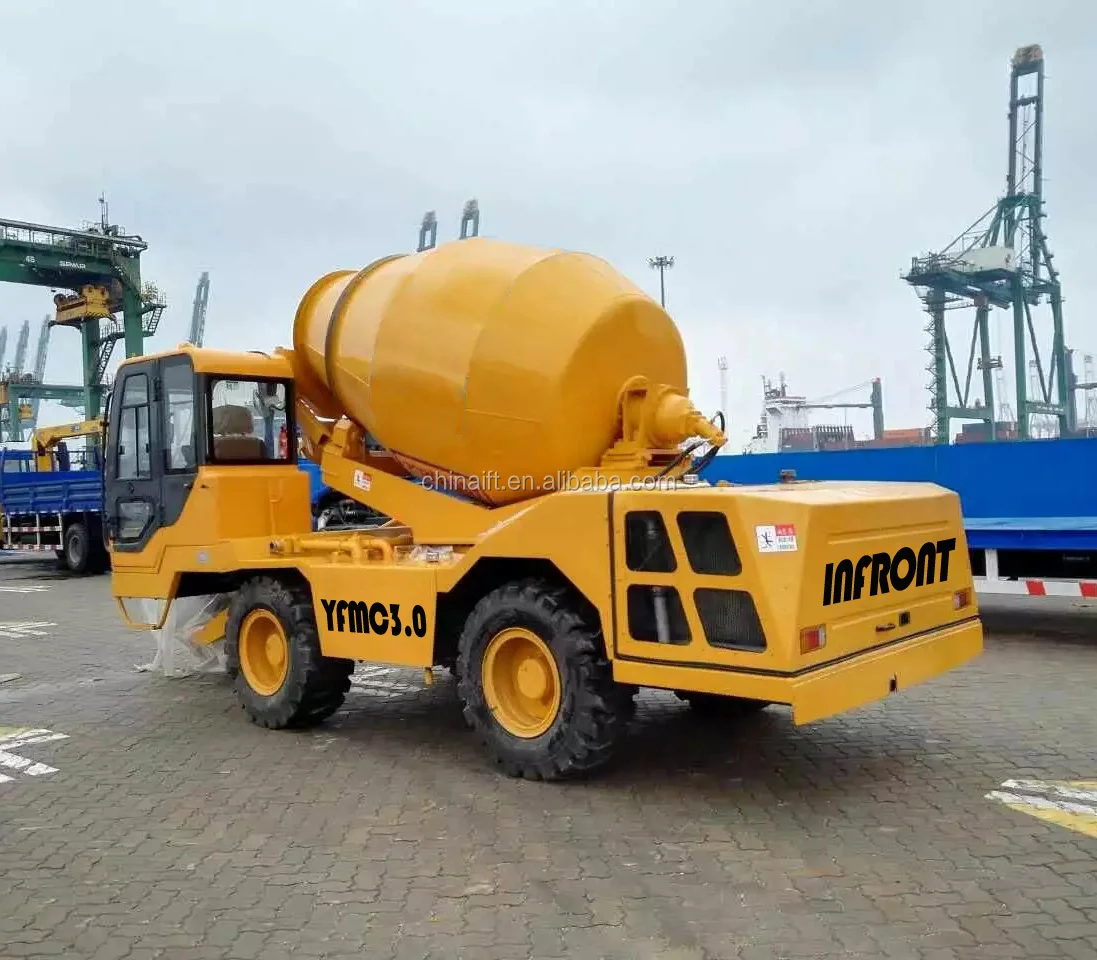

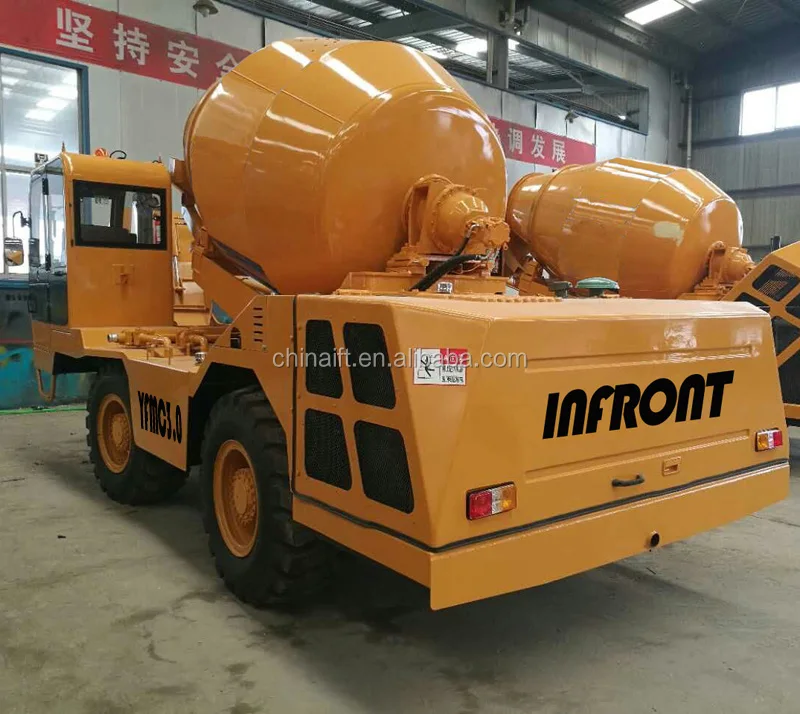

Propelled Small Concrete Mobile Truck Self loading Concrete Mixer
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Home of value that works!
Product Description
MAIN PERFORMANCE PARAMETRES
| Mixing Drum | Drum capacity 5.3M3. Concrete output: 3.5 M3 per batch. 8.75Ton. |
| Mixing Speed | 20rpm in full, infinitely variable speed change. No interference from other actions. |
| Loading Speed | 3shovels/min, 650L/Shovel |
| Pump water | 1.5 min/batch. 40Ton/hour, Self-suction hydraulic driven water pump |
| Efficiency | 4 batches one hour. 14m3/hour |
| Speed | 0—10km/hour 0—20km/hour |
| Washing Gun | Hydraulic driven high pressure water pump & washing gun |
| Drum rotation | Horizontal rotation270°, high of discharge port is 1.8 meters |
| Engine | Yuchai,YC4A125Z, Diesel, water-cooled,4cylinders, 92kw/2200rpm. |
| Transmission | Powered by hydraulic. 4 wheel drive and 4 wheel steering. |
| Walk | Powered by Variable plunger pump and variable plunger motor. |
| Mixing | Powered by variable plunger pump and plunger motor. |
| Joymix | Hydraulic pilot handle. |
| Driving seat | Left drive , front cab, on side of loading shovel. |
| Chute | Slewing. Fitted with two pins easily detachable to increase the discharge height. |
| brake | Hydraulic brake, double independent circuit. No power state 4 time effective brake. Hydraulic parking brake |
| Steering | Hydraulic steering. 3 way steering. |
| Tyre | 16/70-20, construction tyre 16/70-20. |
| Electric | 24V. Safety battery cut-off |
| Tanks | Water tank: 2x350L . Diesel tank: 150L. Hydraulic oil tank: 125L. |
| Weight | 8600kgs |
| Overall Dimensions | Long: 7.2M Width 2.5M High: 3.3M |
| Measuring | Electronic weighing system, with a printer. The deviation is less than 5% |

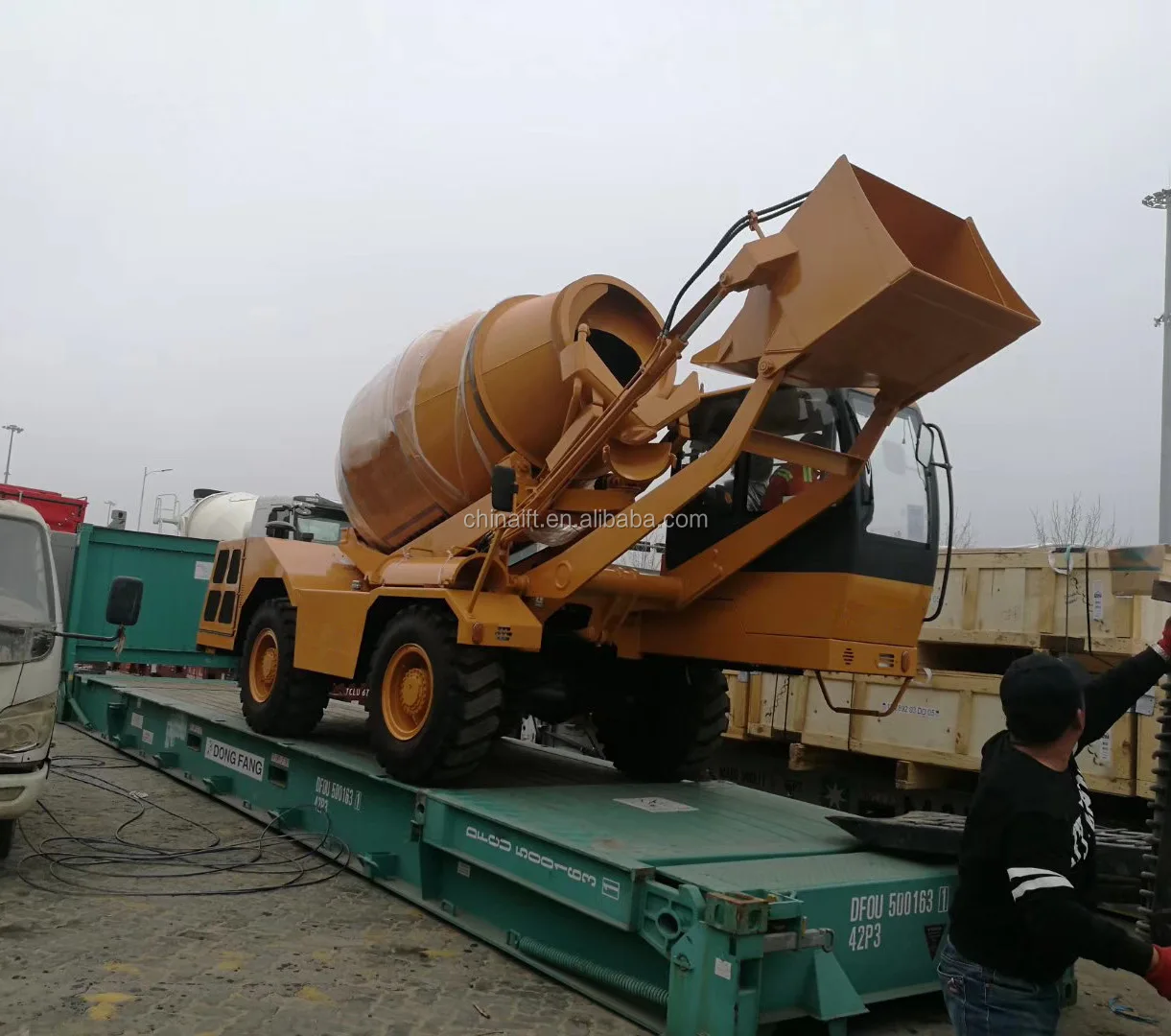

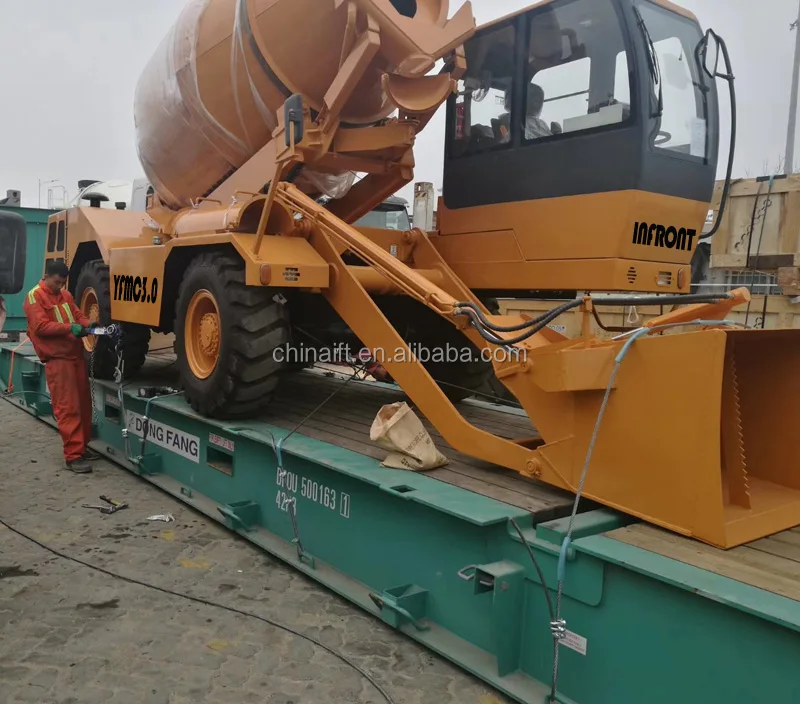

Packaging & Shipping
For sea and train delivery .Nude package ,1 unit load in 40HQ container ,mixing tank and cabin moved ,drive the machine directly to the container ,no need move the tyres.
For truck delivery ,drive the machine directly or under customer need .
