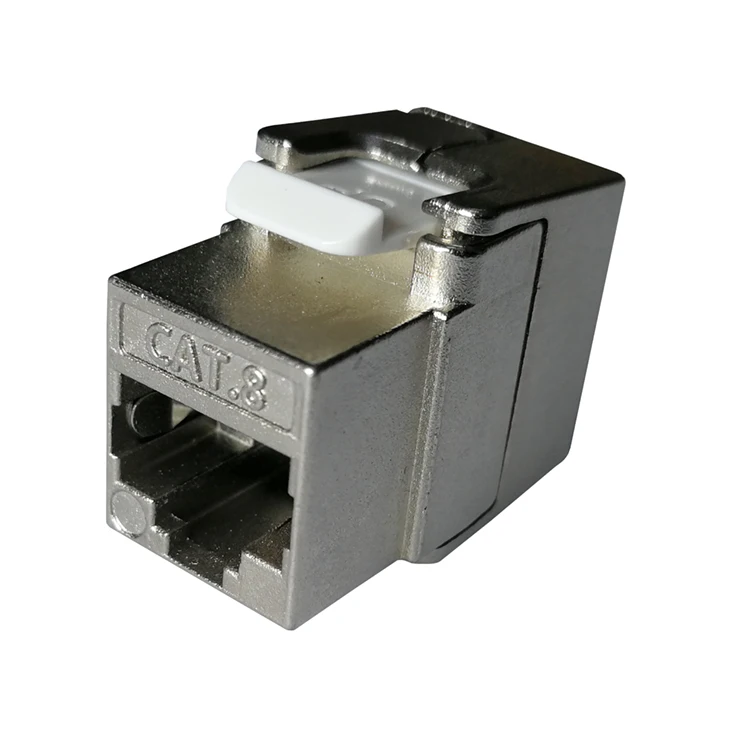

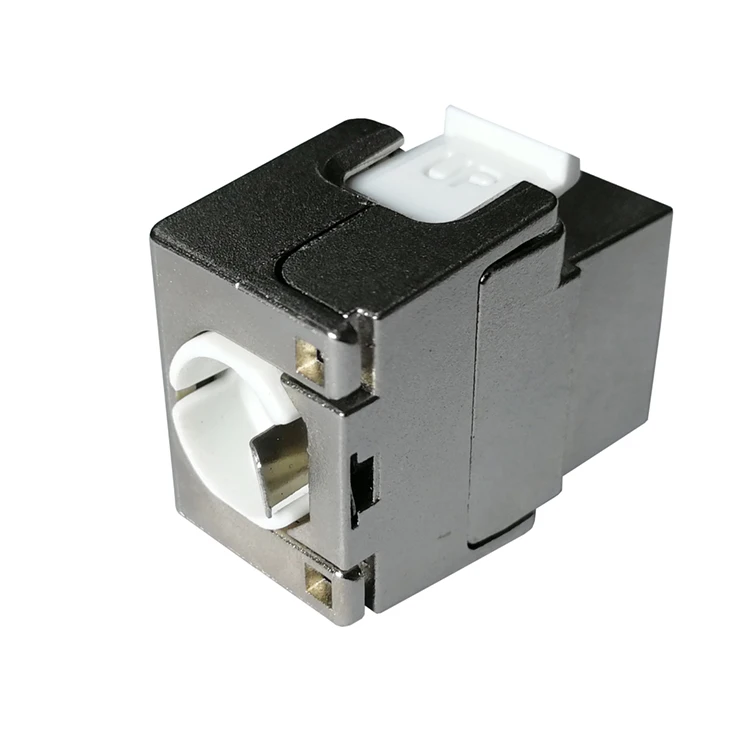

Shielded small 180 degree shielded toolless network cat8 keystone jack

Product Overview

Description



Keystone Jack

( Cat.8 Keystone Jack )







Features

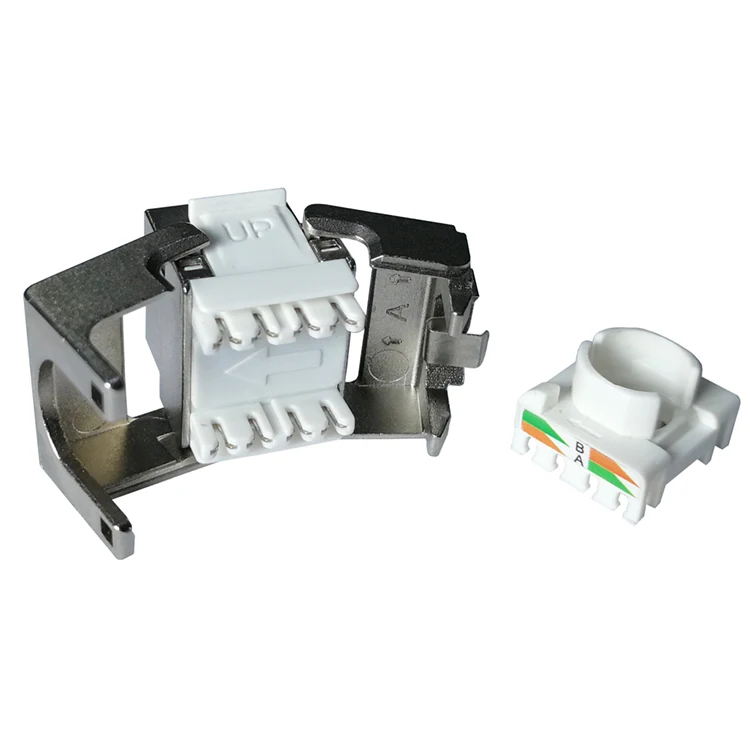

Full shielded with a rugged cast-encased rear, utilizing an
innovative tool-free termination.
Easy, reliable and stable quality by inset-molding and press-fit
assembly process.
Fits for 1U 24port and 1U 48 port keystone panel or faceplate.
Suitable for cabling from the smallest home networks to very large
data centers



Electrical
Current Rating: 1.5 Amps
Insulation Resistance: ≥ 500 MΩ
Contact Resistance: ≤10 mΩ
DC Resistance: ≤ 0.1 Ω
DC/AC Volt Endurance: DC1000V/AC750V 1min



Mechanical
Mating cycles : 750 cycles minimum
Insertion force : 30N max
Retention strength : 5kg between jack and plug
IDC mating cycles : 200 cycles minimum
Operating temperature : -10~60°C
Operating humidity : 10%~90%RH
Storage temperature : -40°C TO 68°C

Physicals
Housing: Zinc Die-Casting with high quality Nickel plating
Plastic Parts: High quality engineering plastic
PCB: FR-4, 1.2mm Thickness
Jack Wire: 0.35 mm Phosphor bronze gold over nickel plating
IDC conductor:0.5mm Phosphor bronze, tin-plating
Contact compatibility :accommodate 22 to 24 AWG solid
TIA Cat.8 Perm.Link Test: Worst Pair NEXT Headroom ≥1.0dB
TIA Cat.8 Channel Test: Worst Pair NEXT Headroom ≥2.0dB

Standards Verification
ANSI/TIA-568.2-D;
ISO/IEC TR 11801-9901 Ed.1.0 (2014-08) Category 8;
ISO/IEC 60603-7-51 compliant ;



Payment mothod Accepted:

• 1) Paying with Paypal


• 2) Paying with Westunion


• 3) Paying with T/T Bank



Shipping and delivery details:

• 1); :sample or trial order: 2 working days


• 2): Official order: 5 days after paymen


• 3):  Package: PE bag, or Customized with Blister or Slide Card or Gift box etc

Name	JBKS15
Color	White,or as per customer's request
Application	Network
Type	cat8 keystone jack
Specification	cat8 keystone jack
OEM,ODM	YES
Certificate	CE/SGS/ROHS
Quality control	By test machine
Export market	Global
