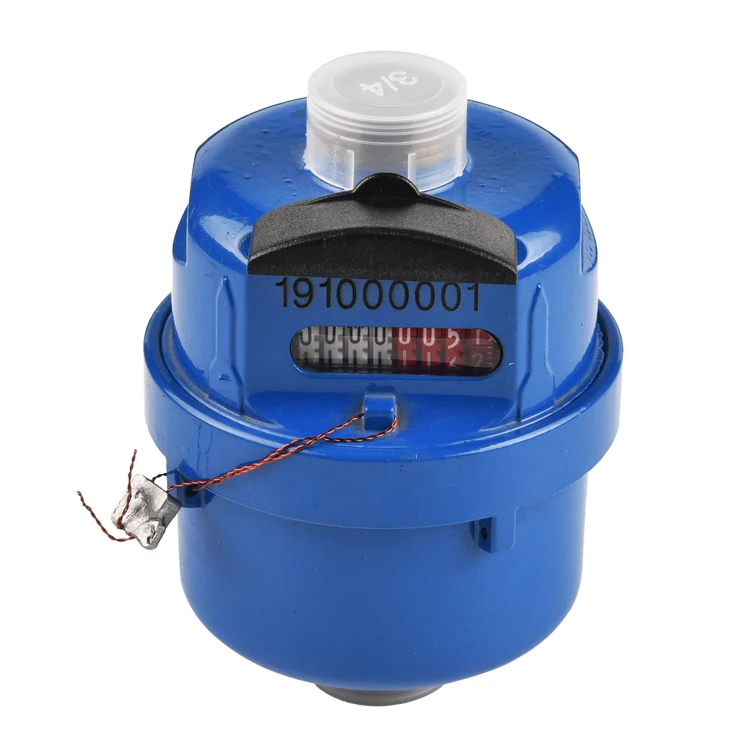

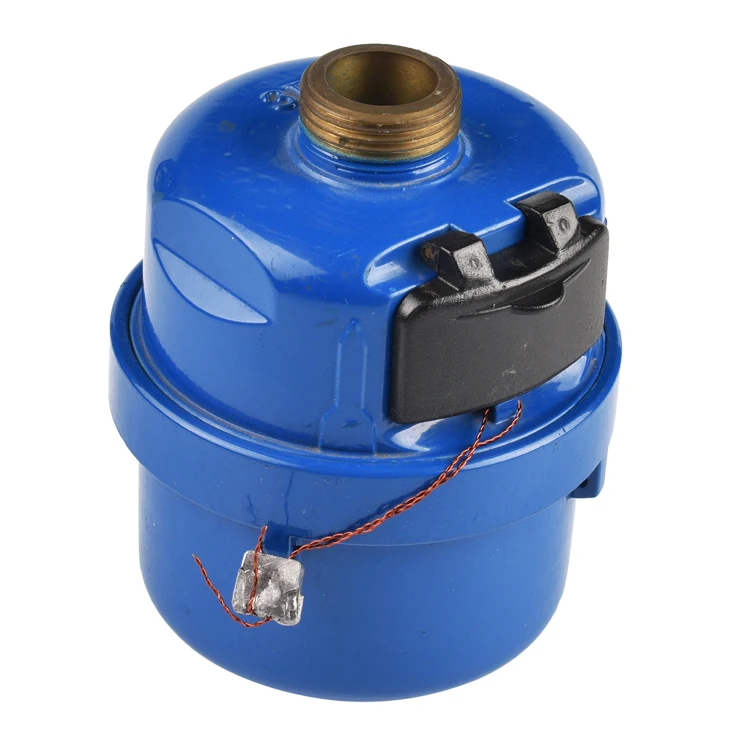

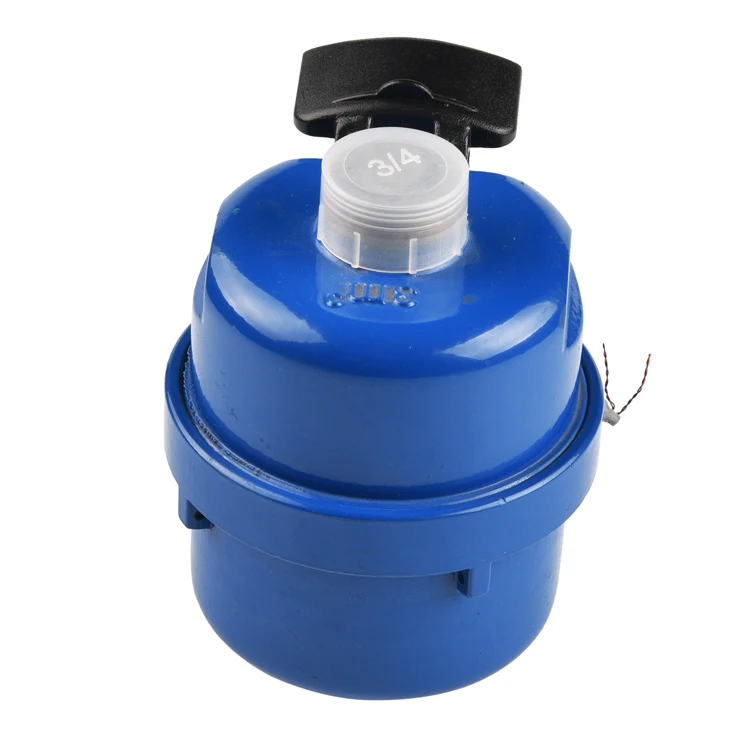

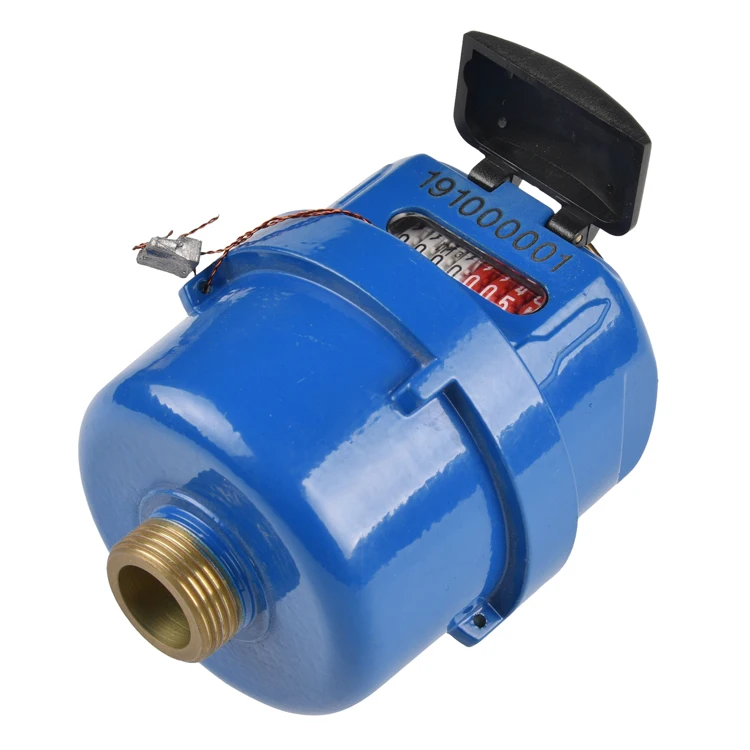

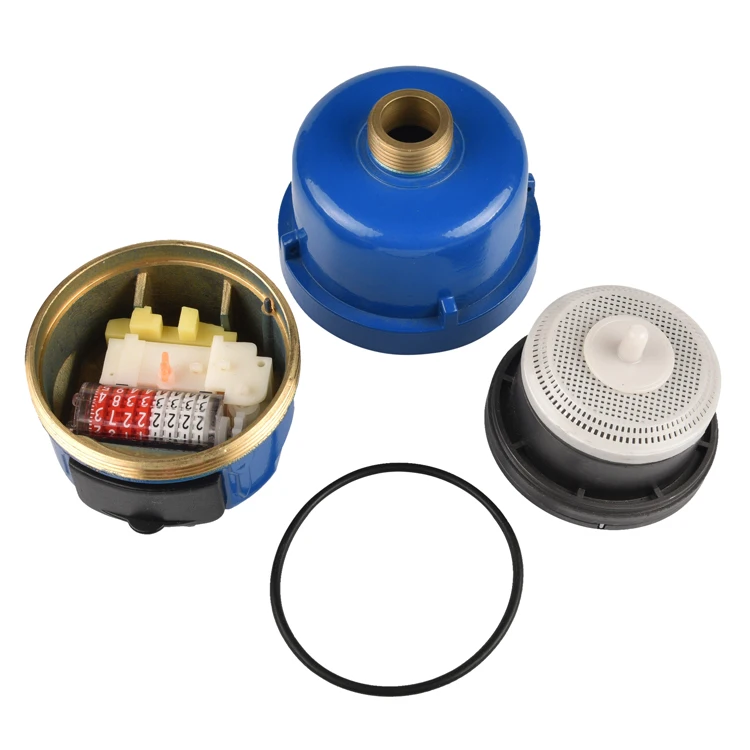

Rotary Piston Volumetric flow meter class c

Product Overview

Description

Application:
--Measuring the total volume of cold potable water passing through the pipeline.



Feature:
--Volumetric meter, on principle of piston rotation, complies with ISO4064 Class C(R160)standard;
--High sensitivity, accurate measurement even at low flow rate of 4L/h;
--Optimum accuracy and performance at all times, in any position;
--Liquid-sealed register(LXH), vacuum sealed(LXHG)easy and long term clear reading.
--Piston adopts high quality material to ensure stable and durable performance;
--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse for LXHG; 1 L/Pulse for LXH.



Working condition:
Water temperature: 0.1°C~50°C for cold water meter.
Water pressure : ≤1.0Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)

Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;



MAIN TECHNICAL SPECIFICATIONS
According ISO4064(GB/T778.1-1996) standard

Type	Size   (mm)	Class	Qs Overload   Flow	Qp Permanent      Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXHG-15E	15	C	3	1.5	22.5	15	0.0001	99,999
LXHG-20E	20	C	5	2.5	37.5	25	0.0001	99,999
LXH-15A	15	C	3	1.5	22.5	15	0.0001/0.001	99,999/ 9,999
LXH-20A	20	C	5	2.5	37.5	25	0.001	99,999
