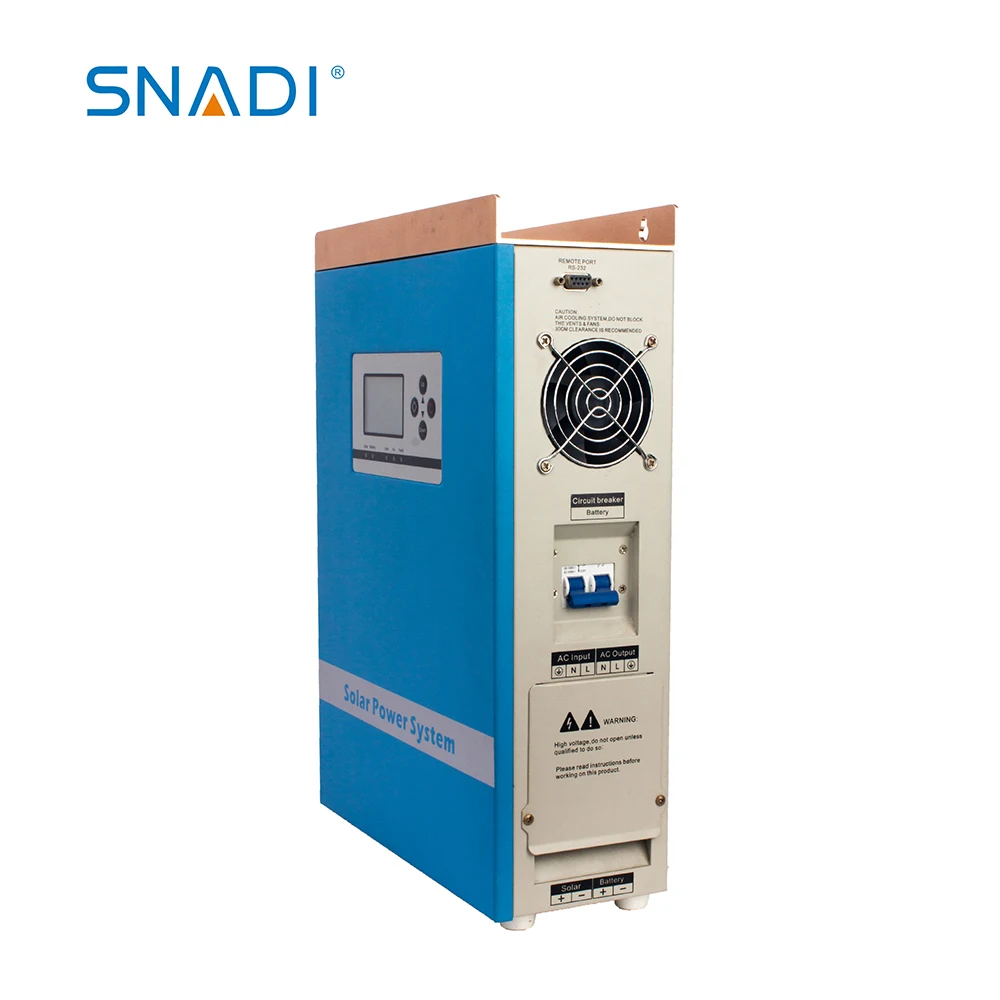

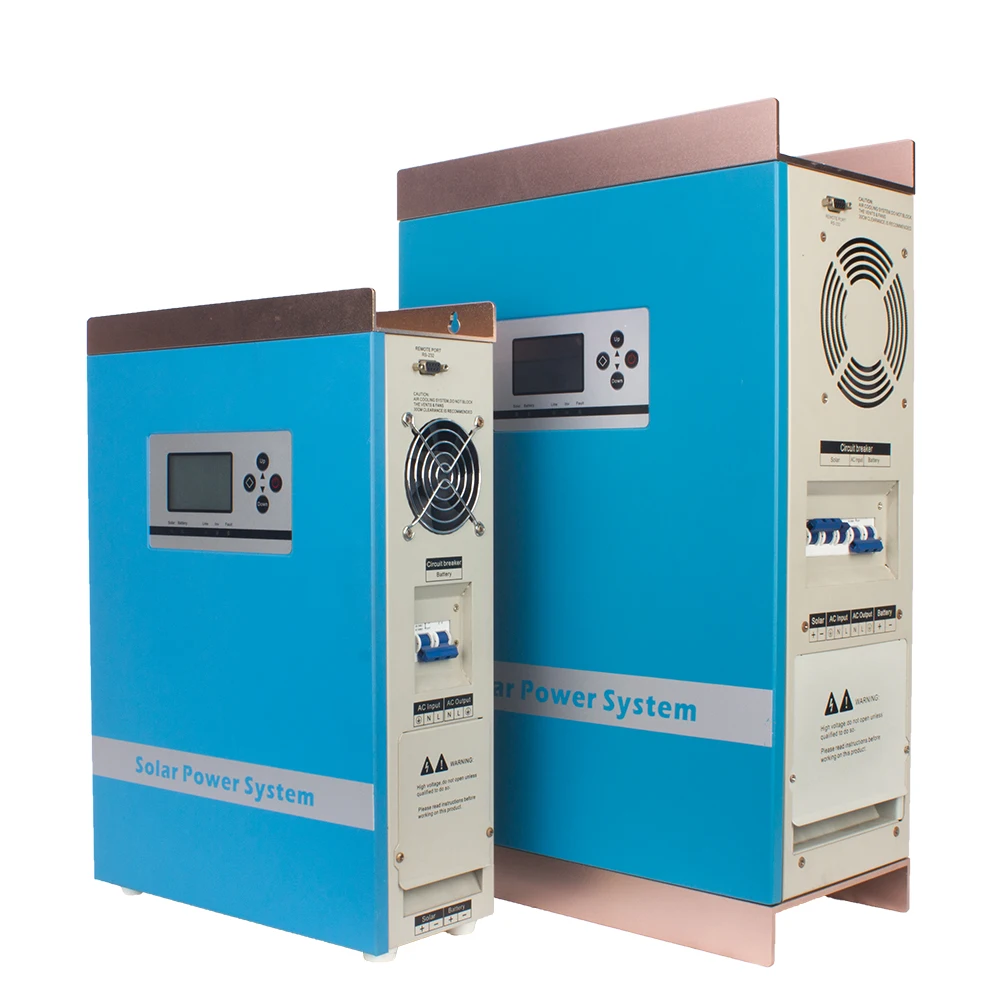

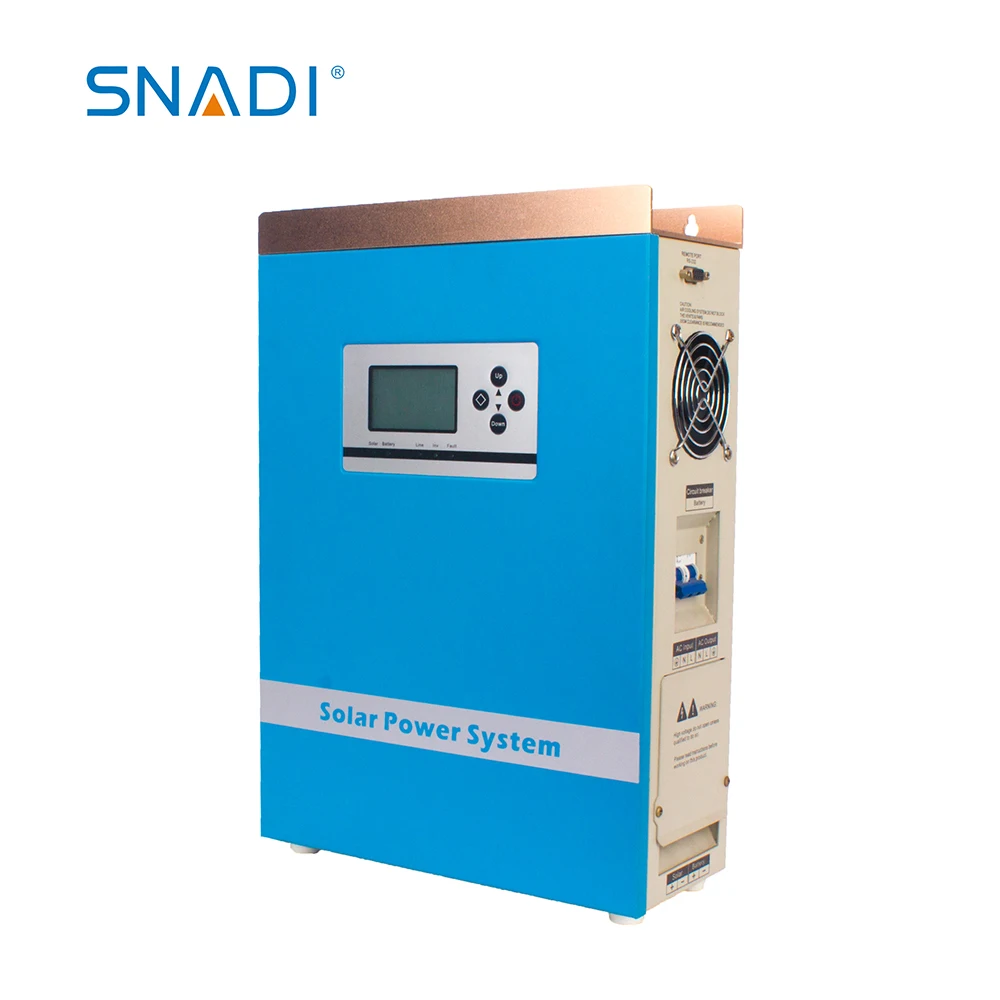

off grid Hybrid Solar Inverter 3Kw 24v 48v 96v 110v 220v For Power System Home Use
- Category: >>>
- Supplier: Foshan Snat Energy Electrical Technology Co. Ltd.
Share on (62393885492):
Product Overview
Description
off grid Hybrid Solar Inverter 3Kw 24v 48v 96v 110v 220v For Power System Home Use
Product Description
Main Feature
1.Excellent performance because of an MCU intelligent control technology
2.A wide range of applicable loads because of power-frequency transformer
design and pure sine wave AC output
3.A wide range, high accuracy and full automatic voltage stabilization
4.Overall protection functions (overload protection, short circuit protection,
over-voltage protection, under voltage protection and over temperature protection)

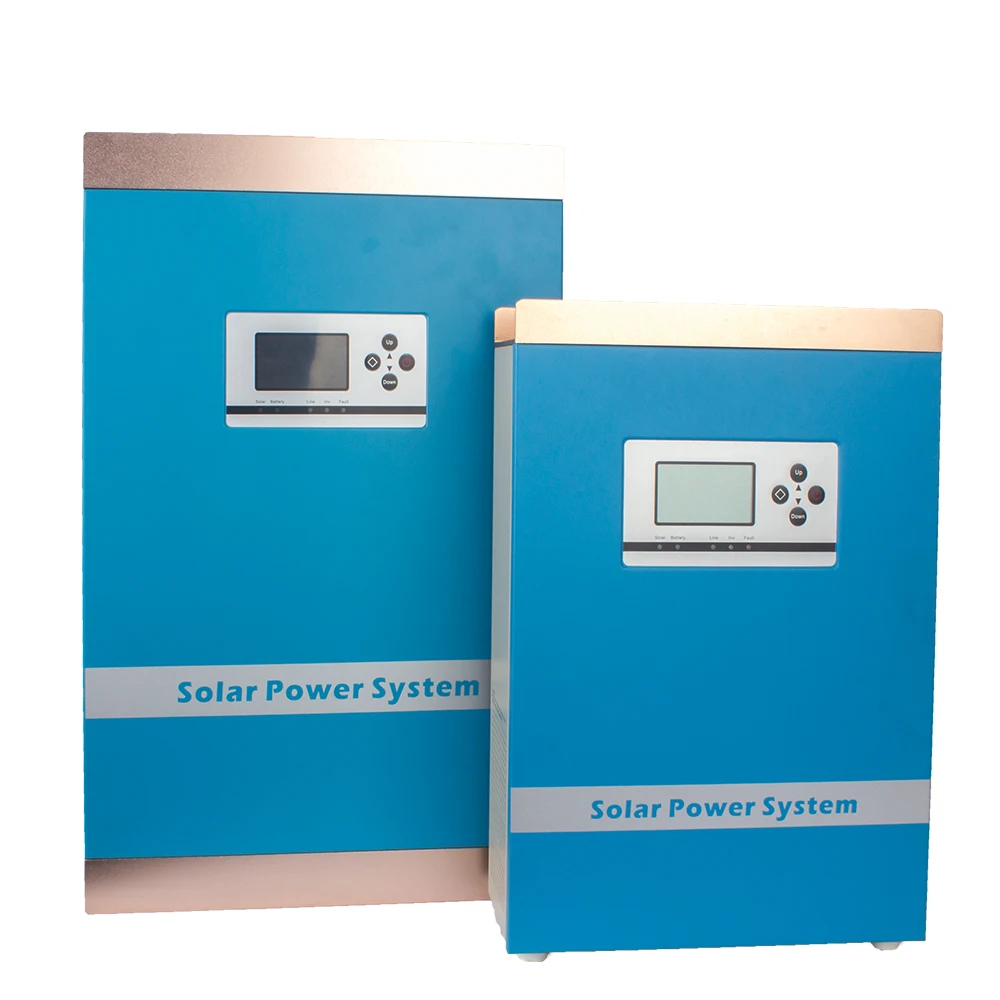

5.Simple LEDs and a LCD for visualization of operation status of the equipment
2.A wide range of applicable loads because of power-frequency transformer
design and pure sine wave AC output
3.A wide range, high accuracy and full automatic voltage stabilization
4.Overall protection functions (overload protection, short circuit protection,
over-voltage protection, under voltage protection and over temperature protection)
5.Simple LEDs and a LCD for visualization of operation status of the equipment
6. Monitor, troubleshoot, or communication with USB/RS232.

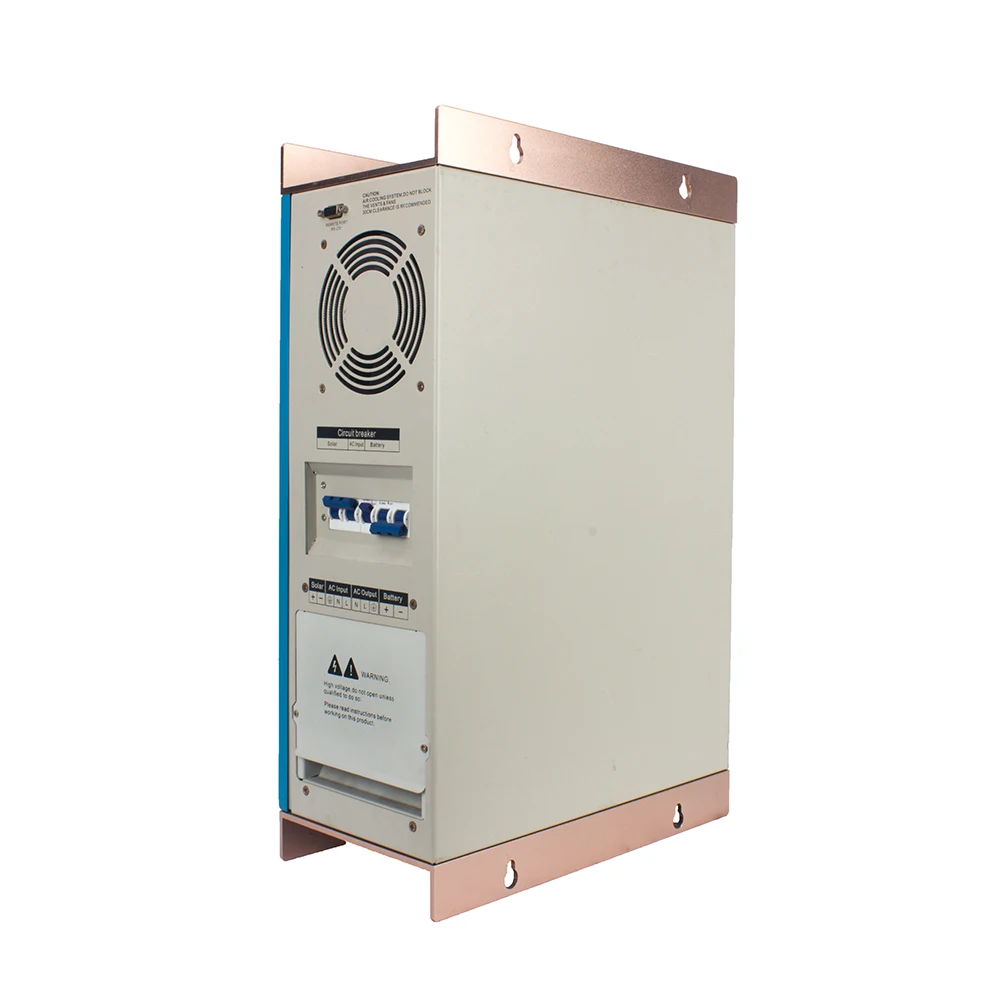

7. System configures quickly into compact, wall-mounted system.

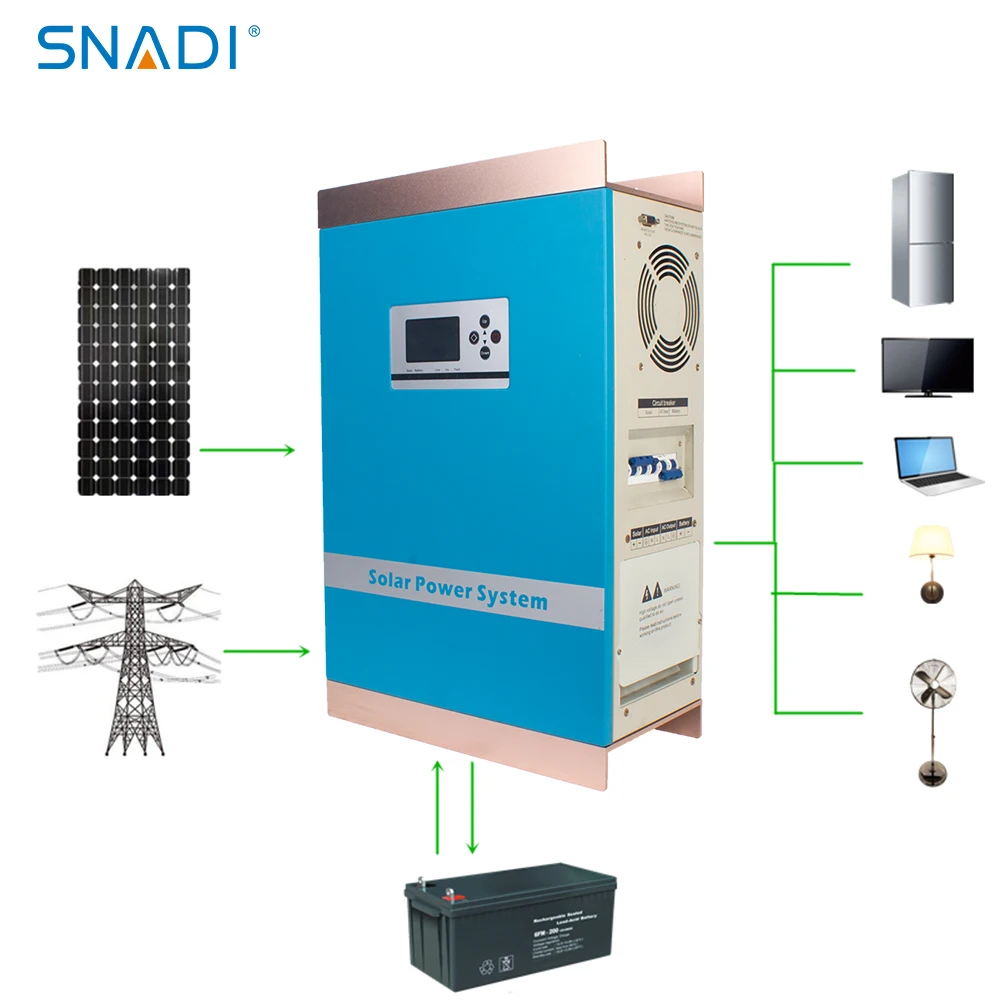

8. Intelligent functionality enables utility and solar input prioritization.
product information
Technical Index
Model:NKW- | 1Kw | 1.5Kw | 2Kw | 3Kw | 5Kw | 6Kw | ||||||
Rated power | 1000w | 1500w | 2000w | 3000w | 5000w | 6000w | ||||||
Battery | Rated voltage | 24VDC/48VDC | 48VDC/96VDC | |||||||||
controller | Rated current | 60A | ||||||||||
Three-stage charging | Boosting,direct,floating | |||||||||||
Battery capacity | Default:400AH(settable between 100AH to 9000AH) | |||||||||||
Voltage drop of the charge circuit | ≤0.26V | |||||||||||
Voltage drop of the discharge circuit | ≤0.15V | |||||||||||
Overvoltage protection | 17V; *2/24V;*4/48V | |||||||||||
Voltage of boosting charge | 28.4V;*2/48V;*4/96V | |||||||||||
Voltage of direct charge | 28.4V;*2/48V;*4/96V | |||||||||||
Voltage of floating charge | 27.6V;*2/48V;*4/96V | |||||||||||
Over-discharge recovery voltage | 12.7V;*2/24V;*4/48V | |||||||||||
Over-discharge voltage | 11.1V;*2/24V;*4/48V | |||||||||||
Charge mode | MPPT/PWM | |||||||||||
Overload protection and short circuit protection | Overload protection upon 1.25 times of the rated current for 60s or 1.5 times of the rated current for 5s; short circuit protection upon three or more times of the rated current | |||||||||||
Operating temperature | Industrial level:-35°C~ +55°C | |||||||||||
Ambient temperature for operation | 0-40°C | |||||||||||
Ambient temperature for storage | -15- +50°C | |||||||||||
Operation/storage conditions | 0-90°C(no condensation) | |||||||||||
Weight(N/G) Kg | 10.7/12.7 | 15.7/18 | 20/23 | 25/28 | 32/35 | 37/40 | ||||||
External dimensions:D*W*H(mm) | 290*125*430 | 350*175*550 | ||||||||||

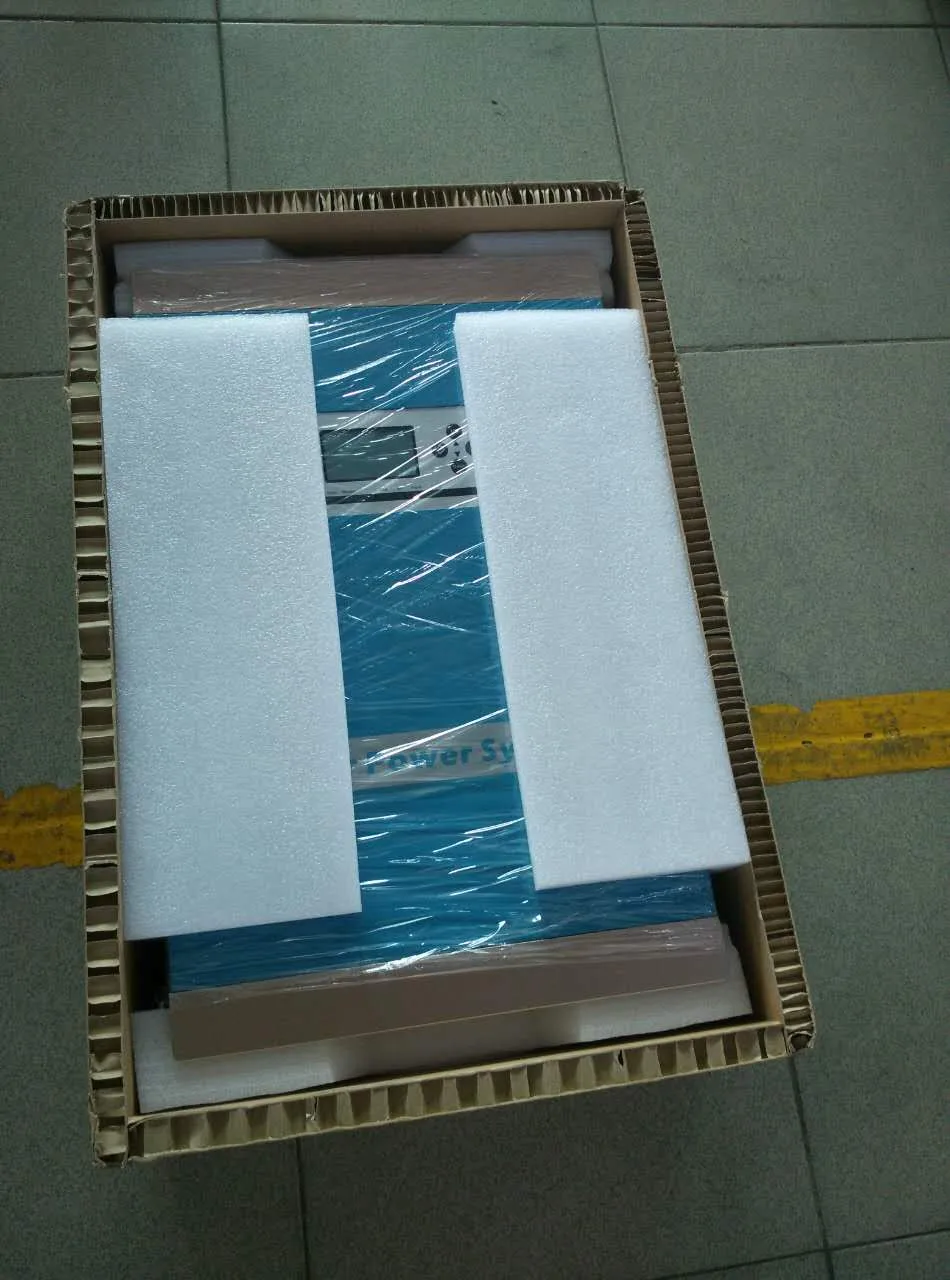

Packing dimensions | 365*205*437 | 445*245*650 | ||||||||||
Company Profile
FAQ
Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
