temperature valve, PTFE tube assembly, rubber tube assembly, hose for CNG dispenser, and so on;
5. OEM for many CNG dispenser company, Beijing changkong, Guangzhou Tokheim, Nanjing new metallurgy, Zhengzhou censtar,
Chongqing endurance, and so on.
Product Description
A. Processing equipment of ATEX solenoid valve / cng gas solenoid valve:
B. Test equipment of EX solenoid valve:
C. The parameter of ATEX solenoid valve / cng gas solenoid valve:
1. CASIC cng gas solenoid valve is kind of explosion-proof (EX mark: EX mb II T4 Gb);
2. Mainly used in CNG dispenser, CNG filling station, CNG pipeline, oil and gas separation system, and so on;
3. Control on/off of medium through the magnetic force between armature and electromagnet;
4. 100% normal test before cng gas solenoid valve is delivered;
5. Long lifetime and high reliability because of the monolithic structure design of main valve core in solenoid valve ,on-off times more than 120,000;
6. Compared with similar products, seal capability and electromagnet lifetime and reliability of CASIC cng gas solenoid valve is perfect.
7. Better generalization, servicing spare parts of cng gas solenoid valve can be purchased to replace easily.
Note: port dimension of solenoid valve can be desiged by the order.
Model
Interface
type
Port
dimension
DN
PN
(bar)
Working
voltage
Working
medium
Working
tempeature
Body
material
Performance
equivalent to

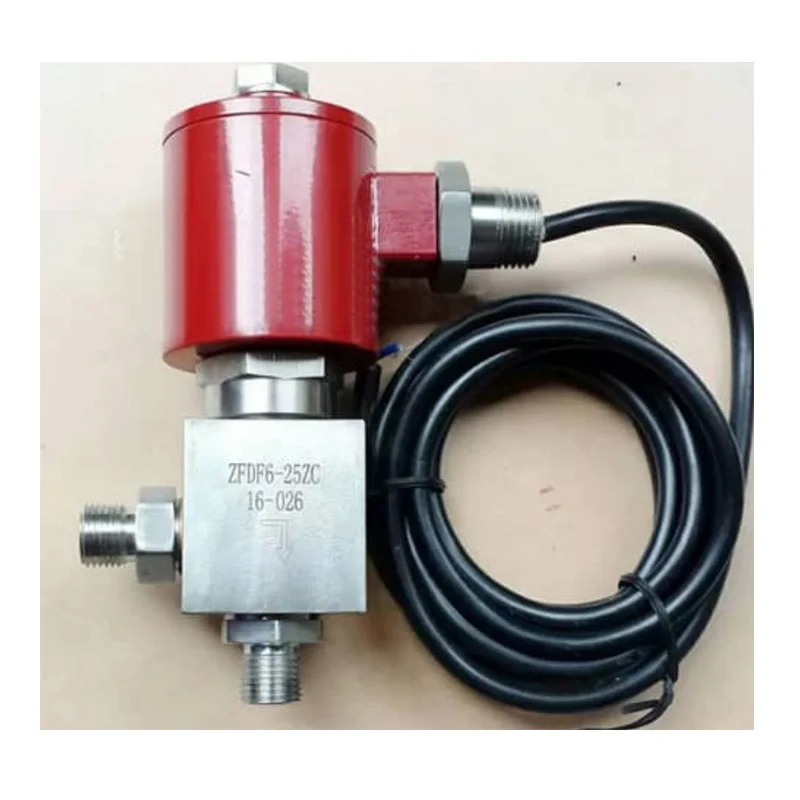

ZFDF6-25
series
single bite
type fitting
M16*1.5/
M18*1.5
inner G3/8
inner G1/2
6mm
(0.236inch)
250
220V AC/
24V DC/
12V DC
natural gas, N2
-40~+50°c
SS304
/

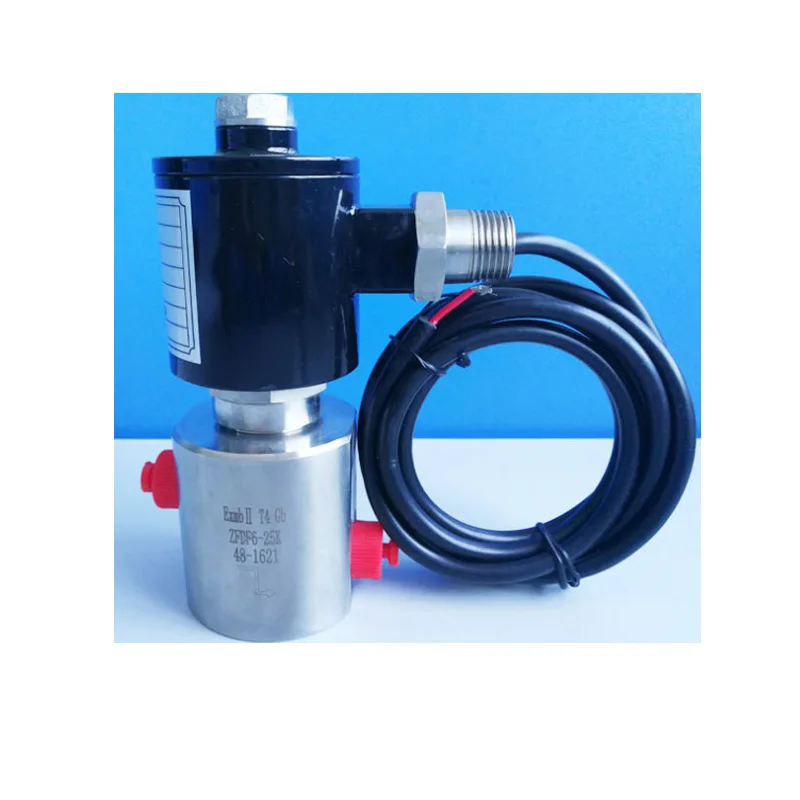

ZFDF6-25K
series
single bite
type fitting
6mm
(0.236inch)
Seitz 3045
ZFDF6-25/10
/
10mm
(0.394inch)
Tru-flow T502
ZFDF6-25/12
/
12mm
(0.472inch)
Seitz 3046
FAQ
A. Why choose our cng gas solenoid valve?
1. We are number 2 cng valve manufacturer in China;
2. 70% domestic market of CNG dispenser parts.
B. About order of cng gas solenoid valve
Three cng gas solenoid valves be installed in single gun CNG dispenser,
and Six cng gas solenoid valves be installed in dual gun CNG dispenser.
You can arrange the order according to you project.
C. About sample of cng gas solenoid valve.
Support the sample order.
D. About payment term of cng gas solenoid valve.
1. T/T;
2. 30% deposit after contract with 5 working days, balance 70% T/T against copy of B/L;
3. 100% L/C;
4. Other negotiated idea.
E. About the quality of cng gas solenoid valve
1. Raw material and bought-in components of cng gas solenoid valve will be inspected by our Q/C;
2. Design and process control of cng gas solenoid valve is according to the product FMEA;
3. Adopt to the ERP system;
4. 100% normal test before cng gas solenoid valve is delivered, test item include general requirement, voltage test at mini-flow open, insulation resistance, static liquid pressure test, seal character.
F. About the order finish of cng gas solenoid valve
1. Our principle: each contract seriously, each customer sincerely;
2. All technical and trade problem will be answer quickly.
Certifications
A. . Permission certificate of ATEX solenoid valve / cng gas solenoid valve
B. Patent certificate of cng gas solenoid valve
C. Test center certificate
Packaging & Shipping
A. About the packaging of cng gas solenoid valve:
1. Inner box dimension of cng gas solenoid valve: 200*145*95mm;
2. Outer box dimension of cng gas solenoid valve: 500*320*250mm; 3. 10 sets cng gas solenoid valve be arranged in one outer box;
4. Package type of cng gas solenoid valve may be according to the contract;
5. Weight of one cng gas solenoid valve is about 1.9kg.
B. About the delivery of cng gas solenoid valve:
1. Air transport
2. Ocean transport
3. Express delivery
EMS, DHL, TNT, Fedex and so on
