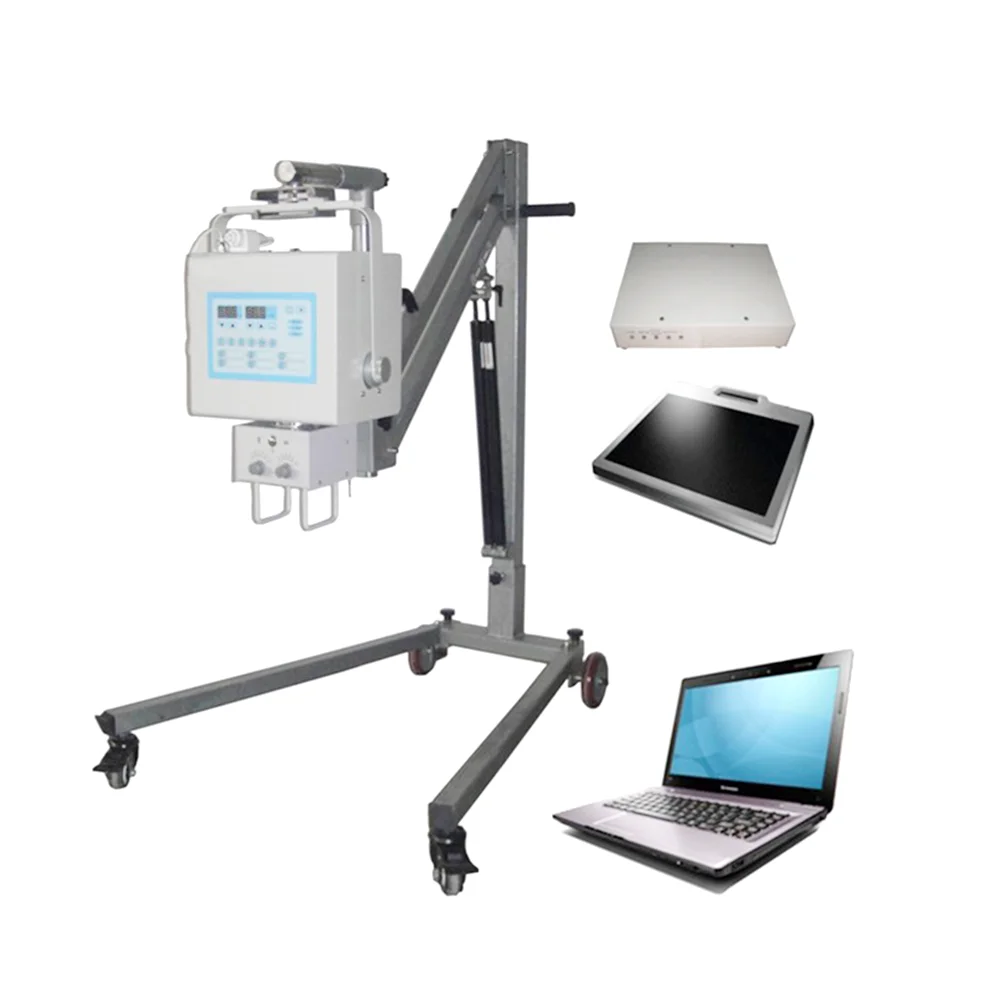

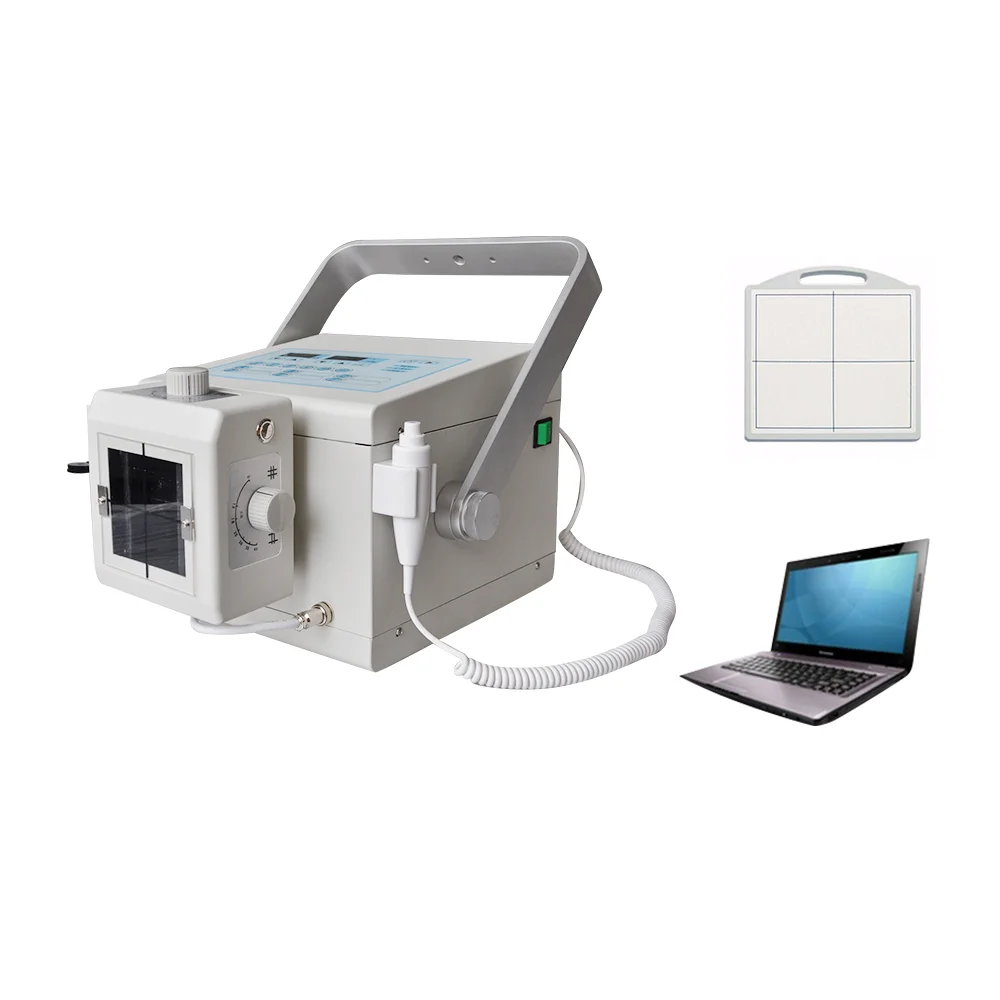

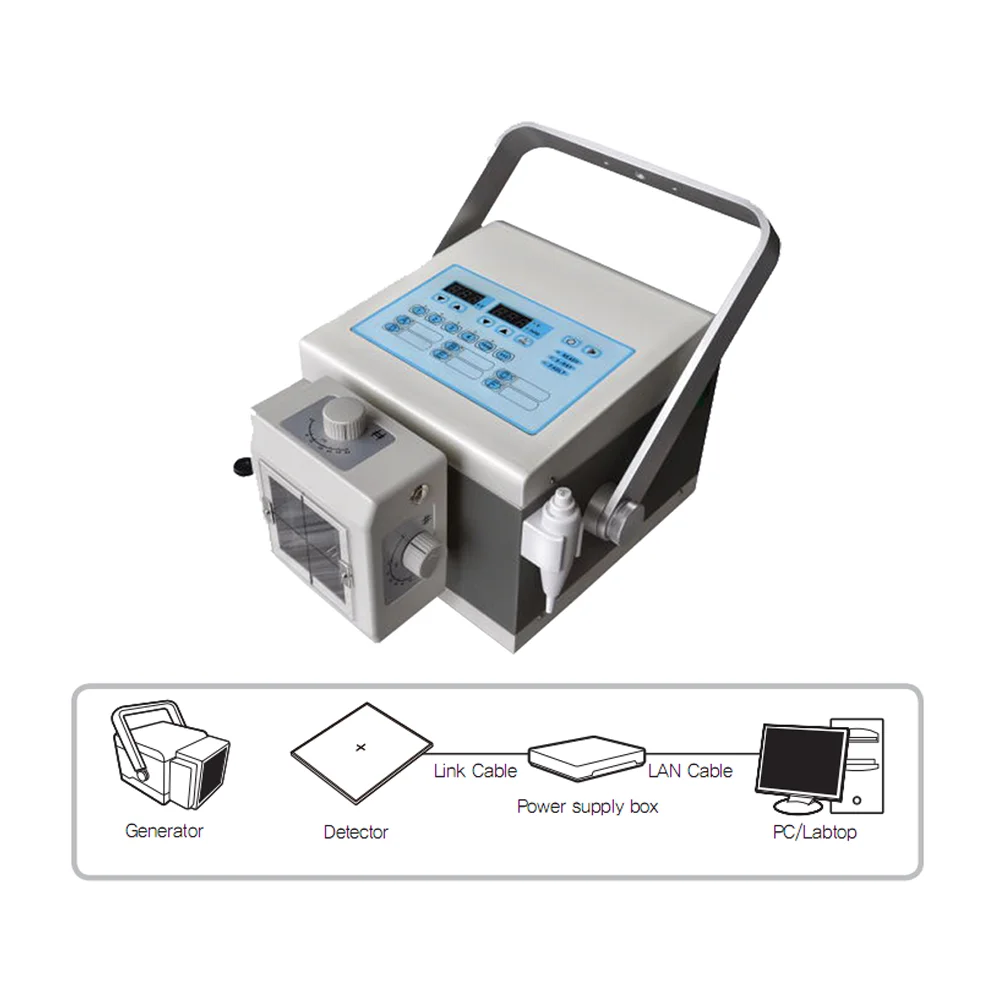

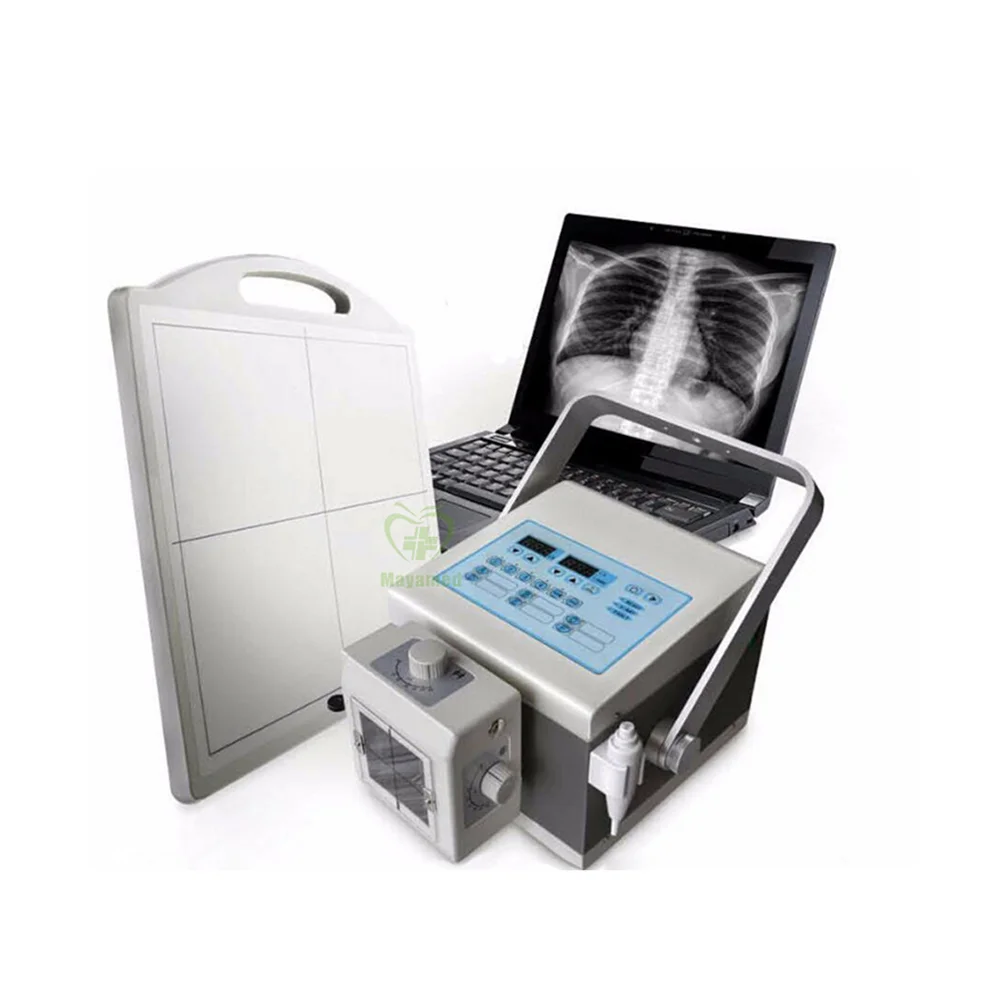

4KW High frequency x ray system medical digital Xray equipment portable x ray machine digital for radiology
- Category: Medical X-ray Equipments & Accessories >>>
- Supplier: Guangzhou Maya Medical Equipment Co. Ltd.
Share on (62394067813):
Product Overview
Description
Products Description
portable x-ray system
Features：
Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;
Input power\t
Power capacity: ≥5kVA; Inner resistance≤0.5Ω\t
Maximum output\t
P =110kV×36mA=4kW
power\t\t
Nominal power\t100kV，40mA，0.1s，4kW\t
Frequency：≥40kHz\t
KV adjusting range：40kV～110kV, step adjustment is 1 kV\t
mA adjusting range：36mA～70mA\t
mAs adjusting range：1mAs-200mAs,shifted adjustment\t
S adjusting range\t0.04s～3.2s\t
X ray tube：Focus:0.6/1.5mm；\t
Anode heating capacity:76kHU\t
Size\t：290×260×230 mm\t
Weight：18.8kg\t

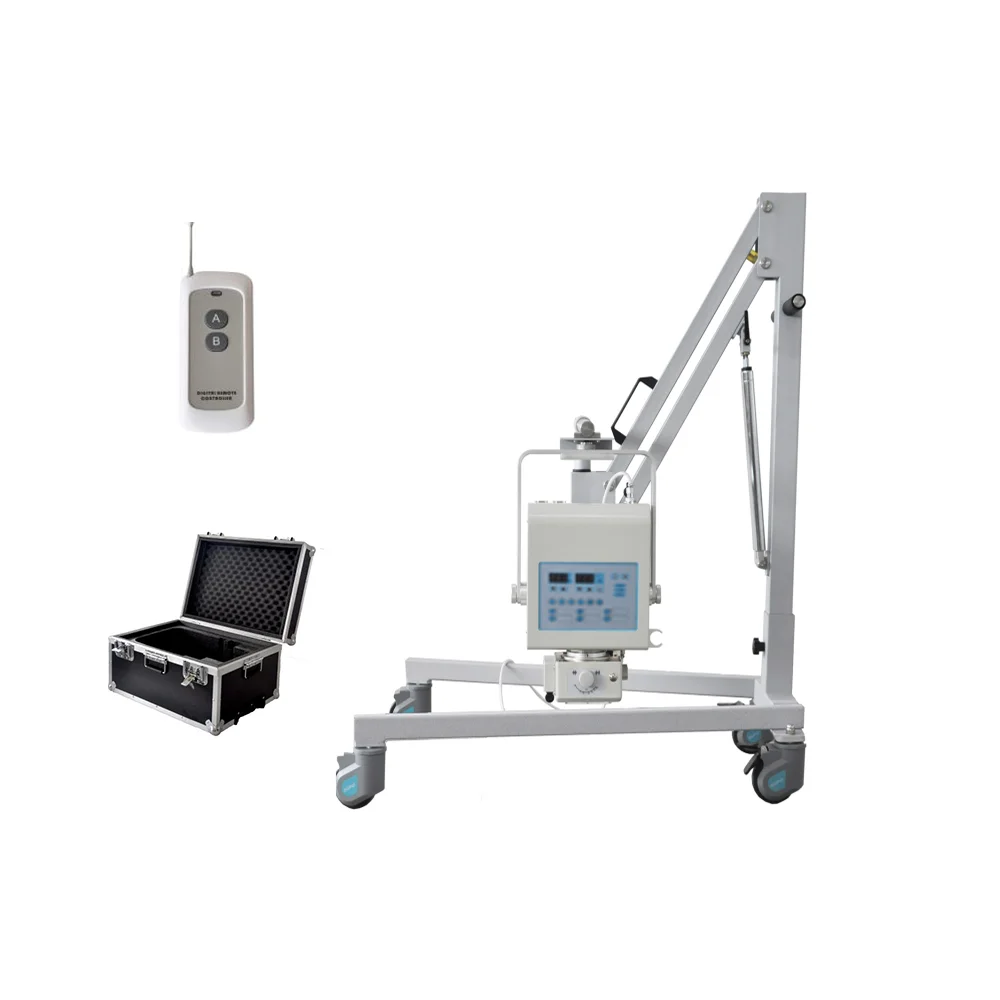

Accessories：\t1.Remote control 2.Aluminum box
Input power\t
Power capacity: ≥5kVA; Inner resistance≤0.5Ω\t
Maximum output\t
P =110kV×36mA=4kW
power\t\t
Nominal power\t100kV，40mA，0.1s，4kW\t
Frequency：≥40kHz\t
KV adjusting range：40kV～110kV, step adjustment is 1 kV\t
mA adjusting range：36mA～70mA\t
mAs adjusting range：1mAs-200mAs,shifted adjustment\t
S adjusting range\t0.04s～3.2s\t
X ray tube：Focus:0.6/1.5mm；\t
Anode heating capacity:76kHU\t
Size\t：290×260×230 mm\t
Weight：18.8kg\t
Accessories：\t1.Remote control 2.Aluminum box
