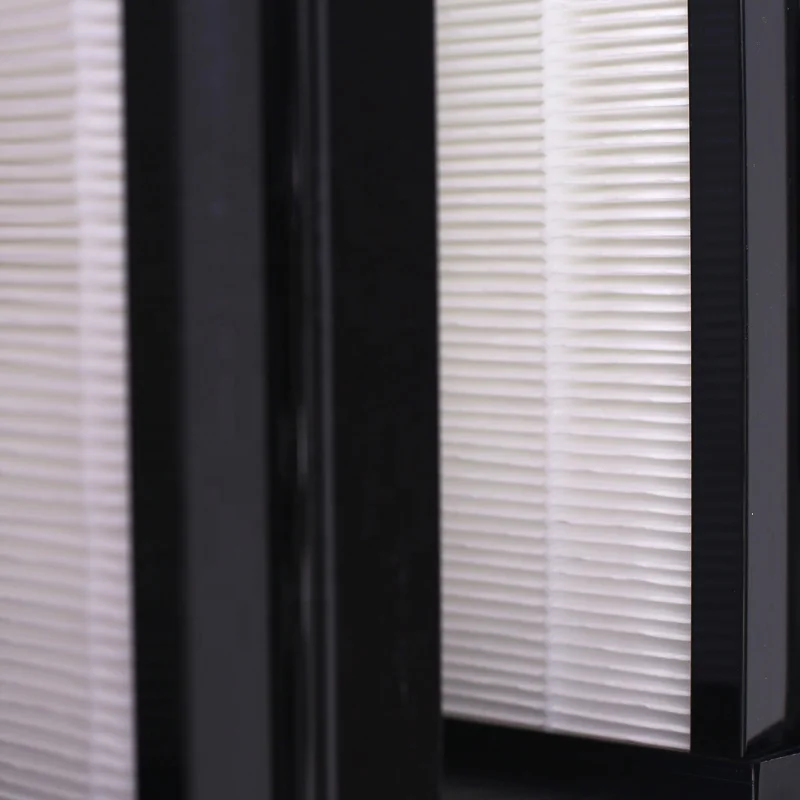

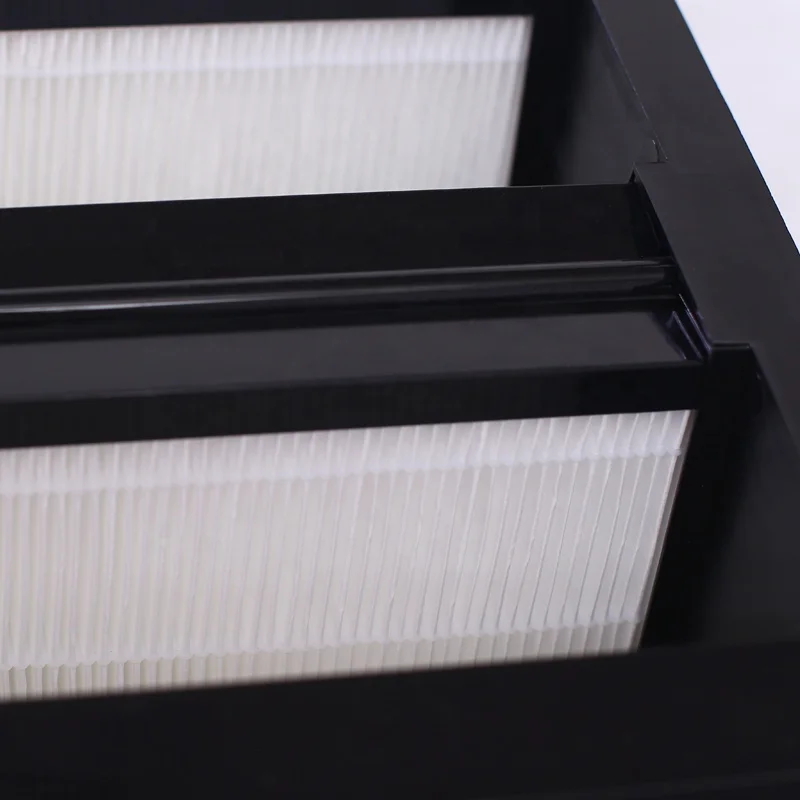

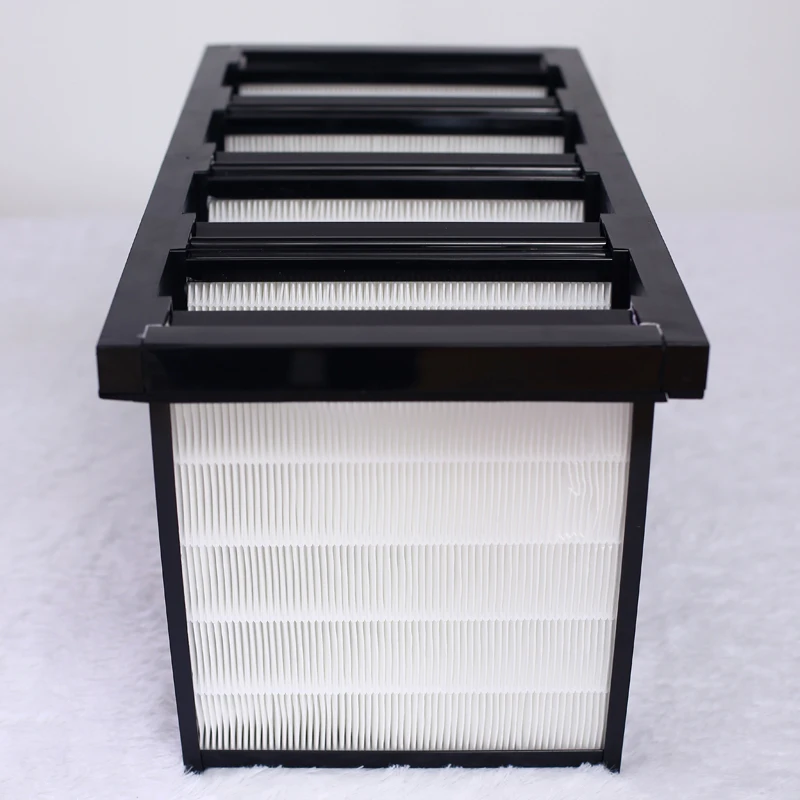

Large air volume hepa air filter W shape V bank Type hepa filters for ventilation Air conditioning and heating system

Product Overview

Description

Product features

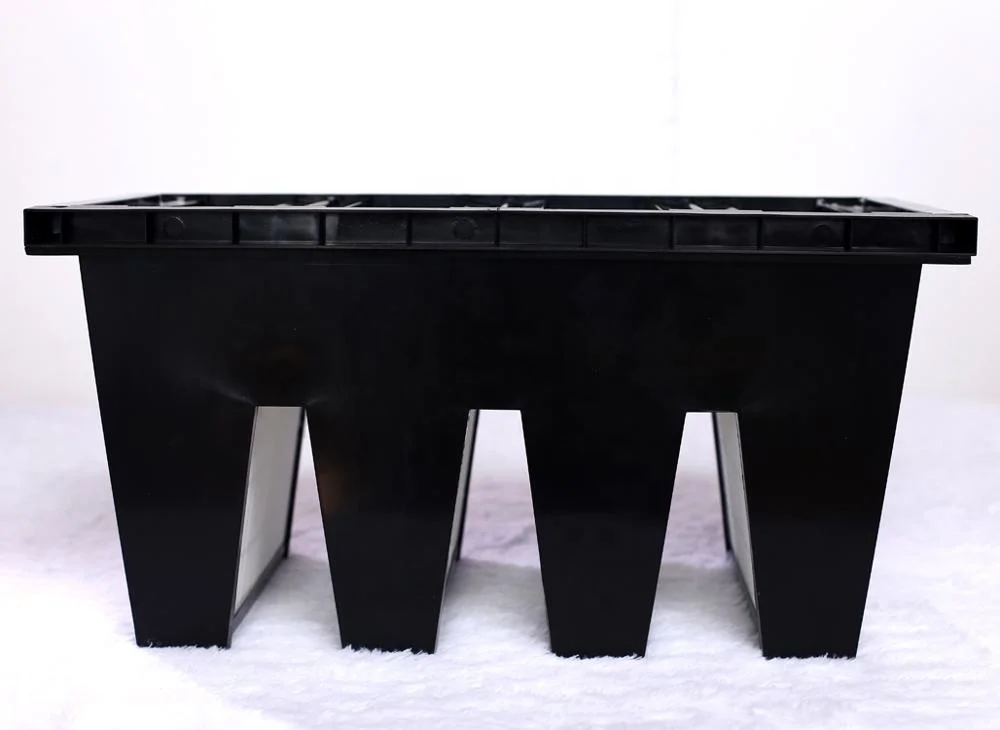

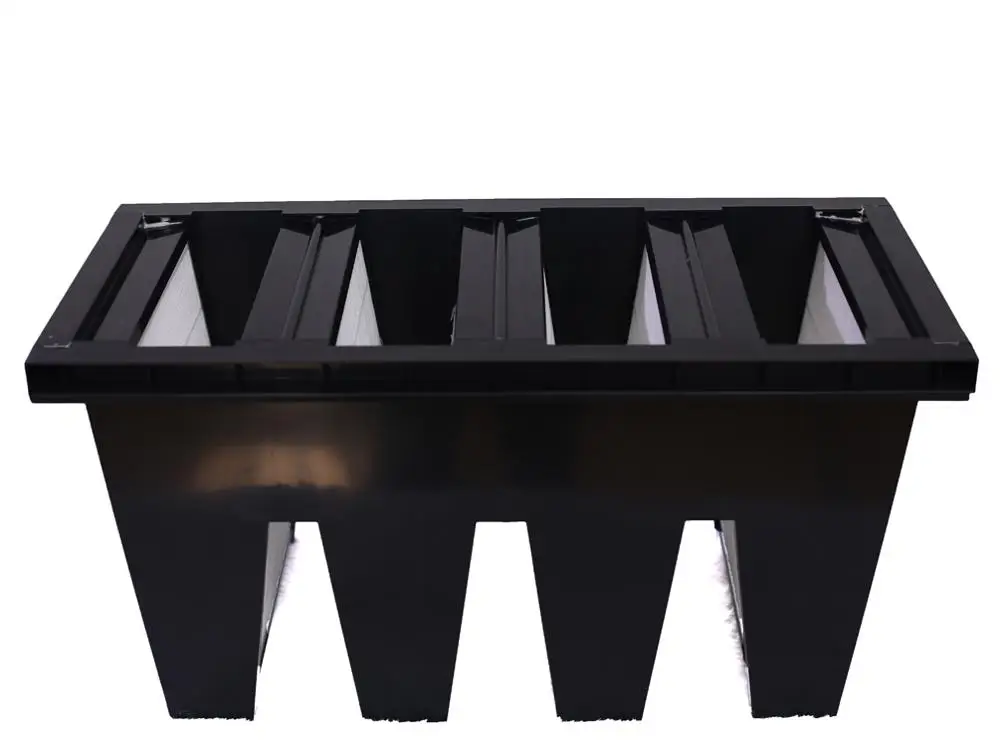

V-shaped low pressure loss type filter

Non-partition design, low fiberglass filter

High dust holding capacity and long service life

Solid structure for good performance in turbulent conditions

Available in single flange, non-flange

Polypropylene frame can be completely incinerated and disposed





Application of product

Medium effect filter for clean room, commercial and industrial ventilation and air conditioning systems

Ventilation and air conditioning system in high humidity environment

Variable air volume ventilation and air conditioning system

Ventilation and air conditioning system with tight installation space

Ventilation and air conditioning system with high fire protection requirements or high ventilation temperature

Widely used in clean rooms and other areas where air cleanliness is highly required

Product efficiency

Medium efficiency:F6,F7,F8,F9(EN779)





Material list

Frame - plastic frame / aluminum plate / stainless steel plate

Optional thickness of frame - 292mm

Filter material - water resistant glass fiber

Partition - hot melt adhesive

Connection angle - polyurethane





Applicable condition

Max. temperature (°C)          80(180℉)

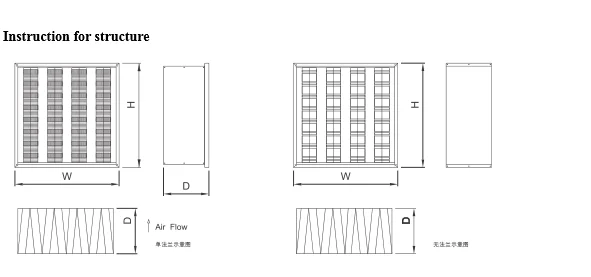

M-MV product specification

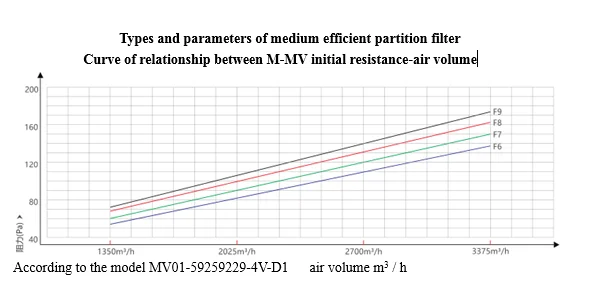

Nominal size	Actual size	Partition	Flange	Rated air volume	Surface air speed	Rated initial resistance				Recommended final resistance
(inch)	(mm)	(V)	(non/single)	(m3/h)	(m/s)	(Pa)				(Pa)
W×H×D	W×H×D					F6	F7	F8	F9	Double initial resistance
12×24×12	287×592×292	2V	Single flange	1200	2.50	110	120	130	140	Double initial resistance
24×12×12	592×287×292	4V	Single flange	1200	2.50	110	120	130	140	Double initial resistance
24×20×12	592×492×292	4V	Single flange	2200	2.50	110	120	130	140	Double initial resistance
24×24×12	592×592×292	4V	Single flange	2700	2.50	110	120	130	140	Double initial resistance
12×24×12	305×610×292	2V	Non-flange	1400	2.50	110	120	130	140	Double initial resistance
24×24×12	610×610×292	4V	Non-flange	3000	2.50	110	120	130	140	Double initial resistance







1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438



2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.



3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.



4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.



5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.



6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.



7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.

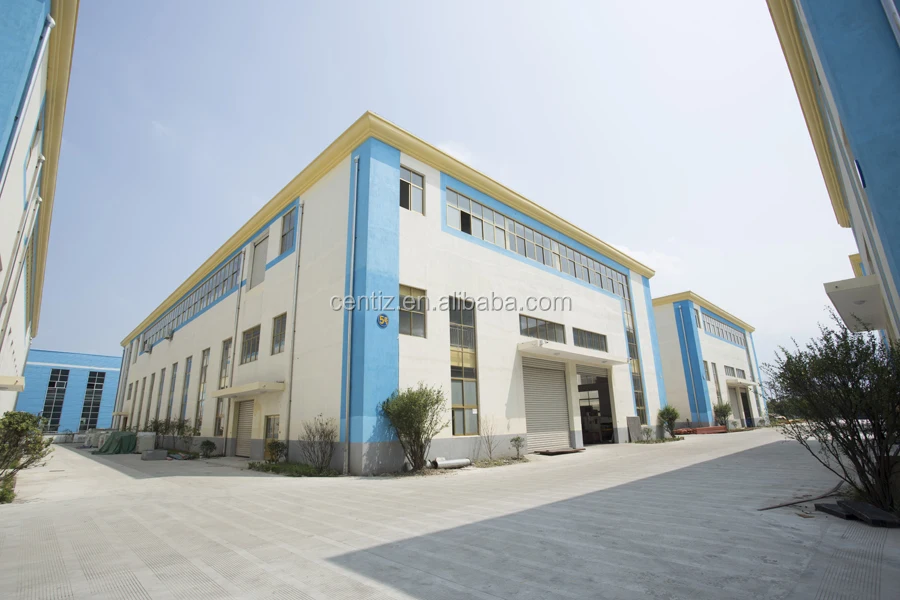

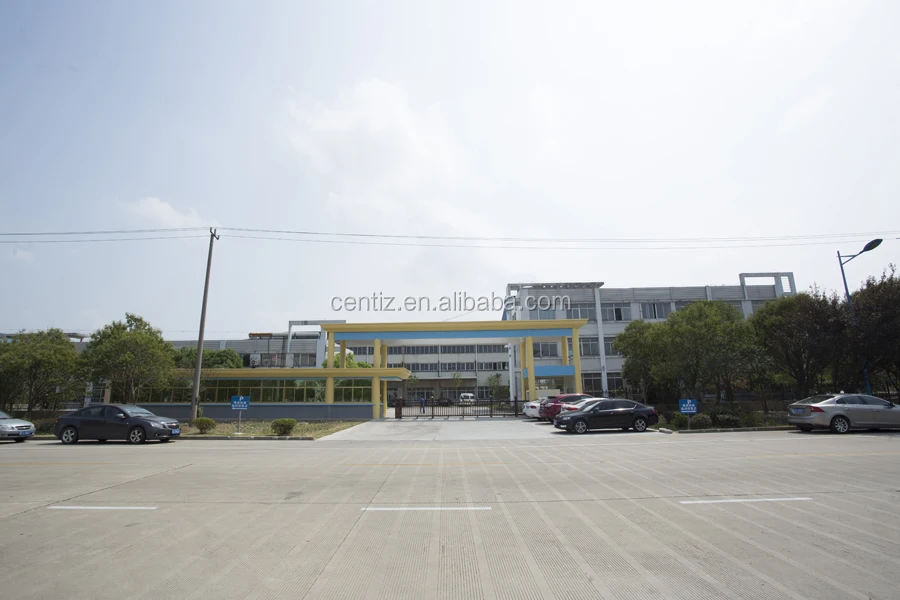

8.Factory:

Our factory located in Jiangsu, about 2000sqm, with 30 workers.
