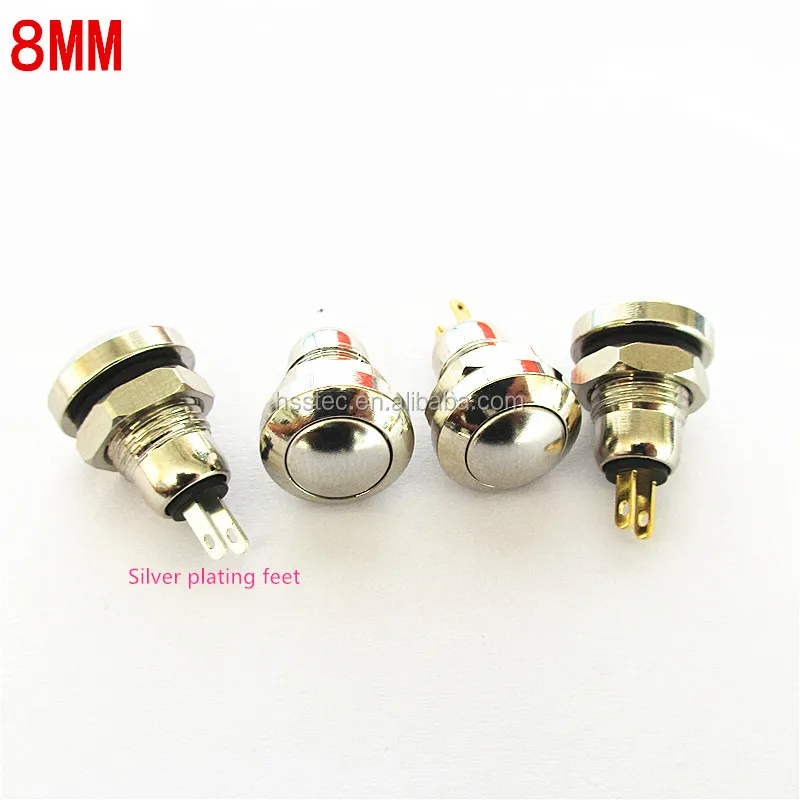

Silver point 8mm small miniature round metal button switch Waterproof self reset power start doorbell switch Silver plating feet
- Category: Micro Switches >>>
- Supplier: Shenzhen Hengsaisi Technology Co. Ltd.
Share on (62394257012):
Product Overview
Description
Product Description
Silver point 8mm small miniature round metal button switch Waterproof self-reset power start doorbell switch Silver plating feet
Note:We also have other switch for sale,if you need,please contact us.
Silver contact current: 2A gold-plated foot 8MM self-reset switch: press power on and release power off
Performance requirements
1, waterproof;
2, contact resistance: ≤ 50mΩ;
3. Insulation resistance: ≤50mΩ;
4. Life: Electrical parts: 200,000 movements under rated load without abnormality;
Mechanical part: 1 million movements without abnormalities.
5, the top of the cattle: 50N, no loose, shedding phenomenon.
skills requirement
1. The surface is clean and the gloss is even;
2, the logo is clear, no misplacement, reprint;
3, rated voltage, DC36V/2A;
4, working environment temperature: -20 ° C ~ +55 ° C;
5. Action form: self-replica;
6, the action stroke: 1.3mm;
7, the action force: ≤ 3N;
8, connection form: pin welding;
9, tightening torque: 5-14N.m;
10, switch combination: 1NO;
11. Unmarked tolerances are in accordance with GB/T 1804-m.
Performance requirements
1, waterproof;
2, contact resistance: ≤ 50mΩ;
3. Insulation resistance: ≤50mΩ;
4. Life: Electrical parts: 200,000 movements under rated load without abnormality;
Mechanical part: 1 million movements without abnormalities.
5, the top of the cattle: 50N, no loose, shedding phenomenon.
skills requirement
1. The surface is clean and the gloss is even;
2, the logo is clear, no misplacement, reprint;
3, rated voltage, DC36V/2A;
4, working environment temperature: -20 ° C ~ +55 ° C;
5. Action form: self-replica;
6, the action stroke: 1.3mm;
7, the action force: ≤ 3N;
8, connection form: pin welding;
9, tightening torque: 5-14N.m;
10, switch combination: 1NO;
11. Unmarked tolerances are in accordance with GB/T 1804-m.
