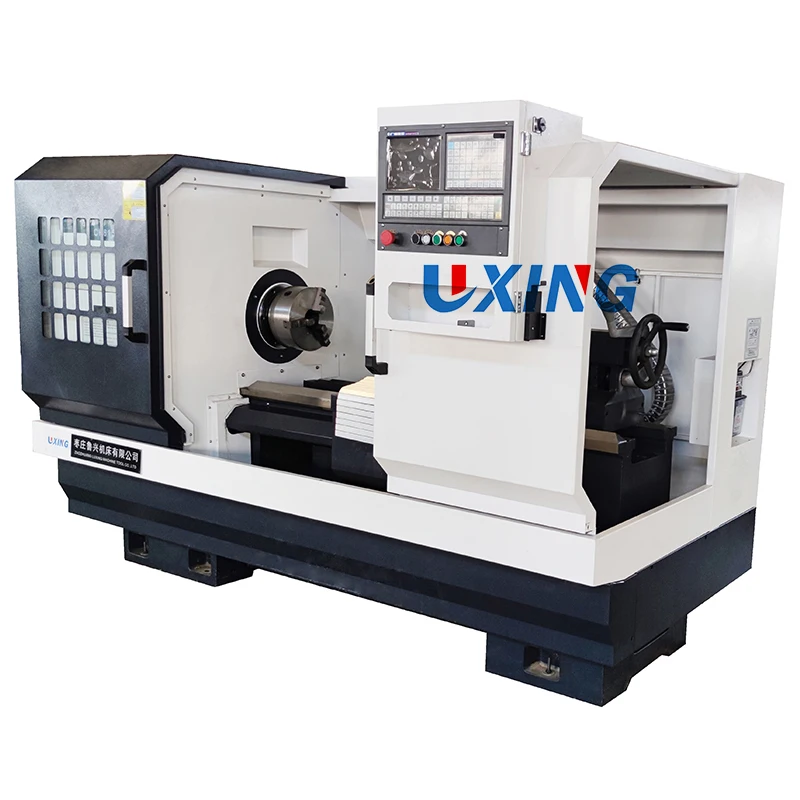

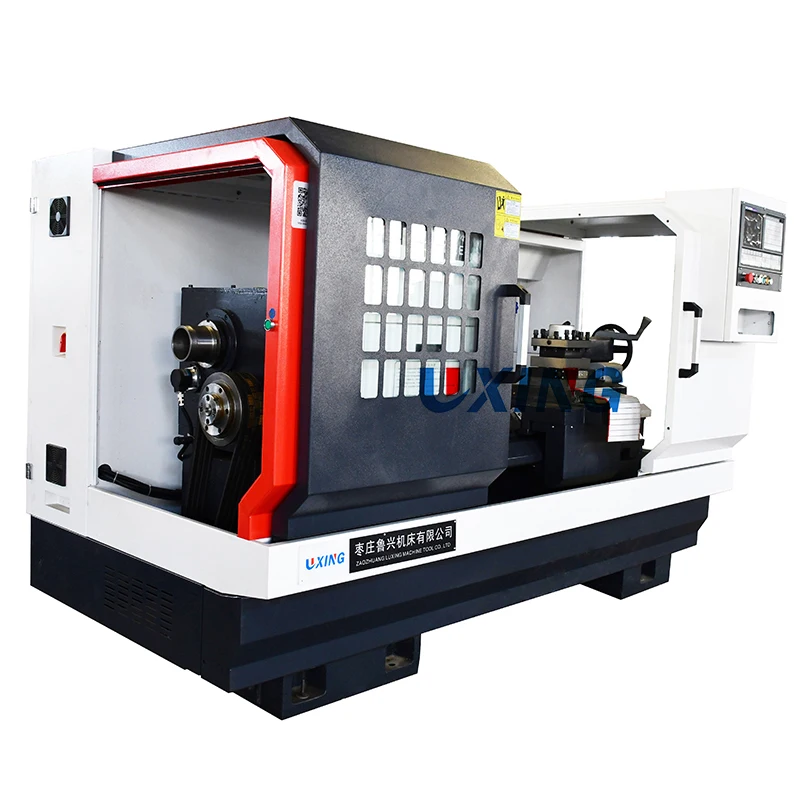

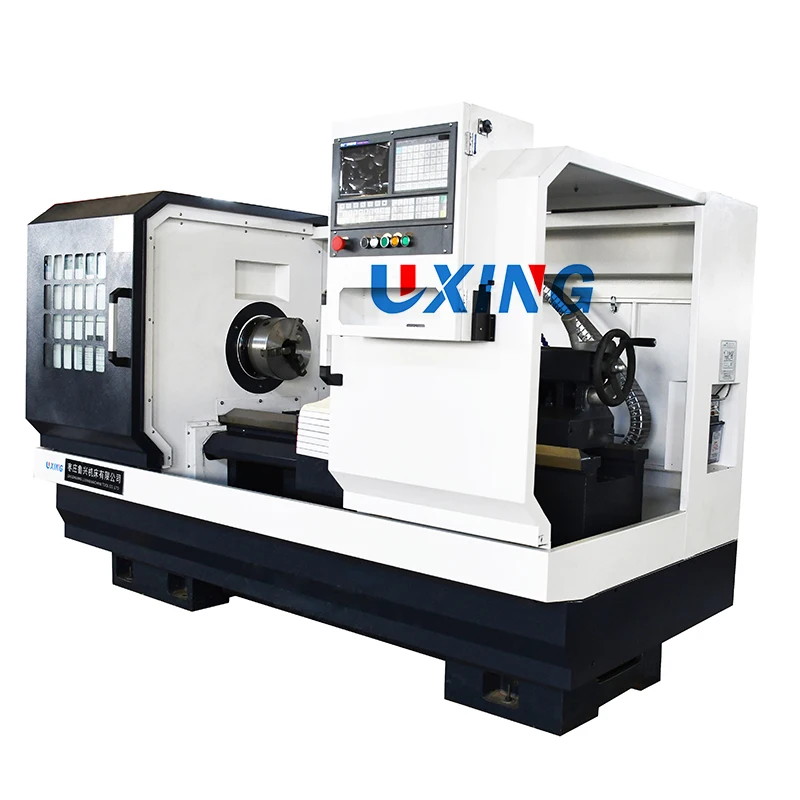

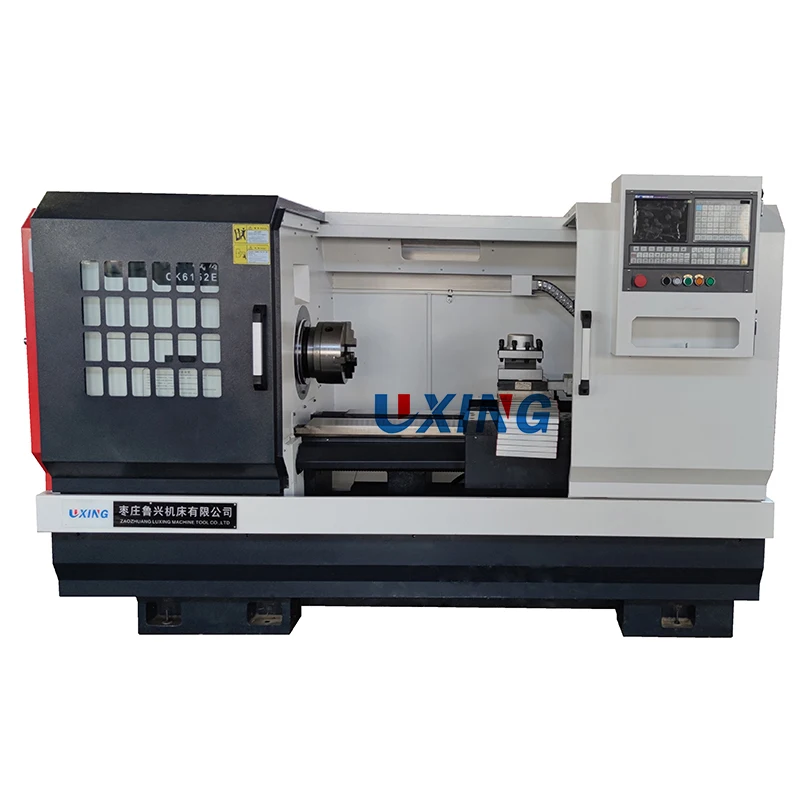

flat bed heavy duty revolver cnc automatic lathe machine price CK6152E CK6165E revolver tool price
- Category: >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (62394276606):
Product Overview
Description
flat bed heavy duty revolver cnc automatic lathe machine price CK6152E CK6165E revolver tool price
Product application:
The machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automaticity,simpler programming and higher accuracy.

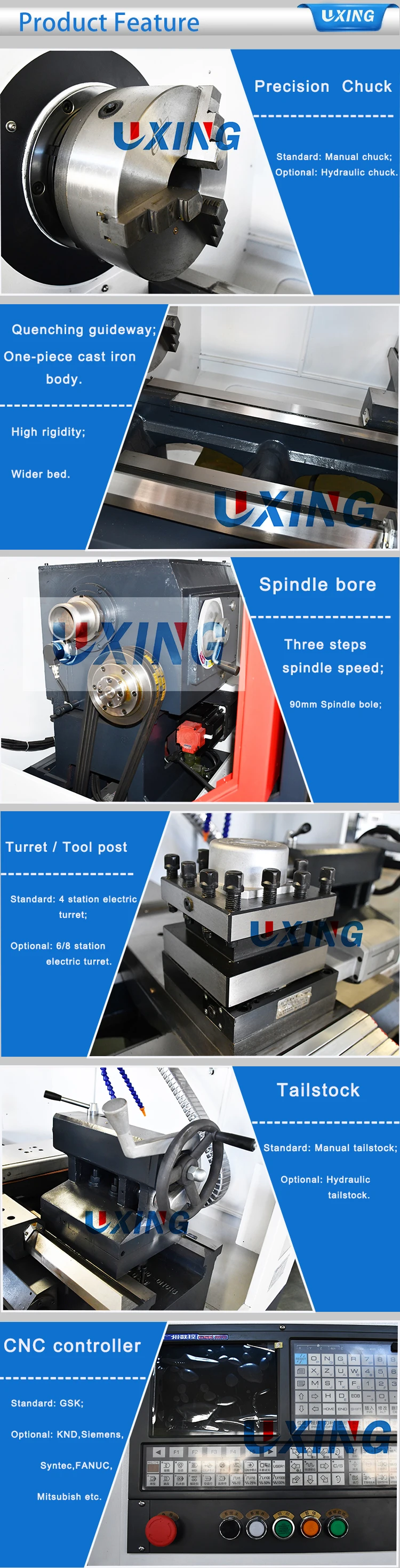

Product features:
Higher stability one-piece machine bed
3-gear spindle speed,step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system
3-gear spindle speed,step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system
Standard accessories:
Eletric 4 position ,3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield
Optional accessories:
Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield
Machine main specifications:
Specifications | Unit | CK6152E | CK6165E |
Max.swing over bed | mm | Φ530 | Φ650 |
Max.swing over cross slide | mm | Φ280 | Φ375 |
Max.processing length | mm | 825/1325 | 1000/1500/2000/3000 |
X/Z axis travel | mm | X:330 Z:1000/1500 | X:400 Z:1200/1650/2200/3100 |
Spindle transmission type | 3 steps variable speed | 3 steps variable speed | |
Spindle speed steep | stepless | stepless | |
Spindle speed | rpm | 30-150,90-450,315-1600 | 10-85,40-350,110-850 |
Spindle nose | A8 | C11 | |
Spindle bore | mm | Φ90 | Φ105 |
Spindle taper | Metric 100-1:20 | Metric 120-1:20 | |
Spindle motor | kW | 7.5 | 11 |

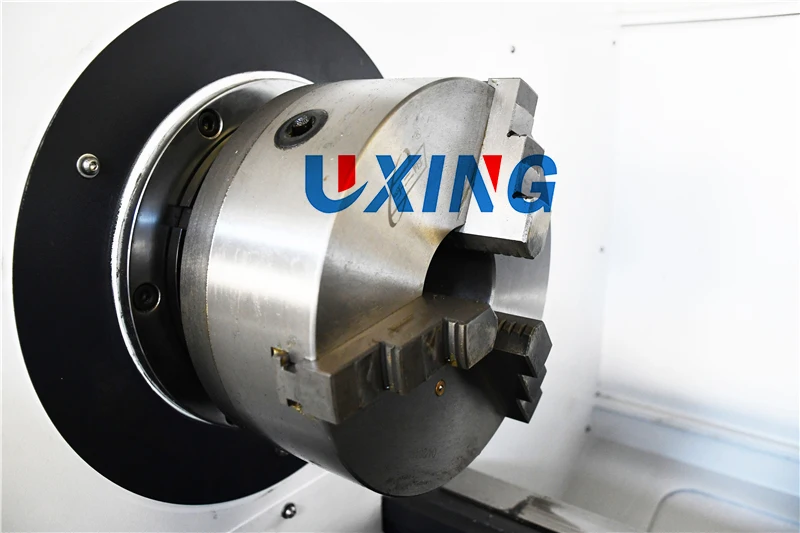

Chuck size | mm | Φ250 | Φ320 |
Ball screw dia.and pitch | 2506/4010 | 2505/5010 | |
X/Z axis feed motor torque | N.m | X:7.5 Z:10 | X:10 Z:15(30) |
X/Z axis rapid traverse | m/min | 6/10 | 4/5 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
Processing accuracy | IT6-IT7 | IT6-IT7 | |
Workpiece surface roughness | Ra1.6 | Ra1.6 | |

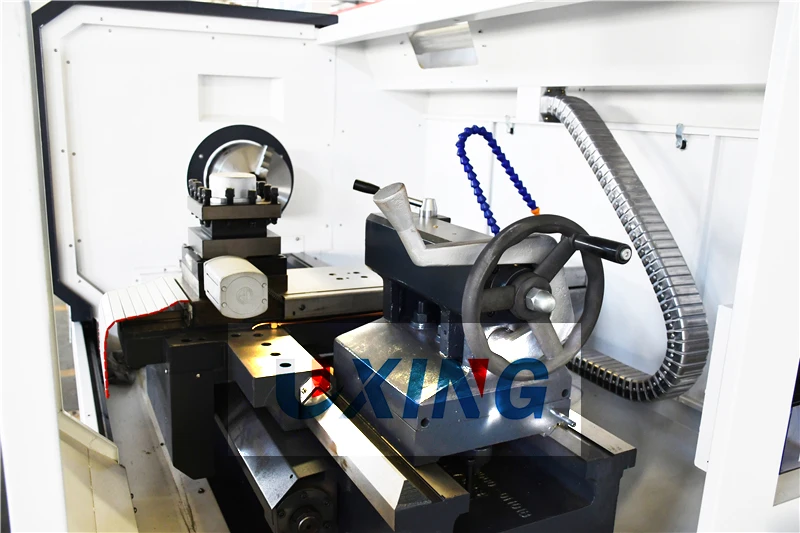

Tailstock sleeve dia. | mm | Φ75 | Φ100 |
Tailstock sleeve travel | mm | 150 | 250 |
Tailstock sleeve taper | # | MT5 | MT6 |

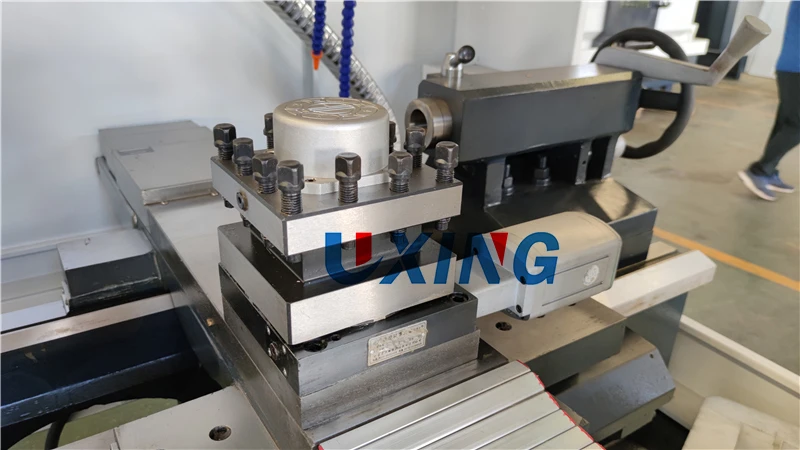

Tool post type | 4 station electric tool post (optional:6 station turret) | 4 station electric tool post (optional:6 station turret) | |
Cutting tool shape size | mm | 25x25 | 32x32 |
Guide form | Flat bed | Flat bed | |
Total power capacity | KVA | 12.5 | 15 |
Machine dimension(LxWxH) | mm | 2570/3070x1550x1710 | 3200/3700/4200/5200x1800x1900 |
Net weight | kg | 3150/3400 | 3900/4500/5400 |
Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Manual mills,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Manual mills,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
